INTERNAL MAIN RELAY SHORTED — 66

5 - 100

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

DR/DH

INTERNAL MAIN RELAY SHORTED — 66 (CONTINUED)

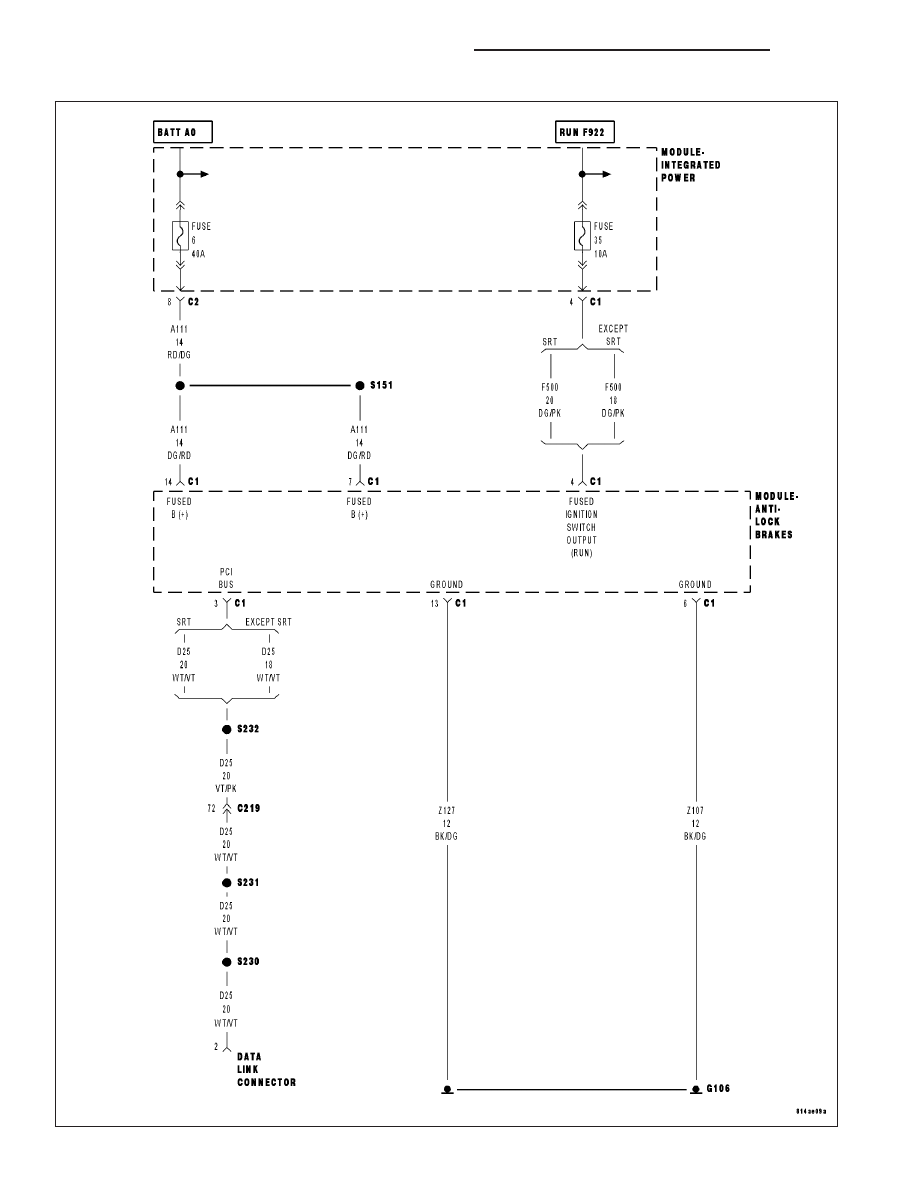

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.

Set Condition:
The Relay feedback is above the calibrated value.

Possible Causes

INTERMITTENT BATTERY VOLTAGE HIGH DTC

POWERTRAIN CHARGING SYSTEM DTCS PRESENT

FUSED B+ CIRCUIT

GROUND CIRCUIT

CONTROLLER ANTI-LOCK BRAKE

Diagnostic Test

1.

DTC IS ACTIVE

NOTE: Diagnose and repair any powertrain Charging system DTCs before continuing with this procedure.

NOTE: Ensure the battery is fully charged.
Turn the ignition on.

With the DRBIII

T

, erase DTCs.

Turn the ignition off.

Start the engine.

With the DRBIII

T

read DTCs.

Does the DTC reset?

Yes

>> Go To 2

No

>> Go To 4

DR/DH

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

5 - 101

INTERNAL MAIN RELAY SHORTED — 66 (CONTINUED)

2.

FUSED B+ CIRCUIT SHORTED TO FUSED IGNITION SWITCH OUTPUT CIRCUIT

Turn the ignition off.

Disconnect the Controller Anti-Lock Brake harness connector.

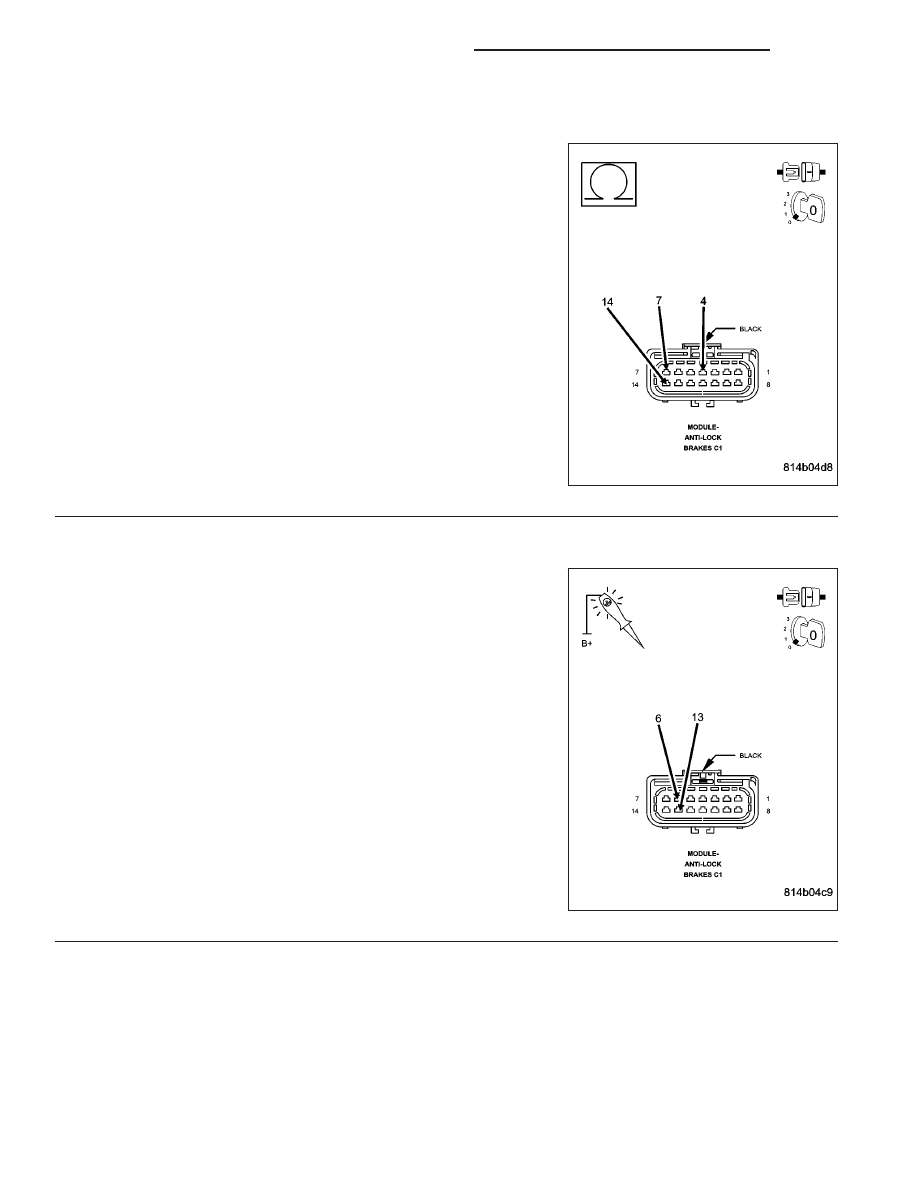

Using a 12–volt test light connected to ground, probe the Fused Igni-
tion Switch Output circuit.

Does the test light illuminate?

Yes

>> Repair the Fused B+ circuit shorted to the Fused Ignition

Switch Output circuit.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES/ELECTRICAL - DIAGNOSIS AND TESTING)

No

>> Go To 3

3.

GROUND CIRCUIT(S) OPEN OR HIGH RESISTANCE

Turn the ignition off.

Using a 12–volt test light connected to B+, probe both the Ground cir-
cuit.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery at
each circuit.

Is the test light illuminated and bright?

Yes

>> Replace the Controller Anti-lock Brake Module in accor-

dance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES/ELECTRICAL - DIAGNOSIS AND TESTING)

No

>> Repair the Ground circuit(s) for an open circuit or high

resistance.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES/ELECTRICAL - DIAGNOSIS AND TESTING)

5 - 102

BRAKES - ABS - ELECTRICAL DIAGNOSTICS

DR/DH

INTERNAL MAIN RELAY SHORTED — 66 (CONTINUED)

4.

INTERMITTENT DTC

NOTE: Check the PowertrainControl Module for any charging system DTCs and repair as necessary.
Turn the ignition off.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Check connectors - Clean/repair as necessary.

Ensure the charging system is operating properly.

Inspect the vehicle for aftermarket accessories that may exceed the Charging System output.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES/ELECTRICAL - DIAGNOSIS AND
TESTING)

No

>> Test Complete.
