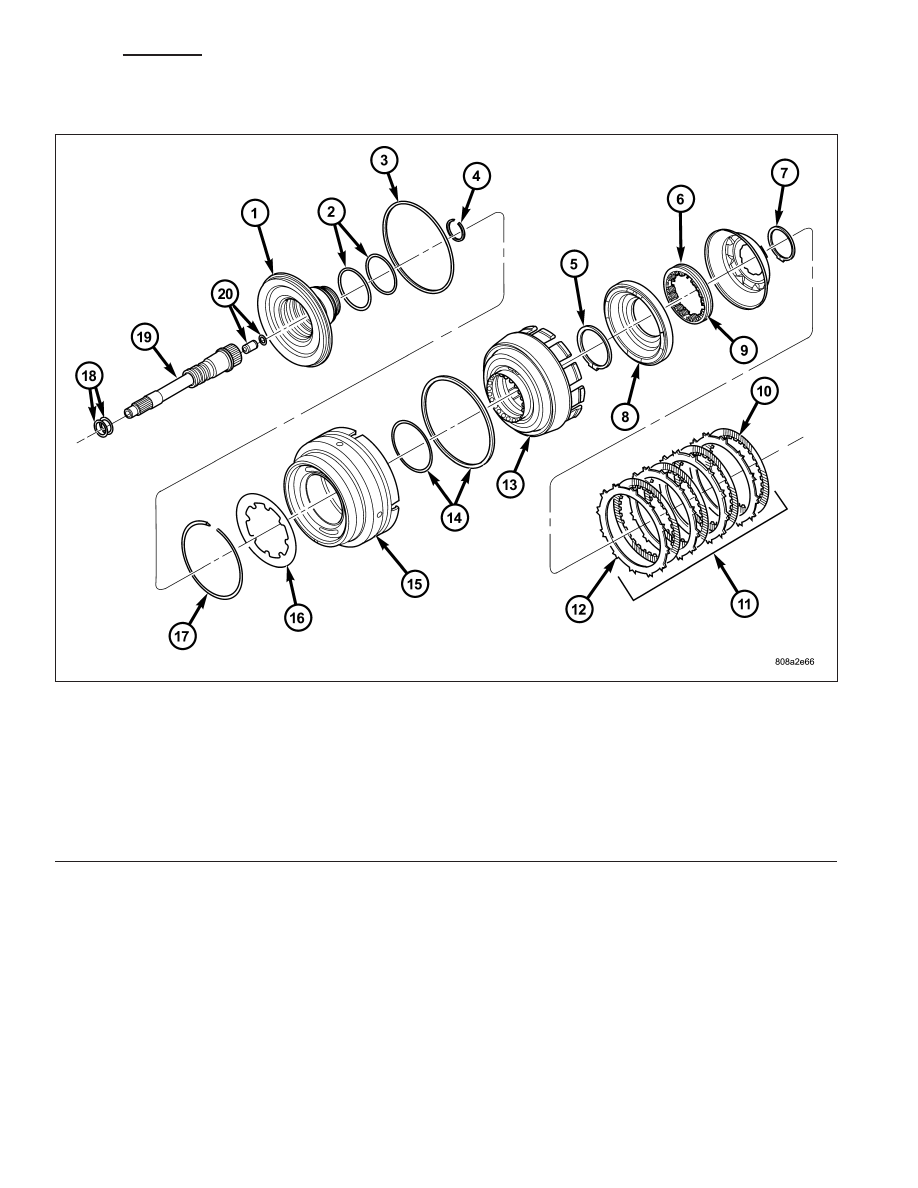

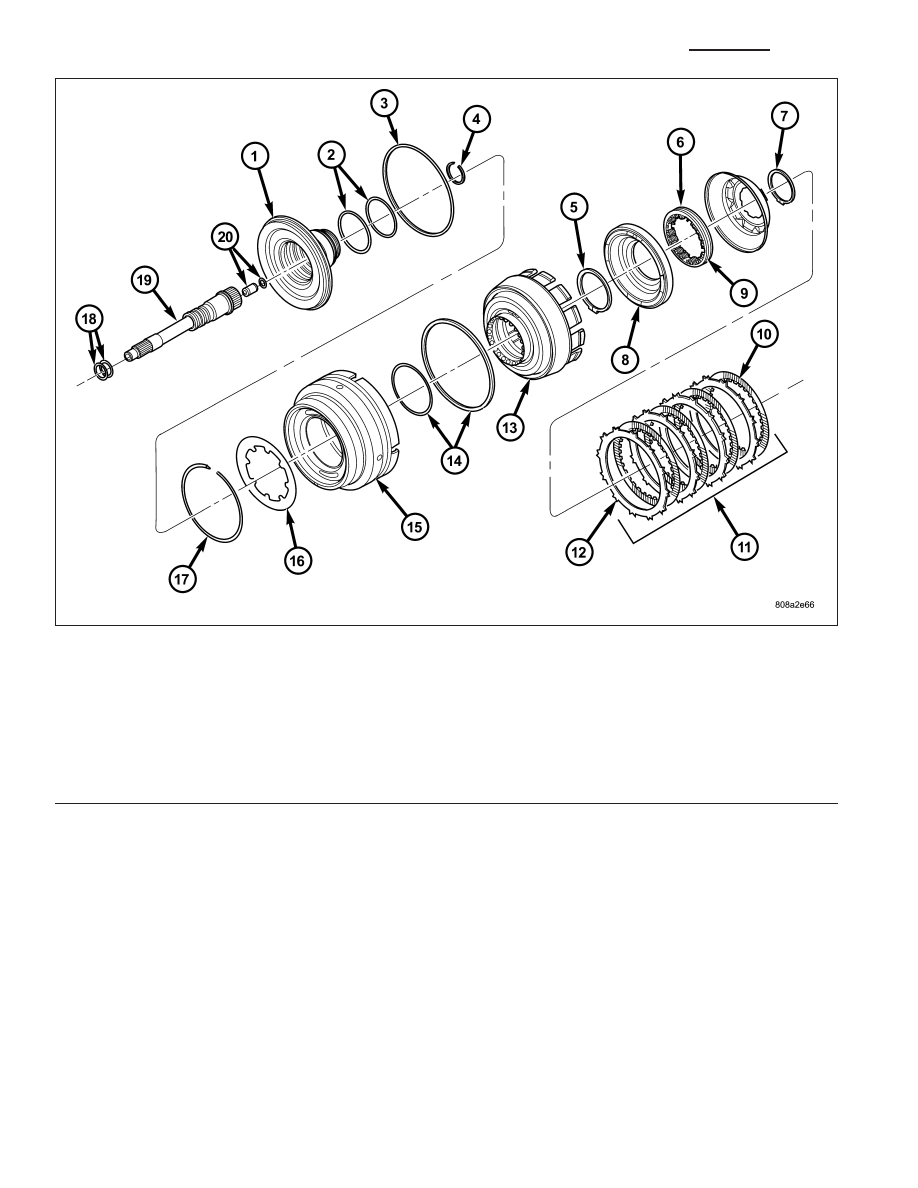

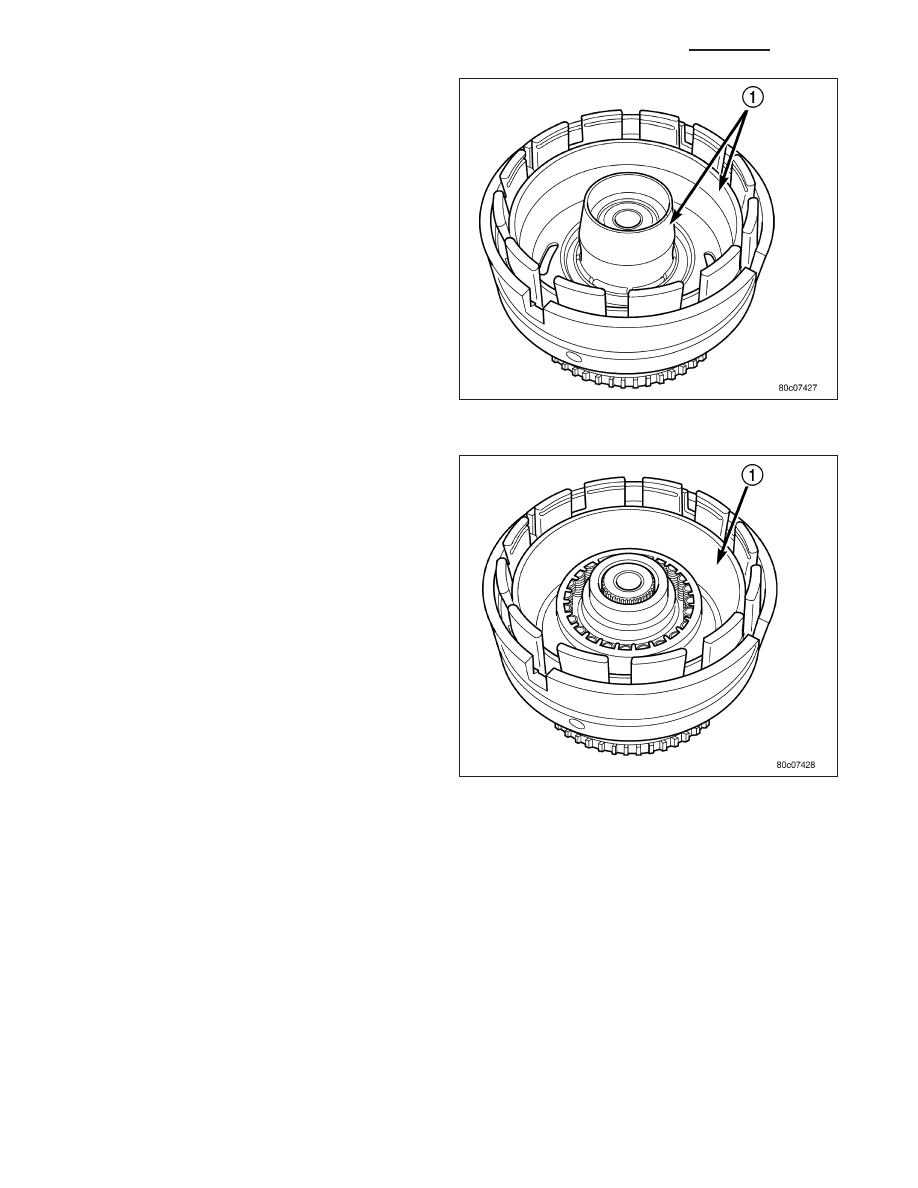

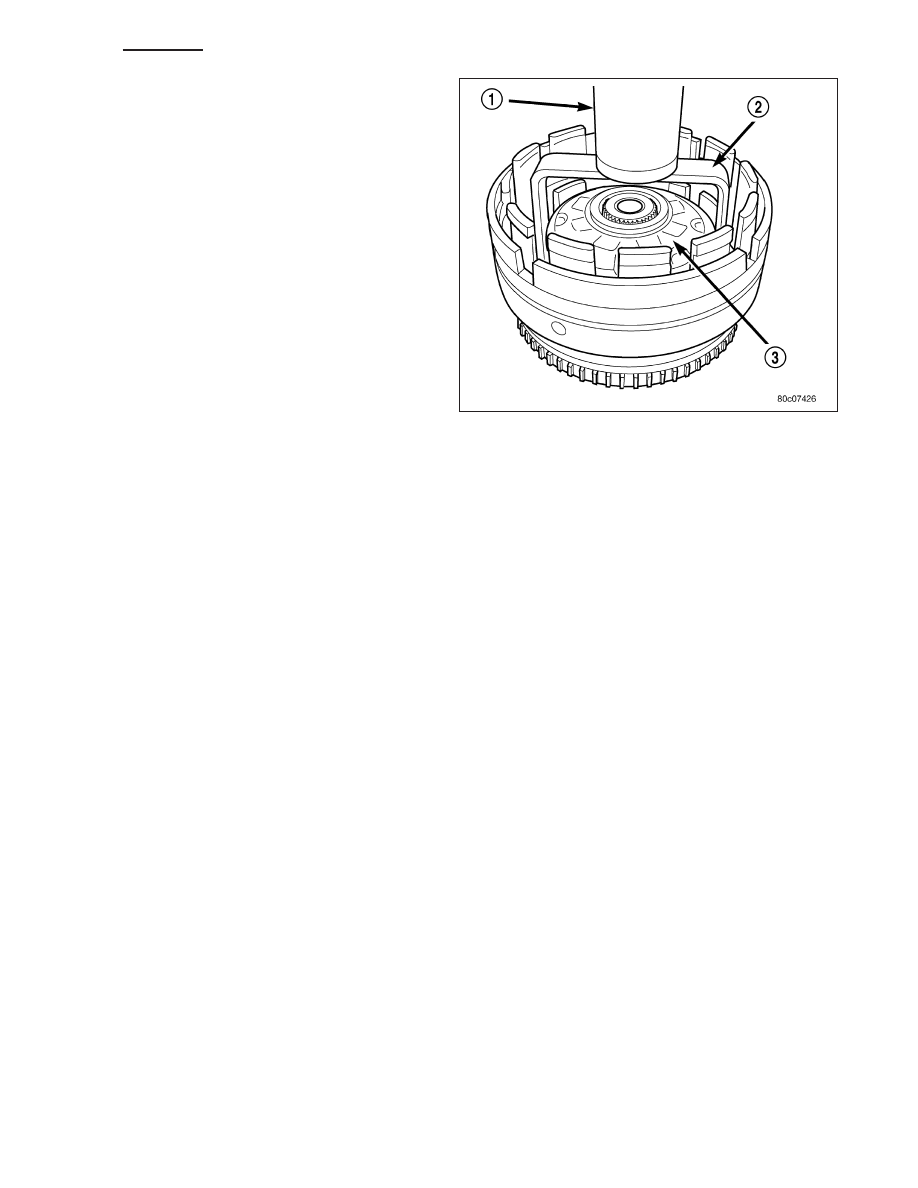

16. Remove the UD/OD balance piston (6) and piston return spring (9) from the input clutch retainer (13). 17. Remove the underdrive piston (8) from the input clutch retainer (13). NOTE: Both the UD/OD balance piston and the underdrive piston have seals molded onto them. If the seal 18. Remove the input clutch retainer tapered snap-ring (5). 19. Separate input clutch retainer (13) from input clutch hub (1). 20. Separate OD/reverse piston (15) from input clutch hub retainer (13). 21. Remove all seals and o-rings from the input shaft and input hub. The o-rings on the input hub are color coded. Be sure to make note of which o-ring belongs in which location. Input Clutch Assembly - Part 1 1 - INPUT CLUTCH HUB 11 - UD CLUTCH 2 - O-RING SEALS 12 - PLATE 3 - SEAL 13 - CLUTCH RETAINER 4 - SNAP-RING 14 - SEAL 5 - SNAP-RING 15 - OD/REV PISTON 6 - UD BALANCE PISTON 16 - BELLEVILLE SPRING 7 - SNAP-RING 17 - SNAP-RING 8 - UD PISTON 18 - SEAL RINGS 9 - SPRING 19 - INPUT SHAFT 10 - DISC 20 - LUBRICATION CHECK VALVE AND SNAP-RING 21 - 636 AUTOMATIC TRANSMISSION - 45RFE/545RFE - SERVICE INFORMATION DR/DH |
