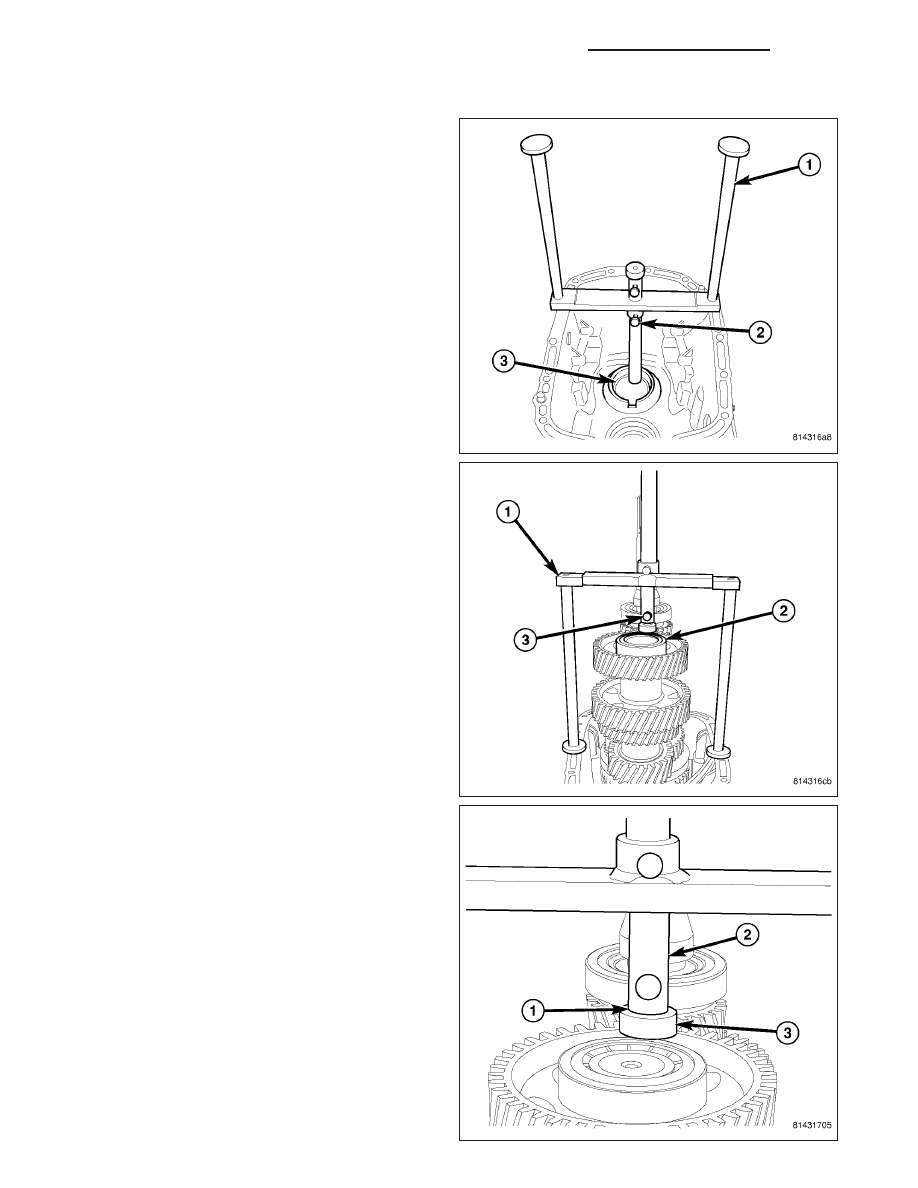

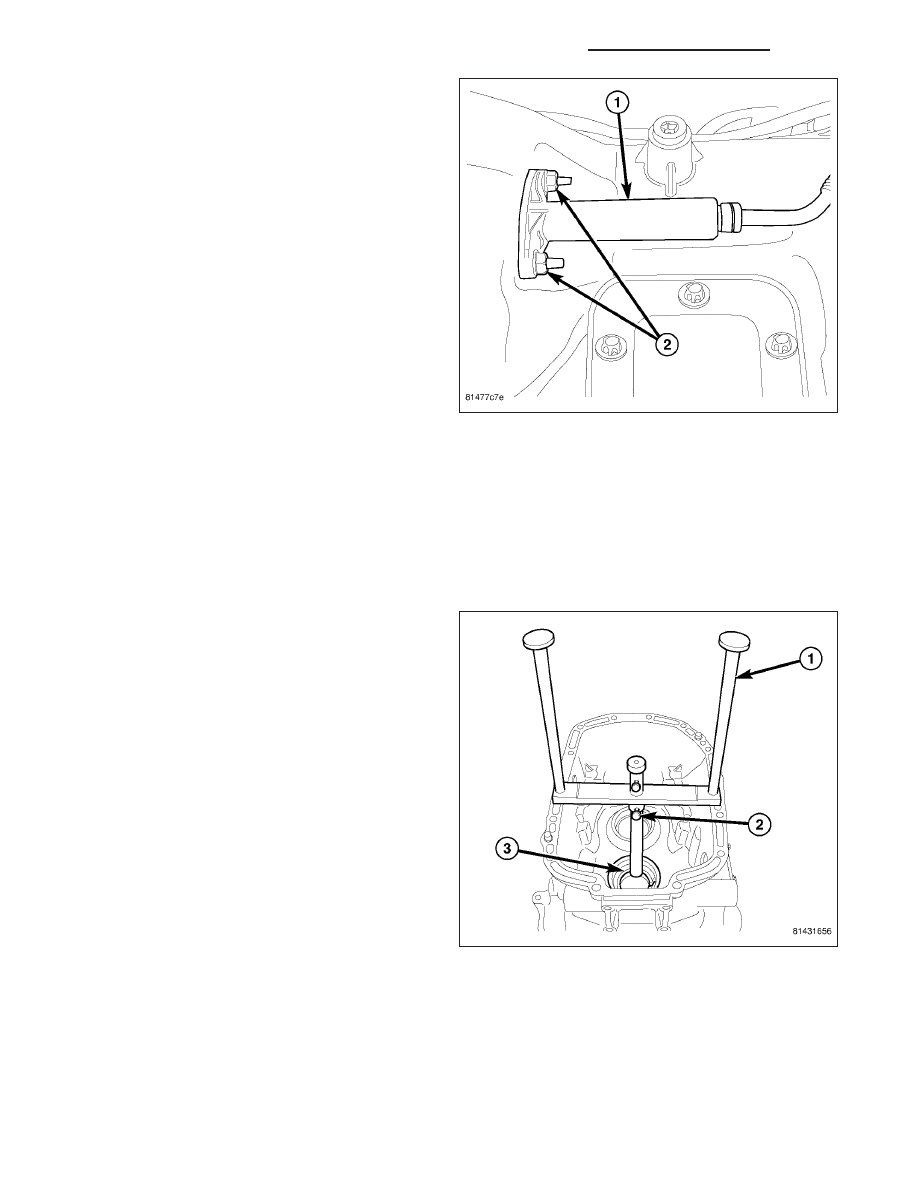

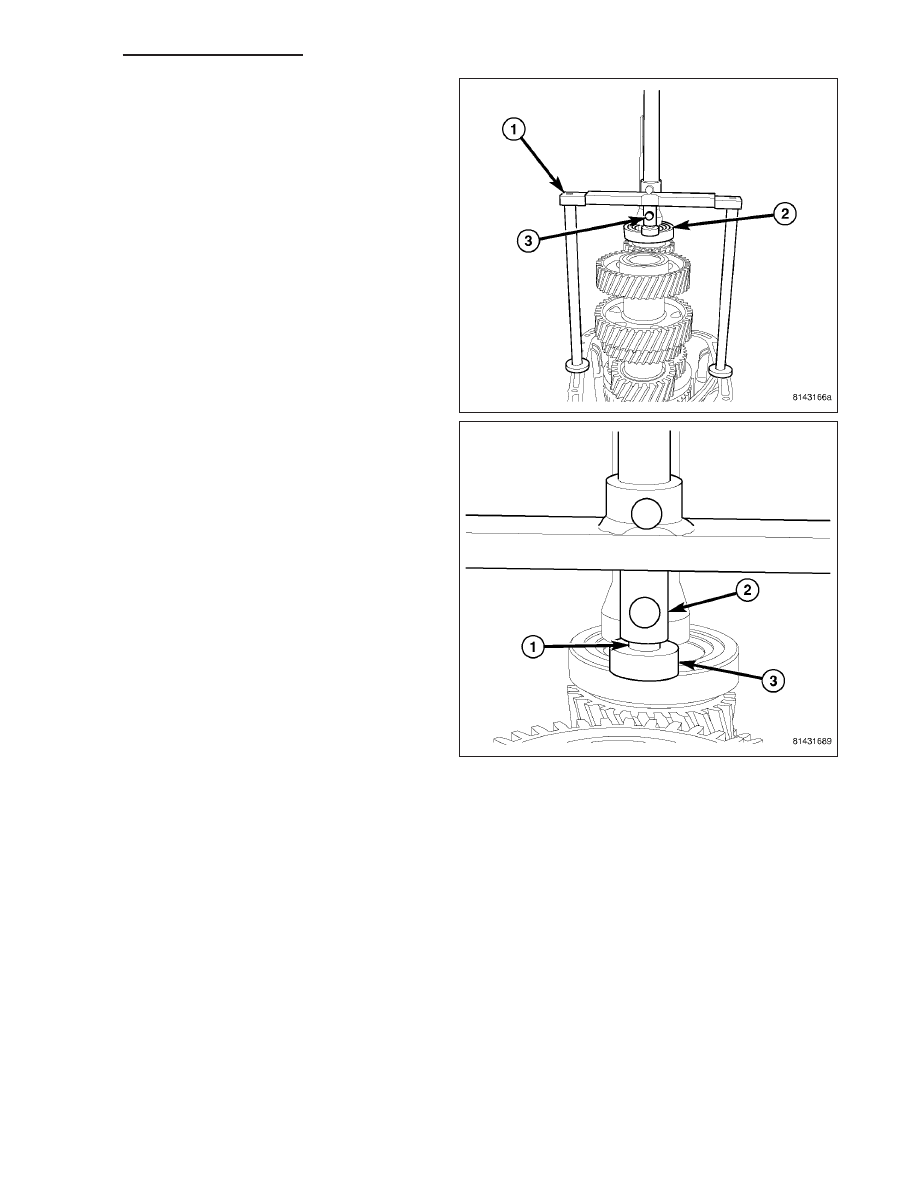

12. Connect transmission harnesses to clips on case and connect switches. 13. Install slave cylinder and tighten cylinder nuts to 23 N·m (200 in. lbs.). 14. Install transfer case and transfer case linkage 4x4 equipped. 15. Remove transmission jack. 16. Install propeller shaft/shafts with reference marks aligned. 17. Install exhaust on the exhaust manifolds. 18. Fill transmission with lubricant. Correct fill level is to bottom edge of fill plug hole. ADJUSTMENTS MAINSHAFT/COUNTERSHAFT BEARING PRELOAD CAUTION: This procedure must be performed any time a mainshaft, countershaft or input shaft bearing or MAINSHAFT 1. Set mainshaft, input shaft and countershaft into the rear housing. Rotate the shafts to seat bearing in 2. Remove mainshaft bearing cup, shims and oiler washer from the rear housing. 3. Position Fixture 9592 (1) on front housing over the mainshaft bearing cup bore. 4. Loosen the knob (2) on the fixture and lower the shaft onto the mainshaft bearing cup (3) bore 5. Remove the fixture from the front housing. 21 - 228 MANUAL TRANSMISSION - G56 - SERVICE INFORMATION DR/DH |
