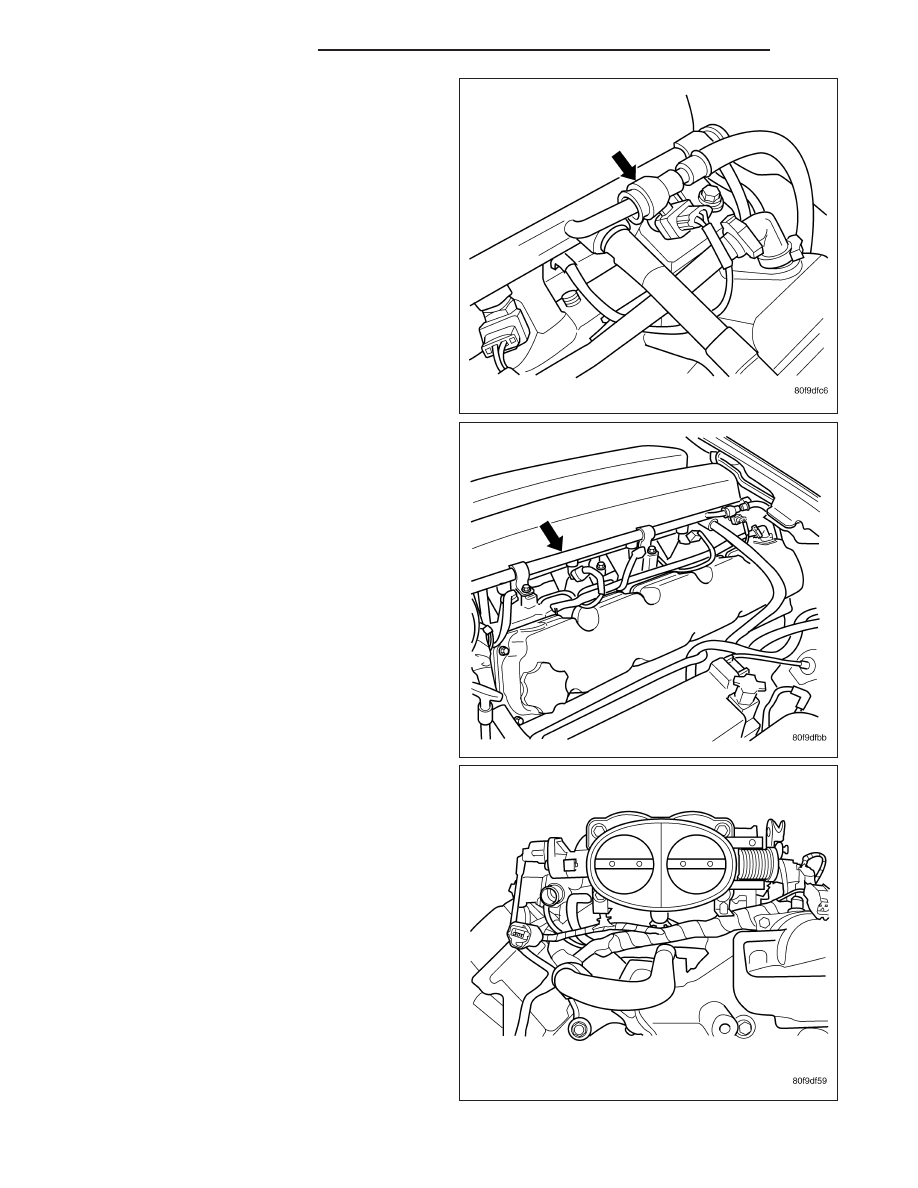

8. Disconnect the fuel line quick connector.

9. Remove the bolts for the fuel rail.

10. Pull fuel rail and injectors straight up and out of

the intake manifold.

11. Move the fuel rail forward and out from under the

intake manifold and throttle body.

14 - 56

FUEL INJECTION - GAS

DR/DH

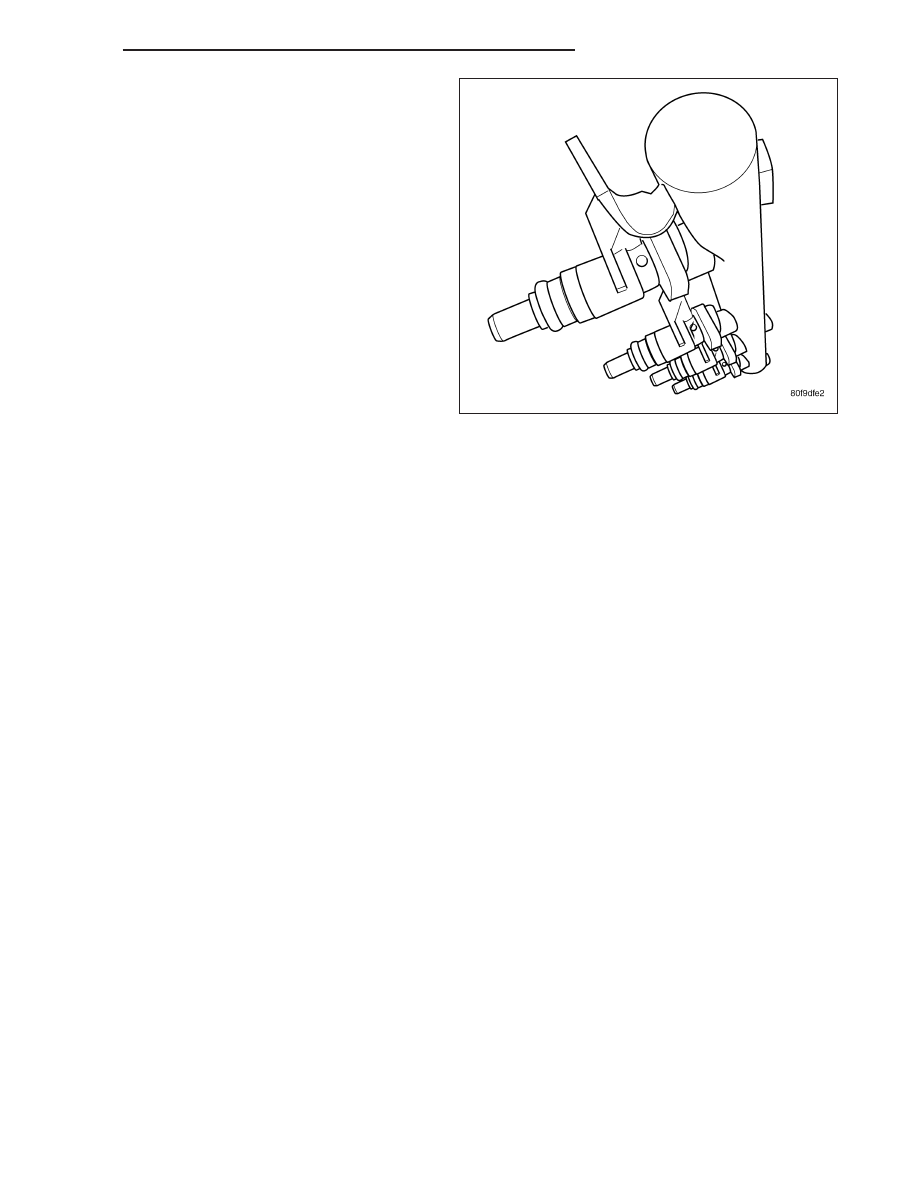

12. Remove the fuel injector from the fuel rail.

INSTALLATION

3.7L, 4.7L, 5.7L

1. Install fuel injector(s) into fuel rail assembly and install retaining clip(s).

2. If same injector(s) is being reinstalled, install new o-ring(s).

3. Apply a small amount of clean engine oil to each injector o-ring. This will aid in installation.

4. Install fuel rail. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/FUEL RAIL - INSTALLATION)

5. Start engine and check for fuel leaks.

8.3L - SRT-10

1. Install the fuel injectors to the fuel rail.

2. Install fuel rail under throttle body.

3. Apply a light coating of clean engine oil to the O-ring on the nozzle end of each injector.

4. Insert fuel injector nozzles into openings in intake manifold. Seat the injectors in place. Tighten fuel rail bolts to

12 N·m (105 in. lbs.).

5. Attach electrical connectors to fuel injectors.

6. Connect the electrical connector to the MAP sensor and Coolant Temperature sensor.

7. Connect the electrical connector to the TPS and Idle Air Control.

8. Install the wiring harness to the wiring clips under the throttle body.

9. Connect fuel supply tube to fuel rail. Refer to Quick Connect Fittings in the Fuel Delivery section

10. Install the negative battery cable and install the battery cover.

11. Install the air cleaner assembly, refer to the Engine/Air Intake System/Air Cleaner Housing for more information.

12. Use the DRBIII

T

scan tool ASD Fuel System Test to pressurize the fuel system. Check for leaks.

RELAY - FUEL PUMP

DESCRIPTION

The 5–pin, 12–volt, fuel pump relay is located in the Power Distribution Center (PDC). Refer to the label on the PDC
cover for relay location.

DR/DH

FUEL INJECTION - GAS

14 - 57

OPERATION

The Powertrain Control Module (PCM) energizes the electric fuel pump through the fuel pump relay. The fuel pump
relay is energized by first applying battery voltage to it when the ignition key is turned ON, and then applying a
ground signal to the relay from the PCM.

Whenever the ignition key is turned ON, the electric fuel pump will operate. But, the PCM will shut-down the ground
circuit to the fuel pump relay in approximately 1–3 seconds unless the engine is operating or the starter motor is
engaged.

REMOVAL

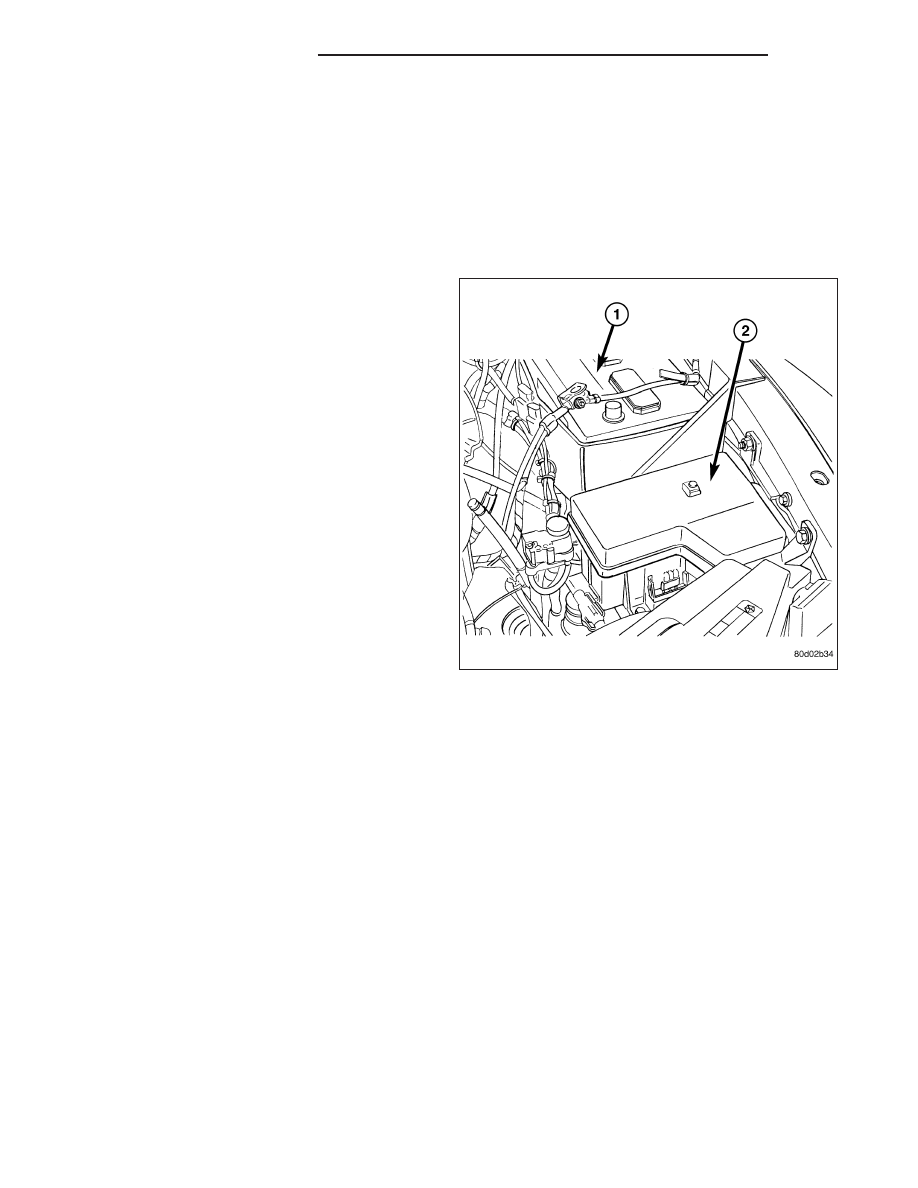

The fuel pump relay is located in the Power Distribu-
tion Center (PDC) (2). Refer to label on PDC cover for
relay location.

1. Remove PDC cover.

2. Remove relay from PDC.

3. Check condition of relay terminals and PDC con-

nector terminals for damage or corrosion. Repair if
necessary before installing relay.

4. Check for pin height (pin height should be the

same for all terminals within the PDC connector).
Repair if necessary before installing relay.

INSTALLATION

The fuel pump relay is located in the Power Distribution Center (PDC). Refer to label on PDC cover for relay loca-
tion.

1. Install relay to PDC.

2. Install cover to PDC.

14 - 58

FUEL INJECTION - GAS

DR/DH

MOTOR-IAC

DESCRIPTION

3.7L, 4.7L, 5.7L

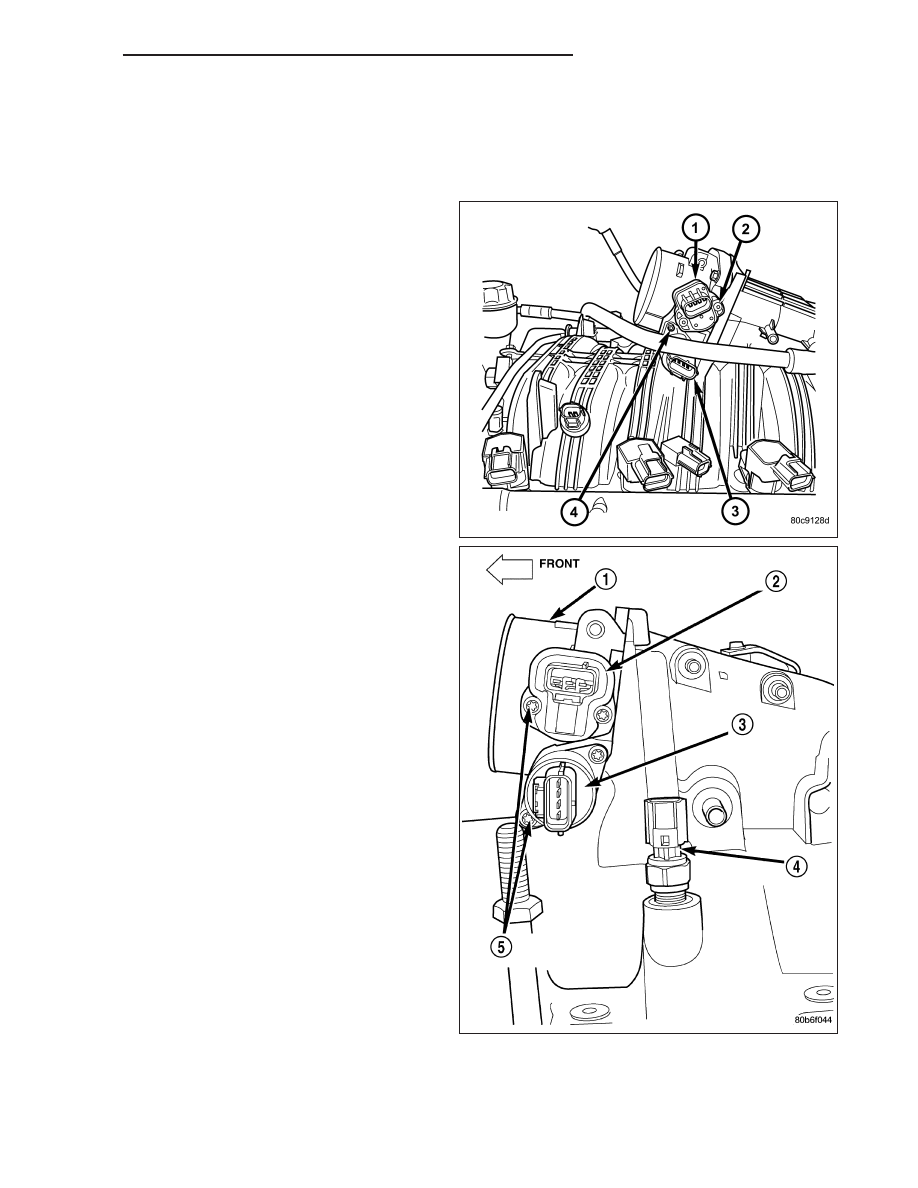

3.7L: The IAC stepper motor (3) is mounted to the
throttle body. It regulates the amount of air bypassing
the control of the throttle plate. As engine loads and
ambient temperatures change, engine rpm changes. A
pintle on the IAC stepper motor protrudes into a pas-
sage in the throttle body, controlling air flow through
the passage. The IAC is controlled by the Powertrain
Control Module (PCM) to maintain the target engine
idle speed.

4.7L: The IAC stepper motor (3) is mounted to the
throttle body. It regulates the amount of air bypassing
the control of the throttle plate. As engine loads and
ambient temperatures change, engine rpm changes. A
pintle on the IAC stepper motor protrudes into a pas-
sage in the throttle body, controlling air flow through
the passage. The IAC is controlled by the Powertrain
Control Module (PCM) to maintain the target engine
idle speed.

5.7L: A separate IAC motor is not used with the 5.7L
V-8 engine.

DR/DH

FUEL INJECTION - GAS

14 - 59
