Dodge Ram Truck 1500-2500-3500. Manual - part 1463

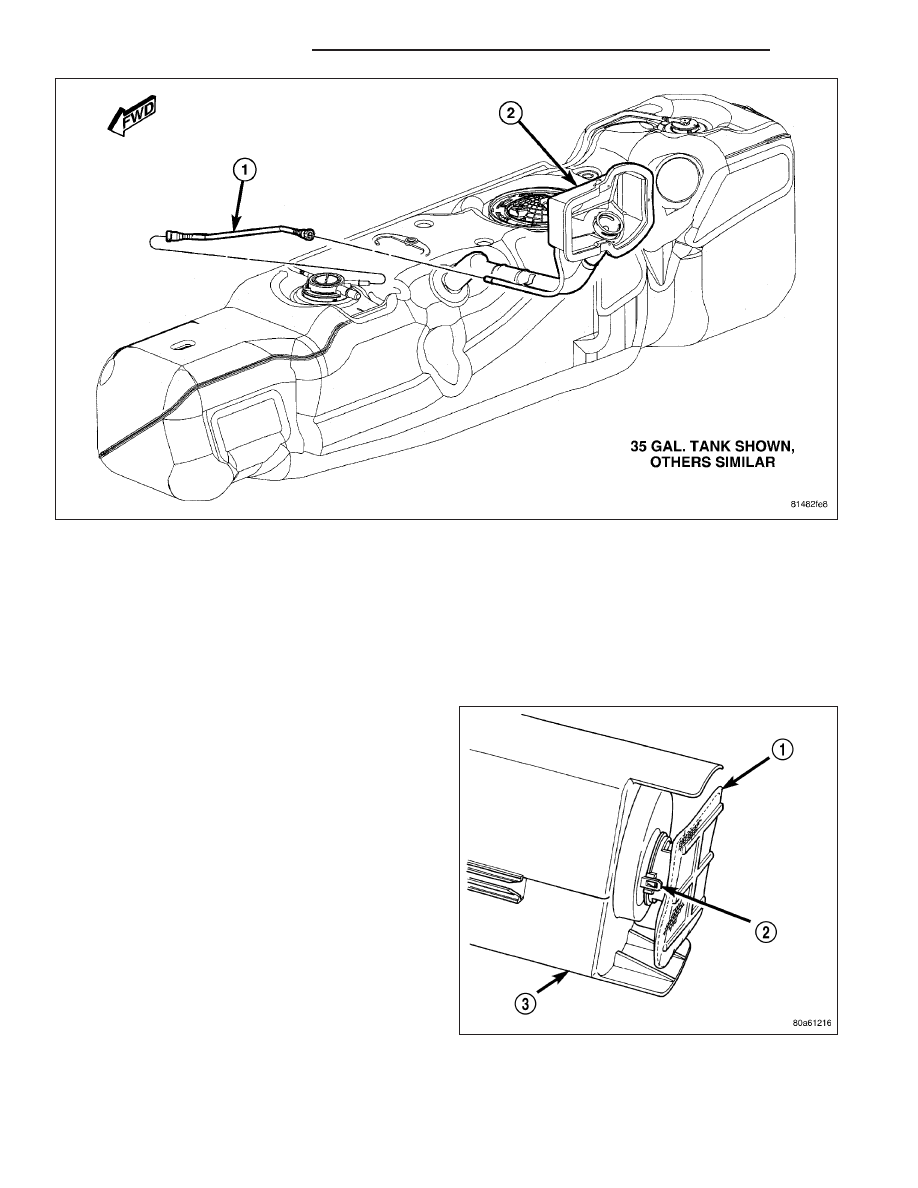

12. Connect fuel vent line (1) to fuel fill bezel (2).

13. Fill fuel tank with fuel.

14. Start engine and check for fuel leaks near top of module.

FILTER - INLET

REMOVAL

The fuel pump inlet filter (strainer) is located on the
bottom of the fuel pump module (1). The fuel pump
module is located inside of fuel tank.

1. Remove fuel tank. Refer to Fuel Tank Removal/In-

stallation.

2. Remove fuel pump module. Refer to Fuel Pump

Module Removal/Installation.

3. Remove filter by carefully prying 2 lock tabs (2) at

bottom of module with 2 screwdrivers. Filter is
snapped to module.

4. Clean bottom of pump module.

14 - 40

FUEL DELIVERY - GAS

DR/DH

INSTALLATION

The fuel pump inlet filter (strainer) is located on the bottom of the fuel pump module. The fuel pump module is
located inside of fuel tank.

1. Snap new filter to bottom of module. Be sure o-ring is in correct position.

2. Install fuel pump module. Refer to Fuel Pump Module Removal/Installation.

3. Install fuel tank. Refer to Fuel Tank Removal/Installation.

DR/DH

FUEL DELIVERY - GAS

14 - 41

FUEL INJECTION - GAS

TABLE OF CONTENTS

page

page

PEDAL - ACCELERATOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 43

SENSOR-ACCELERATOR PEDAL POSITION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 44

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 44

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

SENSOR-CRANKSHAFT POSITION

DESCRIPTION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

OPERATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

REMOVAL

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 50

INSTALLATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 52

INJECTOR - FUEL

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 52

OPERATION

FUEL INJECTOR

. . . . . . . . . . . . . . . . . . . . . . 53

PCM OUTPUT

. . . . . . . . . . . . . . . . . . . . . . . . 53

REMOVAL

3.7L— 4.7L— 5.7L

. . . . . . . . . . . . . . . . . . . . . 54

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 54

INSTALLATION

3.7L, 4.7L, 5.7L

. . . . . . . . . . . . . . . . . . . . . . . 57

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 57

RELAY - FUEL PUMP

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 57

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 58

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 58

MOTOR-IAC

DESCRIPTION

3.7L, 4.7L, 5.7L

. . . . . . . . . . . . . . . . . . . . . . . 59

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 60

OPERATION

3.7L V-6/4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . 60

REMOVAL

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 62

INSTALLATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 64

SENSOR - INLET AIR TEMPERATURE

REMOVAL — 8.3L

. . . . . . . . . . . . . . . . . . . . . . . 64

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 64

SENSOR-INTAKE AIR TEMPERATURE

DESCRIPTION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 66

REMOVAL

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

INSTALLATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

SENSOR-MAP

DESCRIPTION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 73

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 73

REMOVAL

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

8.3 L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . 77

INSTALLATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 79

SENSOR - OXYGEN

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

SWITCH - PTO

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 81

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 81

THROTTLE BODY

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 81

14 - 42

FUEL INJECTION - GAS

DR/DH

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 81

REMOVAL

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 84

INSTALLATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 88

CABLE - THROTTLE CONTROL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 91

SENSOR-THROTTLE POSITION

DESCRIPTION

3.7L, 4.7L, 5.7L

. . . . . . . . . . . . . . . . . . . . . . . 92

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 92

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 93

REMOVAL

3.7L V6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

5.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 94

INSTALLATION

3.7L V-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

4.7L V-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

8.3L - SRT-10

. . . . . . . . . . . . . . . . . . . . . . . . . 97

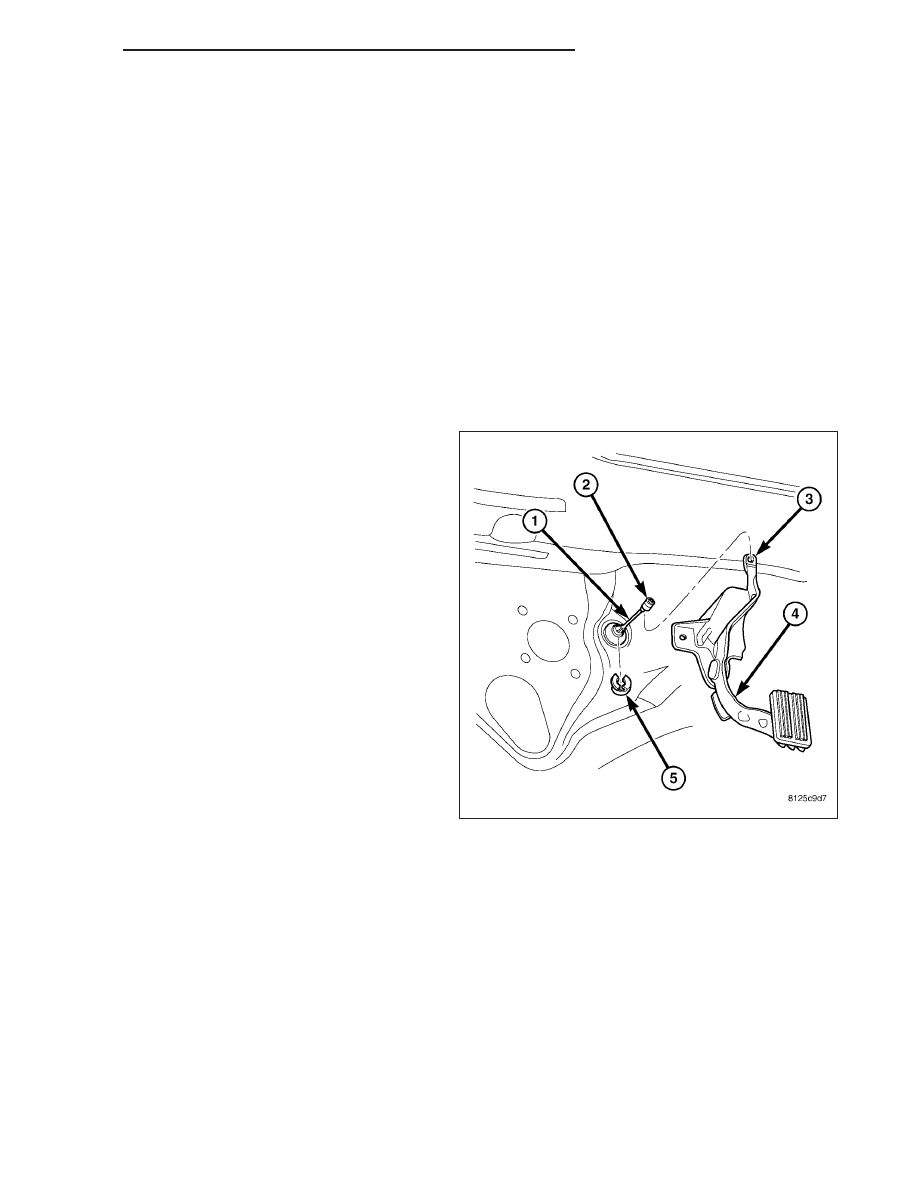

PEDAL - ACCELERATOR

REMOVAL

The following procedure applies only to vehicles with-
out the Adjustable Pedal Package (code XAP).

The accelerator pedal is serviced as a complete
assembly including the bracket.

The accelerator cable is connected to the upper part
of the accelerator pedal arm by a plastic retainer (clip)
(2). This plastic retainer snaps into the top of the
accelerator pedal arm.

1. From inside the vehicle, hold up accelerator pedal.

Remove plastic cable retainer (clip) and throttle
cable core wire from upper end of accelerator
pedal arm. Plastic cable retainer (clip) snaps into
pedal arm.

2. Remove 2 accelerator pedal mounting bracket

nuts. Remove accelerator pedal assembly.

INSTALLATION

1. Place accelerator pedal assembly over 2 studs.

2. Install and tighten 2 mounting nuts. Refer to Torque Specifications.

3. Slide throttle cable into opening slot in top of pedal arm.

4. Push plastic cable retainer (clip) into accelerator pedal arm opening until it snaps into place.

5. Before starting engine, operate accelerator pedal to check for any binding.

DR/DH

FUEL INJECTION - GAS

14 - 43
