4. Position assembled clutch disc packs on the side

gear hubs.

5. Install clutch pack (2) and side gear (2) in the dif-

ferential case (1) and verify clutch pack retaining
clips are in position.

6. Install lubricated disc from Trac-Lok

T

Tool Kit 6960

into lower side gear.

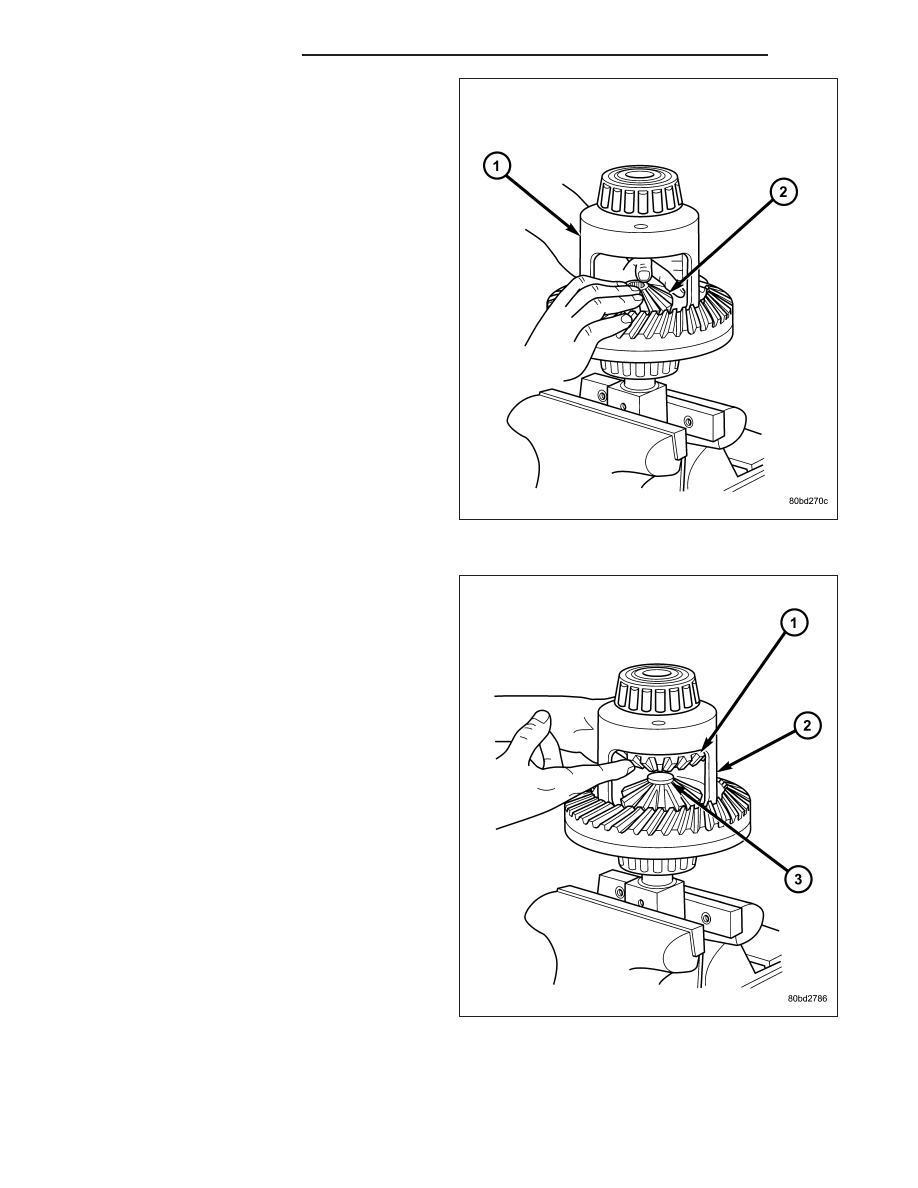

7. Install upper side gear (1) and clutch disc pack (1)

and verify clutch pack retaining clips are in posi-
tion.

8. Hold assembly in position and install threaded disc

from tool kit into top side gear.

9. Install forcing screw from Trac-Lok

T

Tool Kit 6960

and tighten screw to slightly compress clutch disc.

10. Place pinion gears in position in side gears and

verify that the pinion mate shaft hole is aligned.

11. Rotate case with turning bar until pinion mate

shaft holes in pinion gears align with holes in
case.

NOTE: It may be necessary to slightly tighten the
forcing screw in order to install the pinion gears.

12. Tighten forcing screw to 122 N·m (90 ft. lbs.) max-

imum to compress the Belleville springs.

13. Lubricate and install thrust washers behind pinion

gears and align washers with a small screw
driver. Insert mate shaft into each pinion gear to
verify alignment.

14. Remove Forcing Screw, Discs and Threaded

Adapter.

15. Install pinion gear mate shaft and align holes in shaft and case.

16. Install pinion mate shaft screw.

3 - 388

REAR AXLE - 248RBI

DR/DH

INSTALLATION

NOTE: If differential bearings or differential case
are

replaced,

differential

side

bearing

shim

requirements may change.

1. Position Spreader W-129-B with tool dowel pins

seated in the locating holes. Install hold down
clamps and tighten the tool turnbuckle finger-tight.

2. Install Pilot Stud C-3288-B on left side of the differ-

ential housing and attach dial indicator to the pilot
stud. Load the indicator plunger against the oppo-
site side of the housing and zero dial indicator.

3. Spread housing while measuring the distance with

the dial indicator.

CAUTION: Never spread the housing over 0.50 mm
(0.020 in). Failure to follow these instructions will
damaged the case.

4. Remove dial indicator.

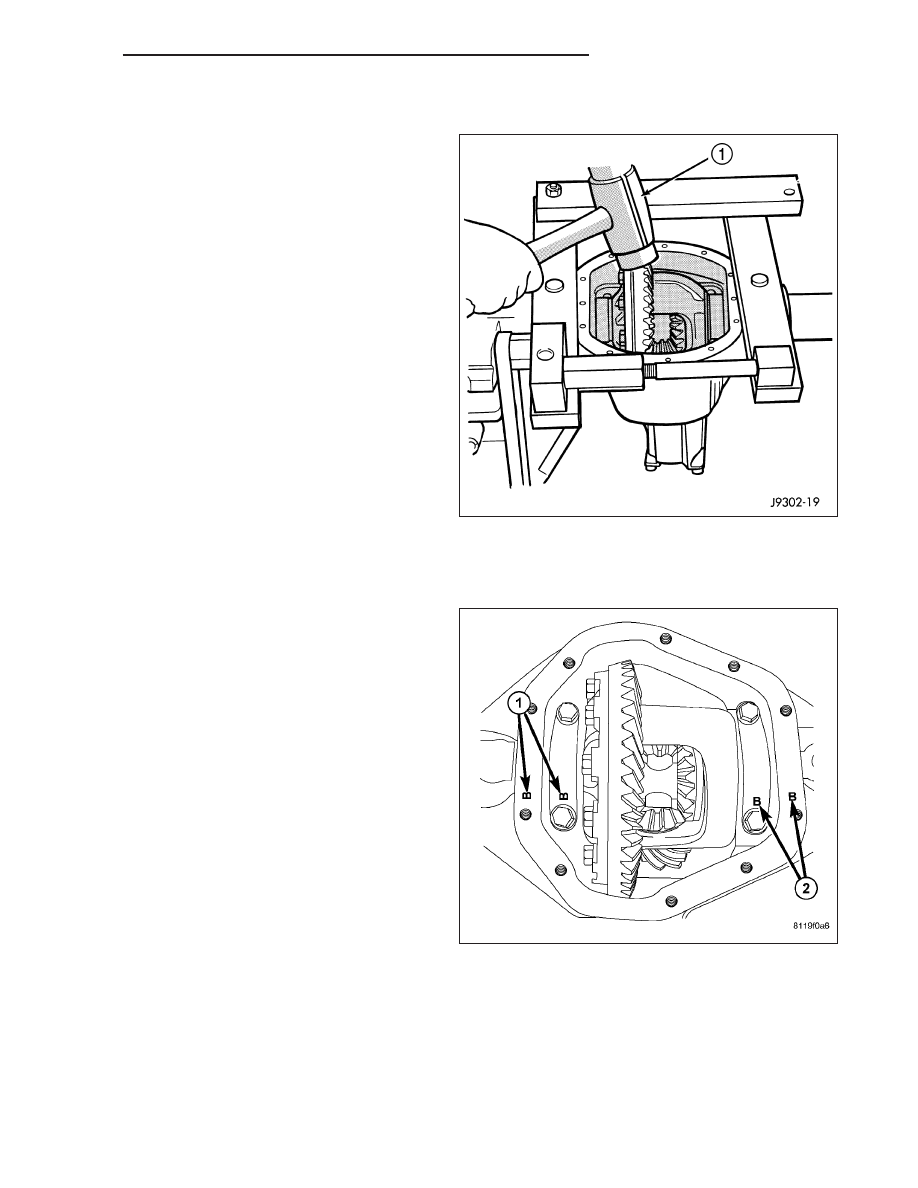

5. Install differential into the housing. Tap differential

case with a soft hammer (1) to ensure bearings are
seated.

6. Remove spreader.

7. Install bearing caps in their original locations (1) (2)

and tighten bearing cap bolts in a criss-cross pat-
tern to 108 N·m (80 ft. lbs.).

DR/DH

REAR AXLE - 248RBI

3 - 389

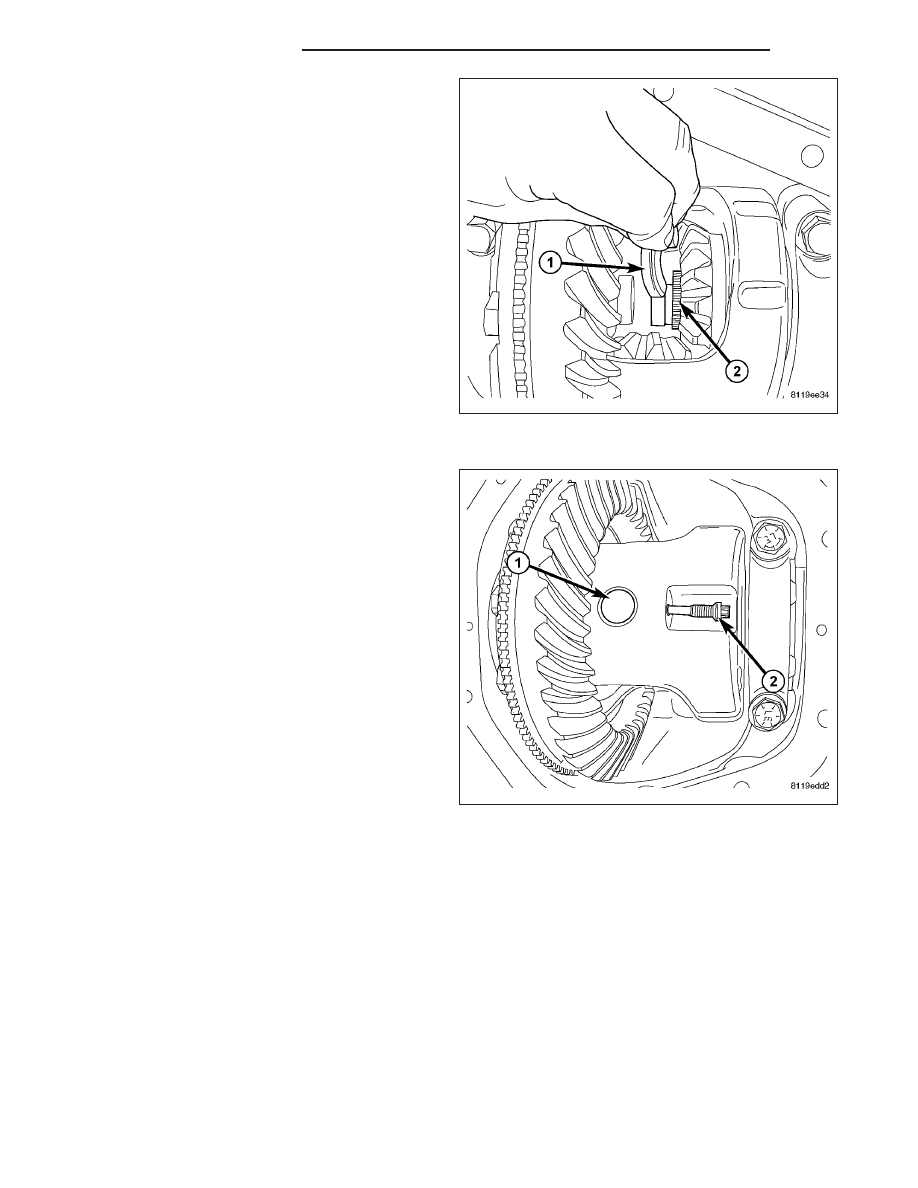

8. Install axle shafts.

9. Install axle shaft (1) C-locks (2).

10. Install pinion mate shaft (1) and install mate shaft

lock screw (2) and tighten to 27 N·m (20 ft. lbs.).

3 - 390

REAR AXLE - 248RBI

DR/DH

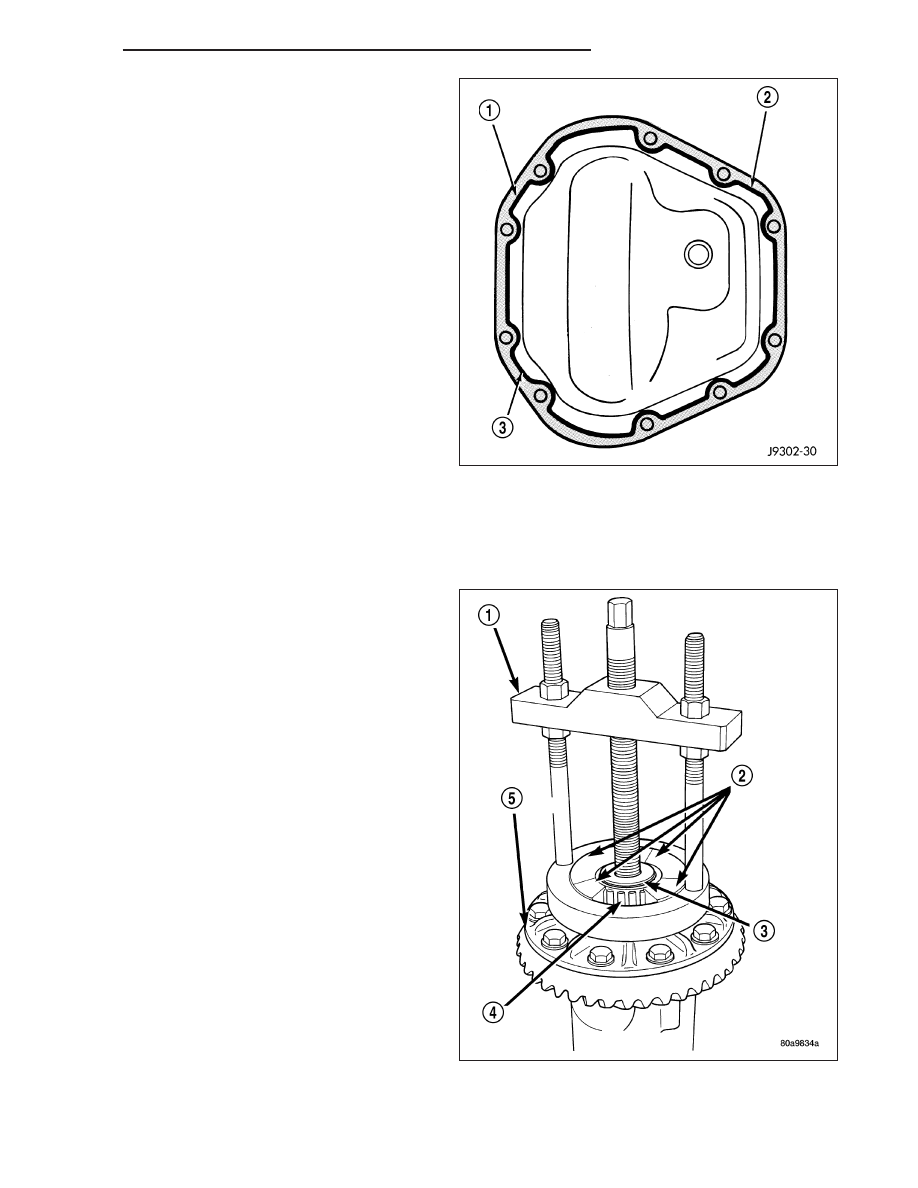

11. Apply a bead of orange Mopar Axle RTV sealant

(2) or equivalent to the housing cover (1).

CAUTION: If housing cover is not installed within
3 to 5 minutes, the cover must be cleaned and
new RTV applied. Failure to follow these instruc-
tions will result in a leak.

12. Install cover and tighten bolts in a criss-cross pat-

tern to 48 N·m (35 ft. lbs.).

13. Fill differential lubricant to bottom of the fill plug

hole.

14. Install fill hole plug and tighten to 27 N·m (20 ft.

lbs.).

BEARING-DIFFERENTIAL CASE

REMOVAL

1. Remove differential case from housing.

2. Remove bearings (4) from differential case (5) with

Puller/Press C-293-PA (1), Adapters C-293-62 (2)
and Disc 8139-2 (3).

DR/DH

REAR AXLE - 248RBI

3 - 391
