Dodge Ram Truck 1500-2500-3500. Manual - part 1357





Once the block has been completely cleaned, apply Loctite PST pipe sealant with Teflon 592 to the threads of the
front and rear oil galley plugs. Tighten the 1/4 inch NPT plugs to 20 N·m (177 in. lbs.) torque. Tighten the 3/8 inch
NPT plugs to 27 N·m (240 in. lbs.) torque.

INSPECTION

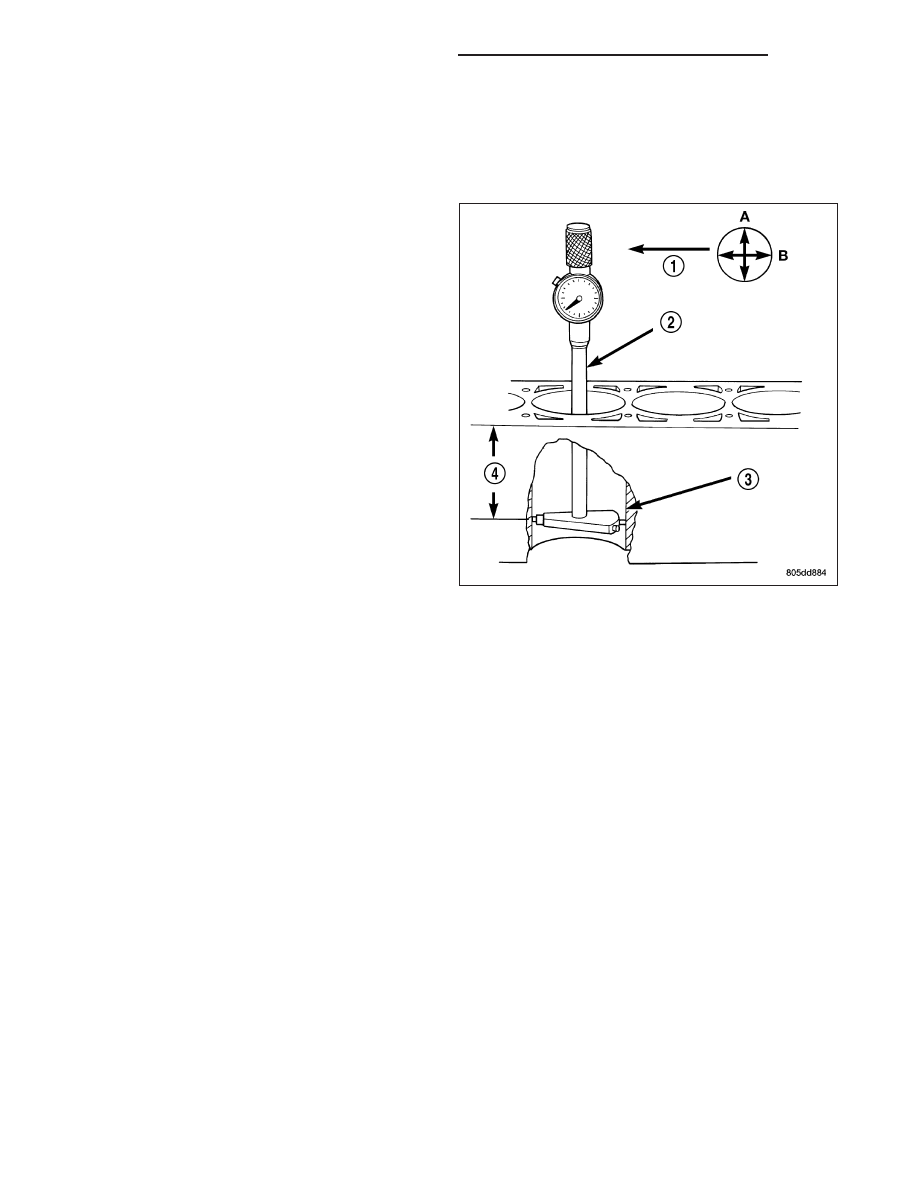

1. It is mandatory to use a dial bore gauge to mea-

sure each cylinder bore diameter. To correctly
select the proper size piston, a cylinder bore
gauge, capable of reading in 0.003 mm (.0001 in.)
INCREMENTS is required. If a bore gauge is not
available, do not use an inside micrometer.

2. Measure the inside diameter of the cylinder bore at

three levels below top of bore. Start perpendicular
(across or at 90 degrees) to the axis of the crank-
shaft and then take two additional reading.

3. Measure the cylinder bore diameter crosswise to

the cylinder block near the top of the bore. Repeat
the measurement near the middle of the bore, then
repeat the measurement near the bottom of the
bore.

4. Determine taper by subtracting the smaller diame-

ter from the larger diameter.

5. Rotate measuring device 90° and repeat steps

above.

6. Determine out-of-roundness by comparing the dif-

ference between each measurement.

7. If cylinder bore taper does not exceed 0.025 mm (0.001 inch) and out-of-roundness does not exceed 0.025 mm

(0.001 inch), the cylinder bore can be honed. If the cylinder bore taper or out- of-round condition exceeds these
maximum limits, the cylinder block must be replaced. A slight amount of taper always exists in the cylinder bore
after the engine has been in use for a period of time.

CAMSHAFT

REMOVAL

REMOVAL - CAMSHAFT CORE HOLE PLUG

CAUTION: Do not damage the rear surface of the camshaft or the core plug sealing surface, when removing
the core plug.

1. Remove the rear cam bearing core plug.

9 - 2350

ENGINE - 5.7L - SERVICE INFORMATION

DR/DH

REMOVAL - CAMSHAFT

1. Remove the battery negative cable.

2. Remove the air cleaner assembly. (Refer to 9 -

ENGINE/AIR INTAKE SYSTEM - REMOVAL)

3. Drain coolant. (Refer to 7 - COOLING - STAN-

DARD PROCEDURE)

4. Remove the accessory drive belt. (Refer to 7 -

COOLING/ACCESSORY DRIVE/DRIVE BELTS -
REMOVAL)

5. Remove the generator.

6. Remove the A/C compressor, and set aside.

7. Remove the radiator (Refer to 7 - COOLING/EN-

GINE/RADIATOR - REMOVAL).

8. Remove intake manifold (Refer to 9 - ENGINE/

MANIFOLDS/INTAKE MANIFOLD - REMOVAL).

9. Remove cylinder head covers (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - REMOVAL).

DR/DH

ENGINE - 5.7L - SERVICE INFORMATION

9 - 2351

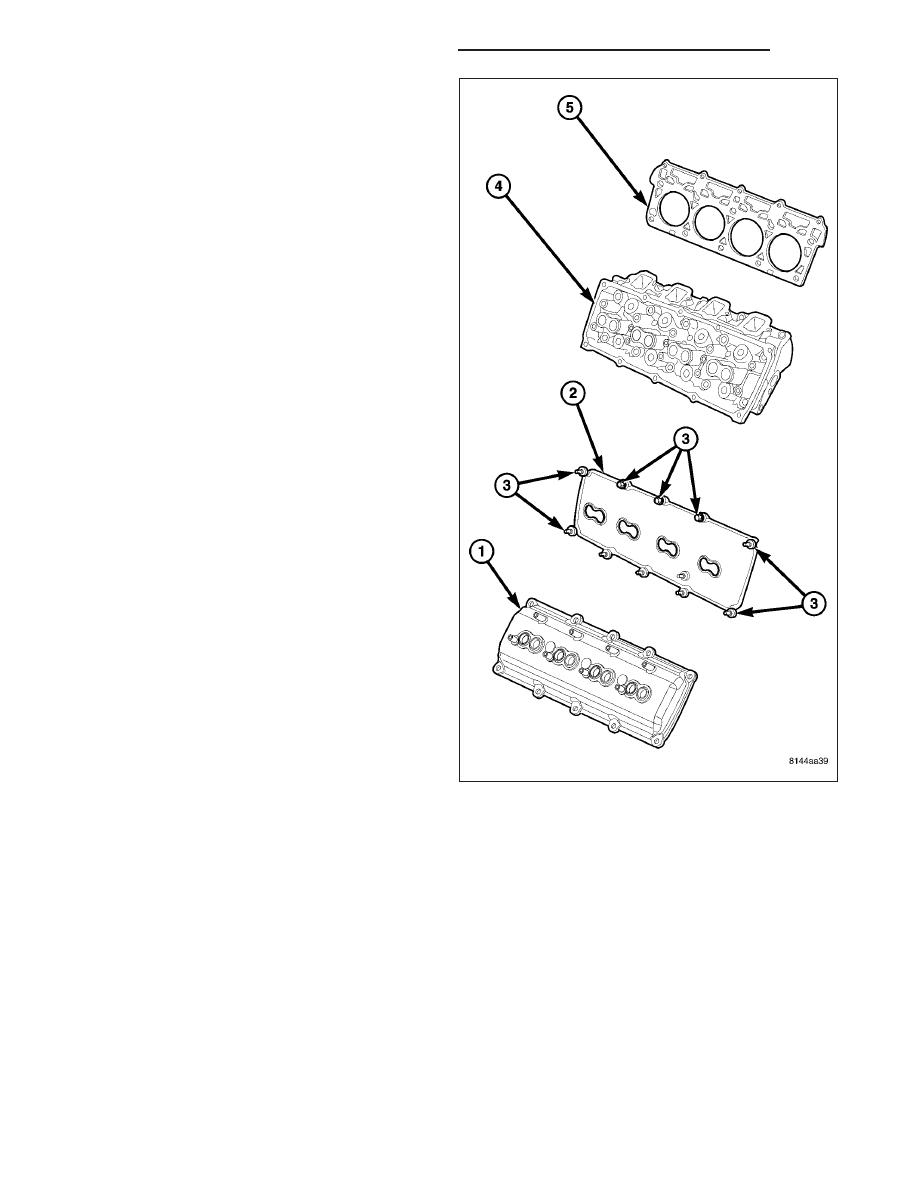

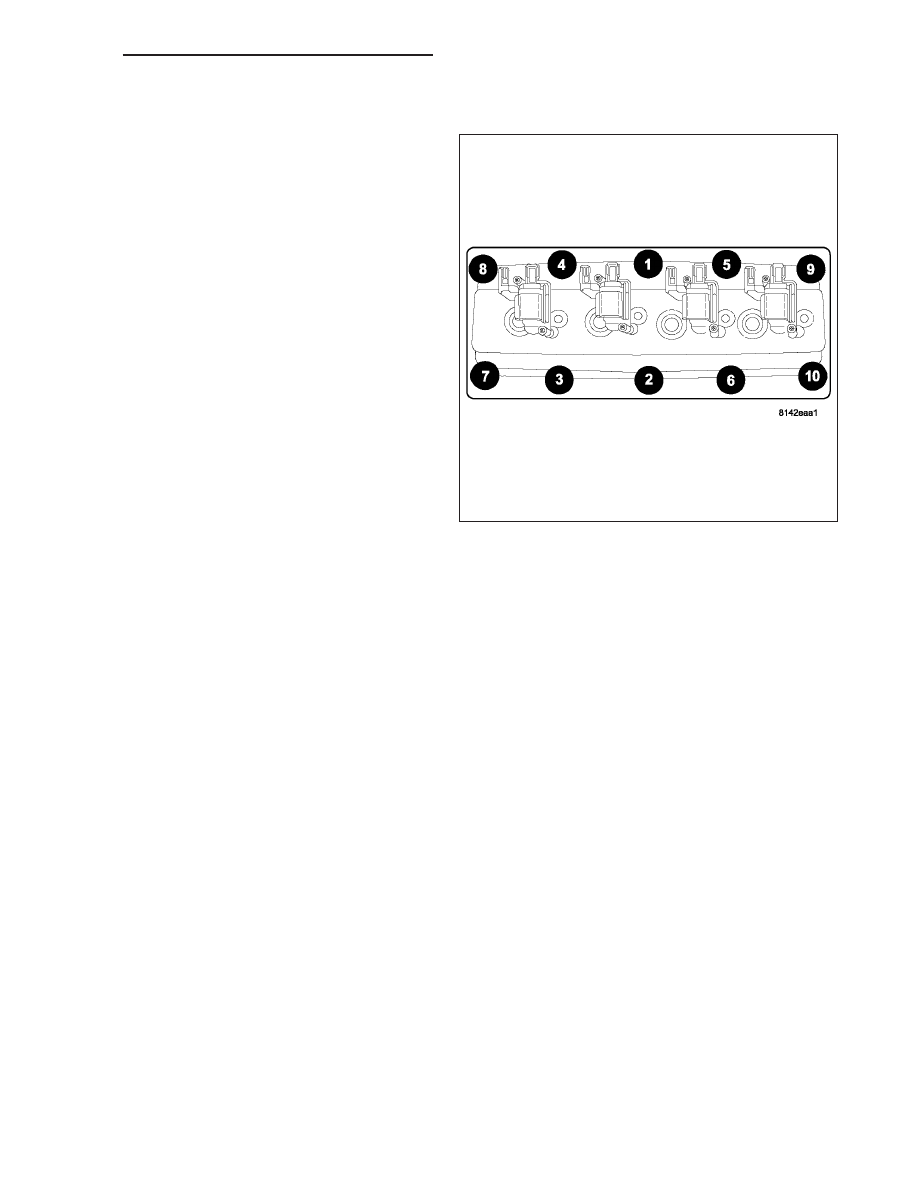

10. Remove both left and right cylinder heads (4)

(Refer

to

9

-

ENGINE/CYLINDER

HEAD

-

REMOVAL).

11. Remove the oil pan (Refer to 9 - ENGINE/LUBRI-

CATION/OIL PAN - REMOVAL).

9 - 2352

ENGINE - 5.7L - SERVICE INFORMATION

DR/DH

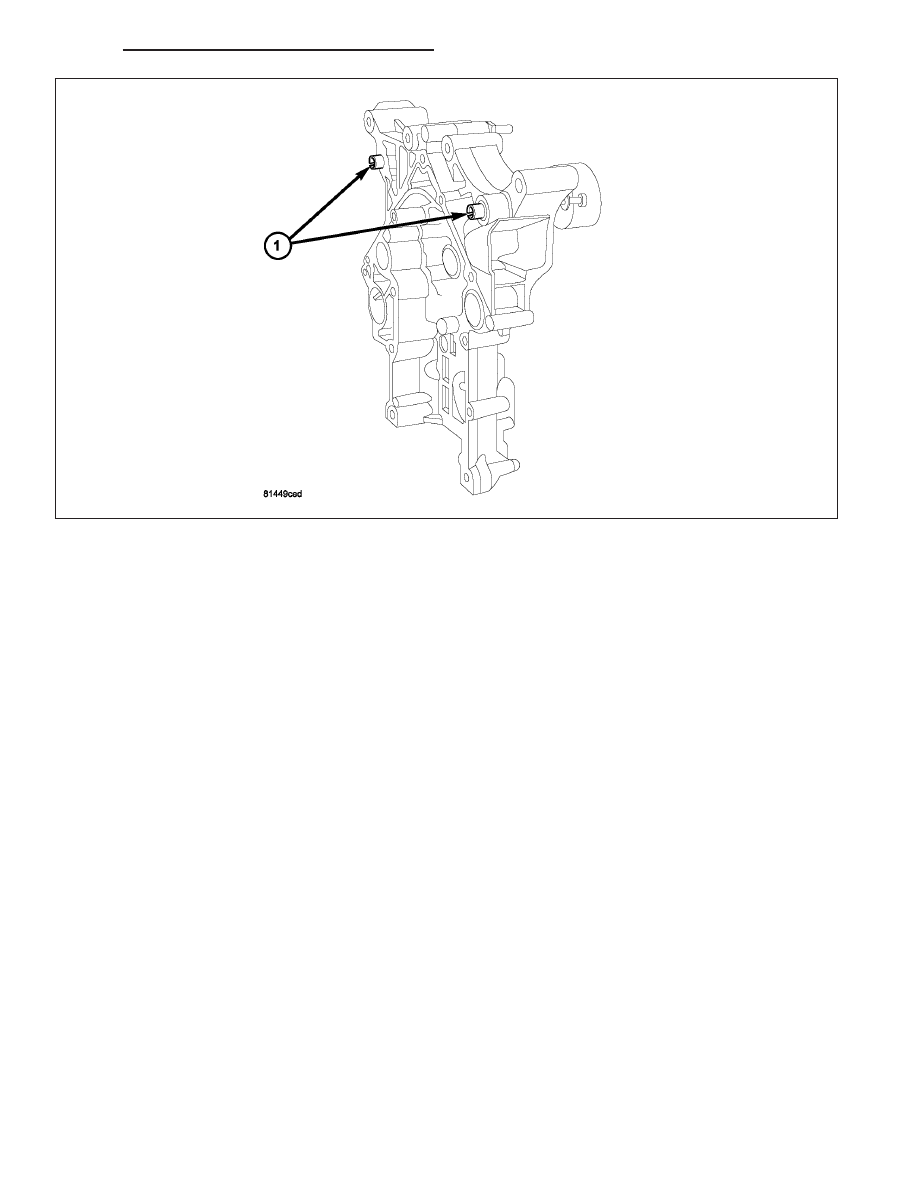

12. Remove timing case cover (1) (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) -

REMOVAL).

13. Remove the oil pick up tube.

DR/DH

ENGINE - 5.7L - SERVICE INFORMATION

9 - 2353
