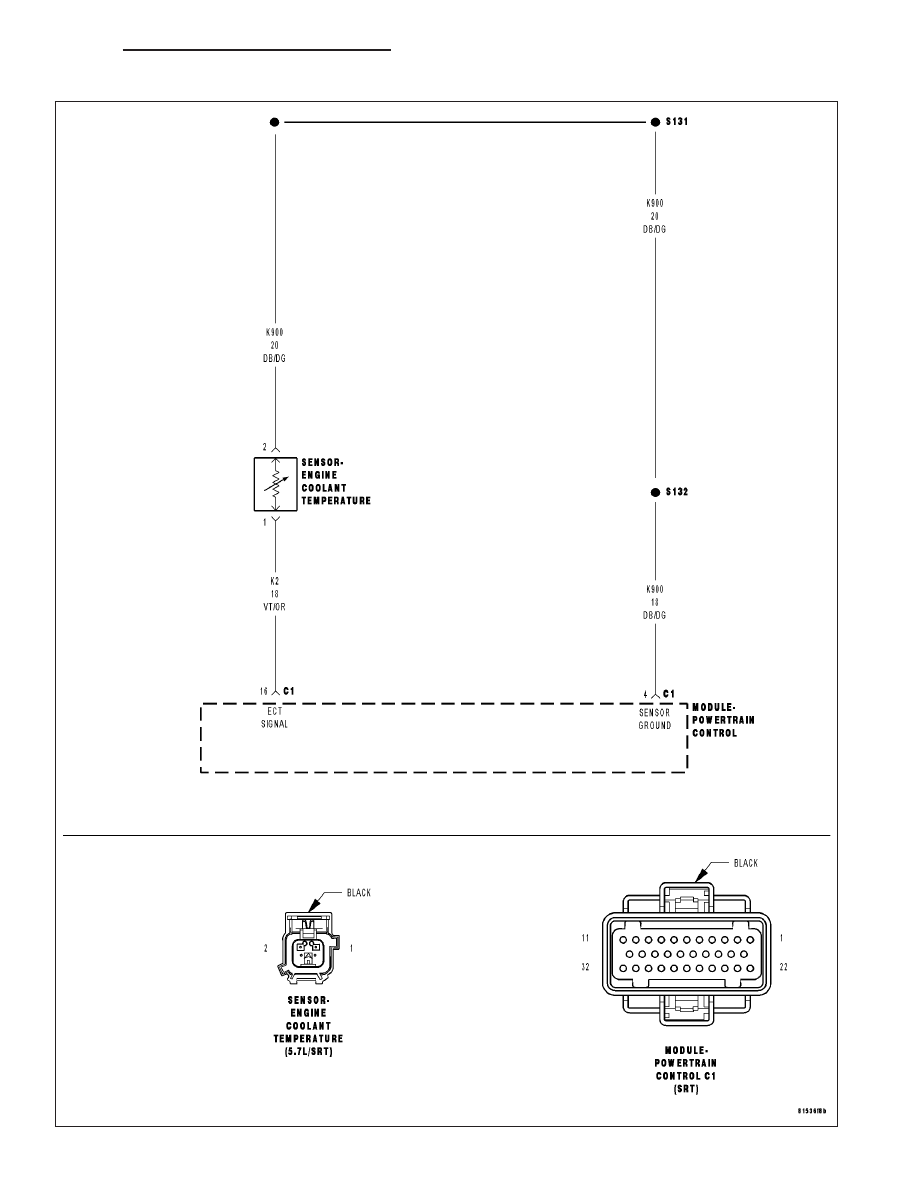

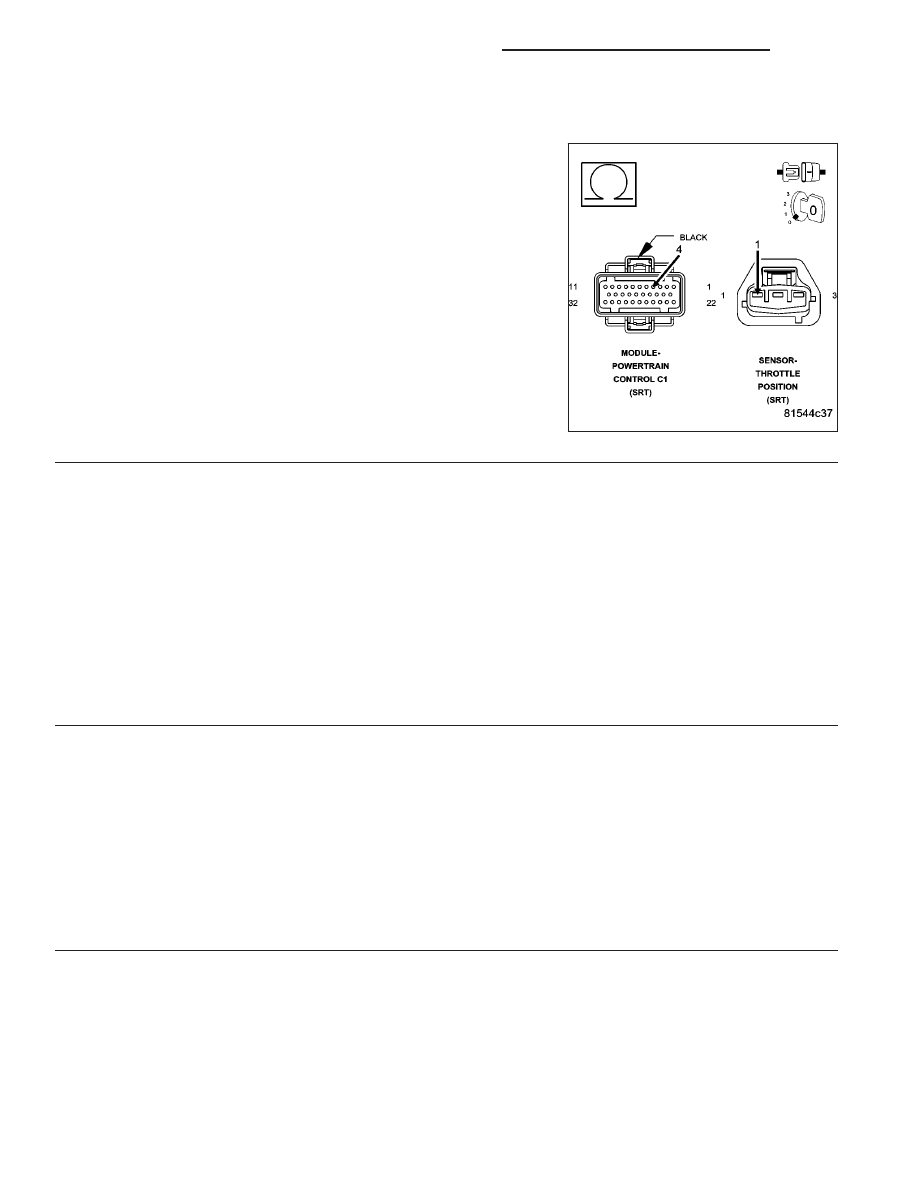

P0123-THROTTLE POSITION SENSOR #1 VOLTAGE TOO HIGH (CONTINUED) 6. (K900) SENSOR GROUND CIRCUIT OPEN Measure the resistance of the (K900) Sensor ground circuit from the Is the resistance below 5.0 ohms? Yes >> Go To 7 No >> Repair the open in the (K900) Sensor ground circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer 7. PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal Were there any problems found? Yes >> Repair as necessary. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) No >> Replace and program the Powertrain Control Module per Service Information. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 8. THROTTLE POSITION SENSOR SWEEP With a scan tool, monitor the Throttle Position Sensor voltage. Slowly open the throttle from the idle position to the wide open throttle position. Does voltage start at approximately 0.8 of a volt and go above 3.5 volts with a smooth transition? Yes >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) No >> Replace the Throttle Position Sensor. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 9 - 1566 ENGINE - ELECTRICAL DIAGNOSTICS - SRT-10 DR/DH |
