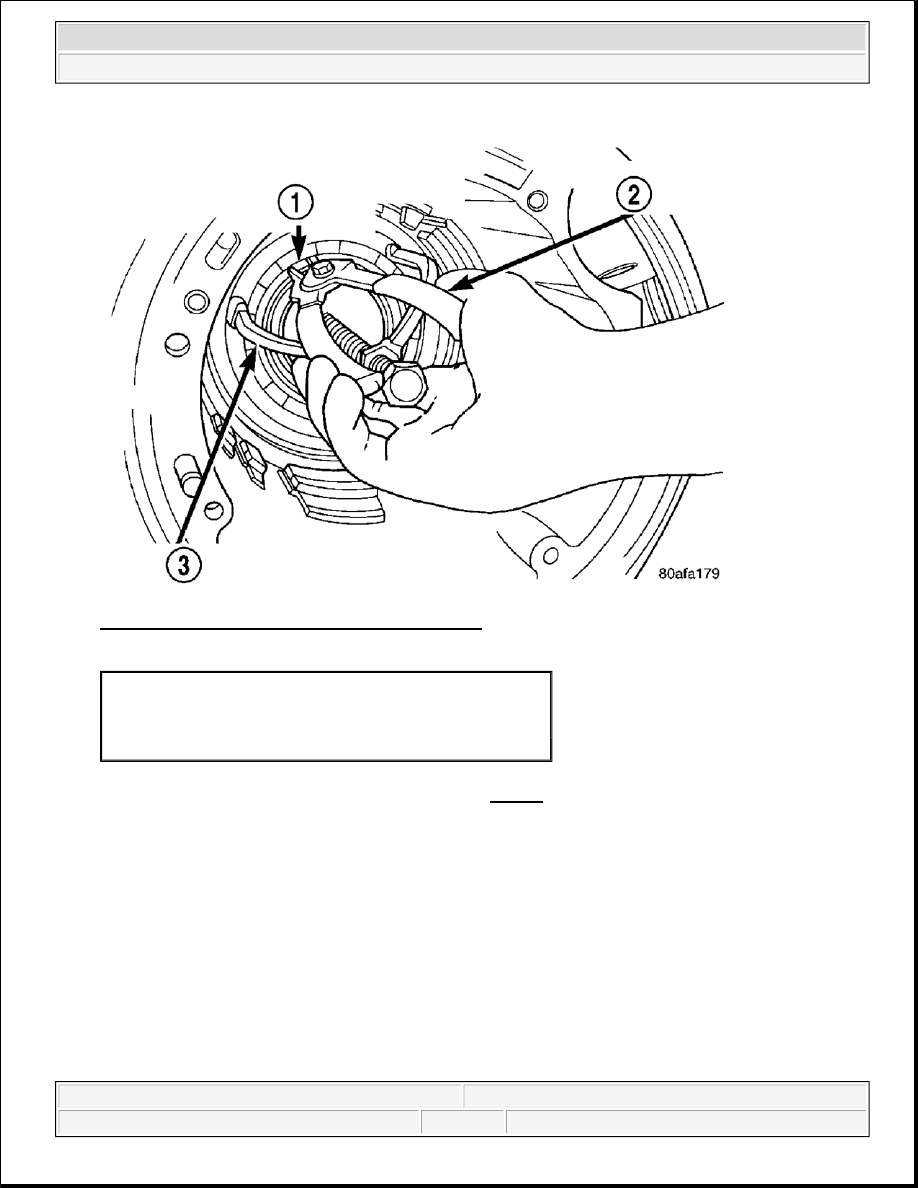

Fig. 28: Installing Low/Reverse Clutch Snap Ring
Courtesy of CHRYSLER LLC

11. Install snap ring (1) and remove compressor tool. See Fig. 28

1 - SNAP RING OPENING MUST BE BETWEEN SPRING
LEVERS (AS SHOWN)
2 - SNAP RING PLIERS
3 - DISC 6057



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro





2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro

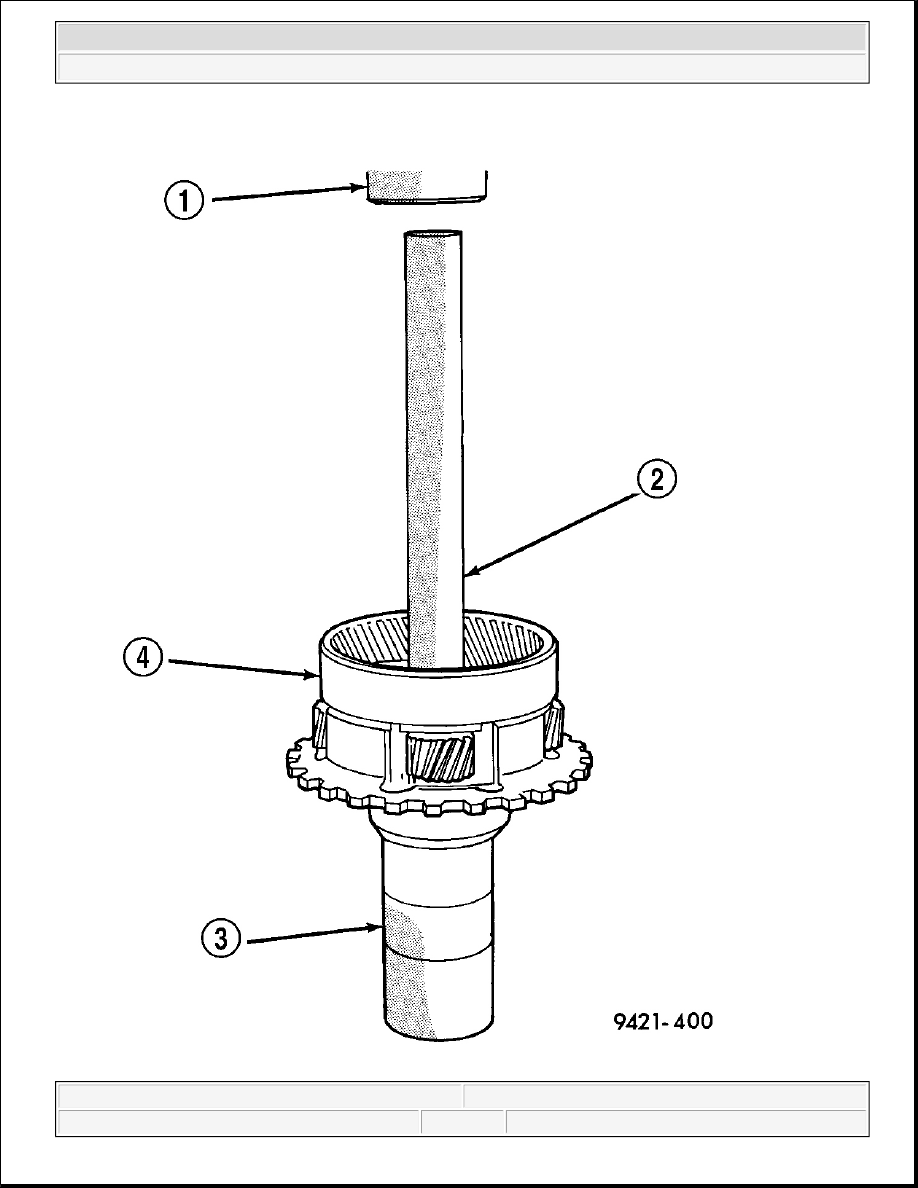

Fig. 29: Installing Rear Carrier Front Bearing Cone
Courtesy of CHRYSLER LLC

12. Install rear carrier (4) front bearing cone. See Fig. 29

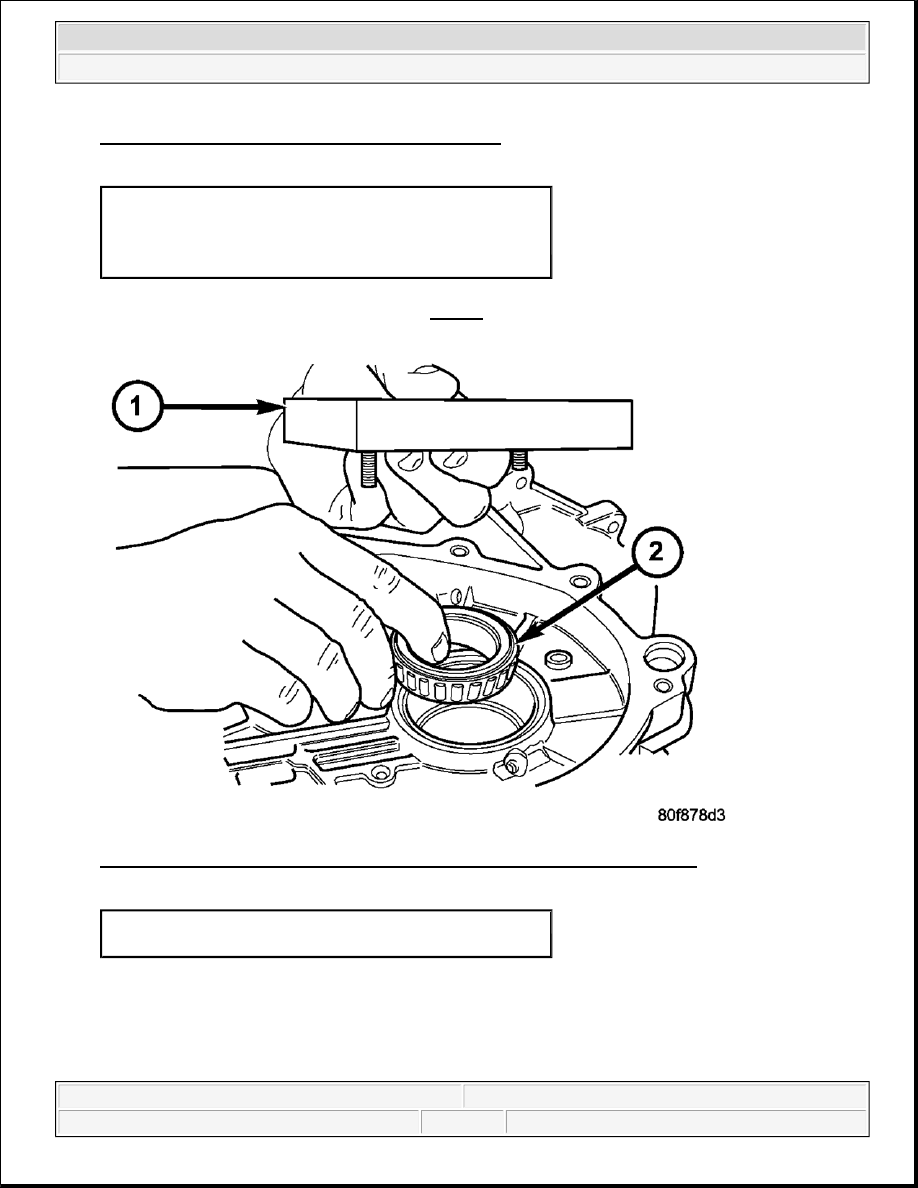

Fig. 30: Installing Rear Output Shaft Bearing Cone And Support Plate 6618A
Courtesy of CHRYSLER LLC

Check output bearing preload. Output bearing preload must be checked and/or adjusted if any of the
following items have been replaced:

Output shaft (rear carrier assembly)

Output shaft bearings

1 - ARBOR PRESS
2 - UNIVERSAL HANDLE C-4171
3 - INSTALLER 6052
4 - REAR CARRIER

1 - SUPPORT PLATE 6618-A
2 - REAR OUTPUT SHAFT BEARING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



Transmission case

13. PRELOAD CHECK/SHIM SELECTION: Install rear output shaft bearing cone and Support Plate

6618A (1). See Fig. 30.

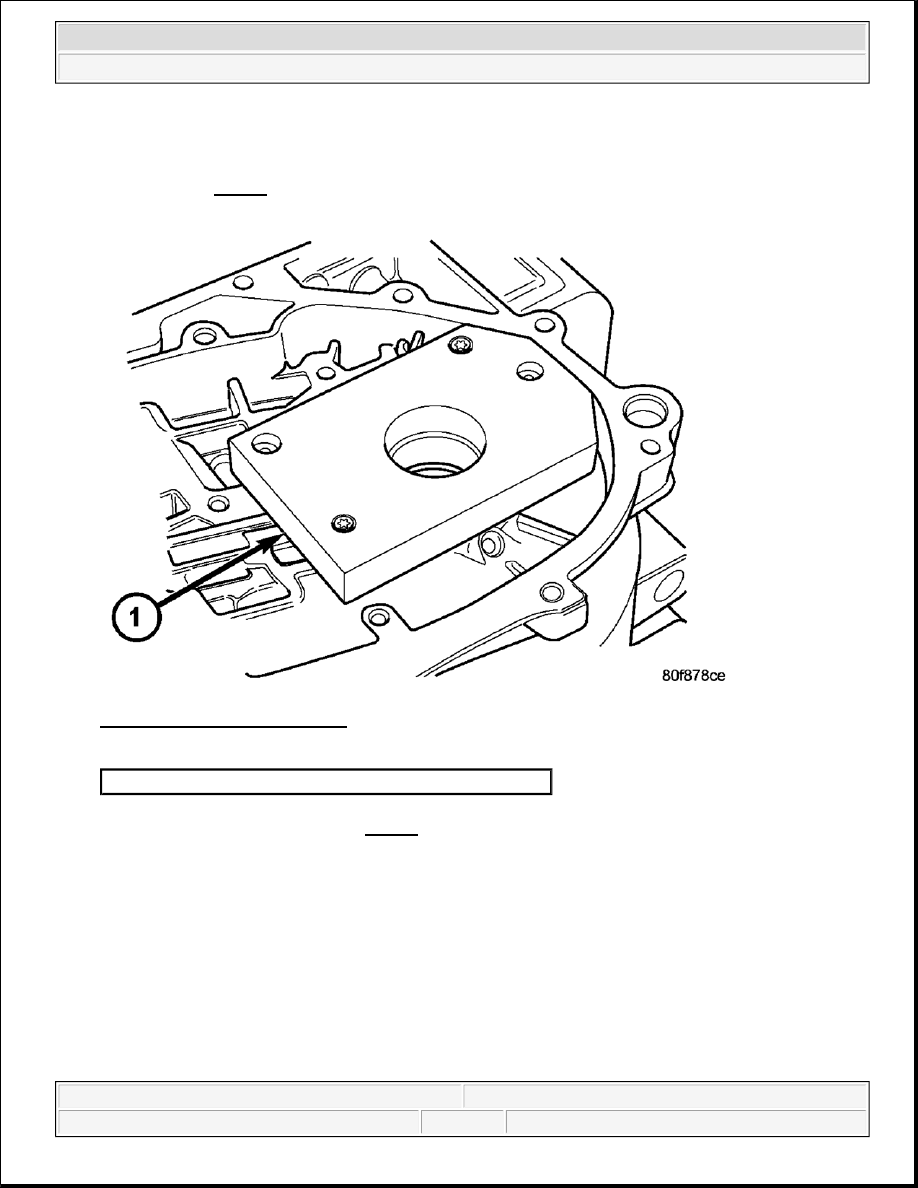

Fig. 31: Installing Support Plate
Courtesy of CHRYSLER LLC

14. Install Support Plate 6618A (1). See Fig. 31. Lightly tighten retaining screws. Screws should be below

the plate surface, but do not snug screws.

15. Turn case over on arbor press so that the plate is resting on the press base. CAUTION: The output shaft

will extend through the hole of Support Plate 6618A. Ensure your press table has clearance for the
output shaft.

1 - SUPPORT PLATE 6618-A
