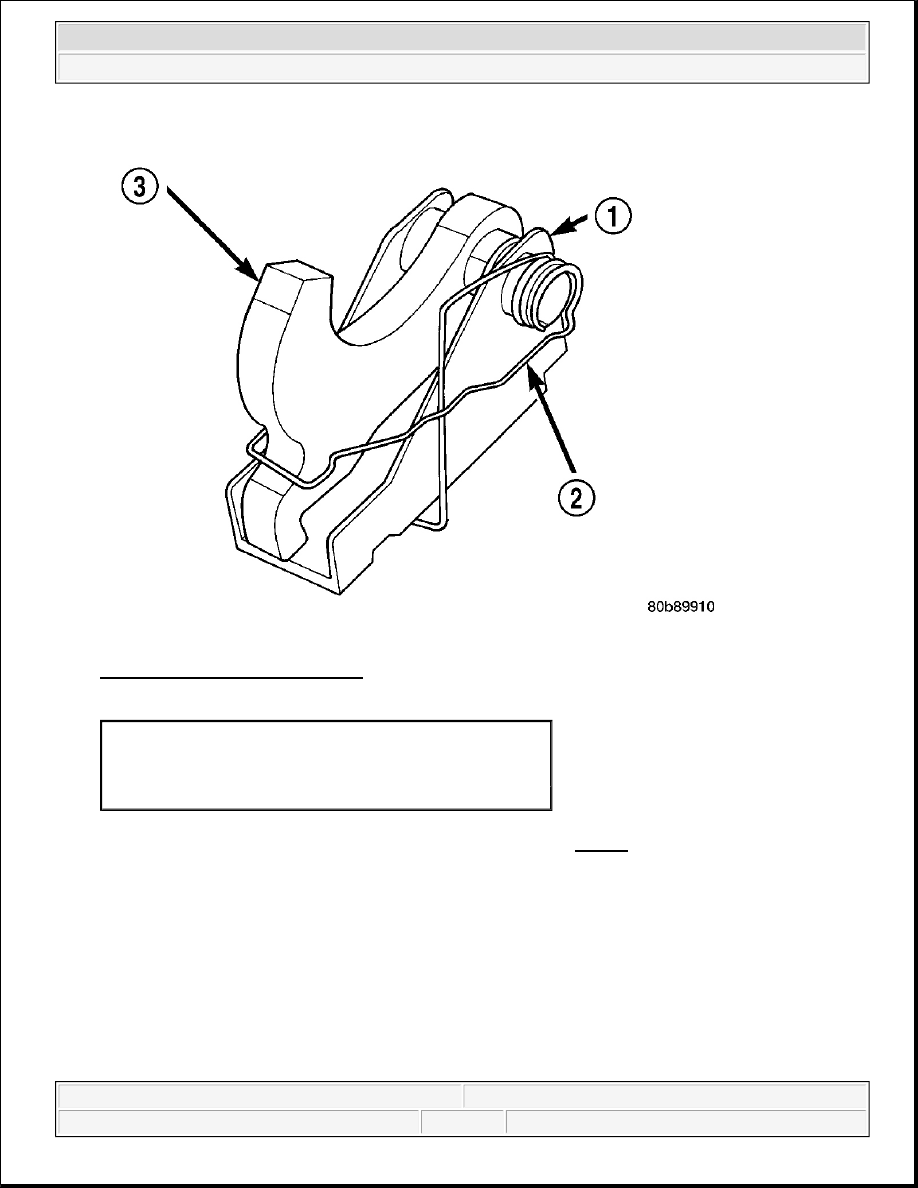

Fig. 24: Assembled Guide Bracket
Courtesy of CHRYSLER LLC

6. Assemble guide bracket (1) assembly as shown, if necessary. See Fig. 24.

1 - GUIDE BRACKET
2 - ANTIRATCHET SPRING (MUST BE ASSEMBLED AS
SHOWN)
3 - PAWL



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



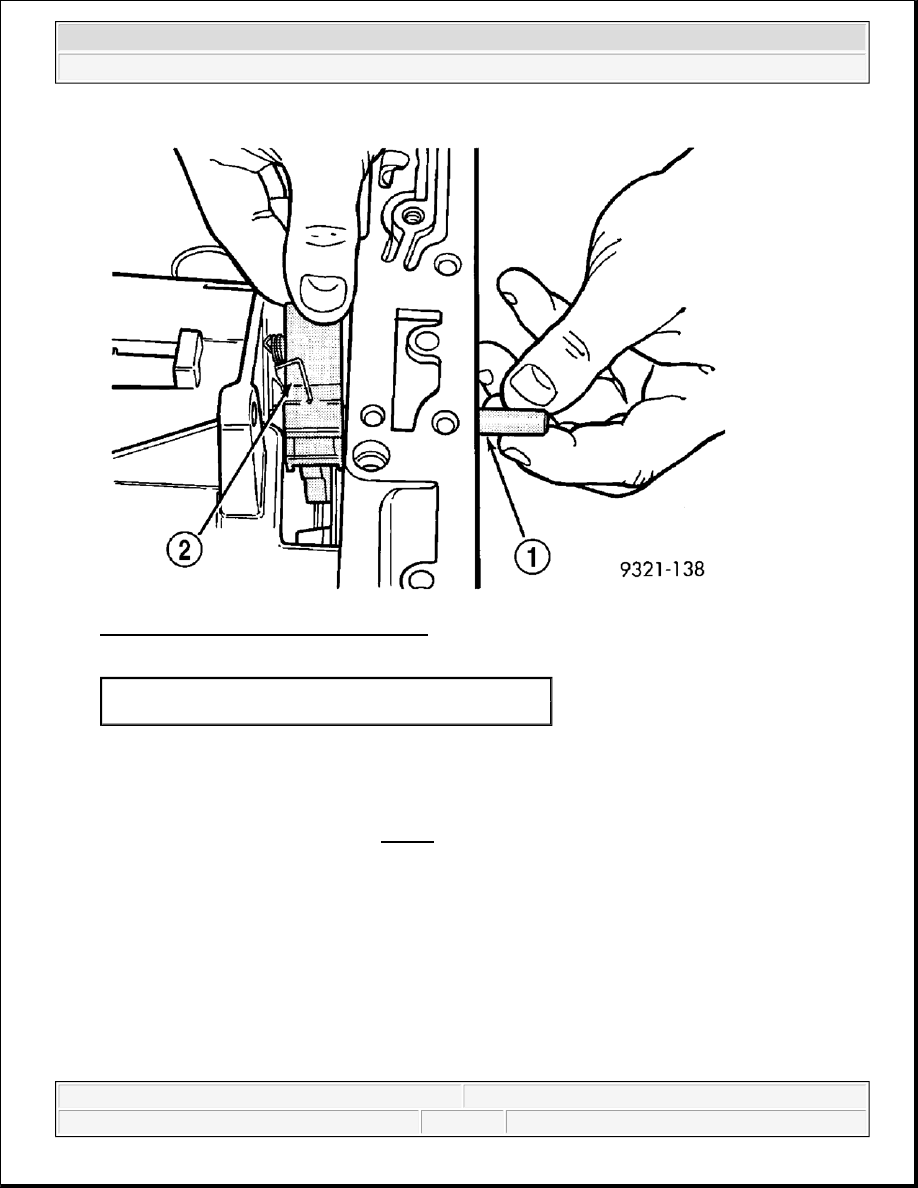

Fig. 25: Installing Guide Bracket Pivot Pin
Courtesy of CHRYSLER LLC

7. Install guide bracket pivot pin (1). See Fig. 25.

8. Install park sprag pivot retaining screw and torque to 4.5 N.m (40 in. lbs.).

1 - PIVOT PIN
2 - GUIDE BRACKET ASSEMBLY

CAUTION: When installing, be sure guide bracket and split sleeve touch the rear

of the transmission case.



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



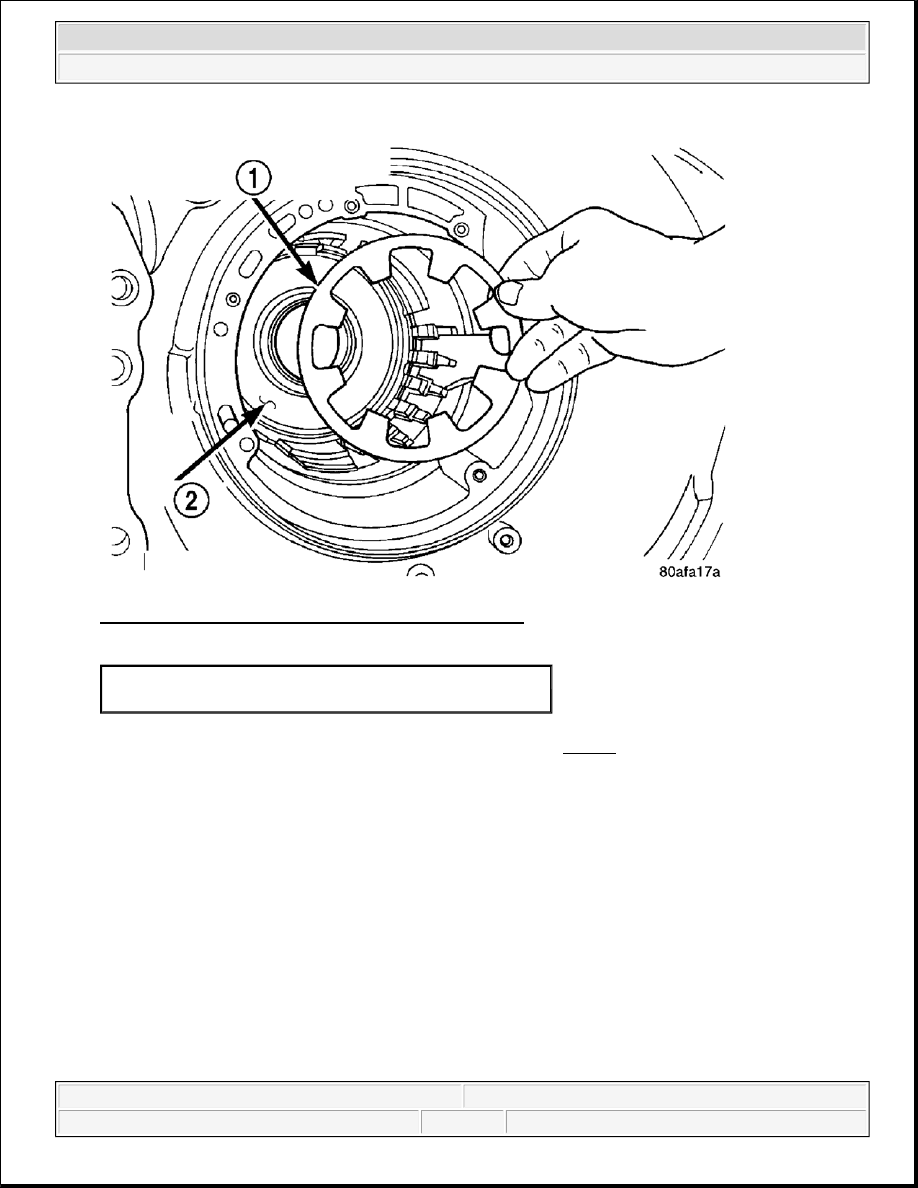

Fig. 26: Installing Low/Reverse Piston Belleville Spring
Courtesy of CHRYSLER LLC

9. Install low/reverse piston belleville spring (1) into position. See Fig. 26

1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



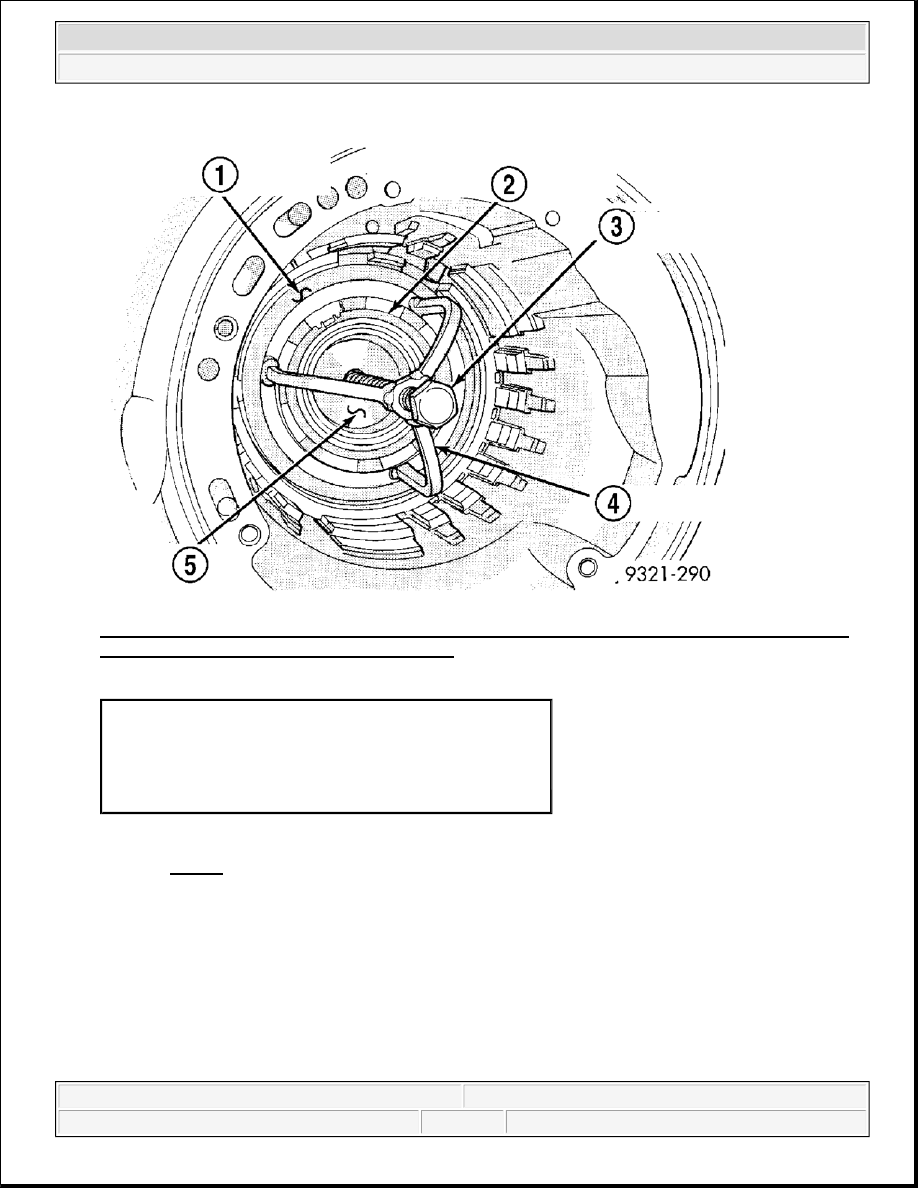

Fig. 27: Installing And Loading Low/Reverse Spring With Compressor Tool 5058A-3, 5059A And
Disc 6057 To Facilitate Snap Ring Installation
Courtesy of CHRYSLER LLC

10. Install and load low/reverse spring with compressor tool 5058A-3 (3), 5059A (4) and disc 6057 (5) as

shown in Fig. 27 to facilitate snap ring (2) installation.

1 - LOW/REVERSE CLUTCH RETURN SPRING
2 - SNAP RING (INSTALL AS SHOWN)
3 - COMPRESSOR 5058A-3
4 - COMPRESSOR 5059A
5 - DISC 6057



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro
