1. Clean sealing surfaces of cylinder head and block.

2. Install head gasket over locating dowels. Ensure the gasket is installed on the correct side of engine.

3. Install the cylinder head over locating dowels, insert and finger tighten the head bolts.

4. Tighten the cylinder head bolts in the sequence shown. Using the 4 step torque-turn method, tighten

according to the following torque values:

Step 1: All to 61 N.m (45 ft. lbs.)

Step 2: All to 88 N.m (65 ft. lbs.)

Step 3: All (again) to 88 N.m (65 ft. lbs.)

Step 4: + 90° Turn Do not use a torque wrench for this step.

5. Bolt torque after 90° turn should be over 122 N.m (90 ft. lbs.) in the tightening direction. If not, replace

the bolt.

6. Install the inner timing cover to cylinder head bolts. Tighten bolts to 54 N.m (40 lbs.ft.).

CAUTION: Ensure that the correct head gaskets are used and are oriented

correctly on cylinder block.

NOTE:

Before installing the cylinder head bolts, lubricate the threads with engine
oil.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro

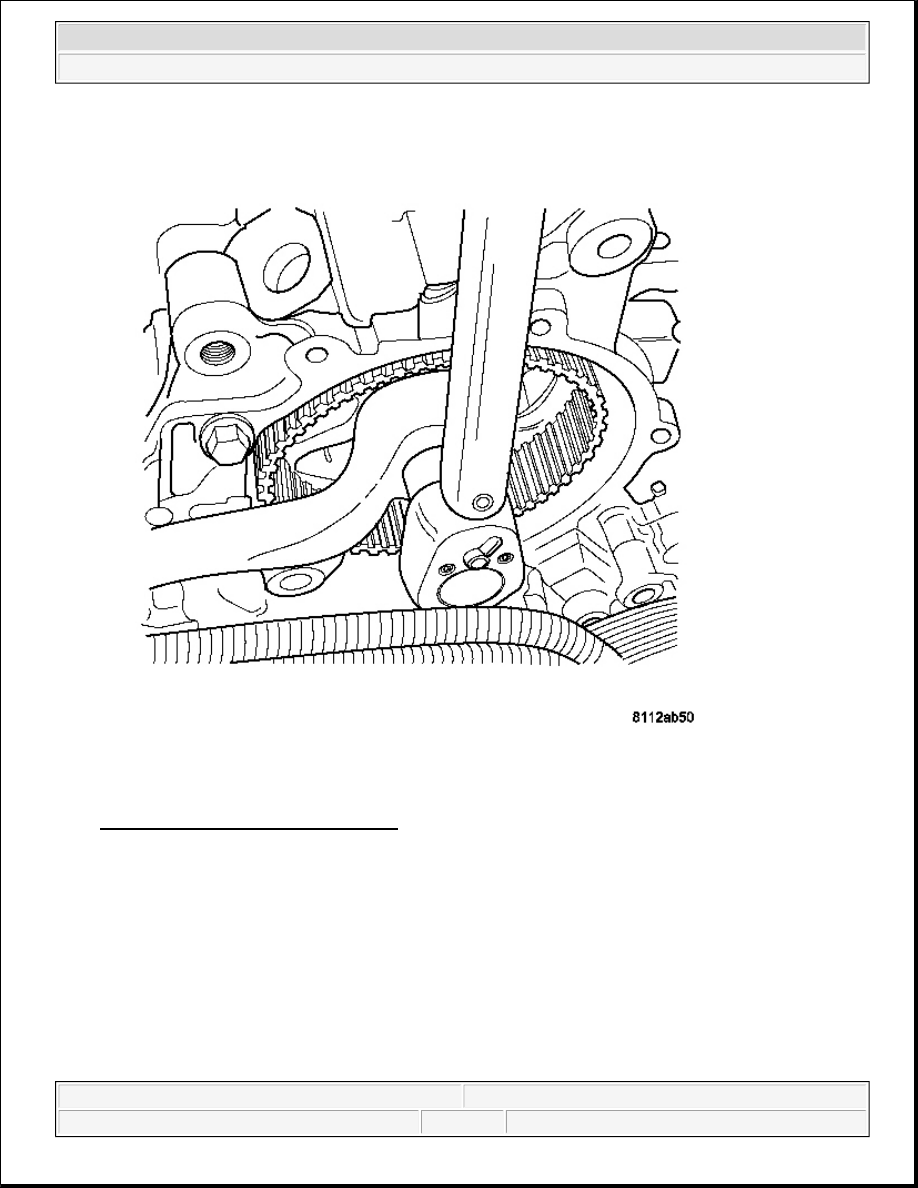

Fig. 108: Installing Camshaft Sprocket
Courtesy of CHRYSLER LLC

7. Install camshaft sprocket. Counterhold the camshaft sprocket gear and tighten the camshaft sprocket bolt

to 102 N.m plus a 1/4 turn (75 lbs. ft. plus a 1/4 turn)



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



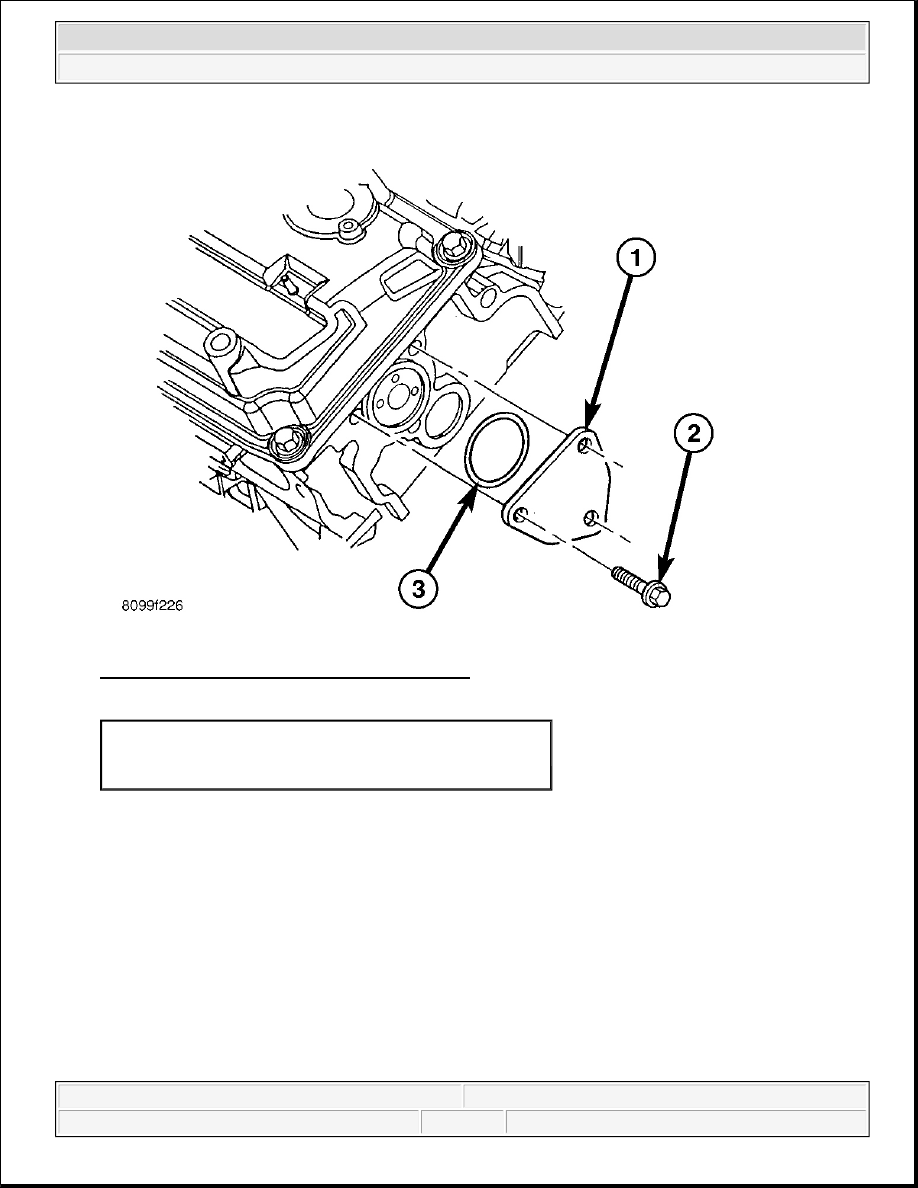

Fig. 109: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

8. Install the rear camshaft thrust plate (1) and seal (3).

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



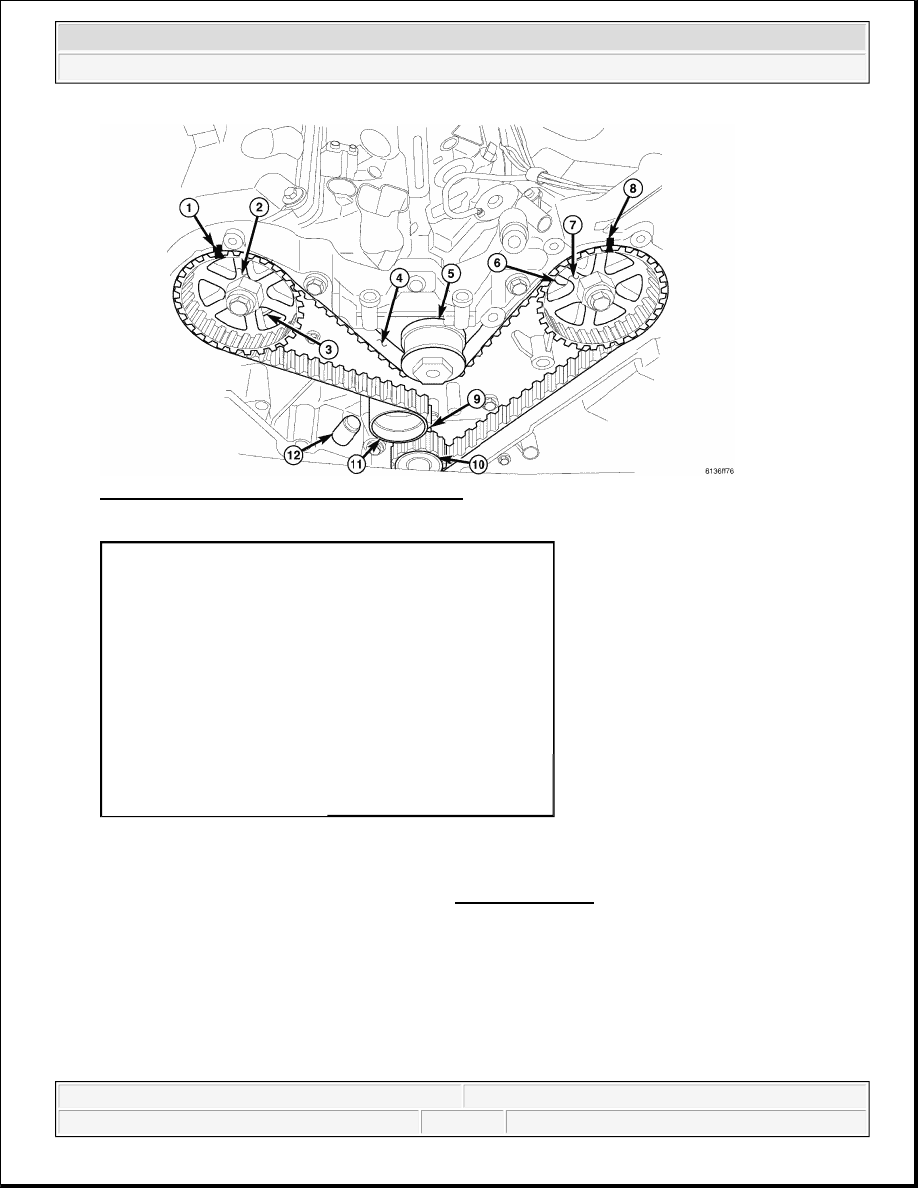

Fig. 110: Identifying Timing Gear Components
Courtesy of CHRYSLER LLC

9. Rotate the camshaft gear (7) to it's alignment mark (8) and check the right camshaft gear (1) and

crankshaft gear timing (9) alignment marks.

10. Install the timing belt (4) and tensioner (11). See INSTALLATION.

1 - RIGHT CAMSHAFT
GEAR ALIGNMENT MARK

7 - LEFT CAMSHAFT
GEAR

2 - RIGHT CAMSHAFT
GEAR

8 - LEFT CAMSHAFT
GEAR ALIGNMENT MARK

3 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - RIGHT

9 - CRANKSHAFT GEAR
ALIGNMENT MARK

4 - TIMING BELT

10 - CRANKSHAFT GEAR

5 - WATER PUMP PULLEY 11 - TIMING BELT

TENSIONER PULLEY

6 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - LEFT

12 - TIMING BELT
TENSIONER
