Dodge Nitro. Manual - part 90

the bolt.

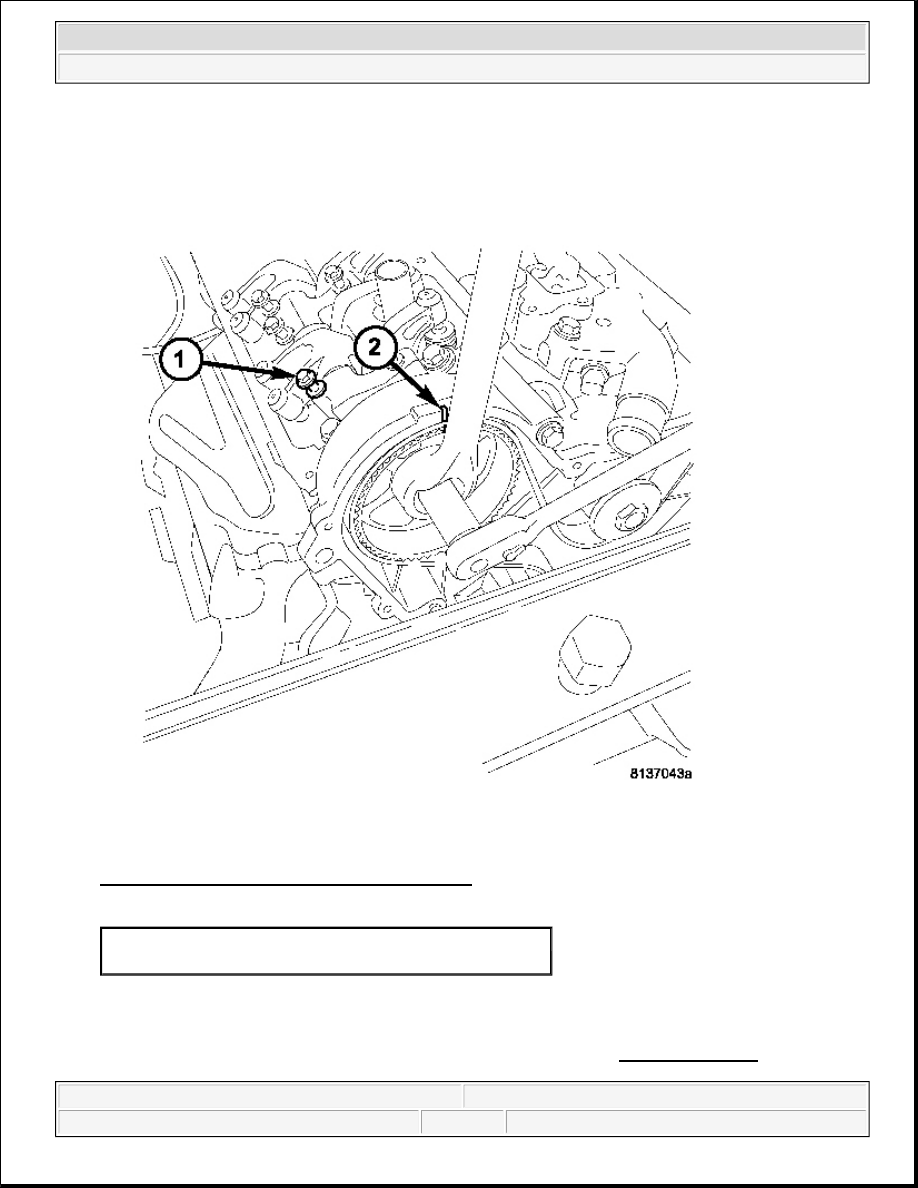

Fig. 98: Removing/Installing Camshaft Sprocket
Courtesy of CHRYSLER LLC

5. Install the inner timing cover to cylinder head bolts. Tighten bolts to 54 N.m (40 lbs.ft.).

6. Install camshaft sprocket (2) Counterhold the camshaft sprocket gear (2) and tighten the camshaft

sprocket bolt to 102 N.m plus a 1/4 turn (75 lbs. ft. plus a 1/4 turn). See INSTALLATION.

1 - LOOSENED ROCKER ASSEMBLY
2 - RIGHT CAMSHAFT TDC



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



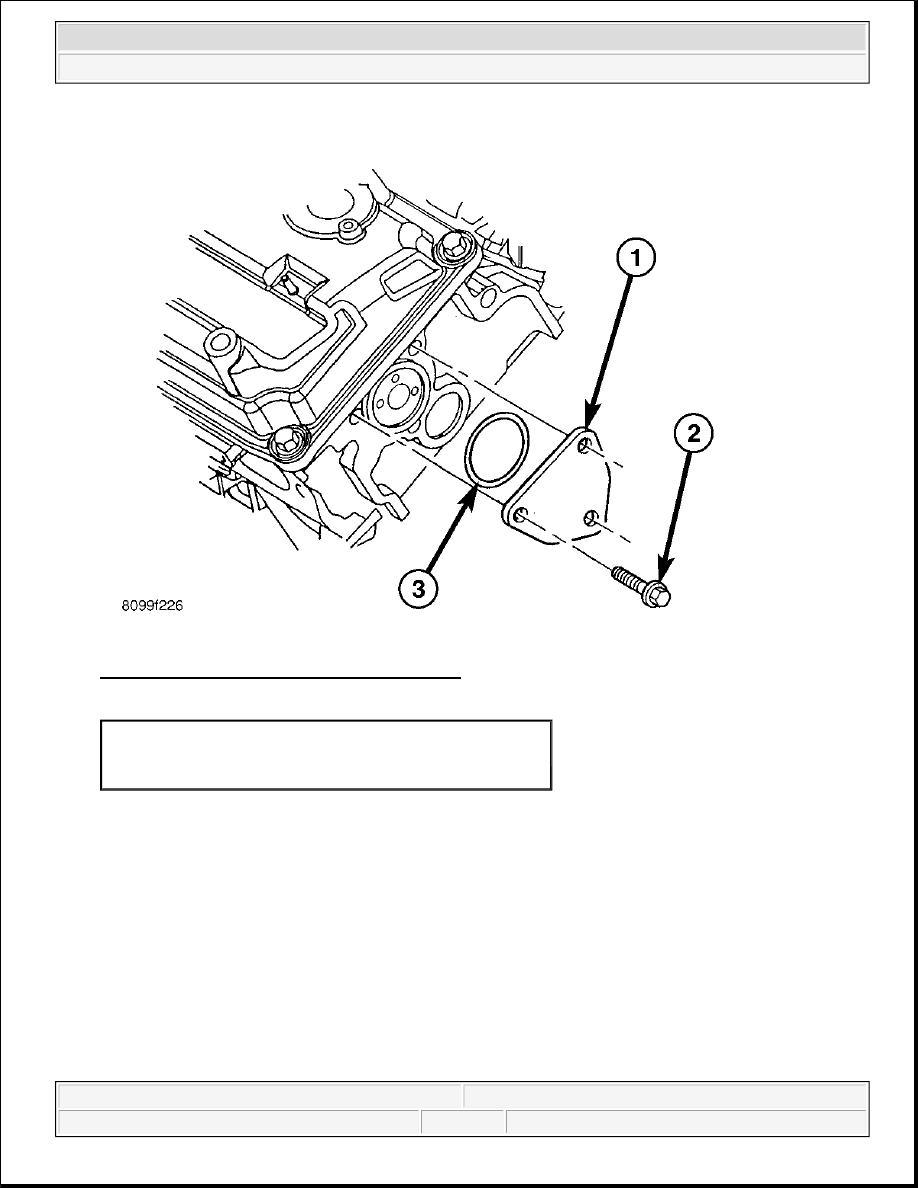

Fig. 99: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

7. Install the rear camshaft thrust plate (1) and seal (3) and the EGR valve.

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



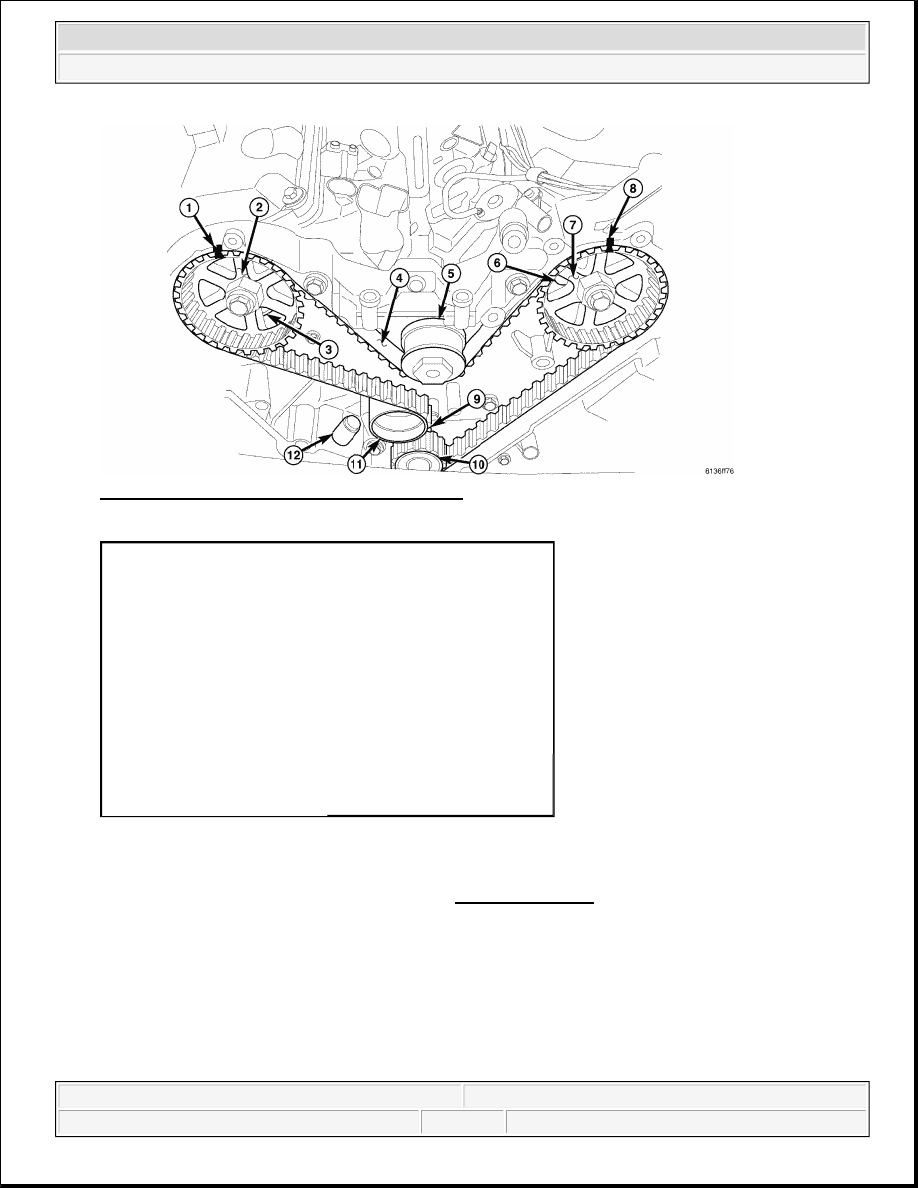

Fig. 100: Identifying Timing Gear Components
Courtesy of CHRYSLER LLC

8. Rotate the camshaft gear to it's alignment mark (1) and check the left camshaft gear (7) and crankshaft

gear timing alignment marks (9).

9. Install the timing belt (4) and tensioner (12). See INSTALLATION.

1 - RIGHT CAMSHAFT
GEAR ALIGNMENT MARK

7 - LEFT CAMSHAFT
GEAR

2 - RIGHT CAMSHAFT
GEAR

8 - LEFT CAMSHAFT
GEAR ALIGNMENT MARK

3 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - RIGHT

9 - CRANKSHAFT GEAR
ALIGNMENT MARK

4 - TIMING BELT

10 - CRANKSHAFT GEAR

5 - WATER PUMP PULLEY 11 - TIMING BELT

TENSIONER PULLEY

6 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - LEFT

12 - TIMING BELT
TENSIONER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



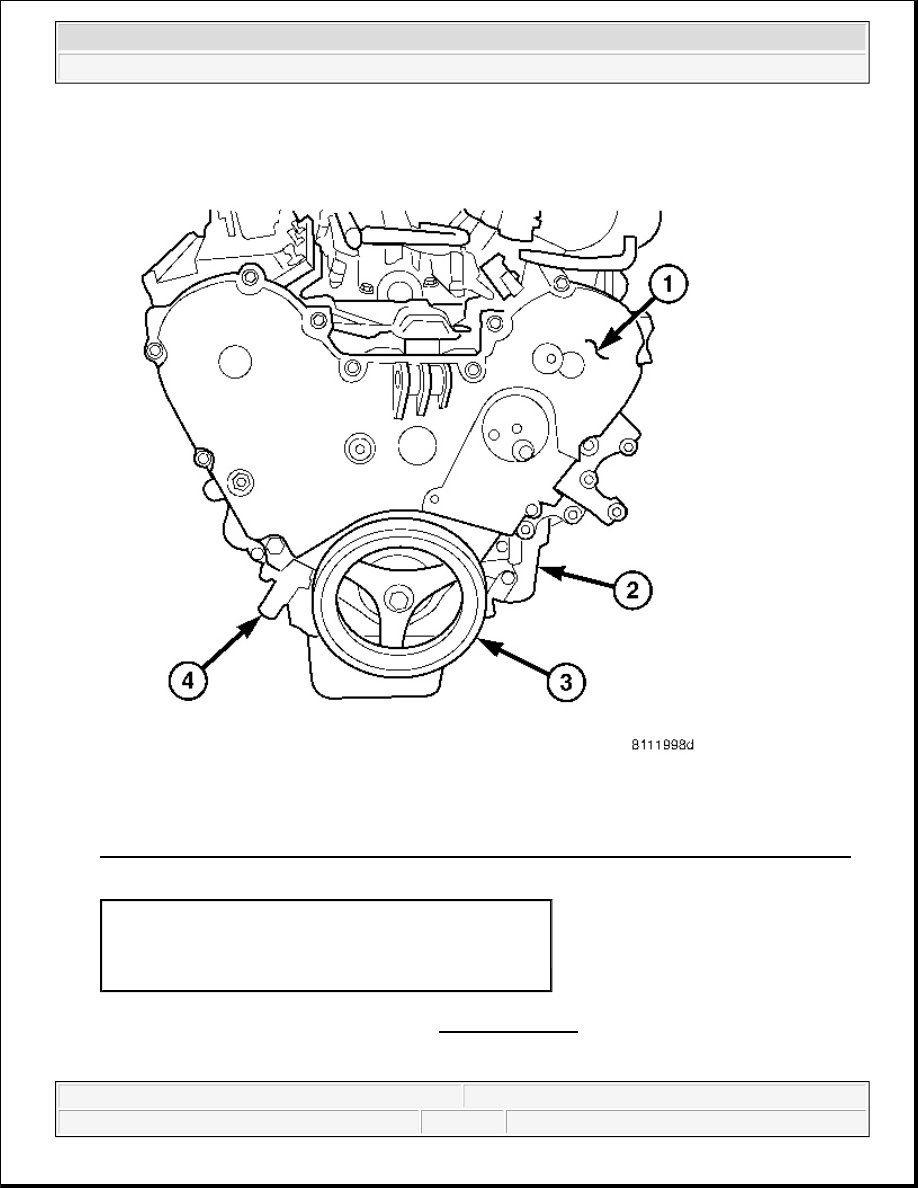

Fig. 101: Front Timing Belt Cover, Engine Oil Filter, Vibration Damper & Timing Belt Tensioner
Courtesy of CHRYSLER LLC

10. Install the timing belt outer cover (1) (Refer to INSTALLATION ).

1 - FRONT TIMING BELT COVER
2 - ENGINE OIL FILTER
3 - VIBRATION DAMPER
4 - TIMING BELT TENSIONER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro
