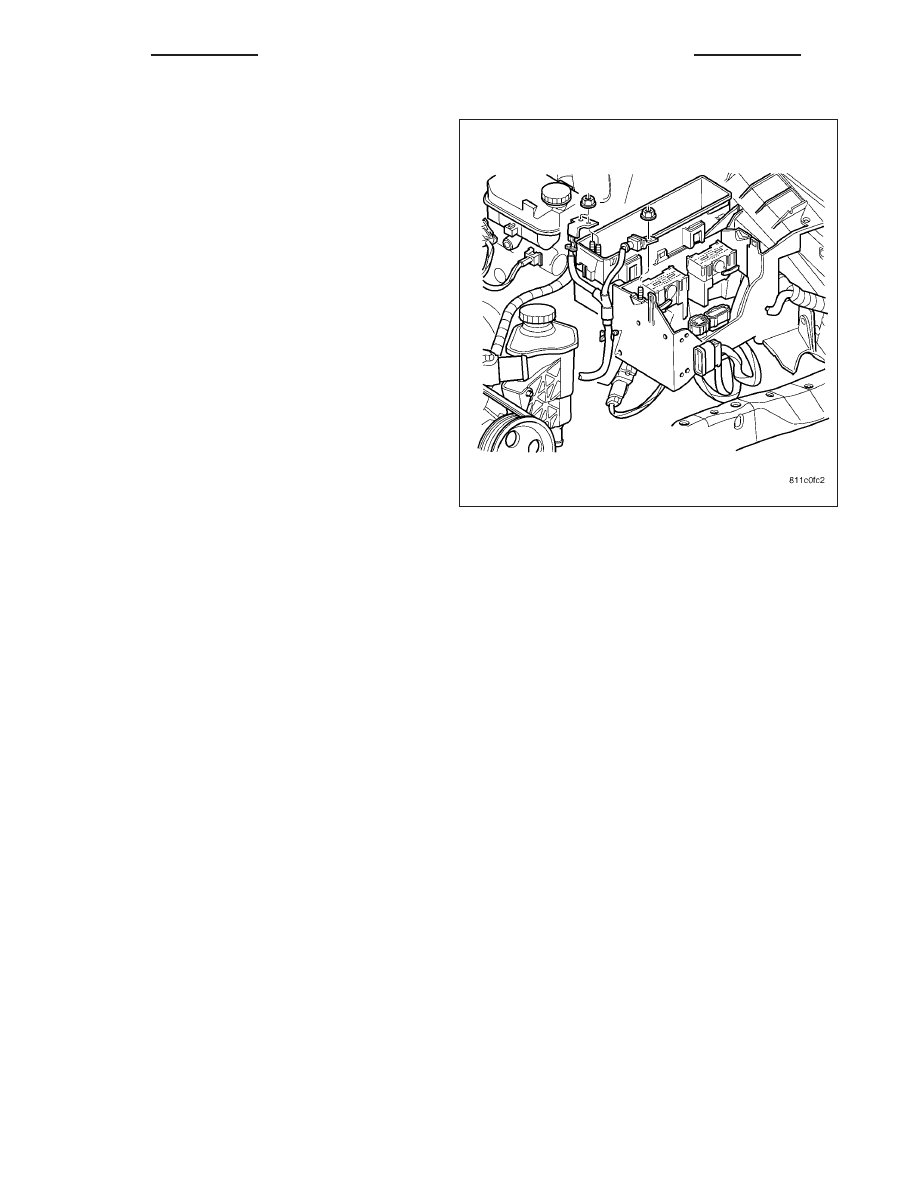

POWER DISTRIBUTION CENTER

DESCRIPTION

All of the electrical current distributed throughout this
vehicle is directed through the Power Distribution Cen-
ter (PDC) (1). The molded plastic PDC housing is
located in the left front corner of the engine compart-
ment, just behind the battery. The PDC houses the
generator

cartridge

fuse

and

maxi-type

cartridge

fuses, which replace all in-line fusible links. The PDC
also houses blade-type fuses, relays, and a fuse
puller.

OPERATION

All of the current from the battery and the generator output enters the PDC through two cables with eyelets that are
secured with nuts to the two B(+) terminal studs located just inside the inboard end of the PDC housing. The PDC
cover is unlatched and removed to access the battery and generator output connection B(+) terminal studs, the
fuses, the relays, the joint connectors and the engine wire harness in-line connector.

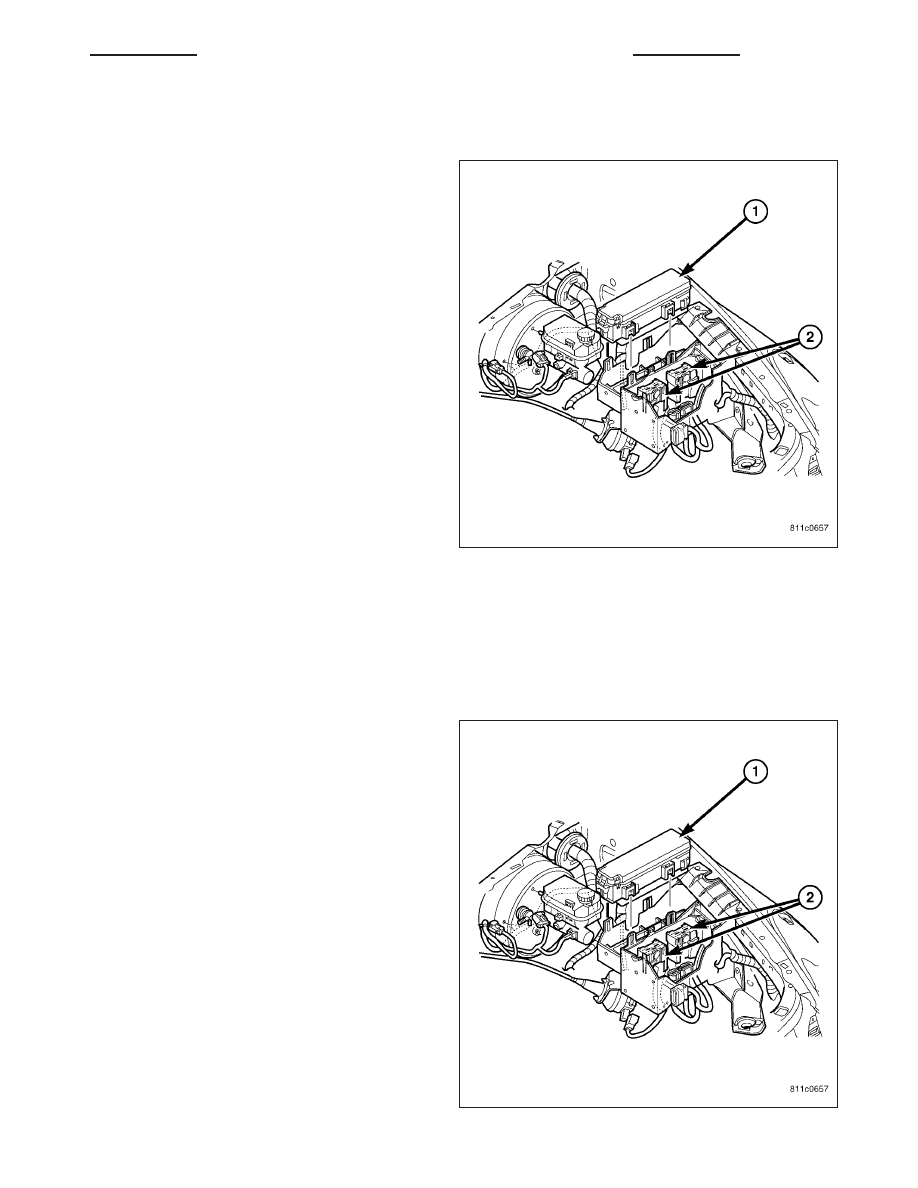

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Depress retaining tabs on the side on the PDC (1).

3. Disconnect electrical harness connectors (2) and

remove PDC.

HB

8W-97 POWER DISTRIBUTION - SERVICE INFORMATION

8W - 97 - 7

INSTALLATION

1. Connect electrical harness connectors to Power

Distribution Center (PDC).

2. Position PDC and engage into the retaining tabs.

3. Connect the battery negative cable.

POWER OUTLET

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Pull the cigar lighter knob and element out of the cigar lighter receptacle base, or unsnap the protective cap from

the power outlet receptacle base.

3. Look inside the cigar lighter or power outlet receptacle base and note the position of the rectangular retaining

bosses of the mount that secures the receptacle base to the panel.

4. Insert a pair of external snap ring pliers into the cigar lighter or power outlet receptacle base and engage the tips

of the pliers with the retaining bosses of the mount.

5. Squeeze the pliers to disengage the mount retaining bosses from the receptacle base and, using a gentle rock-

ing motion, pull the pliers and the receptacle base out of the mount.

6. Pull the receptacle base away from the instrument panel far enough to access the instrument panel wire harness

connector.

7. Disconnect the instrument panel wire harness connector from the cigar lighter or power outlet receptacle base

connector receptacle.

8. Remove the cigar lighter or power outlet mount from the instrument panel.

INSTALLATION

1. Connect the instrument panel wire harness connector to the cigar lighter or power outlet receptacle base con-

nector receptacle.

2. Install the cigar lighter or power outlet mount into the instrument panel.

3. Align the splines on the outside of the cigar lighter or power outlet receptacle base connector receptacle with the

grooves on the inside of the mount.

4. Press firmly on the cigar lighter or power outlet receptacle base until the retaining bosses of the mount are fully

engaged in their receptacles.

5. Install the cigar lighter knob and element into the cigar lighter receptacle base, or the protective cap into the

power outlet receptacle base.

6. Connect the battery negative cable.

8W - 97 - 8

8W-97 POWER DISTRIBUTION - SERVICE INFORMATION

HB

ENGINE

TABLE OF CONTENTS

page

page

ENGINE ELECTRICAL DIAGNOSTICS . . . . . . . . . . . 1
ENGINE - 3.7L SERVICE INFORMATION . . . . . 1071

ENGINE - 4.7L SERVICE INFORMATION . . . . . 1190
ENGINE - 5.7L SERVICE INFORMATION . . . . . 1319

ENGINE ELECTRICAL DIAGNOSTICS

TABLE OF CONTENTS

page

page

ENGINE ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

PRE-DIAGNOSTIC TROUBLESHOOTING

PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . 6

INTERMITTENT CONDITION

. . . . . . . . . . . . . . 8

P0016–CRANKSHAFT / CAMSHAFT TIMING

MISALIGNMENT . . . . . . . . . . . . . . . . . . . . . . . 9

P0031-O2 SENSOR 1/1 HEATER CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

P0032-O2 SENSOR 1/1 HEATER CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

P0037-O2 SENSOR 1/2 HEATER CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

P0038-O2 SENSOR 1/2 HEATER CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

P0051-O2 SENSOR 2/1 HEATER CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

P0052-O2 SENSOR 2/1 HEATER CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

P0057-O2 SENSOR 2/2 HEATER CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

P0058-O2 SENSOR 2/2 HEATER CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

P0068-MANIFOLD PRESSURE/THROTTLE

POSITION CORRELATION . . . . . . . . . . . . . . . 51

P0071-AMBIENT AIR TEMPERATURE

SENSOR PERFORMANCE . . . . . . . . . . . . . . . 61

P0072-AMBIENT AIR TEMPERATURE

SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . 67

P0073–AMBIENT AIR TEMPERATURE

SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . . 70

P0107-MANIFOLD ABSOLUTE PRESSURE

SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . 74

P0108-MANIFOLD ABSOLUTE PRESSURE

SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . . 79

P0111-INTAKE AIR TEMPERATURE SENSOR

RATIONALITY . . . . . . . . . . . . . . . . . . . . . . . . 84

P0112-INTAKE AIR TEMPERATURE

SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . 91

P0113-INTAKE AIR TEMPERATURE

SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . . 94

P0116–ENGINE COOLANT TEMPERATURE

SENSOR CIRCUIT PERFORMANCE . . . . . . . 99

P0117-ENGINE COOLANT TEMPERATURE

SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . 104

P0118-ENGINE COOLANT TEMPERATURE

SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . 107

P0121-THROTTLE POSITION SENSOR 1

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 111

P0122-THROTTLE POSITION SENSOR 1

CIRCUIT LOW (3.7L, 4.7L) . . . . . . . . . . . . . . 120

P0122-THROTTLE POSITION SENSOR 1

CIRCUIT LOW (5.7L) . . . . . . . . . . . . . . . . . . 125

P0123-THROTTLE POSITION SENSOR 1

CIRCUIT HIGH (3.7L, 4.7L) . . . . . . . . . . . . . . 130

P0123-THROTTLE POSITION SENSOR 1

CIRCUIT HIGH (5.7L) . . . . . . . . . . . . . . . . . . 135

P0125-INSUFFICIENT COOLANT TEMP FOR

CLOSED-LOOP FUEL CONTROL . . . . . . . . . 140

P0128-THERMOSTAT RATIONALITY

. . . . . . 143

P0129-BAROMETRIC PRESSURE OUT-OF-

RANGE LOW . . . . . . . . . . . . . . . . . . . . . . . . 153

P0131-O2 SENSOR 1/1 CIRCUIT LOW

. . . . 159

P0132-O2 SENSOR 1/1 CIRCUIT HIGH

. . . . 164

P0133-O2 SENSOR 1/1 SLOW RESPONSE

. 169

P0135-O2 SENSOR 1/1 HEATER

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 172

P0137-O2 SENSOR 1/2 CIRCUIT LOW

. . . . 176

P0138-O2 SENSOR 1/2 CIRCUIT HIGH

. . . . 181

P0139-O2 SENSOR 1/2 SLOW RESPONSE

. 186

HB

ENGINE

9 - 1

P0141-O2 SENSOR 1/2 HEATER

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 189

P0151-O2 SENSOR 2/1 CIRCUIT LOW

. . . . 193

P0152-O2 SENSOR 2/1 CIRCUIT HIGH

. . . . 198

P0153-O2 SENSOR 2/1 SLOW RESPONSE

. 203

P0155-O2 SENSOR 2/1 HEATER

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 206

P0157-O2 SENSOR 2/2 CIRCUIT LOW

. . . . 210

P0158-O2 SENSOR 2/2 CIRCUIT HIGH

. . . . 215

P0159-O2 SENSOR 2/2 SLOW RESPONSE

. 220

P0161-O2 SENSOR 2/2 HEATER

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 223

P0171-FUEL SYSTEM 1/1 LEAN

. . . . . . . . . 227

P0172-FUEL SYSTEM 1/1 RICH

. . . . . . . . . . 234

P0174-FUEL SYSTEM 2/1 LEAN

. . . . . . . . . 241

P0175-FUEL SYSTEM 2/1 RICH

. . . . . . . . . . 248

P0201-FUEL INJECTOR 1 CIRCUIT

. . . . . . . 255

P0202-FUEL INJECTOR 2 CIRCUIT

. . . . . . . 259

P0203-FUEL INJECTOR 3 CIRCUIT

. . . . . . . 263

P0204-FUEL INJECTOR 4 CIRCUIT

. . . . . . . 267

P0205-FUEL INJECTOR 5 CIRCUIT

. . . . . . . 271

P0206-FUEL INJECTOR 6 CIRCUIT

. . . . . . . 275

P0207-FUEL INJECTOR 7 CIRCUIT

. . . . . . . 279

P0208-FUEL INJECTOR 8 CIRCUIT

. . . . . . . 283

P0221-THROTTLE POSITION SENSOR 2

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 287

P0222-THROTTLE POSITION SENSOR 2

CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . 296

P0223-THROTTLE POSITION SENSOR 2

CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . 302

P0300-MULTIPLE CYLINDER MISFIRE

. . . . 306

P0301-CYLINDER 1 MISFIRE

. . . . . . . . . . . 313

P0302-CYLINDER 2 MISFIRE

. . . . . . . . . . . 322

P0303-CYLINDER 3 MISFIRE

. . . . . . . . . . . 332

P0304-CYLINDER 4 MISFIRE

. . . . . . . . . . . 342

P0305-CYLINDER 5 MISFIRE

. . . . . . . . . . . 352

P0306-CYLINDER 6 MISFIRE

. . . . . . . . . . . 362

P0307-CYLINDER 7 MISFIRE

. . . . . . . . . . . 372

P0308-CYLINDER 8 MISFIRE

. . . . . . . . . . . 382

P0315-NO CRANK SENSOR LEARNED

. . . . 392

P0325-KNOCK SENSOR 1 CIRCUIT

. . . . . . 395

P0330-KNOCK SENSOR 2 CIRCUIT

. . . . . . 400

P0335-CRANKSHAFT POSITION SENSOR

CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

P0339-CRANKSHAFT POSITION SENSOR

INTERMITTENT . . . . . . . . . . . . . . . . . . . . . . 414

P0340-CAMSHAFT POSITION SENSOR

CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

P0344-CAMSHAFT POSITION SENSOR

INTERMITTENT . . . . . . . . . . . . . . . . . . . . . . 429

P0401-EGR SYSTEM PERFORMANCE

. . . . 435

P0403-EGR SOLENOID CIRCUIT

. . . . . . . . . 441

P0404-EGR POSITION SENSOR

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 446

P0405-EGR POSITION SENSOR CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452

P0406-EGR POSITION SENSOR CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457

P0420-CATALYST 1/1 EFFICIENCY

. . . . . . . 462

P0430-CATALYST 2/1 EFFICIENCY

. . . . . . . 465

P0440-GENERAL EVAP SYSTEM FAILURE

. 468

P0441-EVAP PURGE SYSTEM

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 475

P0442-EVAP PURGE SYSTEM MEDIUM

LEAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478

P0443-EVAP PURGE SOLENOID CIRCUIT

. 482

P0452-NVLD PRESSURE SWITCH STUCK

CLOSED . . . . . . . . . . . . . . . . . . . . . . . . . . . 487

P0453-NVLD PRESSURE SWITCH STUCK

OPEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491

P0455-EVAP PURGE SYSTEM

LARGE LEAK . . . . . . . . . . . . . . . . . . . . . . . . 496

P0456-EVAP PURGE SYSTEM

SMALL LEAK . . . . . . . . . . . . . . . . . . . . . . . . 500

P0457-LOOSE FUEL CAP

. . . . . . . . . . . . . . 504

P0461-FUEL LEVEL SENSOR 1

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 509

P0462-FUEL LEVEL SENSOR 1 CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513

P0463-FUEL LEVEL SENSOR 1 CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 516

P0480-COOLING FAN 1 CONTROL

CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . 521

P0481-COOLING FAN 2 CONTROL

CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . 525

P0498-NVLD CANISTER VENT VALVE

SOLENOID CIRCUIT LOW . . . . . . . . . . . . . . 529

P0499-NVLD CANISTER VENT VALVE

SOLENOID CIRCUIT HIGH . . . . . . . . . . . . . . 532

P0501-VEHICLE SPEED SENSOR 1

PERFORMANCE . . . . . . . . . . . . . . . . . . . . . 536

P0503-VEHICLE SPEED SENSOR 1

ERRATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . 539

P0506-IDLE SPEED PERFORMANCE

LOWER THAN EXCEPTED . . . . . . . . . . . . . . 542

P0507-IDLE SPEED PERFORMANCE

HIGHER THAN EXCEPTED . . . . . . . . . . . . . 544

P0508-IDLE AIR CONTROL VALVE SENSE

CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . 546

P0509-IDLE AIR CONTROL VALVE SENSE

CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . 551

P0513-INVALID SKIM KEY

. . . . . . . . . . . . . . 555

P0516-BATTERY TEMPERATURE SENSOR

CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . 558

P0517-BATTERY TEMPERATURE SENSOR

CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . 561

P0522-OIL PRESSURE TOO LOW

. . . . . . . . 566

P0532-A/C PRESSURE SENSOR CIRCUIT

LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571

P0533-A/C PRESSURE SENSOR CIRCUIT

HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 576

P0551-POWER STEERING PRESSURE

SWITCH PERFORMANCE . . . . . . . . . . . . . . 581

P0562-BATTERY VOLTAGE LOW

. . . . . . . . . 585

P0563-BATTERY VOLTAGE HIGH

. . . . . . . . 590

P0571-BRAKE SWITCH 1 PERFORMANCE

. 593

P0572-BRAKE SWITCH 1 STUCK ON

. . . . . 598

P0573-BRAKE SWITCH 1 STUCK OFF

. . . . 602

9 - 2

ENGINE ELECTRICAL DIAGNOSTICS

HB















Content   ..  748  749  750  751   ..
