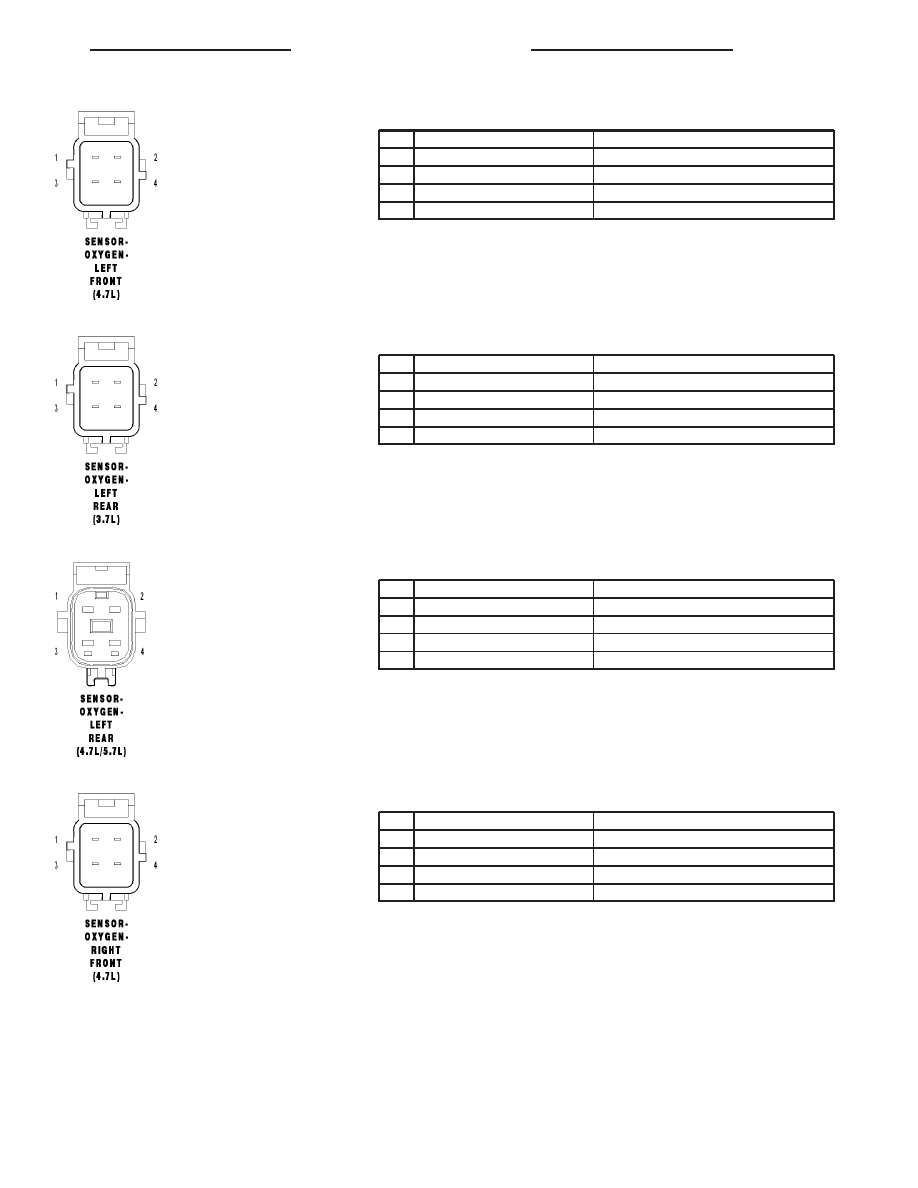

SENSOR-OXYGEN-LEFT FRONT (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K99 20LB/WT

O2 1/1 HEATER CONTROL

2

Z43 20BK/LB

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K41 20DB/LB

O2 1/1 SIGNAL

SENSOR-OXYGEN-LEFT REAR (3.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 20DG/RD

O2 1/2 HEATER CONTROL

2

Z42 20BK/LG

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K141 20VT/DG

02 1/2 SIGNAL

SENSOR-OXYGEN-LEFT REAR (4.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K299 20DG/RD

O2 1/2 HEATER CONTROL

2

Z42 20BK/LG

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K141 20VT/DG

02 1/2 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K199 20GY/LB

O2 2/1 HEATER CONTROL

2

Z934 20BK

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K43 20DB/LG

O2 2/1 SIGNAL

HB

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 87

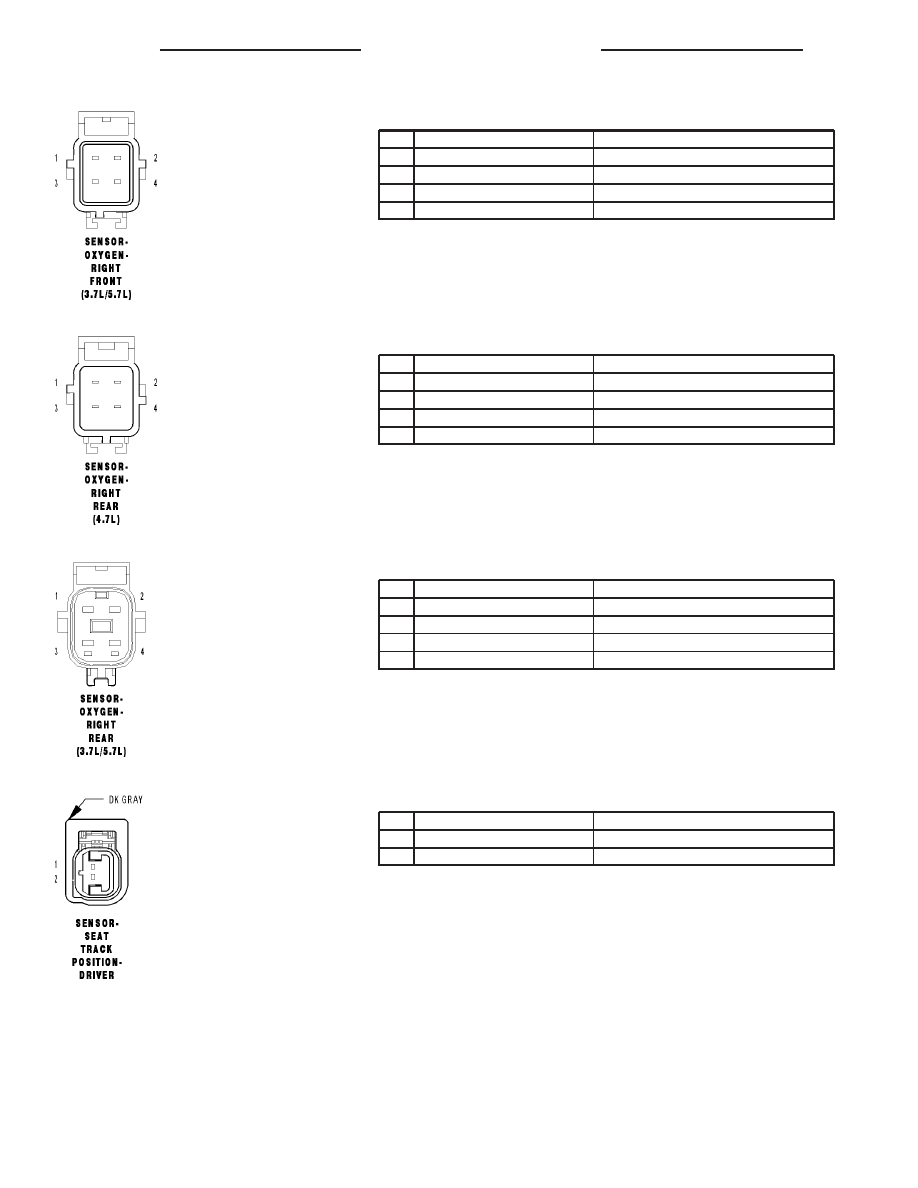

SENSOR-OXYGEN-RIGHT FRONT (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K199 20GY/LB

O2 2/1 HEATER CONTROL

2

Z934 20BK

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K43 20DB/LG

O2 2/1 SIGNAL

SENSOR-OXYGEN-RIGHT REAR (4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K399 20TN/WT

O2 2/2 HEATER CONTROL

2

Z992 20BK

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K243 20BR

O2 2/2 SIGNAL

SENSOR-OXYGEN-RIGHT REAR (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K399 20TN/WT

O2 2/2 HEATER CONTROL

2

Z992 20BK

GROUND

3

K904 20DB/DG

O2 RETURN (DOWNSTREAM)

4

K243 20BR

O2 2/2 SIGNAL

SENSOR-SEAT TRACK POSITION-DRIVER - DK GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

R261 20LB/WT

DRIVER SEAT POSITION SENSOR DATA

2

R263 20LB/VT

DRIVER SEAT POSITION SENSOR VOLTAGE

8W - 80 - 88

8W-80 CONNECTOR PIN-OUTS

HB

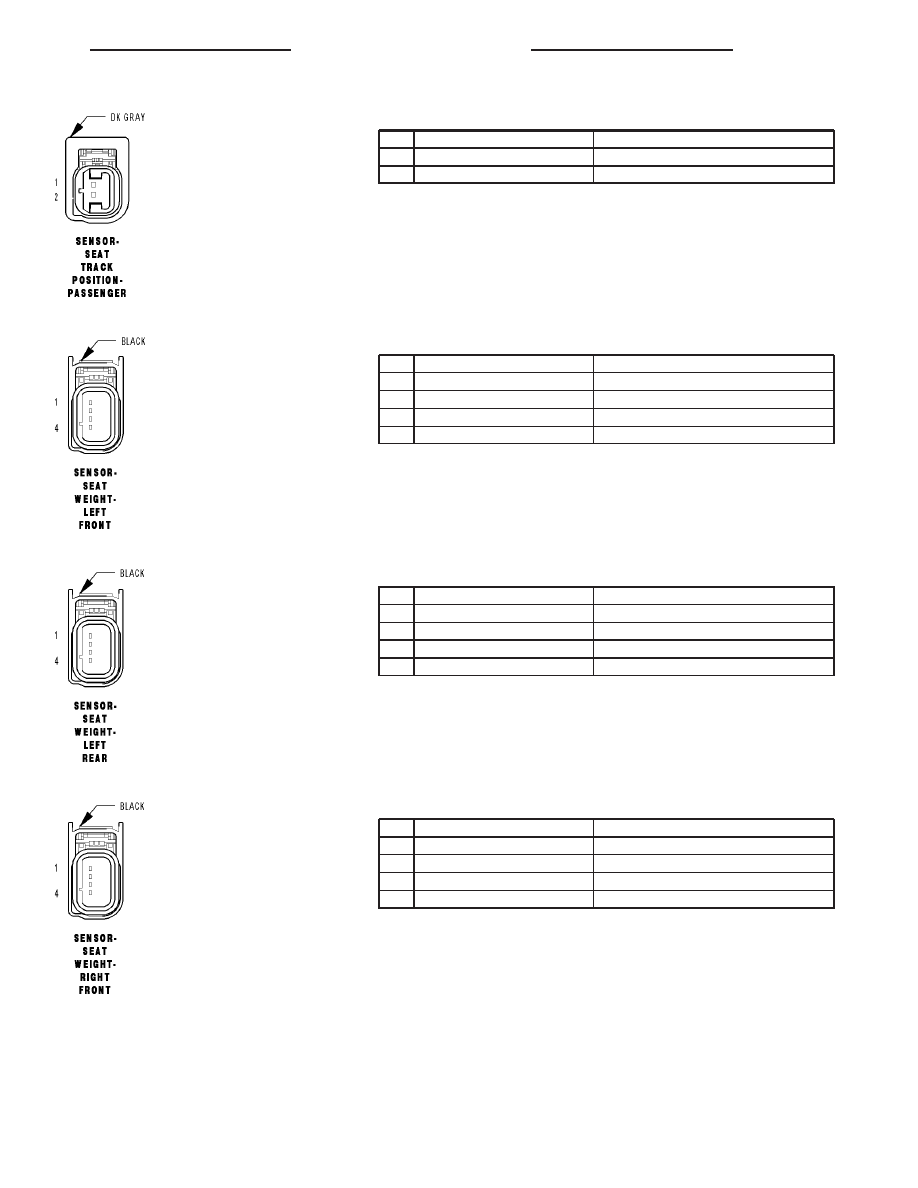

SENSOR-SEAT TRACK POSITION-PASSENGER - DK GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

R262 20WT/LB

PASSENGER SEAT POSITION SENSOR DATA

2

R264 20VT/LB

PASSENGER SEAT POSITION SENSOR VOLTAGE

SENSOR-SEAT WEIGHT-LEFT FRONT - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

R701 20LG

SEAT WEIGHT SENSOR 5 VOLTS

2

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

3

-

-

4

R717 20LG/DG

SEAT WEIGHT LEFT FRONT SENSOR SIGNAL

SENSOR-SEAT WEIGHT-LEFT REAR - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

R701 20LG

SEAT WEIGHT SENSOR 5 VOLTS

2

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

3

-

-

4

R705 20LG/OR

SEAT WEIGHT LEFT REAR SENSOR SIGNAL

SENSOR-SEAT WEIGHT-RIGHT FRONT - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

R701 20LG

SEAT WEIGHT SENSOR 5 VOLTS

2

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

3

-

-

4

R718 20LB/DG

SEAT WEIGHT RIGHT FRONT SENSOR SIGNAL

HB

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 89

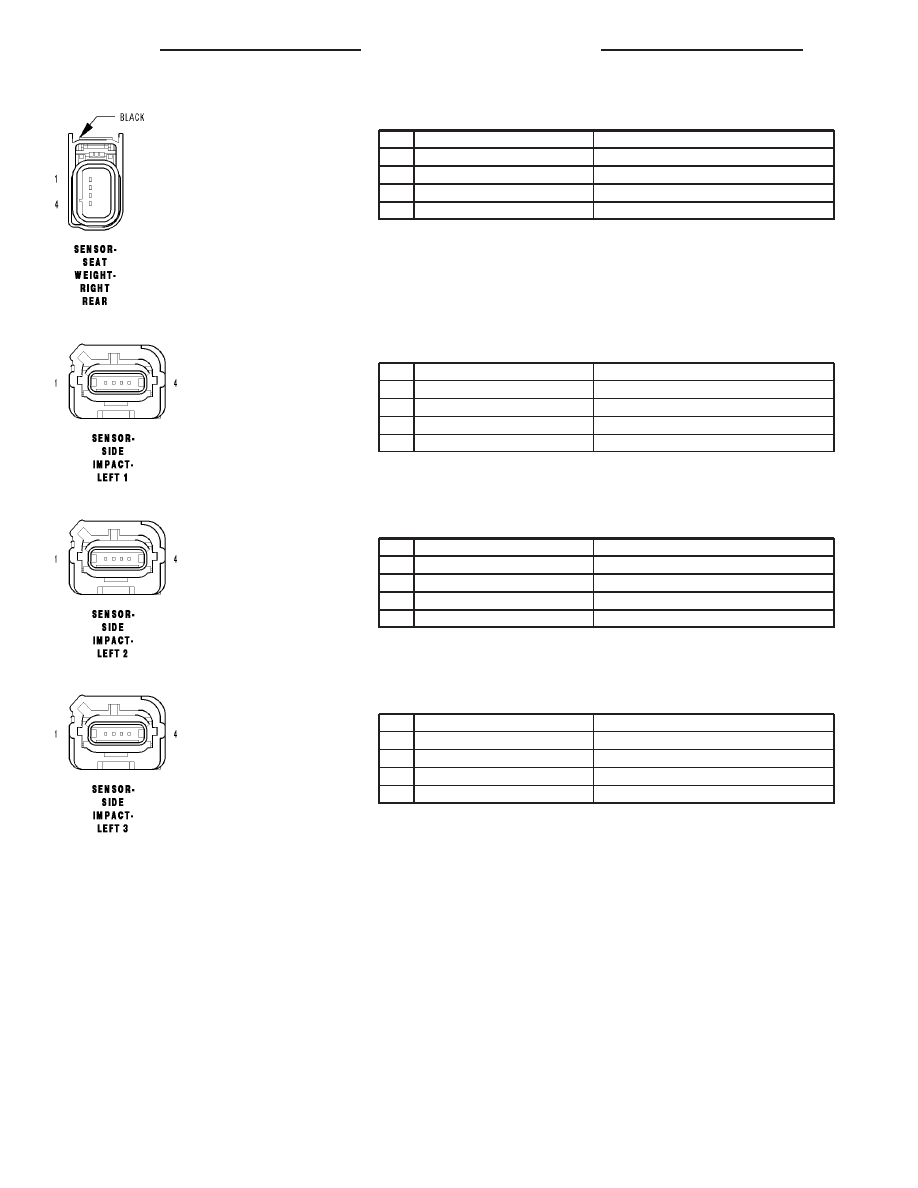

SENSOR-SEAT WEIGHT-RIGHT REAR - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

R701 20LG

SEAT WEIGHT SENSOR 5 VOLTS

2

R728 20LB/YL

SEAT WEIGHT SENSOR GROUND

3

-

-

4

R706 20LB/OR

SEAT WEIGHT RIGHT REAR SENSOR SIGNAL

SENSOR-SIDE IMPACT-LEFT 1 - 4 WAY

CAV

CIRCUIT

FUNCTION

1

R13 20LG/BR

LEFT SIDE IMPACT SENSOR 1 SIGNAL

2

R15 20BR/GY

LEFT SIDE IMPACT SENSOR 1 GROUND

3

R19 20LG/WT

LEFT SIDE IMPACT SENSOR 2 GROUND

4

R17 20LG

LEFT SIDE IMPACT SENSOR 2 SIGNAL

SENSOR-SIDE IMPACT-LEFT 2 - 4 WAY

CAV

CIRCUIT

FUNCTION

1

R17 20LG

LEFT SIDE IMPACT SENSOR 2 SIGNAL

2

R19 20LG/WT

LEFT SIDE IMPACT SENSOR 2 GROUND

3

R23 20LB/DB

LEFT SIDE IMPACT SENSOR 3 GROUND

4

R21 20LB/WT

LEFT SIDE IMPACT SENSOR 3 SIGNAL

SENSOR-SIDE IMPACT-LEFT 3 - 4 WAY

CAV

CIRCUIT

FUNCTION

1

R21 20LB/WT

LEFT SIDE IMPACT SENSOR 3 SIGNAL

2

R23 20LB/DB

LEFT SIDE IMPACT SENSOR 3 GROUND

3

-

-

4

-

-

8W - 80 - 90

8W-80 CONNECTOR PIN-OUTS

HB
