access the turning loop screw.

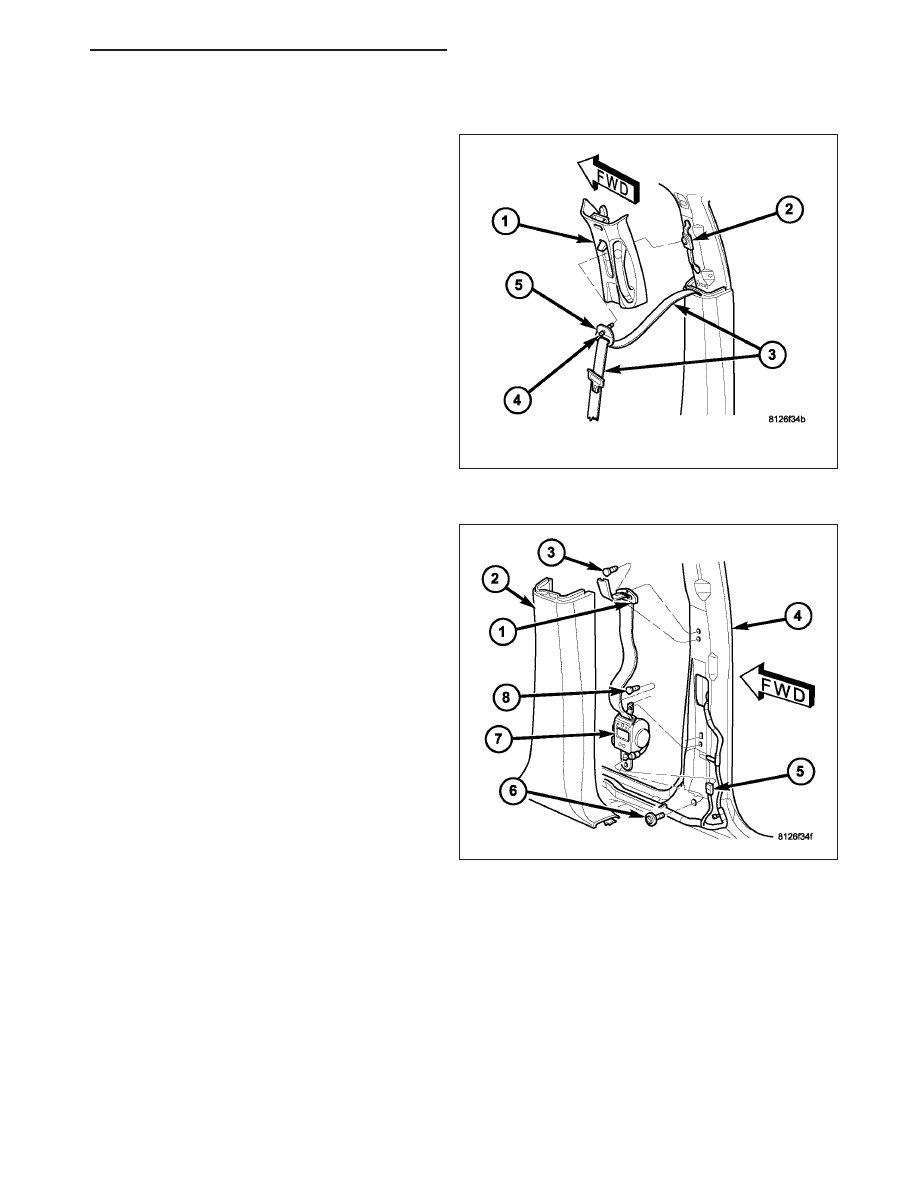

6. Remove the screw (4) that secures the seat belt

turning loop (5) to the height adjuster (2) on the
upper B-pillar.

7. Remove the seat belt turning loop from the height

adjuster.

8. Remove the upper trim (1) from the inside of the

B-pillar. (Refer to 23 - BODY/INTERIOR/B-PILLAR
UPPER TRIM - REMOVAL).

9. Remove the lower trim (2) from the inside of the

B-pillar (4). (Refer to 23 - BODY/INTERIOR/B-PIL-
LAR LOWER TRIM - REMOVAL).

10. Remove the screw (3) that secures the belt web

guide (1) to the B-pillar.

11. Disconnect the body wire harness connector (5)

from the seat belt tensioner initiator on the retrac-
tor (7).

12. On the driver side only, disconnect the second

body wire harness connector from the seat belt
switch connector receptacle on the retractor.

13. Remove the screw (8) that secures the upper

retractor bracket to the B-pillar.

14. Remove the screw (6) that secures the lower

retractor bracket to the B-pillar.

15. Disengage the engagement tab on the upper

retractor bracket from the engagement slot in the
B-pillar.

16. Remove the front seat belt and retractor from the B-pillar as a unit.

SECOND ROW - CENTER

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

RESTRAINTS - SERVICE INFORMATION

8O - 513

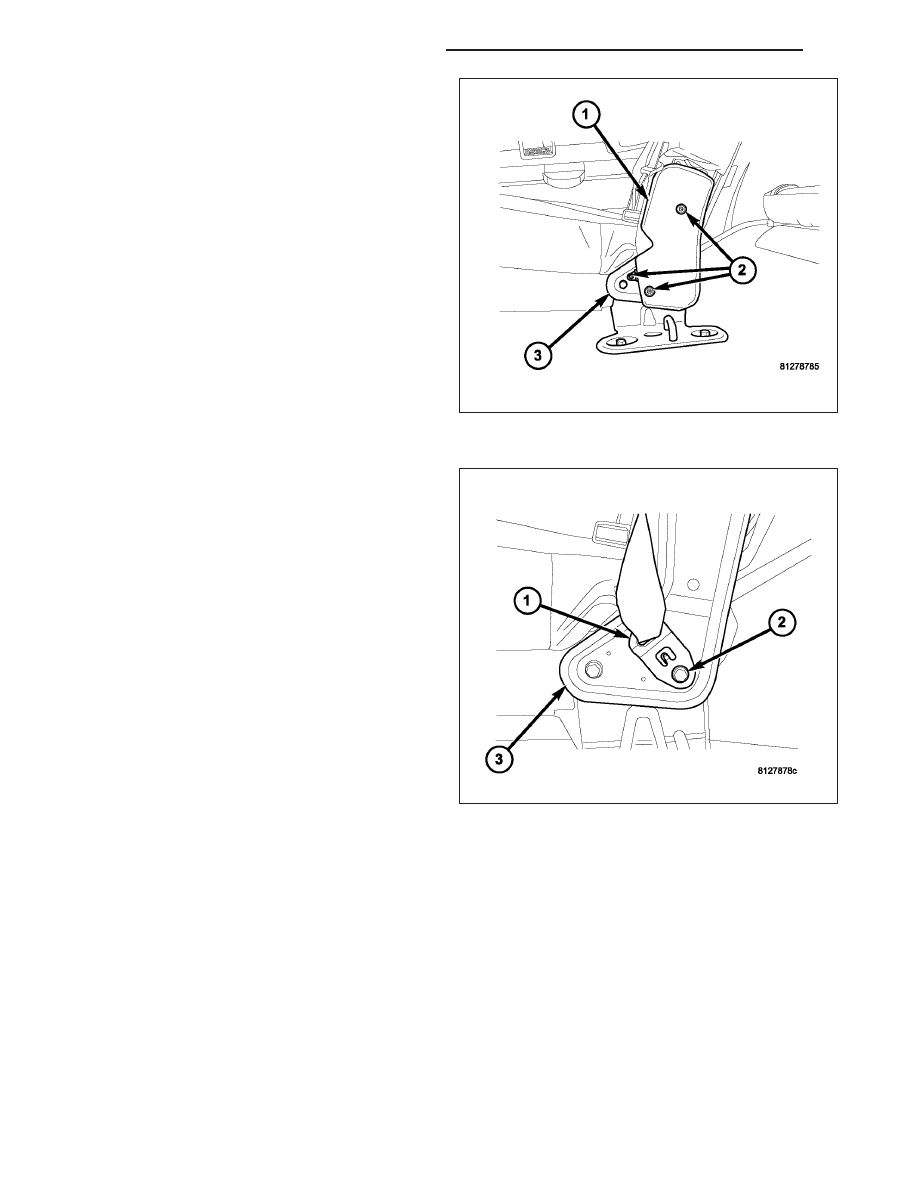

1. Fold and tumble the left outboard second row seat

for easiest access to the center seat back left
hinge bracket cover (1).

2. Remove the three screws (2) that secure the cover

to the center seat back left hinge bracket (3) and
remove the cover.

3. Remove the screw (2) that secures the second row

center seat belt lower anchor (1) to the hinge
bracket (3) and remove the anchor.

8O - 514

RESTRAINTS - SERVICE INFORMATION

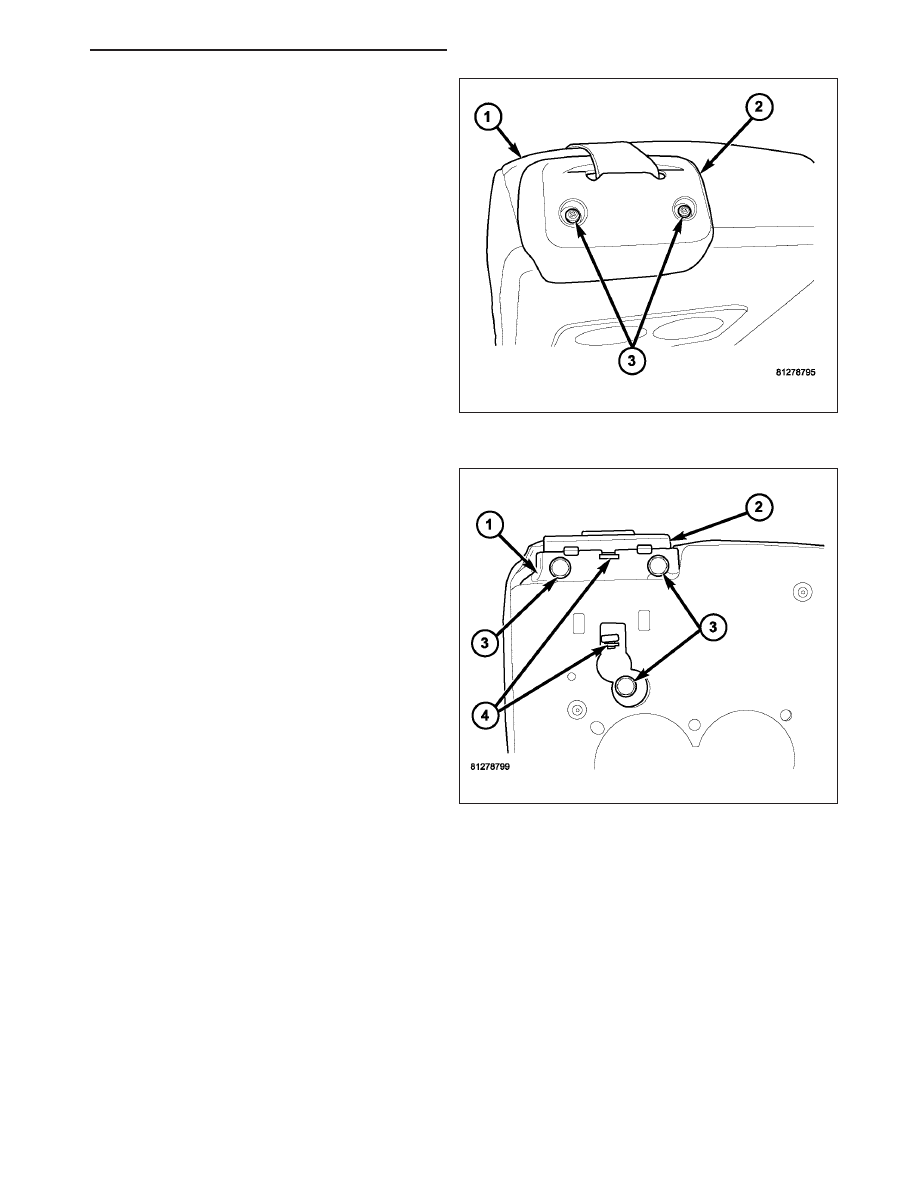

4. Remove the two screws (3) that secure the belt

web guide bezel (2) to the top of the center seat
back panel and remove the bezel from the seat
back and the belt.

5. Remove the trim cover (1) from the center seat

back. (Refer to 23 - BODY/SEATS/2ND ROW
CENTER SEAT BACK COVER - REMOVAL).

6. Remove the three screws (3) that secure the

retractor (2) to the seat back frame (1).

7. Lift the retractor upward far enough to disengage

the two tabs (4) on the retractor bracket from the
keyed slots in the seat back frame.

8. Remove the second row seat belt and retractor

from between the seat back foam and frame as a
unit.

SECOND ROW - OUTBOARD

RESTRAINTS - SERVICE INFORMATION

8O - 515

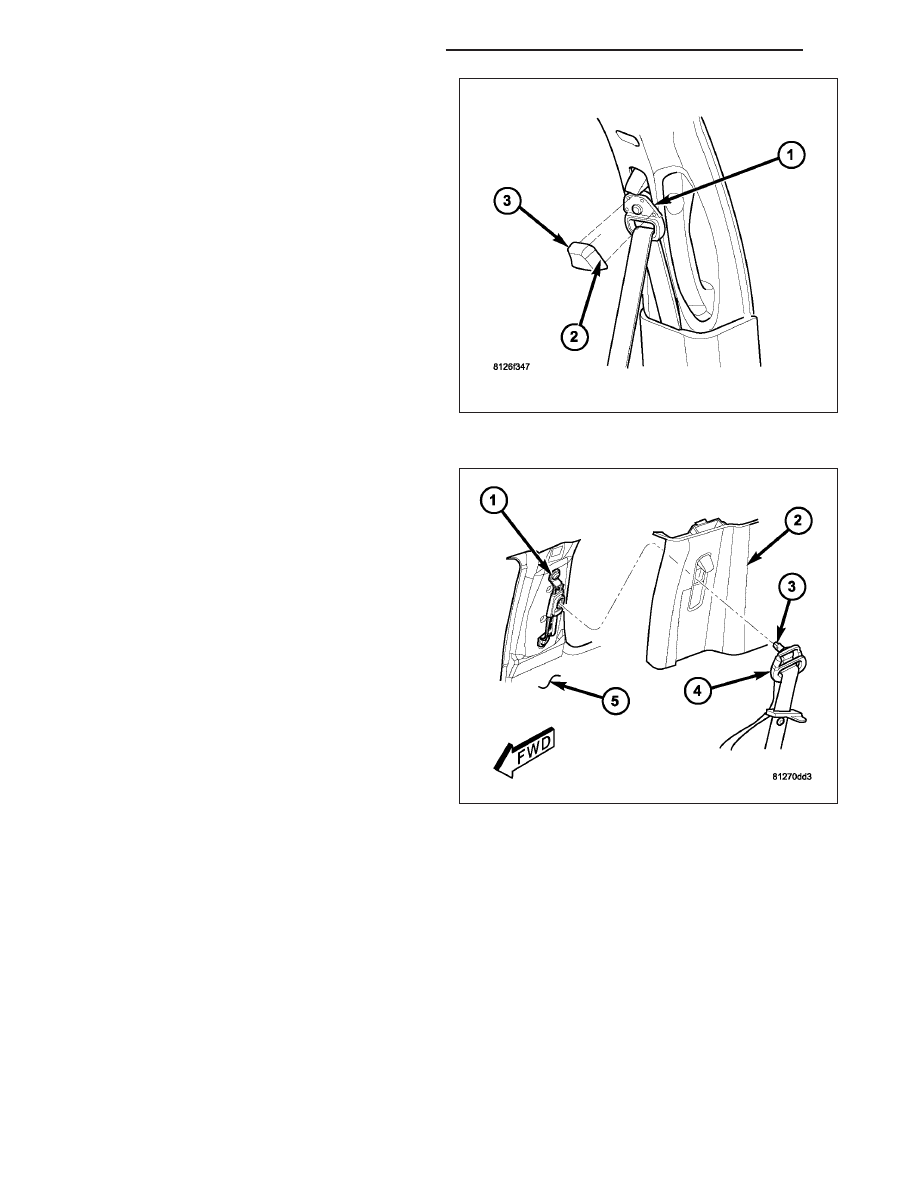

1. Unsnap the upper edge of the trim cover (3) from

the second row outboard seat belt turning loop (1)
and disengage the tab (2) on the lower edge of the
cover to access the turning loop screw.

2. Remove the screw (3) that secures the seat belt

turning loop (4) to the height adjuster (1) on the
upper C-pillar (5).

3. Remove the seat belt turning loop from the height

adjuster.

4. Remove the upper trim (2) from the inside of the

C-pillar. (Refer to 23 - BODY/INTERIOR/C-PILLAR
TRIM - REMOVAL).

8O - 516

RESTRAINTS - SERVICE INFORMATION
