SECOND ROW - CENTER

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

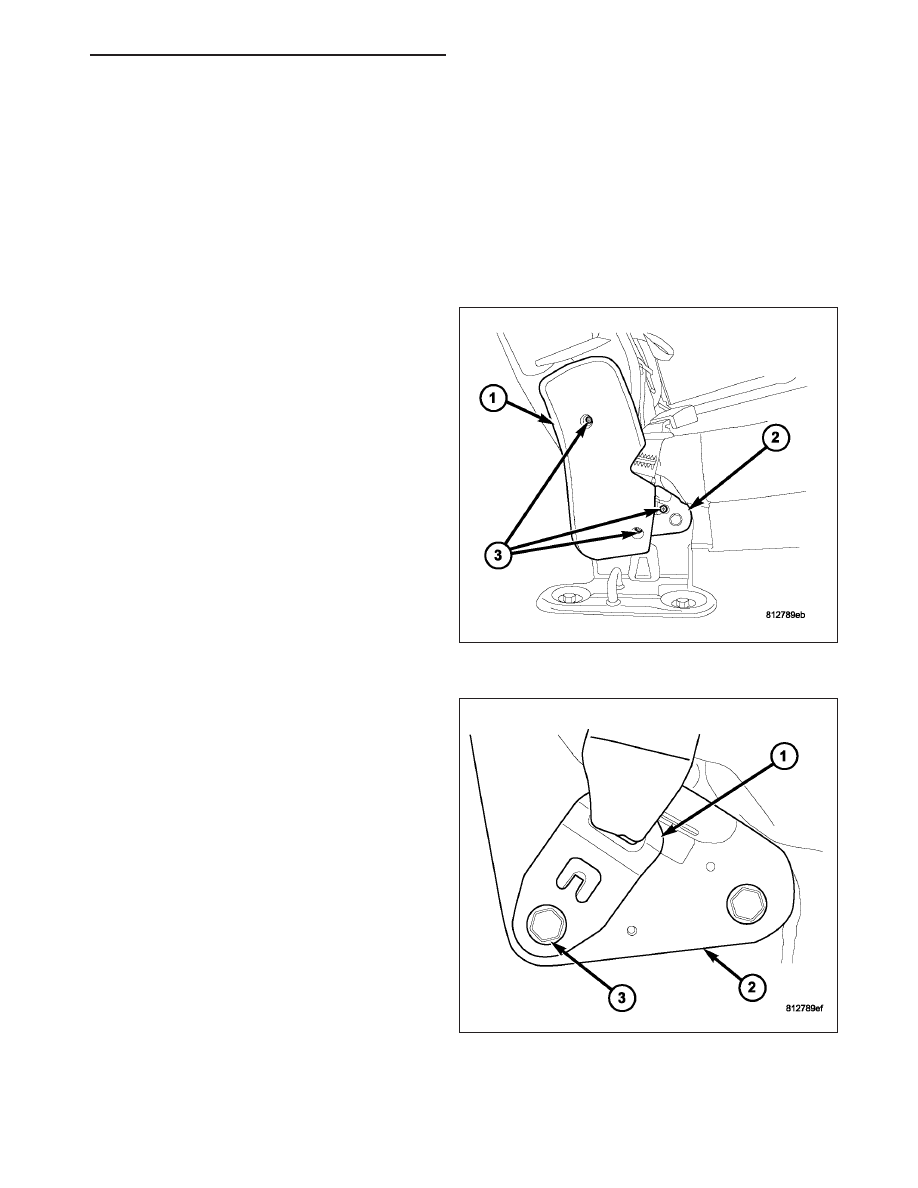

1. Fold and tumble the right outboard second row

seat for easiest access to the center seat back
right hinge bracket cover (1).

2. Remove the three screws (3) that secure the cover

to the center seat back right hinge bracket (2) and
remove the cover.

3. Remove the screw (3) that secures the second row

center seat belt buckle anchor (1) to the hinge
bracket (2) and remove the buckle.

RESTRAINTS - SERVICE INFORMATION

8O - 505

SECOND ROW - OUTBOARD

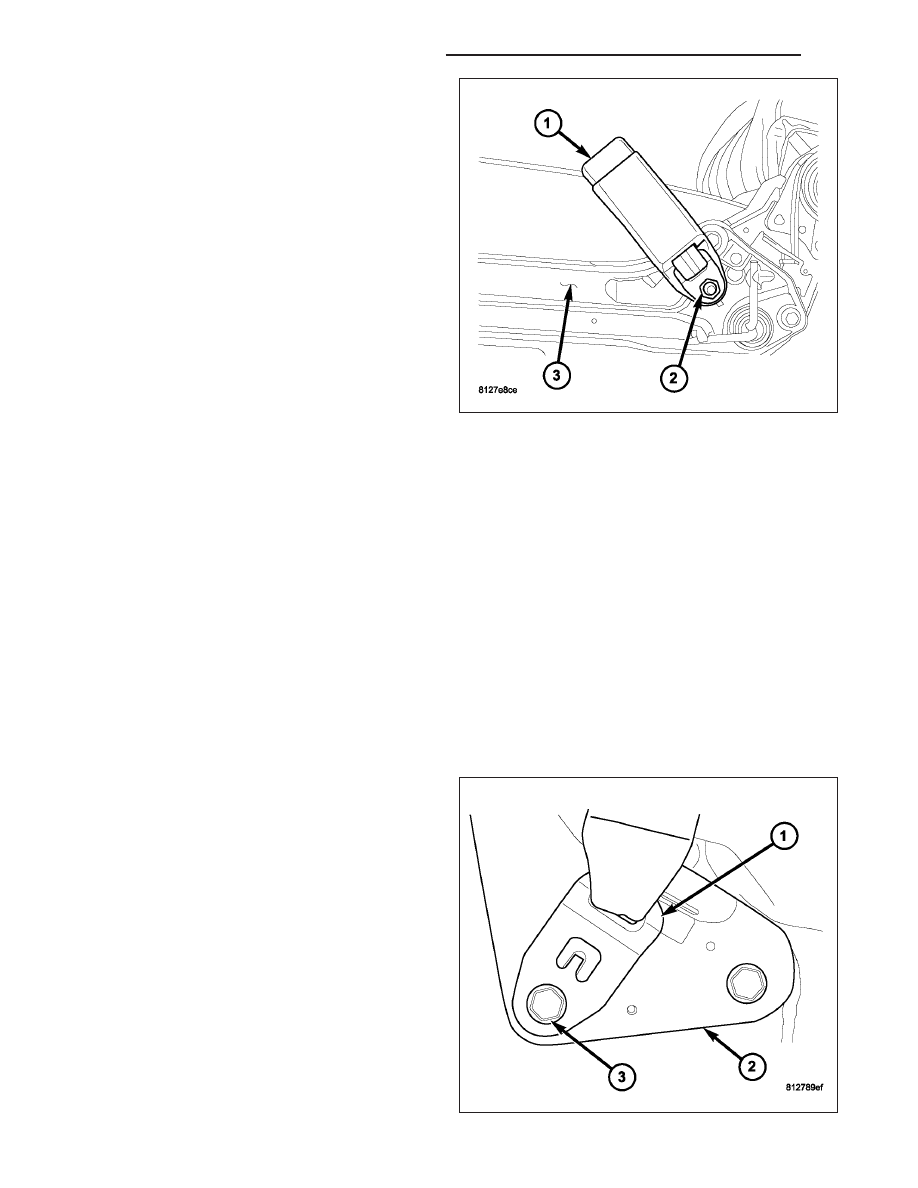

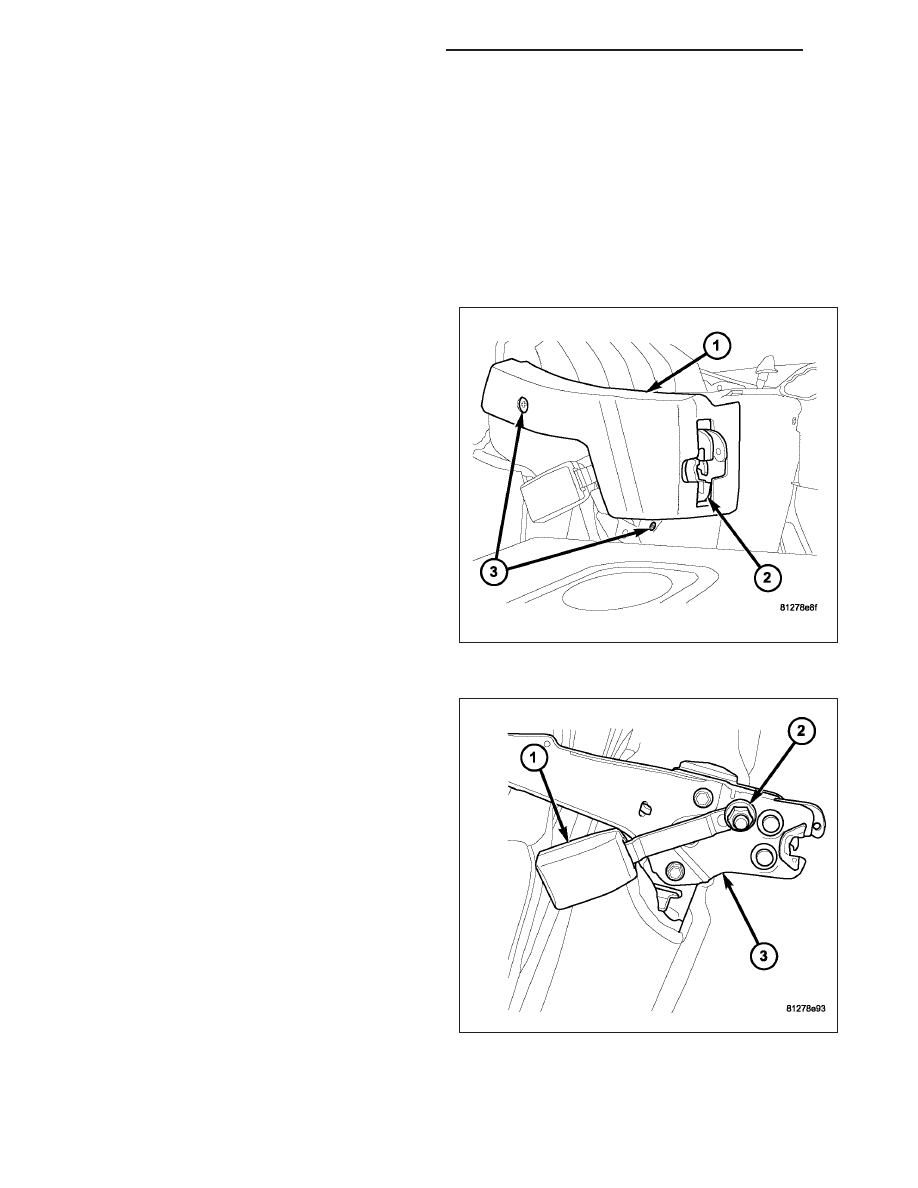

1. Fold and tumble the outboard second row seat for

easiest access to the latch bracket cover (1) on the
inboard side of the seat.

2. Remove the two screws (3) that secure the cover

to the seat latch bracket (2) and remove the cover.

3. Remove the nut (2) that secures the second row

outboard seat belt buckle anchor (1) to the latch
bracket (3) and remove the buckle.

8O - 506

RESTRAINTS - SERVICE INFORMATION

THIRD ROW

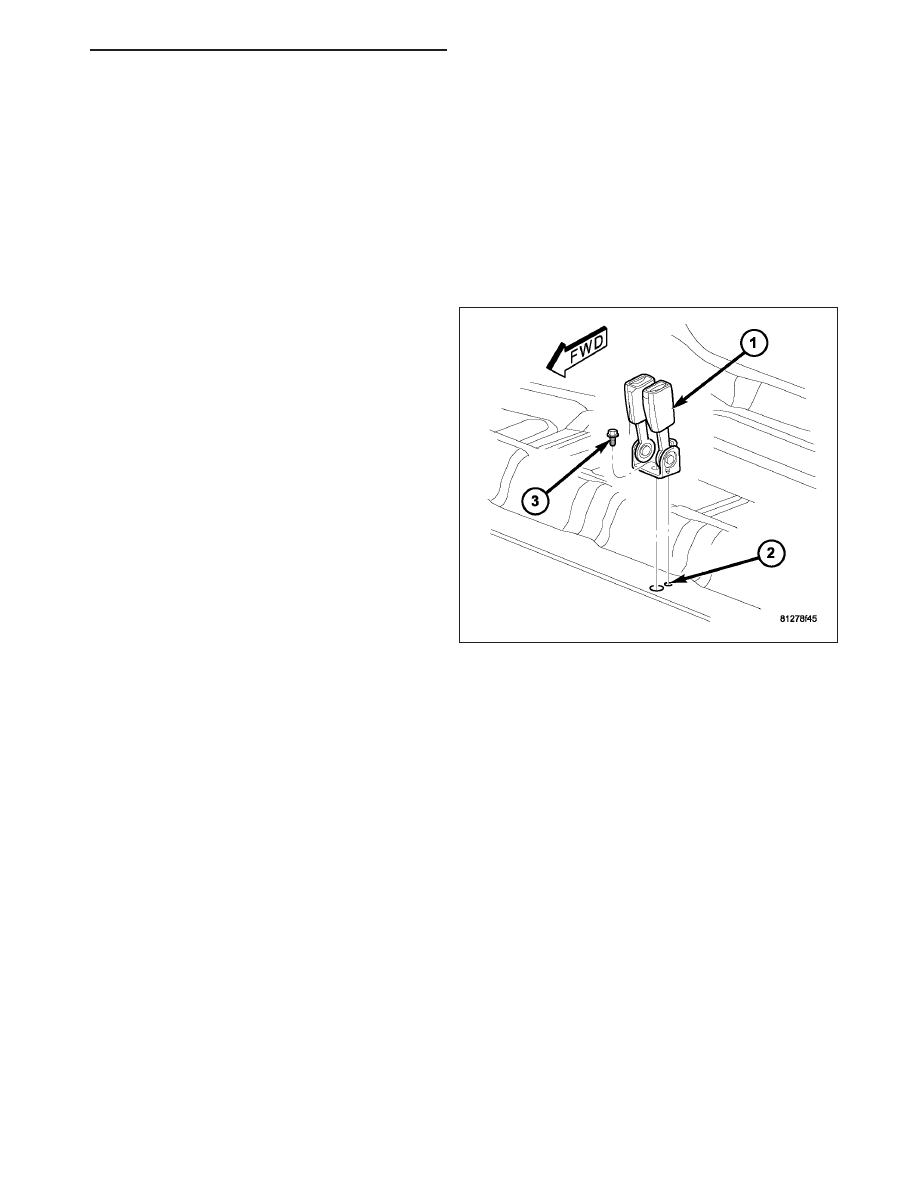

1. Move the third row seat cushion to its storage posi-

tion, but leave the third row seat back in its upright
position for easiest access to the seat belt buckle
and bracket unit (1) on the rear floor panel.

2. Remove the screw (3) that secures the bracket to

the floor and remove the bracket and buckles from
the floor panel as a unit.

INSTALLATION

FRONT

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

RESTRAINTS - SERVICE INFORMATION

8O - 507

1. Position the front seat belt buckle lower anchor (1)

onto the stud near the rear of the inboard seat
cushion frame (3). Be certain the anti-rotation tab
on the anchor is engaged in the clearance hole of
the frame.

2. Install and tighten the nut (2) that secures the

anchor to the frame. Tighten the nut to 43 N·m (32
ft. lbs.).

3. Position the seat cushion side shield to the inboard

seat cushion frame.

4. Install and tighten the screws that secure the shield

to the frame. Tighten the screws to 1 N·m (9 in.
lbs.).

5. Reinstall the front seat and seat track to the floor

panel as a unit. (Refer to 23 - BODY/SEATS/SEAT
- FRONT - INSTALLATION).

6. Do not reconnect the battery negative cable at this

time. The supplemental restraint system verification
test procedure should be performed following service of any supplemental restraint system component. (Refer to
8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST).

7. On the passenger side only, following successful completion of the supplemental restraint system verification test

procedure, perform the Occupant Classification System Verification Test using a diagnostic scan tool. Refer to
the appropriate diagnostic procedures.

SECOND ROW - CENTER

1. Position the second row center seat belt buckle

anchor (1) to the right seat back hinge bracket (2).
Be certain the anti-rotation tab on the anchor is
engaged in the clearance hole of the bracket.

2. Install and tighten the screw (3) that secures the

anchor to the bracket. Tighten the screw to 43 N·m

8O - 508

RESTRAINTS - SERVICE INFORMATION
