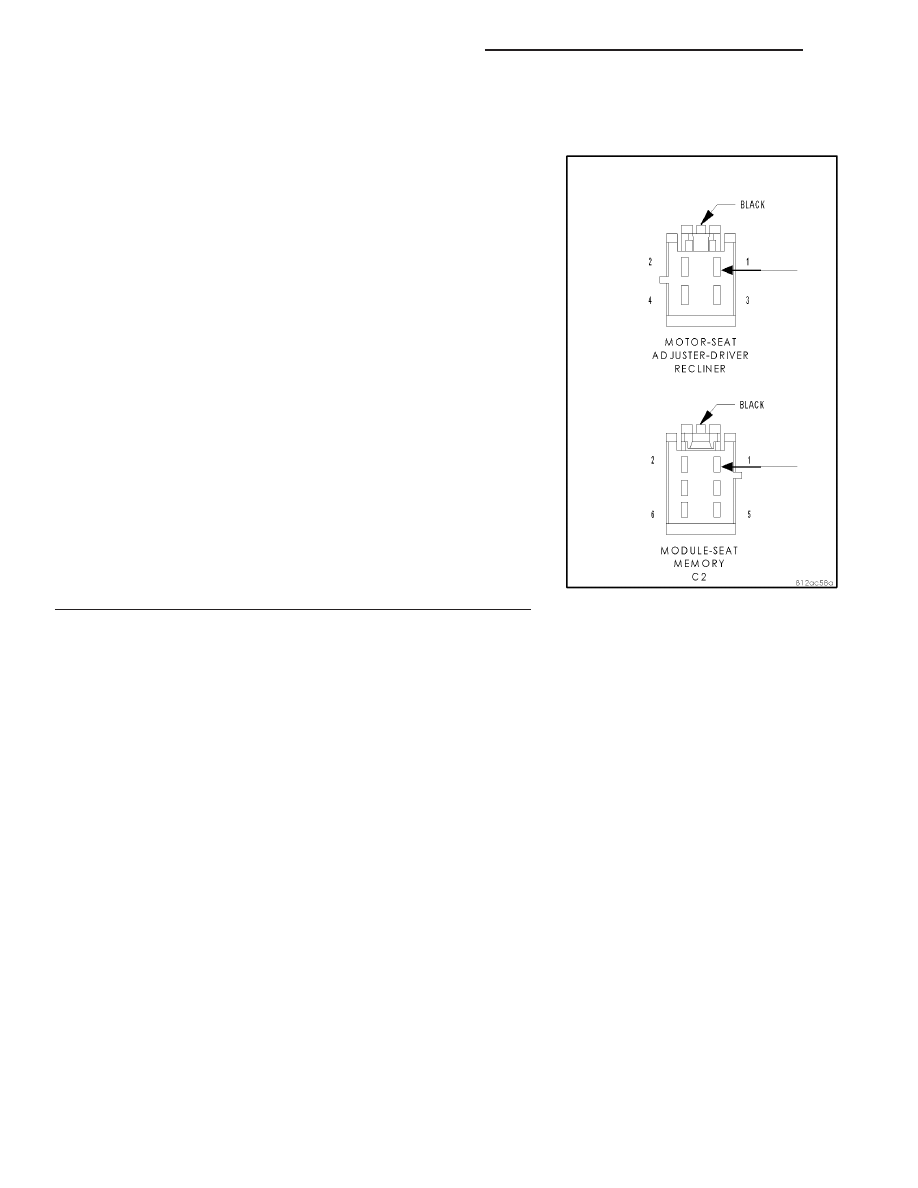

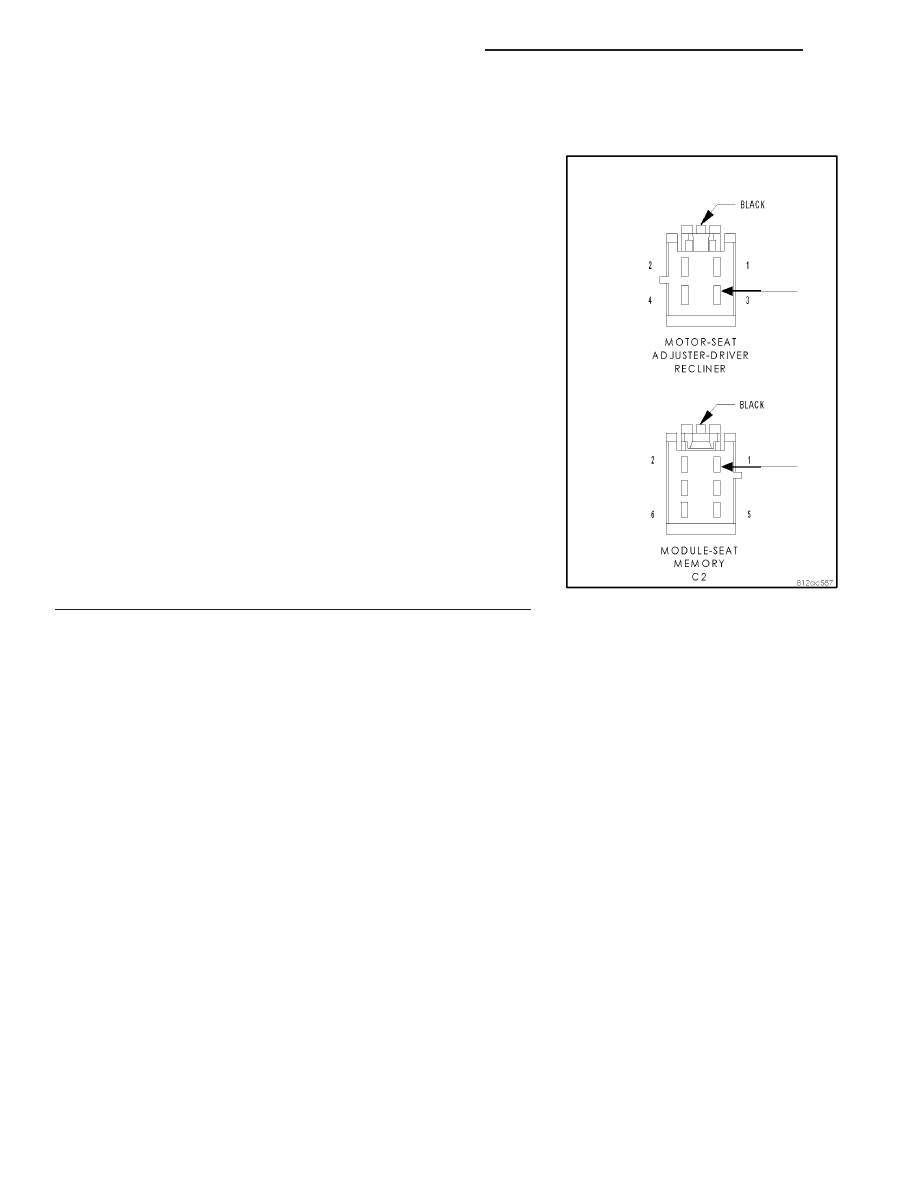

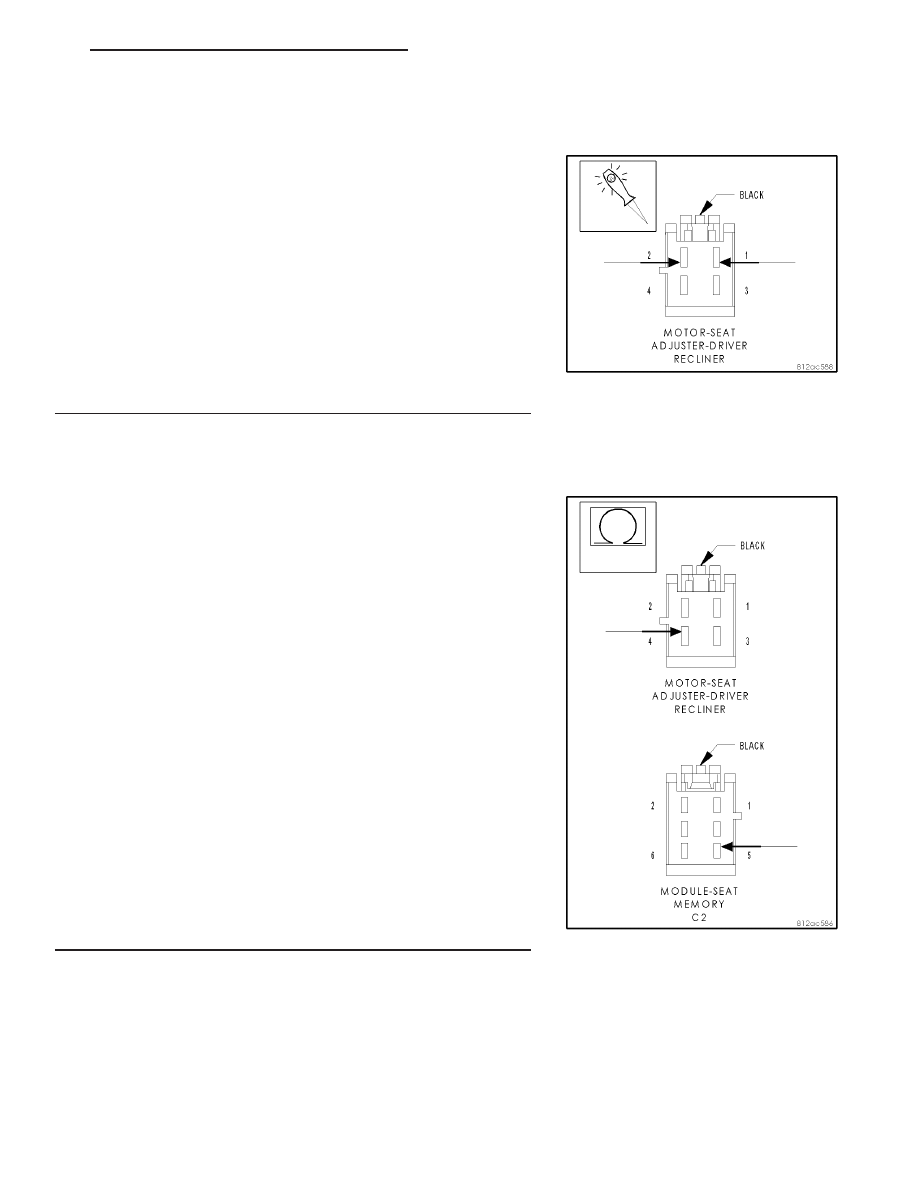

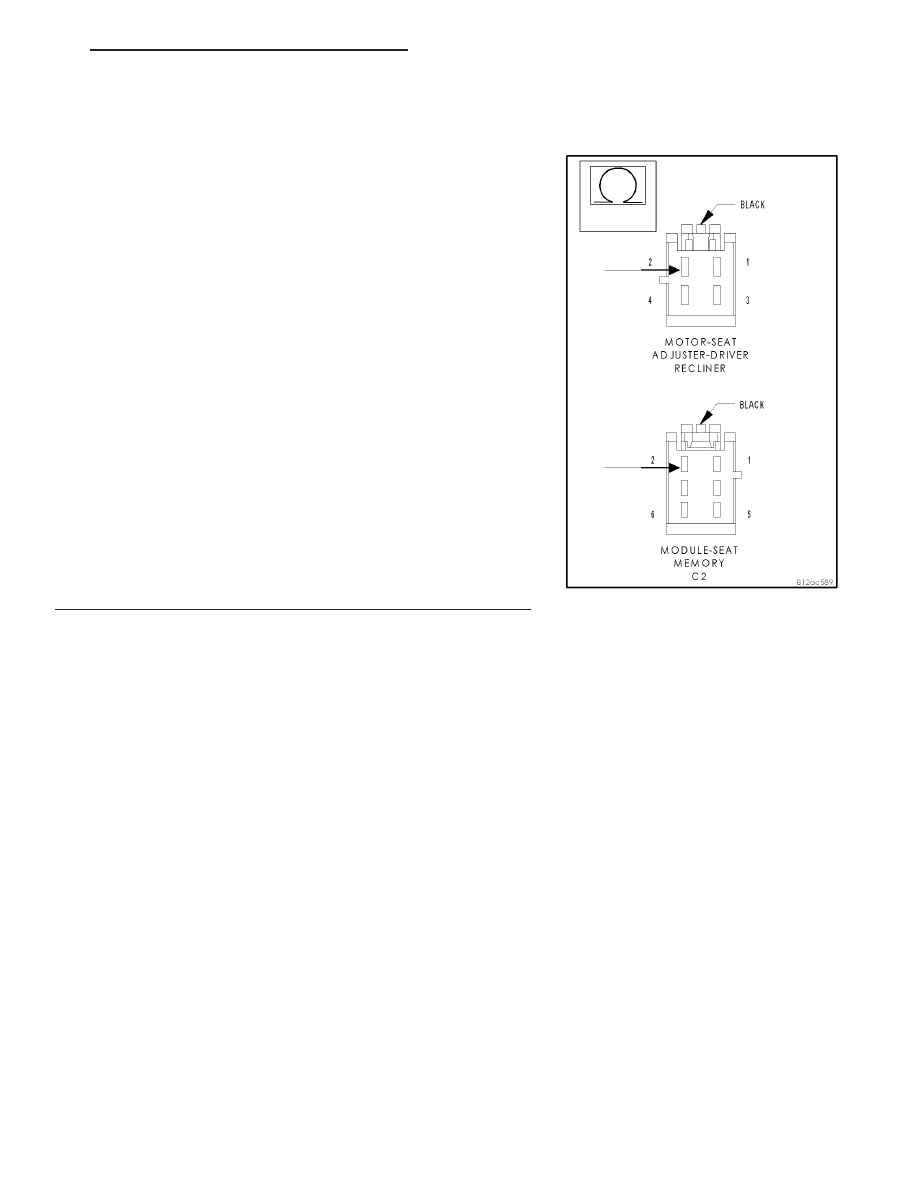

4. CHECK THE DRIVER SEAT RECLINER FORWARD/ Move the Seat Switch in the Recliner position during the next step. Using a 12-volt test light connect one lead to the (P141) Driver Seat Does the test light illuminate with the seat switch engaged? Yes >> Replace the Recliner motor assembly. Perform POWER SEAT SYSTEM VERIFICATION TEST – No >> Go To 7 5. CHECK THE (G403) DRIVER SEAT RECLINER POSITION Disconnect the Seat Memory Module C2 connector. Note: Check connectors – Clean and repair as necessary. Is the resistance above 1.0 ohm? Yes >> Repair the (G403) Driver Seat Recliner Position Sense cir- cuit for an open. Perform POWER SEAT SYSTEM VERIFICATION TEST – No >> Go To 6 HB POWER SEATS - ELECTRICAL DIAGNOSTICS 8N - 201 B1D87–SEAT BACKREST MOTOR CONTROL CIRCUIT PERFORMANCE — (CONTINUED) |
