Dodge Durango (HB). Manual - part 235





*NO RESPONSE FROM ORC

HB

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 161

*NO RESPONSE FROM ORC (CONTINUED)

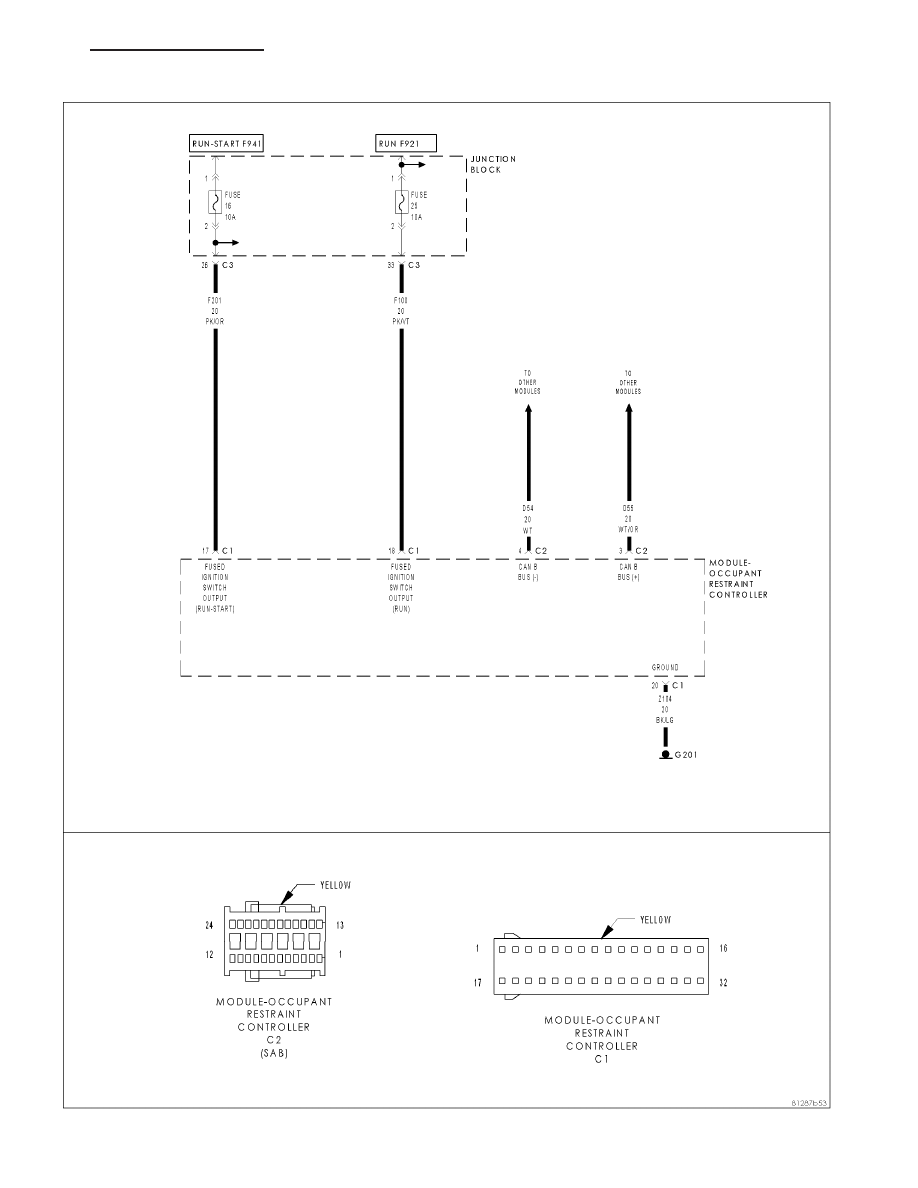

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(Z104) GROUND CIRCUIT OPEN

(F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN OR SHORTED

(F201) FUSED IGNITION SWITCH OUTPUT (RUN/START) CIRCUIT OPEN OR SHORTED

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

OCCUPANT RESTRAINT CONTROLLER

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active
on the Bus network. A green check indicates that the module is active on the Bus network.

Does the scan tool display a red X next to the module?

Yes

>> Go To 2

No

>> The no response condition is not present at this time. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent , pushed out, and corroded terminals.

8E - 162

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

HB

*NO RESPONSE FROM ORC (CONTINUED)

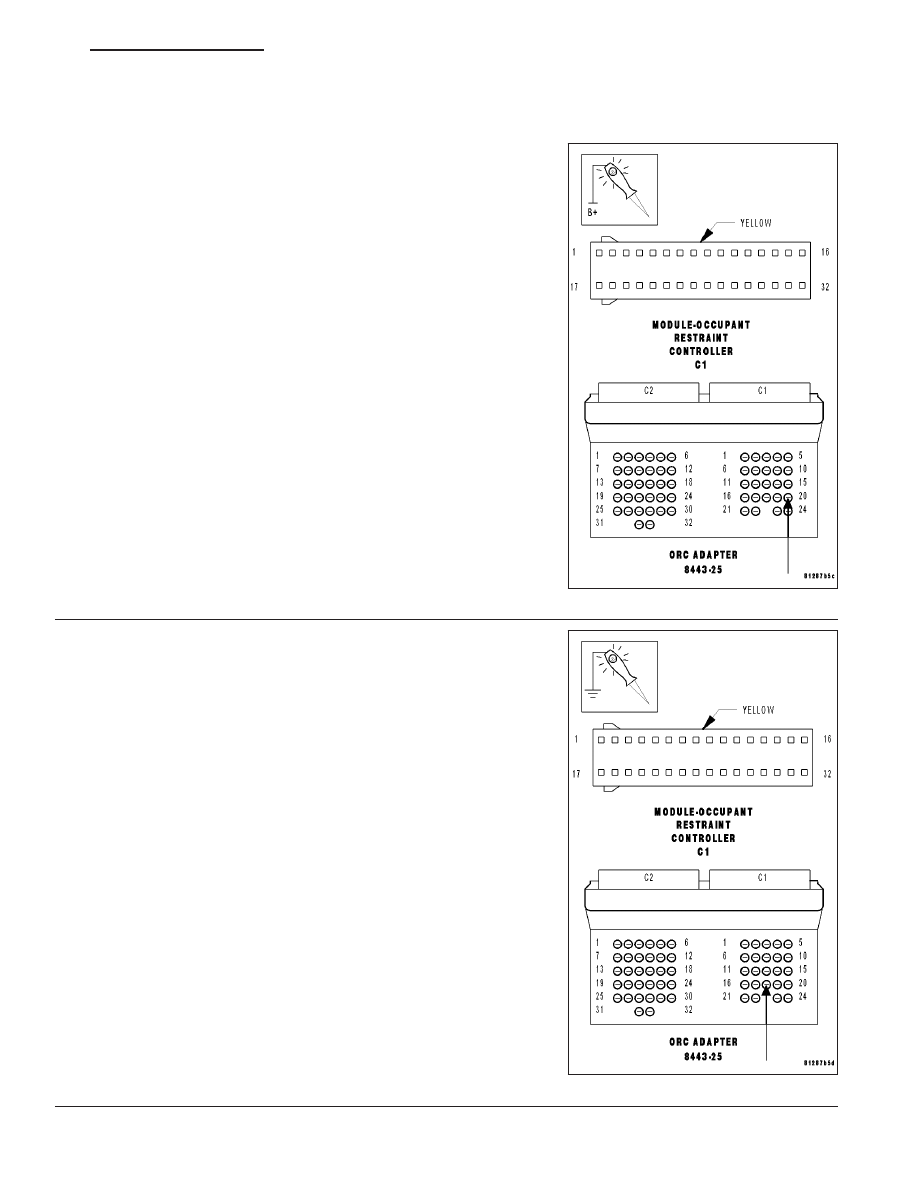

2.

(Z104) GROUND CIRCUIT OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Occupant Restraint Controller harness connectors.

Connect the appropriate Load Tool ACM Adaptor to the ORC connec-
tor.

Using a 12-volt test light connected to 12-volts, check the (Z104)
ground circuit.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the (Z104) ground circuit for an open.

Perform AIRBAG VERIFICATION TEST - VER 1.

3.

(F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT
OPEN OR SHORTED

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
Using a 12-volt test light connected to ground, check the (F100) Fused
Ignition Switch Output (RUN) circuit.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Repair the (F100) Fused Ignition Switch Output (RUN) cir-

cuit for an open or short.

Perform AIRBAG VERIFICATION TEST - VER 1.

HB

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 163

*NO RESPONSE FROM ORC (CONTINUED)

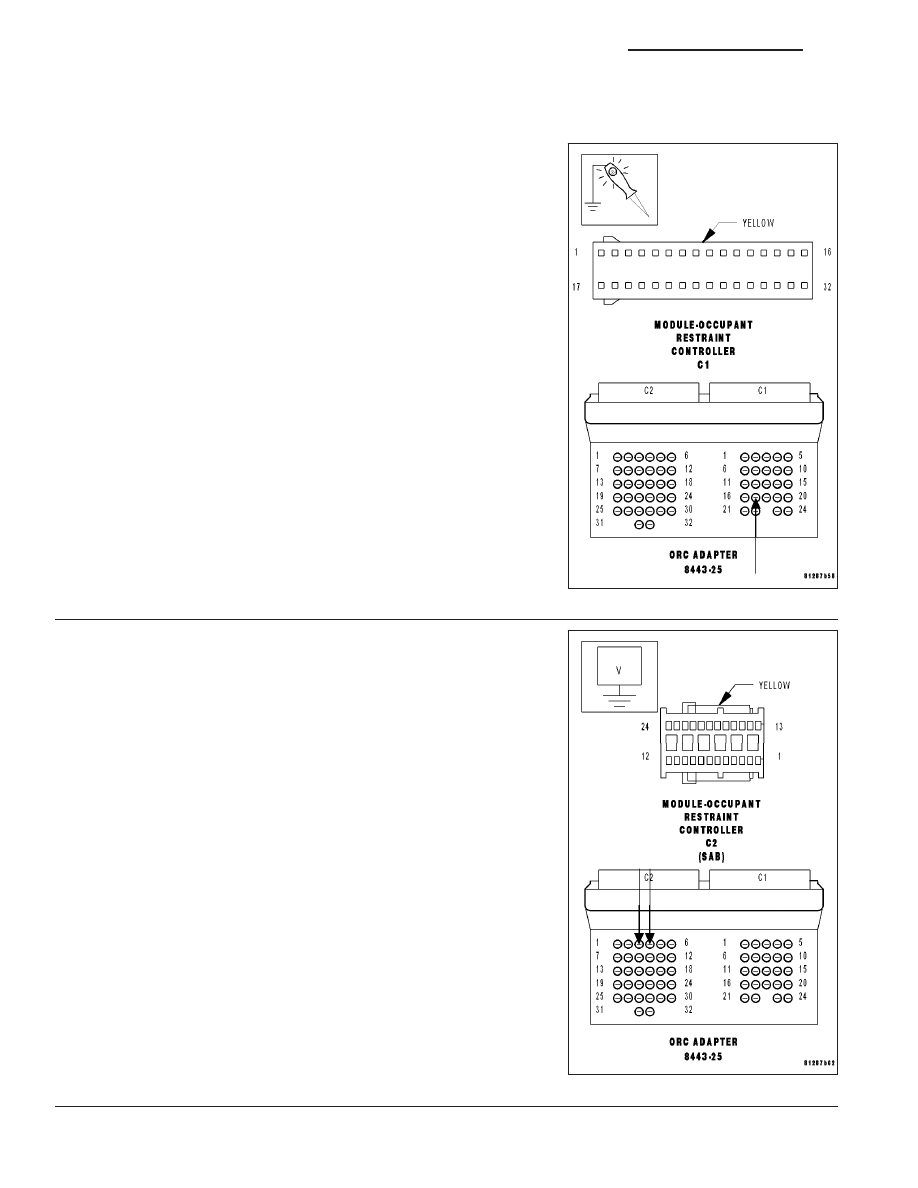

4.

(F201) FUSED IGNITION SWITCH OUTPUT (RUN/START) CIRCUIT OPEN OR SHORTED

Using a 12-volt test light connected to ground, check the (F201) Fused
Ignition Switch Output (RUN/START) circuit.

Does the test light illuminate brightly?

Yes

>> Go To 5

No

>> Repair the (F201) Fused Ignition Switch Output (RUN/

START) circuit for an open or short.

Perform AIRBAG VERIFICATION TEST - VER 1.

5.

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

WARNING: If the Occupant Restraint Controller is dropped at any
time, it must be replaced. Failure to take the proper precautions
could result in accidental airbag deployment and personal injury
or death.

NOTE: One open circuit will not cause this condition.
Measure the voltage between the (D54) CAN B Bus (-) circuit and
ground.

Measure the voltage between the (D55) CAN B Bus (+) circuit and
ground.

Is there any voltage present on either circuit?

Yes

>> Replace the Occupant Restraint Controller in accordance

with the service information.

Perform AIRBAG VERIFICATION TEST - VER 1.

No

>> Repair the (D55) and (D54) CAN B Bus circuits for an

open. Inspect the connector for damage.

Perform AIRBAG VERIFICATION TEST - VER 1.

8E - 164

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

HB
