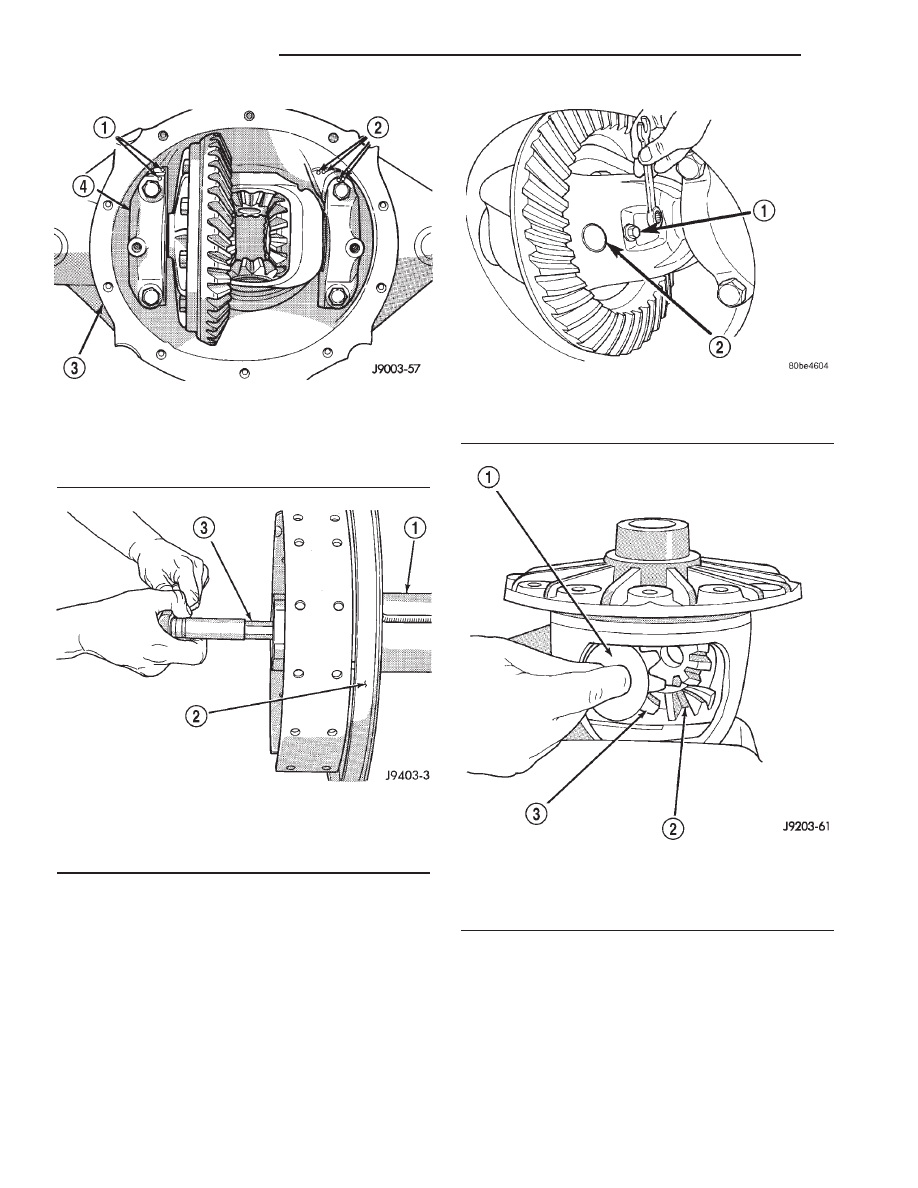

DISASSEMBLY (1) Remove pinion shaft lock screw (Fig. 27). differential pinions and thrust washers (Fig. 28). (4) Remove the differential side gears and thrust washers. ASSEMBLY (1) Install differential side gears and thrust wash- ers. (2) Install differential pinion and thrust washers. (3) Install the pinion shaft. in the differential case and install the pinion shaft (5) Lubricate all differential components with hypoid gear lubricant. Fig. 25 Reference Mark 1 - REFERENCE MARKS Fig. 26 Threaded Adjuster 1 - AXLE TUBE Fig. 27 Pinion Shaft Lock Screw 1 - LOCK SCREW Fig. 28 Differential 1 - THRUST WASHER 3 - 66 REAR AXLE - 8 1/4 AN DIFFERENTIAL (Continued) |
