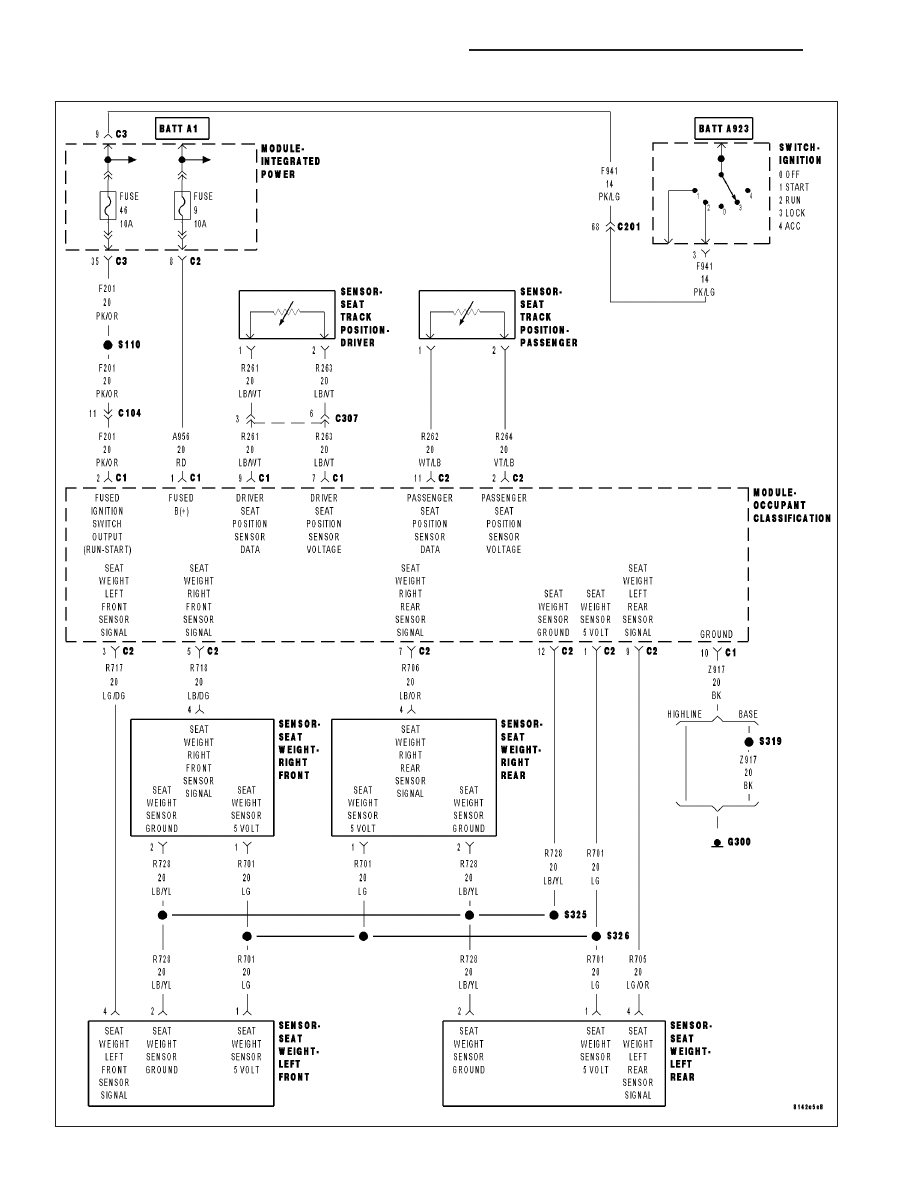

B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT (CONTINUED) For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes OCS SUPPLY CIRCUIT SHORTED OCCUPANT CLASSIFICATION MODULE (OCM) Diagnostic Test 1. VERIFY THAT B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT DTC IS ACTIVE With the scan tool, read OCM DTCs. Does the scan tool display active: B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT? Yes >> Replace the OCM in accordance with the Service Information. Perform the OCS VERIFICATION REQUIRED procedure. No >> Go To 2 2. INSPECT PASSENGER SEAT HARNESS WIRES & CONNECTORS WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min- Are any of these conditions present? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or Replace the Passenger Seat Harness in accordance with the Service Information. Perform OCS VERIFICATION TEST - VER 1. No >> Go To 3 8O - 296 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
