Dodge Dakota (ND). Manual - part 254





B2337–HORN CONTROL CIRCUIT HIGH – FCM

8H - 2

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

ND

B2337–HORN CONTROL CIRCUIT HIGH – FCM (CONTINUED)

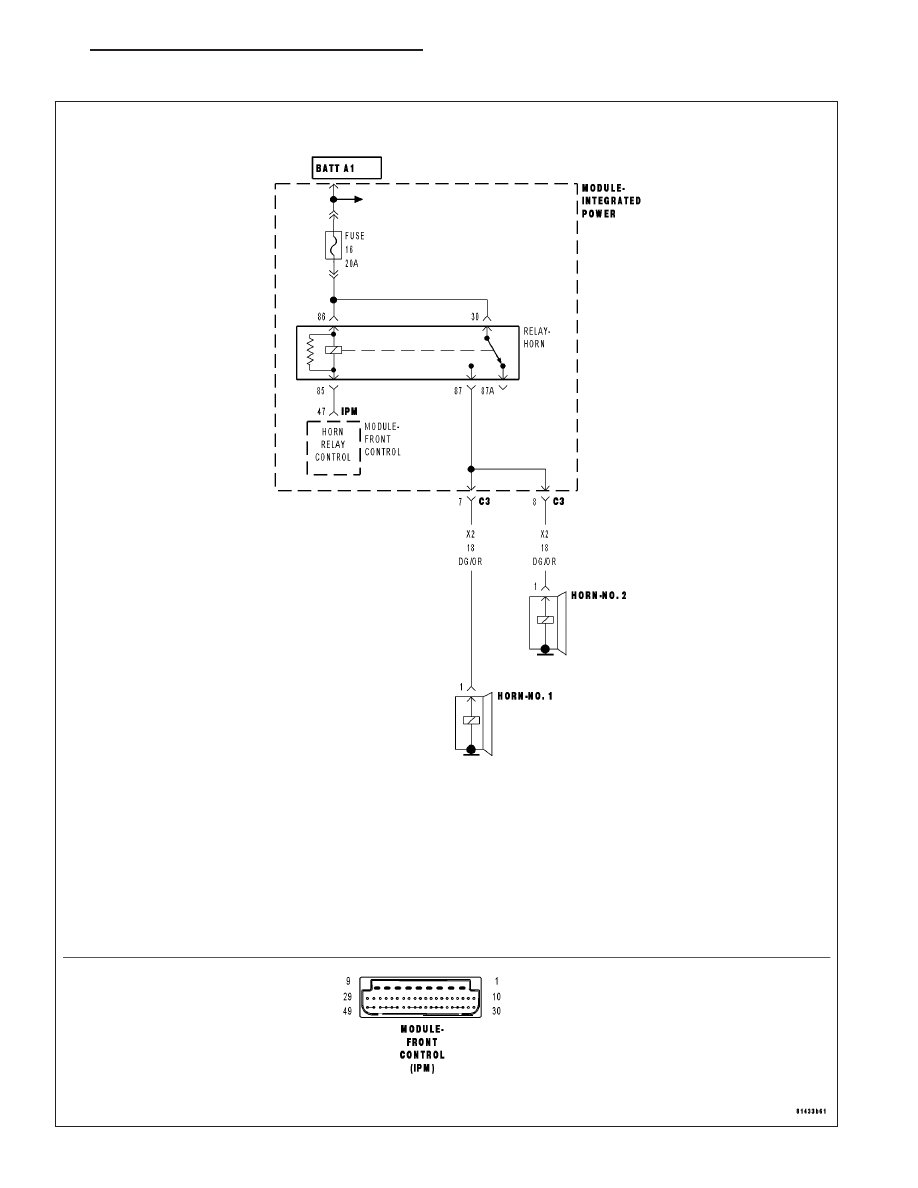

For the Horn System circuit diagram (Refer to 8 - ELECTRICAL/HORN SYSTEM - SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Front Control Module detects a short to battery on the Horn Relay Control circuit.

Possible Causes

HORN RELAY

POWER DISTRIBUTION CENTER

FRONT CONTROL MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s

Operate the Horn Switch several times.

Cycle the ignition from on to off 3 times and leave on.

With the scan tool, read DTC’s.

Does the scan tool display B2337 – HORN CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/HORN - DIAGNOSIS AND
TESTING)

2.

HORN RELAY

Turn the ignition off.

Install a known good relay in place of the Horn Relay.

With the scan tool erase DTC’s

Operate the Horn Switch several times.

Cycle the ignition from on to off 3 times and leave on.

With the scan tool, read DTC’s.

Does the scan tool display B2337 – HORN CONTROL CIRCUIT HIGH?

No

>> Replace the original Horn Relay.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/HORN - DIAGNOSIS AND
TESTING)

Yes

>> Go To 3

ND

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

8H - 3

B2337–HORN CONTROL CIRCUIT HIGH – FCM (CONTINUED)

3.

SHORTED POWER DISTRIBUTION CENTER

Remove the Horn Relay.

Disconnect the Front Control Module from the IPM 49 – way connec-
tor.

Turn the ignition on.

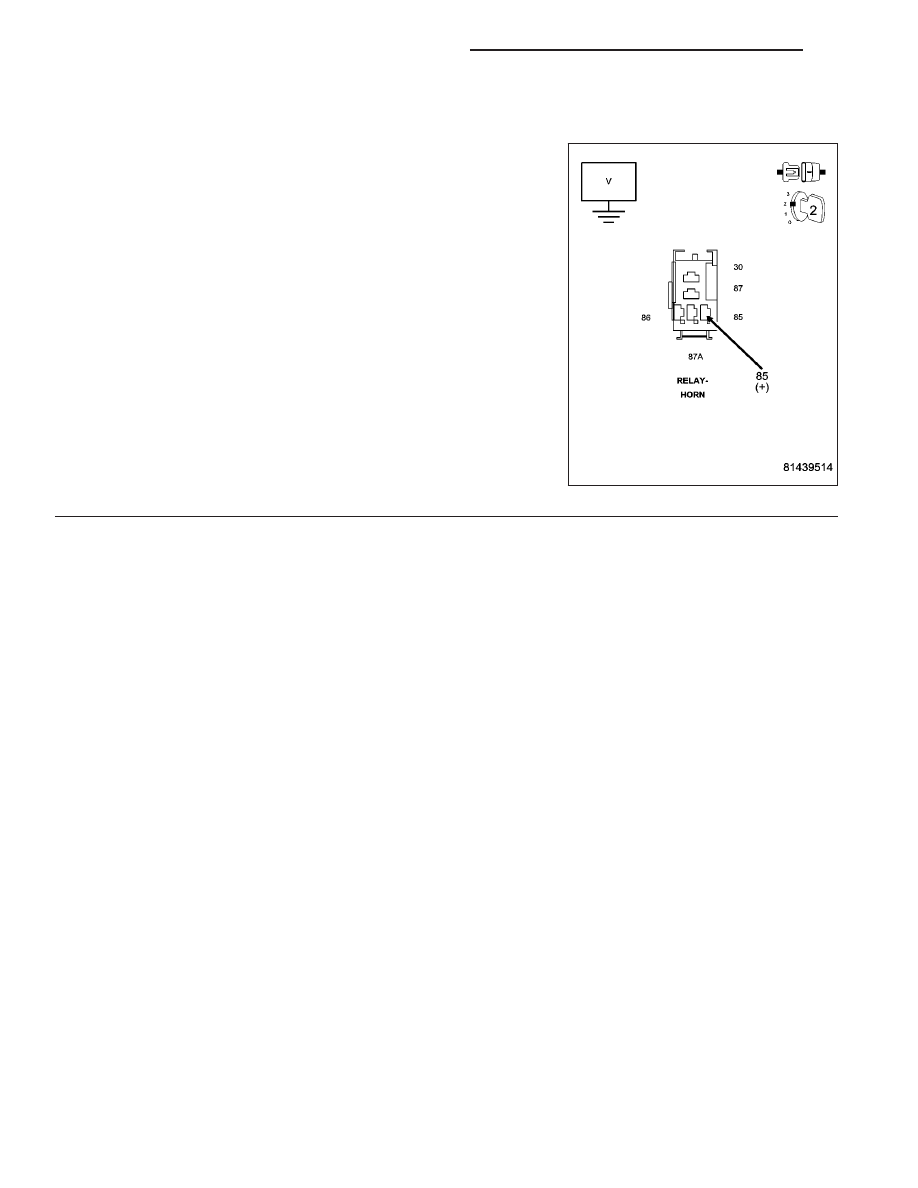

Measure the voltage between (X4) Horn Relay Control circuit and
ground.

Is there any voltage present?

Yes

>> Replace the Power Distribution Center in accordance with

the service information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/HORN - DIAGNOSIS AND TESTING)

No

>> Replace the Front Control Module in accordance with the

service information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/HORN - DIAGNOSIS AND TESTING)

8H - 4

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

ND

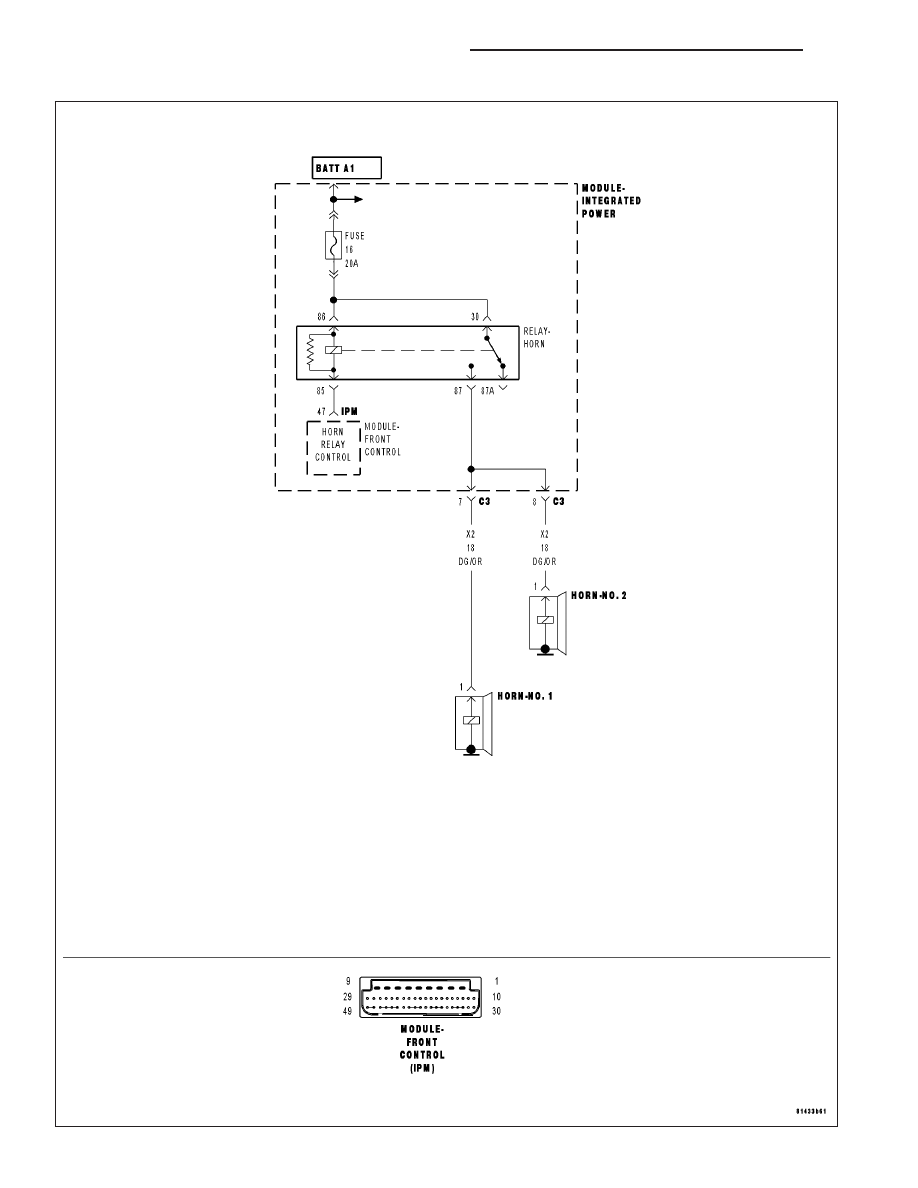

B2336,B2338–HORN CONTROL CIRCUIT LOW/OPEN – FCM

ND

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

8H - 5
