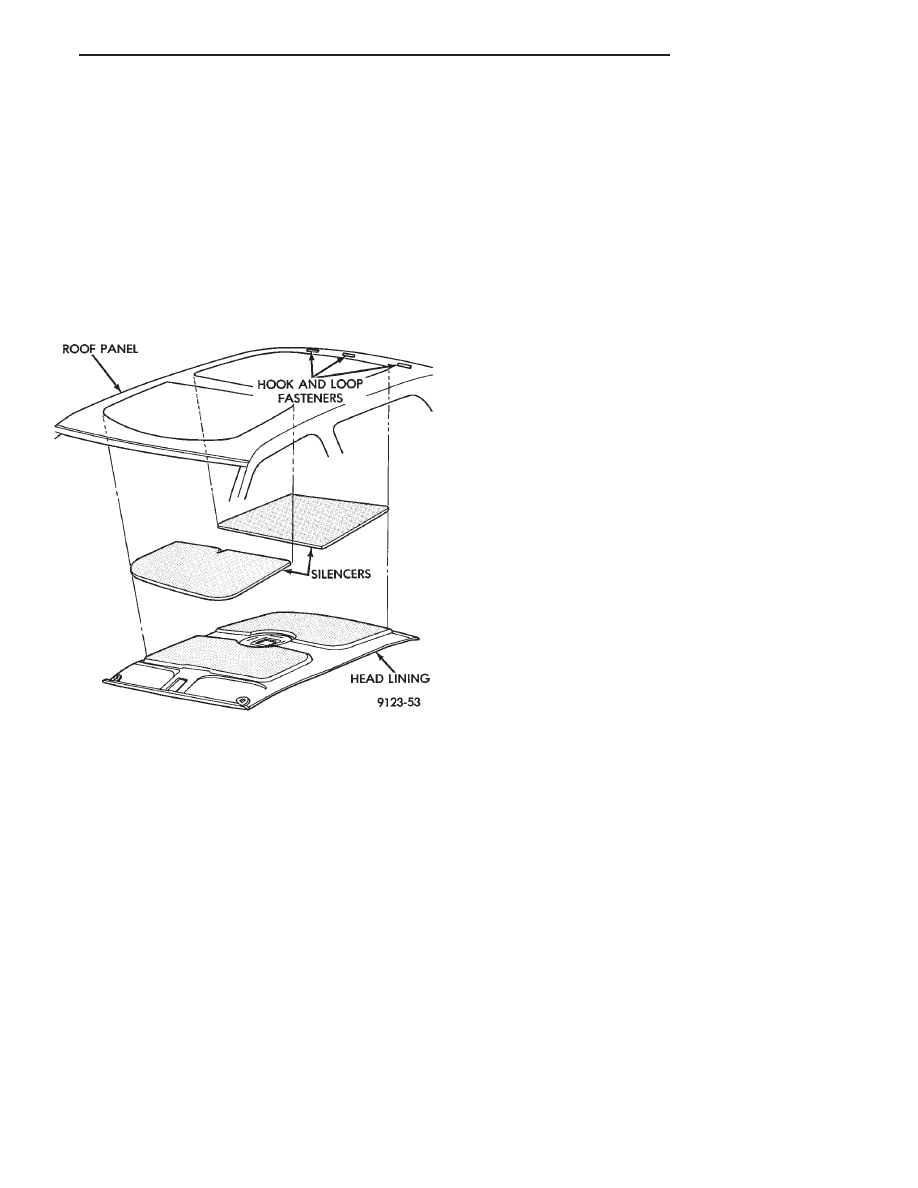

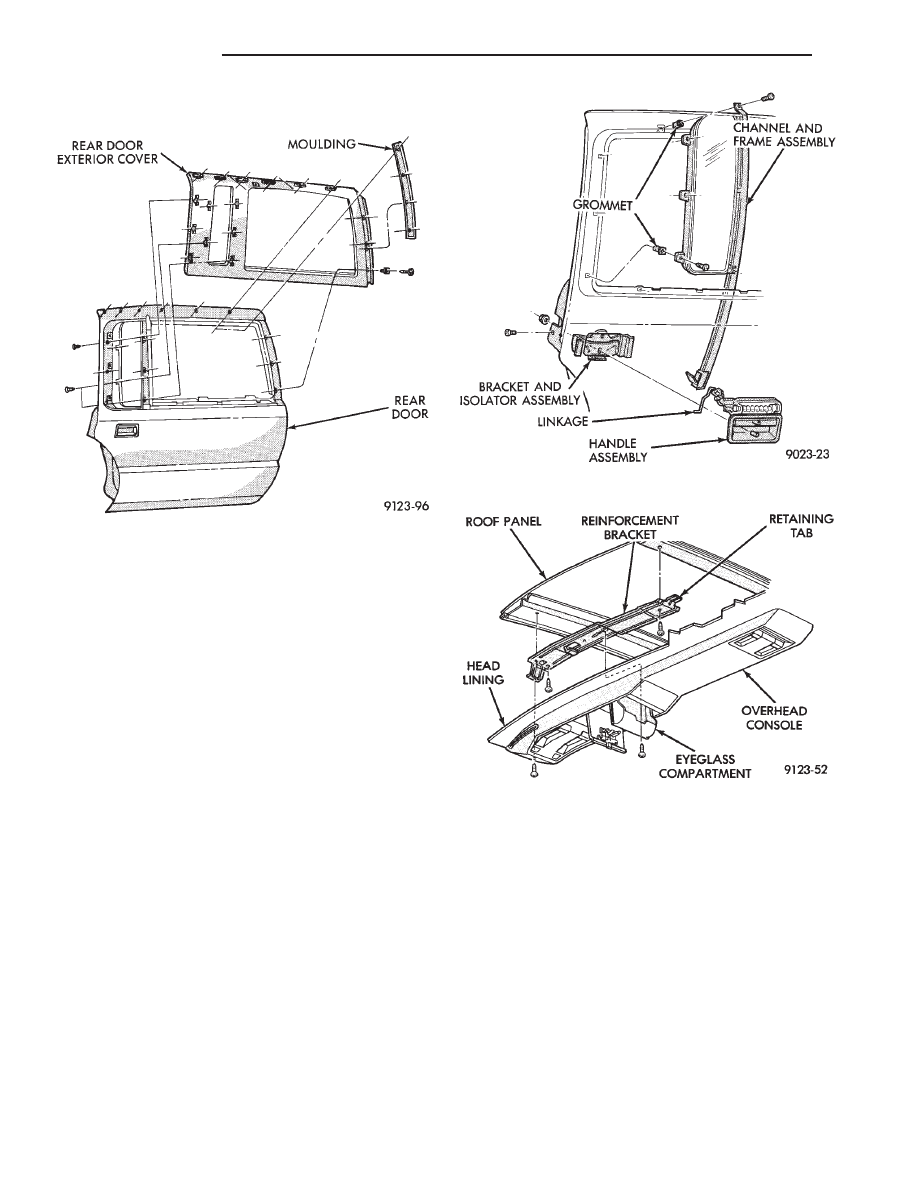

INSTALLATION Reverse the preceding operation. REAR DOOR FIXED WINDOW MODULE REMOVAL (FIG. 22) (1) Remove rear door trim panel. fixed glass module to door. (4) Separate fixed glass module from door. INSTALLATION Reverse the preceding operation. OVERHEAD CONSOLE REMOVAL (FIG. 23) (1) Remove screws holding overhead console to re- inforcement bracket. (2) Slide overhead console rearward to separate re- inforcement bracket retainer tab from console. (3) Lower console from roof and disconnect wire connectors. INSTALLATION Reverse The preceding operation. HEAD LINING REMOVAL (FIG. 24) (1) Disconnect battery negative cable. retaining ring in head lining. Separate lens from taining ring to roof bow, if equipped. (3) Remove screws holding coat hooks to roof above rear doors. (4) Remove roof rail and A-pillar mouldings. header and disconnect wire connector, if equipped. (6) Remove overhead console, if equipped. from retaining ring in head lining and disconnect (8) Remove pinch welt holding headlining to sun roof opening, if equipped. (9) Remove inside rear view mirror from wind- shield bracket if necessary. Fig. 21 Rear Door Outer Cover—AY-P Body Fig. 22 Rear Door Fixed Window Fig. 23 Overhead Console 23 - 142 AY-BODY Ä |
