Allow the urethane at least 24 hours to cure before

returning the vehicle to use.

The windshield fence should be cleaned of old ure-

thane bonding material. Support spacers should be
cleaned and properly installed on weld studs or re-
pair screws at bottom of windshield opening.

(1) Place replacement windshield into windshield

opening and position glass in the center of the open-
ing against the support spacers. Mark the glass at
the support spacers with a grease pencil or pieces of
masking tape and ink pen to use as a reference for
installation. Remove replacement windshield from
windshield opening (Fig. 3).

(2) Position the windshield inside up on a suitable

work surface with two padded, wood 10 cm by 10 cm
by 50 cm (4 in. by 4 in. by 20 in.) blocks, placed par-
allel 75 cm (2.5 ft.) apart (Fig. 4).

(3) Clean inside of windshield with Mopar Glass

Cleaner and lint-free cloth.

(4) Apply clear glass primer 25 mm (1 in.) wide

around perimeter of windshield and wipe with clean/
dry lint-free cloth.

(5) Install mouldings on windshield (Fig. 4).
(6) Apply black-out primer 15 mm (.75 in.) wide on

top and sides of windshield and 25 mm (1 in.) on bot-
tom of windshield. Allow at least three minutes dry-
ing time.

(7) Position windshield bonding compression spac-

ers on lower fence above the support spacers at the
edge of the windshield opening (Fig. 5).

(8) Apply a 10 mm (0.4 in.) bead of urethane

around perimeter of windshield along the inside of
the mouldings.

(9) With the aid of a helper, position the wind-

shield over the windshield opening. Align the refer-
ence marks at the bottom of the windshield to the
support spacers.

(10) Slowly lower windshield glass to windshield

opening fence. Guide the top moulding into proper
position if necessary. Push windshield inward to
fence spacers at bottom and until top moulding is
flush to roof line (Fig. 6).

(11) Clean excess urethane from exterior with Mo-

par, Super Clean or equivalent.

(12) Install cowl cover and wipers.
(13) Install inside rear view mirror.
(14) After urethane has cured, water test wind-

shield to verify repair.

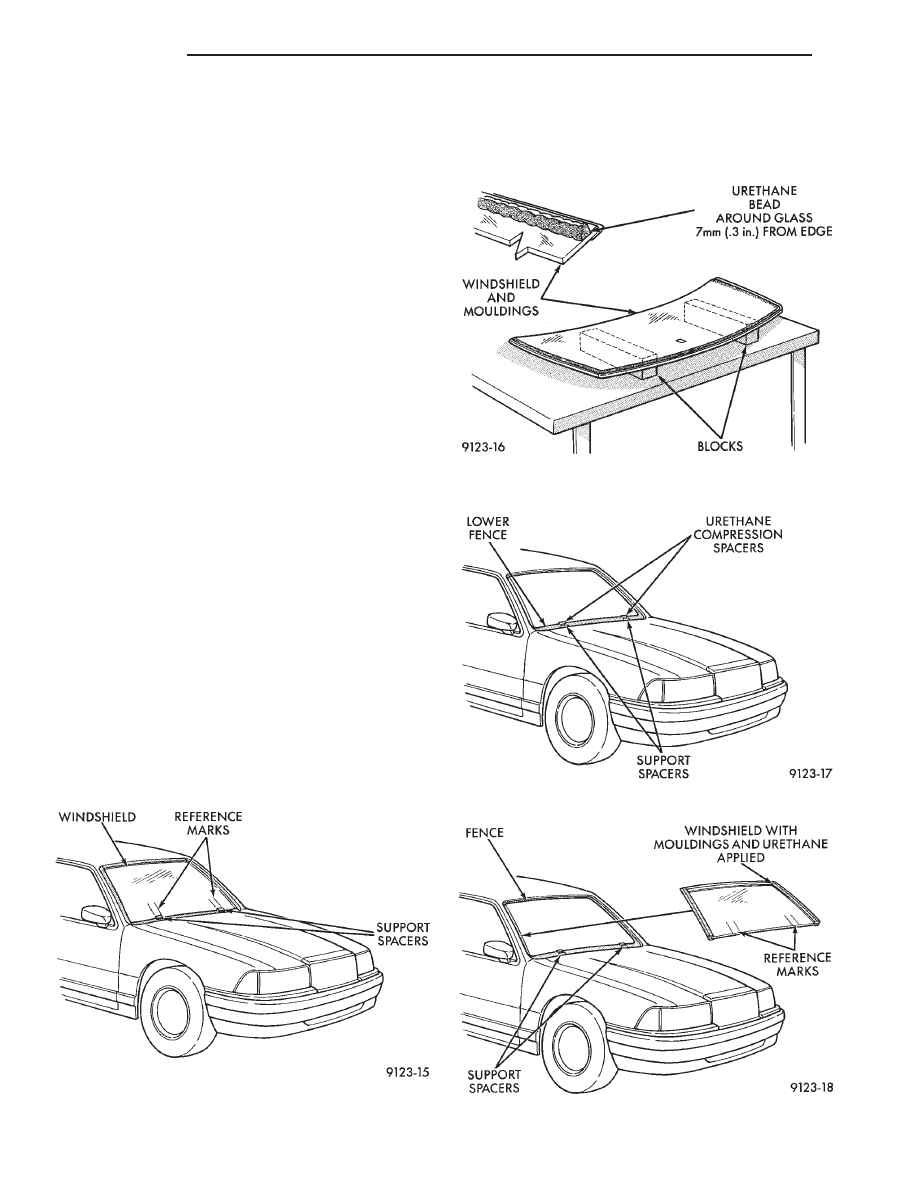

Fig. 3 Center Windshield and Mark at Support

Spacers

Fig. 4 Work Surface Set-up and Mouldings

Installation

Fig. 5 Position Urethane Compression Spacers

Fig. 6 Lower Windshield Into Position

23 - 10

BODY

Ä

AA-VEHICLE BODY COMPONENT SERVICE

INDEX

page

page

A-Pillar and Roof Rail Mouldings

. . . . . . . . . . . . . 25

B-Pillar Trim Panel

. . . . . . . . . . . . . . . . . . . . . . . 25

Body Side Moulding and Applique

. . . . . . . . . . . . 24

Cowl Cover

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cowl Panel Trim and Scuff Plates

. . . . . . . . . . . . 25

Door Opening Weatherstrips

. . . . . . . . . . . . . . . . 24

Floor Carpet

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Front Center Console

. . . . . . . . . . . . . . . . . . . . . 29

Front Door and Hinge

. . . . . . . . . . . . . . . . . . . . . 15

Front Door Belt Moulding and Weatherstrip

. . . . . 17

Front Door Glass

. . . . . . . . . . . . . . . . . . . . . . . . 17

Front Door Glass Channel and Run Weatherstrip

. 18

Front Door Glass Run Lower Channel

. . . . . . . . . 18

Front Door Latch

. . . . . . . . . . . . . . . . . . . . . . . . . 16

Front Door Side View Mirror

. . . . . . . . . . . . . . . . 17

Front Door Silencer and Water Shield

. . . . . . . . . 15

Front Door Trim Panel

. . . . . . . . . . . . . . . . . . . . 14

Front Door Window Regulator/Manual

. . . . . . . . . 18

Front Door Window Regulator/Power

. . . . . . . . . . 19

Front End Splash Shields

. . . . . . . . . . . . . . . . . . 13

Front Fender

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Front Power Door Lock Actuator

. . . . . . . . . . . . . 19

Front Seat Belts

. . . . . . . . . . . . . . . . . . . . . . . . . 27

Front Seats

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Fuel Fill Door

. . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Grille

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Head Lining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Hood and Hinges

. . . . . . . . . . . . . . . . . . . . . . . . 11

Hood Latch and Release Cable

. . . . . . . . . . . . . . 12

Outside Front Door Latch Release Handle

. . . . . 16

Outside Rear Door Latch Release Handle

. . . . . . 21

Overhead Console

. . . . . . . . . . . . . . . . . . . . . . . . 30

Quarter Extension Trim Panel

. . . . . . . . . . . . . . . 27

Quarter Trim Panel

. . . . . . . . . . . . . . . . . . . . . . . 27

Rear Deck Filler Panel

. . . . . . . . . . . . . . . . . . . . 31

Rear Door and Hinge

. . . . . . . . . . . . . . . . . . . . . 20

Rear Door Belt Moulding and Weatherstrip

. . . . . 22

Rear Door Glass

. . . . . . . . . . . . . . . . . . . . . . . . . 22

Rear Door Glass Run Weatherstrip

. . . . . . . . . . . 22

Rear Door Glass Stationary Glass Module

. . . . . 23

Rear Door Latch

. . . . . . . . . . . . . . . . . . . . . . . . . 21

Rear Door Silencer and Water Shield

. . . . . . . . . 20

Rear Door Trim Panel

. . . . . . . . . . . . . . . . . . . . . 20

Rear Door Window Regulator/Manual

. . . . . . . . . 23

Rear Door Window Regulator/Power

. . . . . . . . . . 23

Rear Power Door Lock Actuator

. . . . . . . . . . . . . 22

Rear Seat Belts

. . . . . . . . . . . . . . . . . . . . . . . . . . 28

Rear Seats

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Rear Shelf Trim Panel

. . . . . . . . . . . . . . . . . . . . . 27

Rear Window Glass

. . . . . . . . . . . . . . . . . . . . . . 32

Sun Roof Air Deflector

. . . . . . . . . . . . . . . . . . . . 31

Sun Roof Drain Tubes

. . . . . . . . . . . . . . . . . . . . 31

Sun Roof Weatherstrip

. . . . . . . . . . . . . . . . . . . . 31

Trunk Lid

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Trunk Lid Hinge

. . . . . . . . . . . . . . . . . . . . . . . . . 34

Trunk Lid Latch

. . . . . . . . . . . . . . . . . . . . . . . . . . 34

Trunk Lid Lock

. . . . . . . . . . . . . . . . . . . . . . . . . . 34

Trunk Lid Luggage Rack

. . . . . . . . . . . . . . . . . . . 35

Trunk Lid Torsion Bar

. . . . . . . . . . . . . . . . . . . . . 34

Trunk Lining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Trunk Opening Weatherstrip

. . . . . . . . . . . . . . . . 35

Vinyl Roof Bonnet

. . . . . . . . . . . . . . . . . . . . . . . . 31

GRILLE

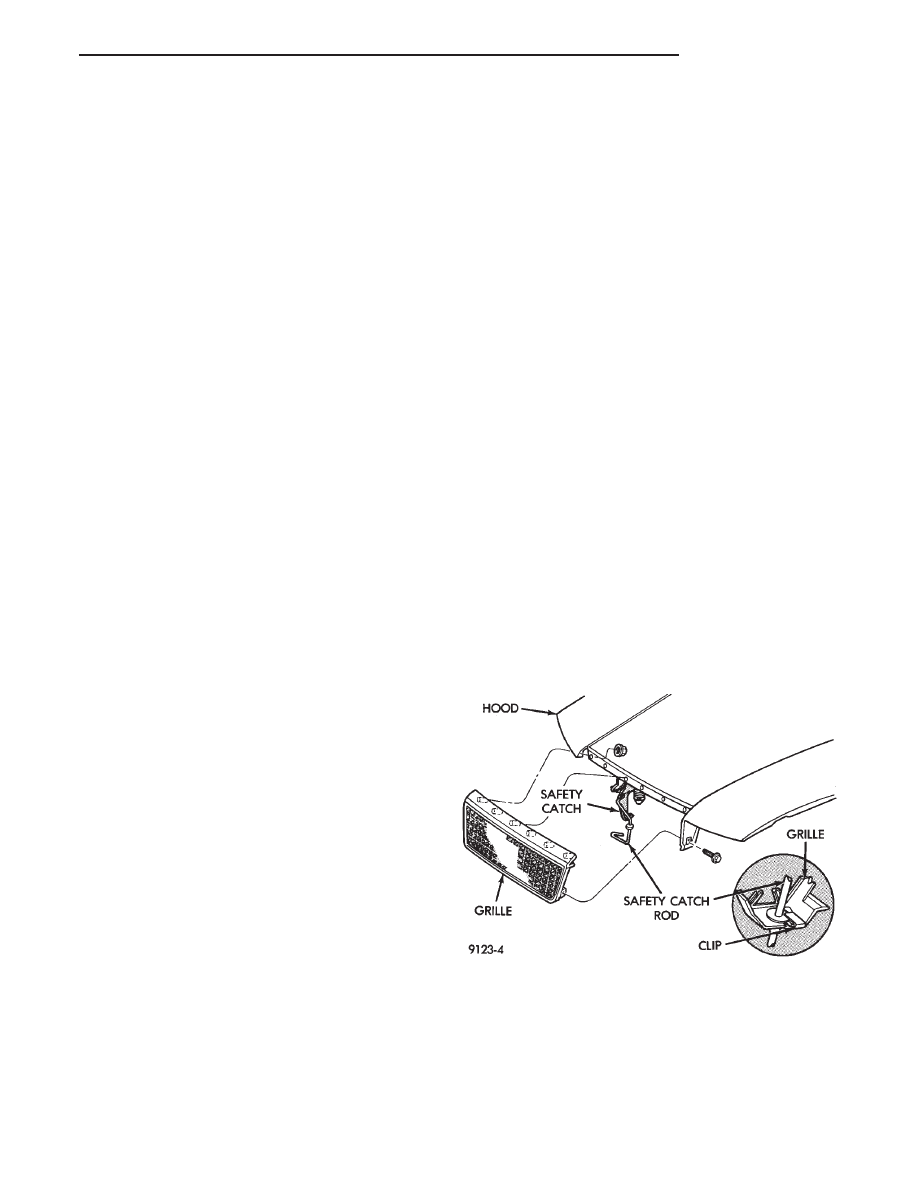

REMOVAL (FIG. 1)

(1) Raise hood to full up position.
(2) Remove hood safety catch release rod retainer

and separate rod from grille.

(3) Remove grille end reinforcement attaching

bolts.

(4) Remove nuts holding grille to hood.
(5) Separate grille from hood.

INSTALLATION

Reverse the preceding operation.

HOOD AND HINGES

HOOD REMOVAL (FIG. 2)

(1) Raise hood to full up position.
(2) Lift front edge of cowl cover on the right side of

the windshield washer bottle and disconnect the un-
der hood lamp wire connector.

(3) Mark all bolt and hinge attachment locations

with a grease pencil or other suitable device to pro-
vide reference marks for installation. When install-

ing hood, align all marks and secure bolts. The hood
should be aligned to 4 mm (0.160 in.) gap to the front
fenders and flush across the top surfaces along fend-
ers.

(4) Remove the top hood to hinge attaching bolts

and loosen the bottom bolts until they can be re-
moved by hand.

Fig. 1 Grille Assembly

Ä

AA-BODY

23 - 11

(5) With assistance of a helper at the opposite side

of the vehicle to support the hood, remove the bottom
hood to hinge attaching bolts. Separate the hood
from the vehicle.

HOOD INSTALLATION

Reverse the preceding operation.

HOOD HINGE REMOVAL (FIG. 3)

(1) Support hood on the side that requires hinge

replacement.

(2) Mark all bolt and hinge attachment locations

with a grease pencil or other suitable device to pro-
vide reference marks for installation. When install-
ing hood hinge, align all marks and secure bolts. The
hood should be aligned to 4 mm (0.160 in.) gap to the
front fenders and flush across the top surfaces along
fenders. Shims can be added or removed under hood
hinge to achieve proper hood height.

(3) Remove hood to hinge attaching bolts.
(4) Remove hood hinge to front fender attaching

bolts and separate hinge from vehicle.

HOOD HINGE INSTALLATION

Reverse the preceding operation. If necessary, paint

new hinge before installation.

HOOD LATCH AND RELEASE CABLE

HOOD LATCH REMOVAL (FIG. 4)

(1) Raise hood top the full up position.
(2) Remove hood latch attaching bolts holding

latch to radiator closure panel and separate from ve-
hicle.

(3) Pry release cable casing attachment from slot

receiver on latch, disengage cable end from latch arm
hook.

HOOD LATCH INSTALLATION

Reverse the preceding operation.

HOOD LATCH RELEASE CABLE REMOVAL
(FIG. 5)

(1) Raise hood to the full up position.

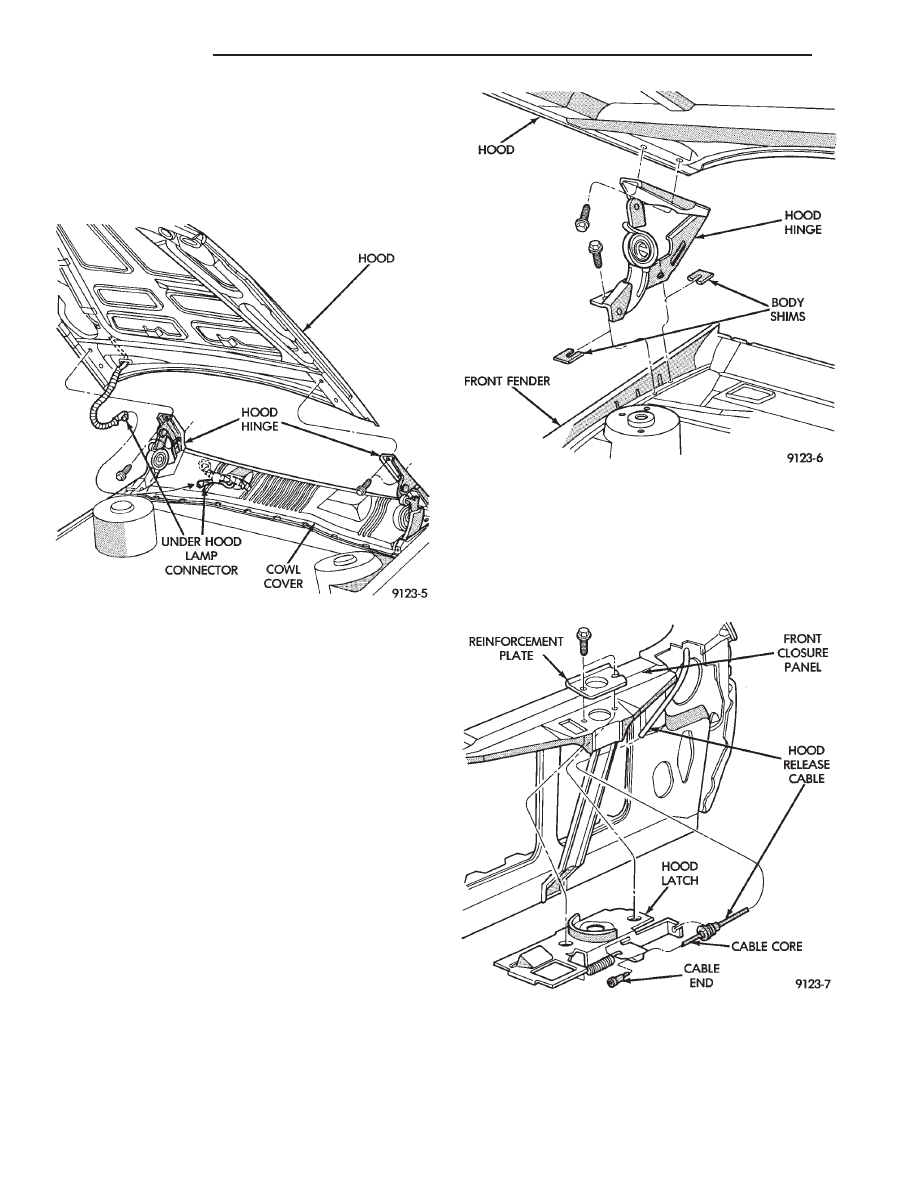

Fig. 2 Hood Assembly

Fig. 3 Hood Hinge Assembly

Fig. 4 Hood Latch Assembly

23 - 12

AA-BODY

Ä

(2) Remove push-in fasteners holding hood latch

cover to radiator closure panel and separate cover
from vehicle.

(3) Disconnect hood release cable casing and cable

end from hood latch assembly. Refer to Hood Latch
Removal procedure in this section.

(4) Remove hood latch release cable handle attach-

ing bolts from under left lower edge of instrument
panel.

(5) Disengage release cable rubber grommet from

engine compartment dash panel behind instrument
panel.

(6) Rout cable assembly through engine compart-

ment around battery, under fender lip, under relay
bank, and under wiring harnesses, toward dash
panel. Push cable through access hole in dash panel
under the brake master cylinder, into passenger com-
partment.

HOOD LATCH RELEASE CABLE
INSTALLATION

Reverse the preceding operation.

COWL COVER

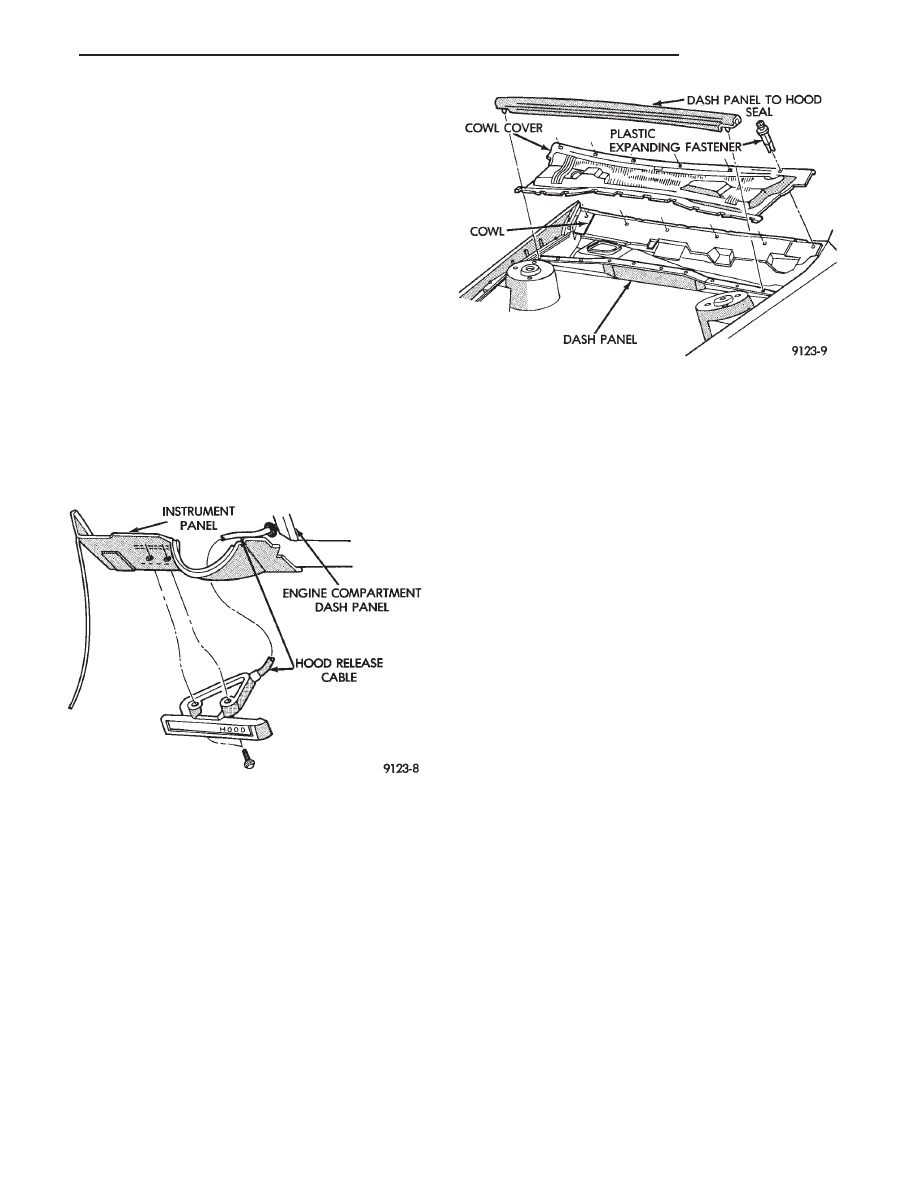

REMOVAL (FIG. 6)

(1) Raise hood to full up position.
(2) Disconnect windshield washer hoses from wiper

arms.

(3) Remove windshield wiper arm assemblies. Re-

fer to Group 8K, Windshield Wiper and Washer Sys-
tems.

(4) Remove plastic expanding type fasteners hold-

ing cowl cover to cowl, below windshield.

(5) Lift back of cowl cover and slide cover rearward

from under dash panel to hood seal and separate
cover from vehicle.

INSTALLATION

Reverse the preceding operation.

FRONT END SPLASH SHIELDS

FRONT WHEELHOUSE SPLASH SHIELD
REMOVAL (FIG. 7)

(1) Hoist vehicle and support on suitable safety

stands.

(2) Remove front wheel assembly.
(3) Remove push-in fasteners holding front wheel-

house splash shield to fender opening lip and inner
wheelhouse area.

(4) Separate wheelhouse splash shield from vehi-

cle.

FRONT WHEELHOUSE SPLASH SHIELD
INSTALLATION

Reverse the preceding operation.

TRANSAXLE SPLASH SHIELD REMOVAL (FIG.
7)

(1) Remove one front wheelhouse splash shield

push-in fastener and separate wheelhouse splash
shield from transaxle splash shield.

(2) Remove transaxle splash shield attaching bolts

and separate transaxle splash shield from vehicle.

TRANSAXLE SPLASH SHIELD INSTALLATION

Reverse the preceding operation.

ENGINE DRIVE BELT SPLASH SHIELD
REMOVAL (FIG. 8)

(1) Hoist vehicle and support on suitable safety

stands.

(2) Remove bolts holding engine drive belt splash

shield to right frame rail.

(3) Separate drive belt splash shield from vehicle.

ENGINE DRIVE BELT SPLASH SHIELD
INSTALLATION

Reverse the preceding operation.

Fig. 5 Hood Latch Release Cable Assembly

Fig. 6 Cowl Cover Assembly

Ä

AA-BODY

23 - 13















Content   ..  148  149  150  151   ..
