Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 132
CAUTION: The valve body manual shaft pilot maydistort and bind the manual valve if the valve bodyis mishandled or dropped.

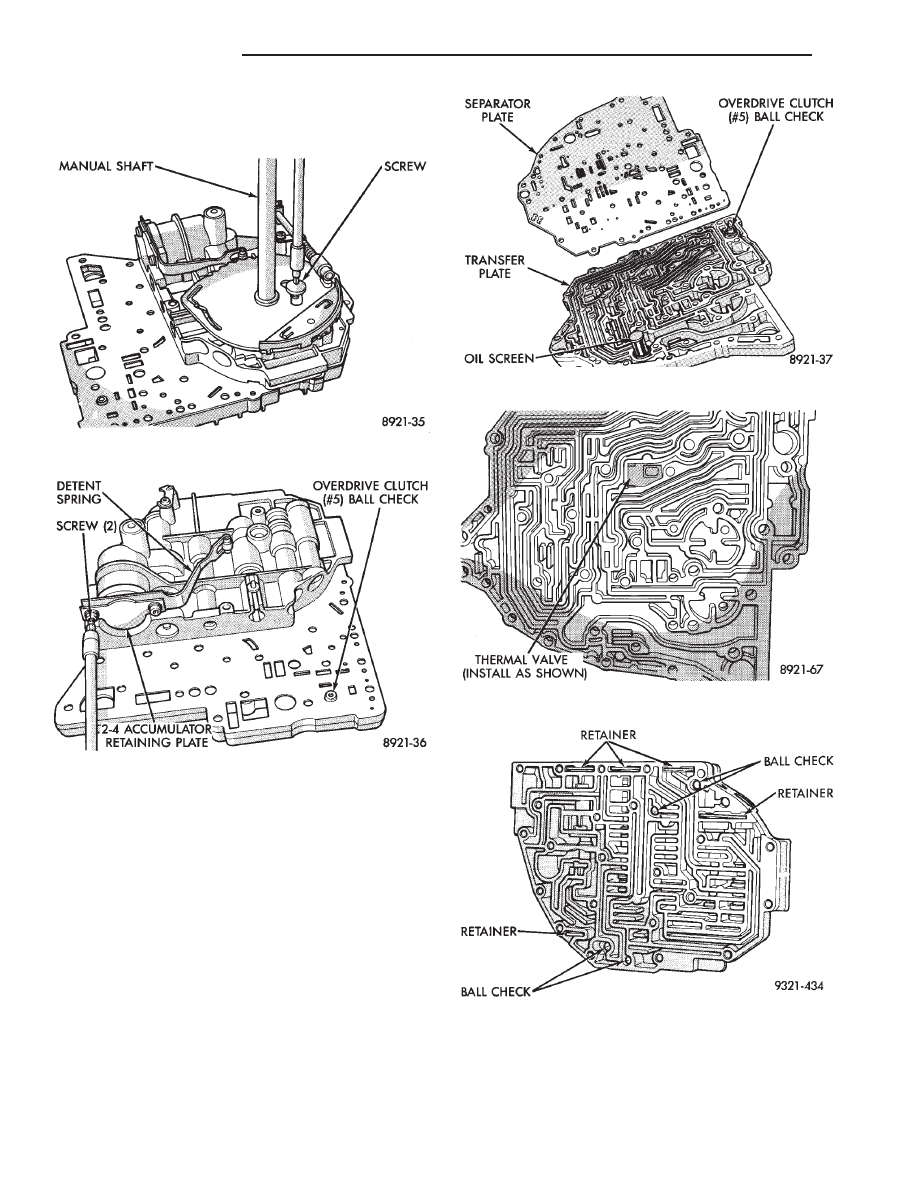

Fig. 8 Manual Shaft Screw
Fig. 9 Retaining Plate Screw
Fig. 10 Transfer Plate and Separator Plate
Fig. 11 Transfer Plate
Fig. 12 Ball Check and Retainer Locations
21 - 134
TRANSAXLE
Ä
