MANUAL & SEMIAUTO-HVAC  7B/C-7

Switch

Door

VENT Door

FOOT Door

DEF Door

INTAKE Door

AIR MIX Door

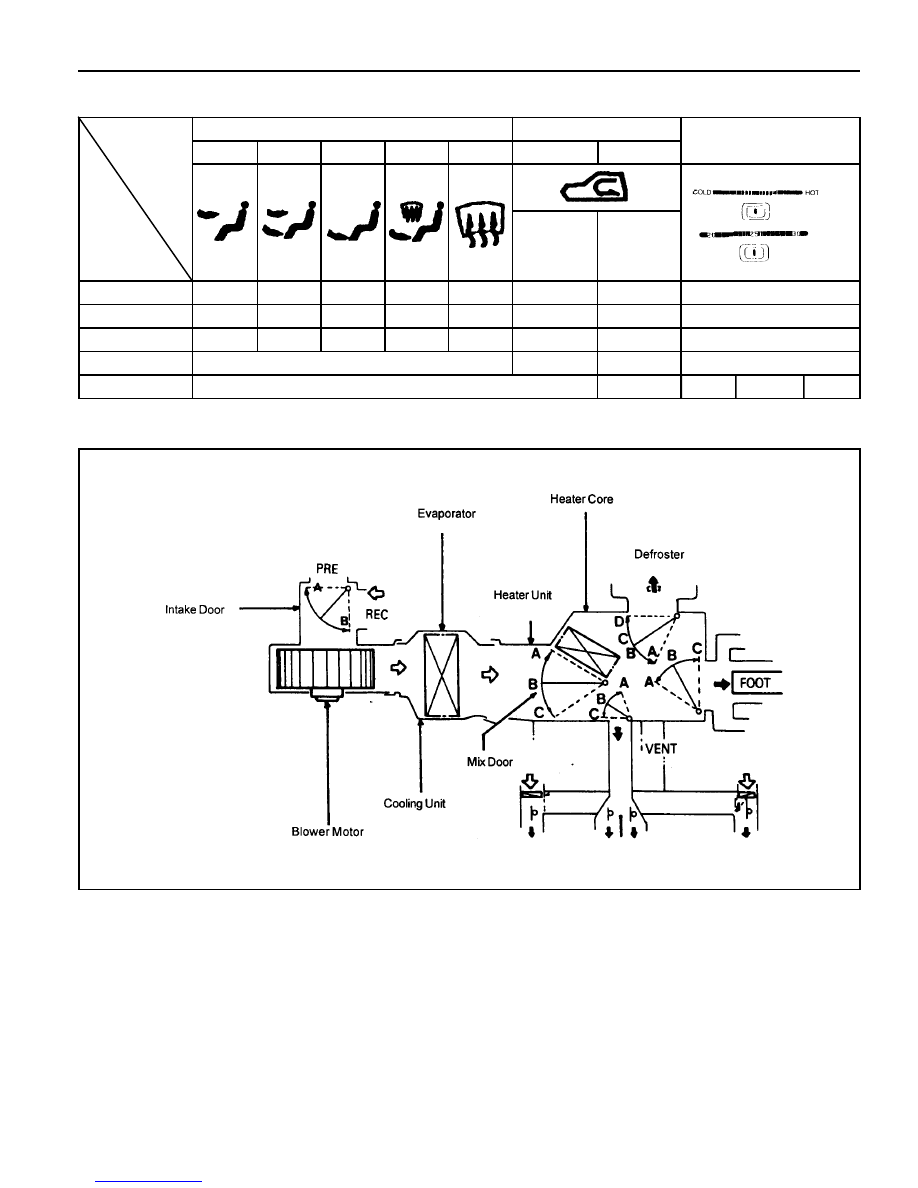

Air Flow

Mode Switch

VENT

A

C

D

Recirculation Switch

Temperature

Control Lever

[MANUAL]

[SEMI AUTO]

-

-

-

-

B/L

B

B

D

FOOT

C

A

D

D/F

C

B

B

DEF

C

C

A

REC

FRE

-

-

A

B

C

INDI.

On

-

-

-

A

INDI.

Off

-

-

-

B

7B/C-8  MANUAL & SEMIAUTO-HVAC

AIR CONDITIONER SYSTEM

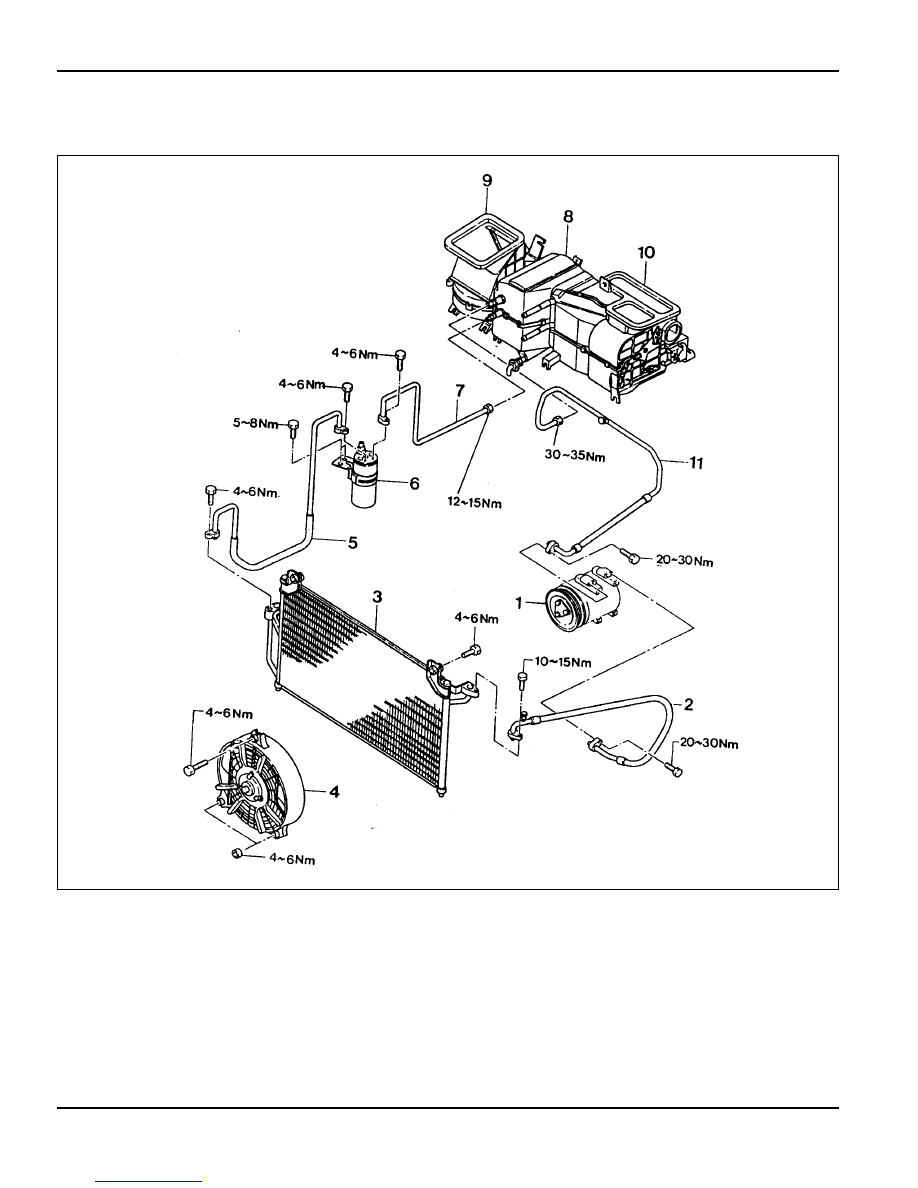

DIESEL ENGINE

1 Compressor
2 High Pressure Hose
3 Condenser Fan
4 Condenser
5 Liquid Pipe (A)
6 Receiver Drier
7 Liquid (B)
8 Evaporator Assembly
9 Low Pressure Hose

10 Water Inlet Hose

11 Water Outlet Hose

12 Control Assembly
13 Heater Unit Amplifier
14 Mix Actuator Assembly
15 Blower Unit
16 Heater Unit
17 Mode Actuator Assembly

MANUAL & SEMIAUTO-HVAC  7B/C-9

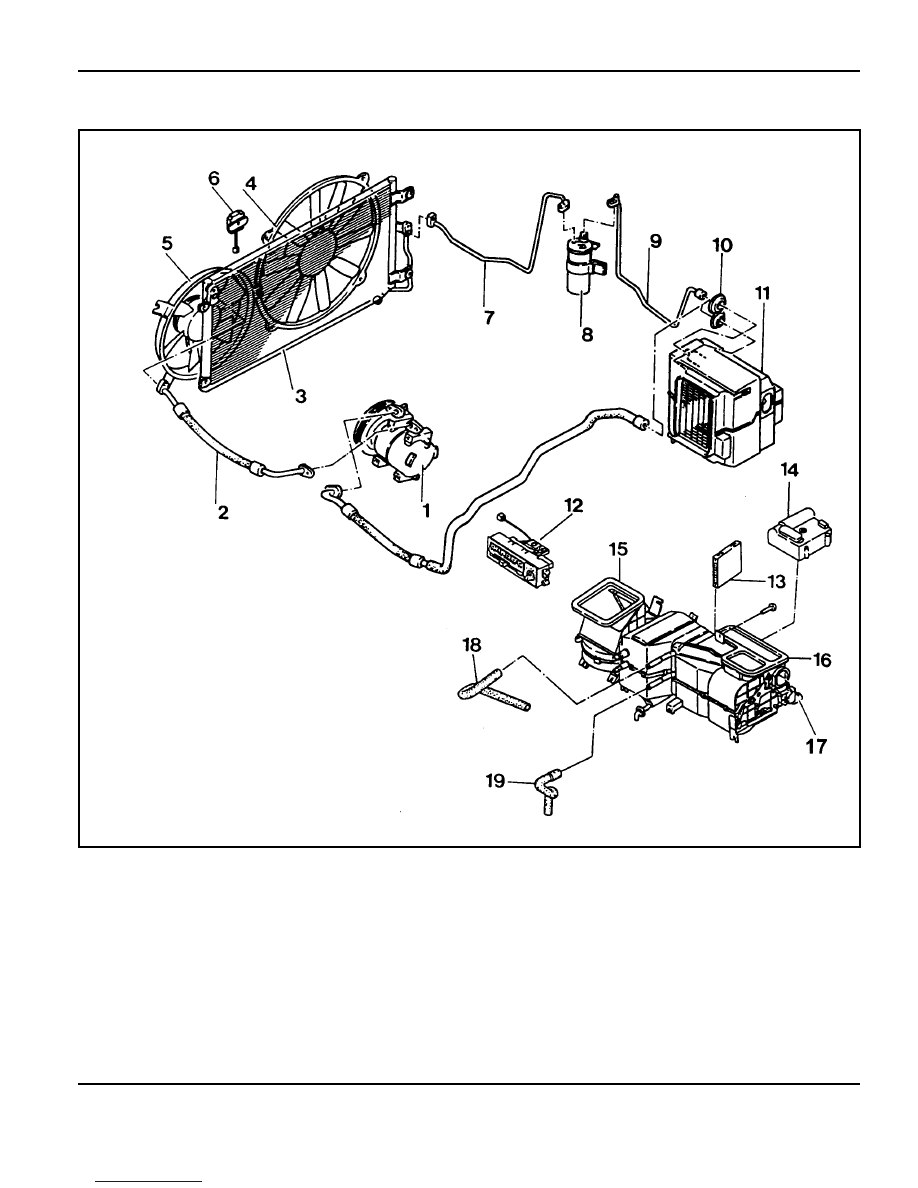

GASOLINE  ENGINE

1 Compressor
2 High Pressure Hose
3 Condenser
4 Main Condenser Fan
5 Sub Condenser Fan
6 Condenser Fan Resistor
7 Liquid Pipe(A)
8 Receiver Dryer
9 Liquid Pipe(B)

10 Grommet

11 Evaporator Assembly

12 Control Assembly
13 Heater Unit Amp
14 Mix Actuator
15 Blower Unit
16 Heater Unit
17 Mode Actuator Assembly
18 Water Inlet Hose
19 Water Outlet Hose

7B/C-10  MANUAL & SEMIAUTO-HVAC

REFRIGERANT CHARGING

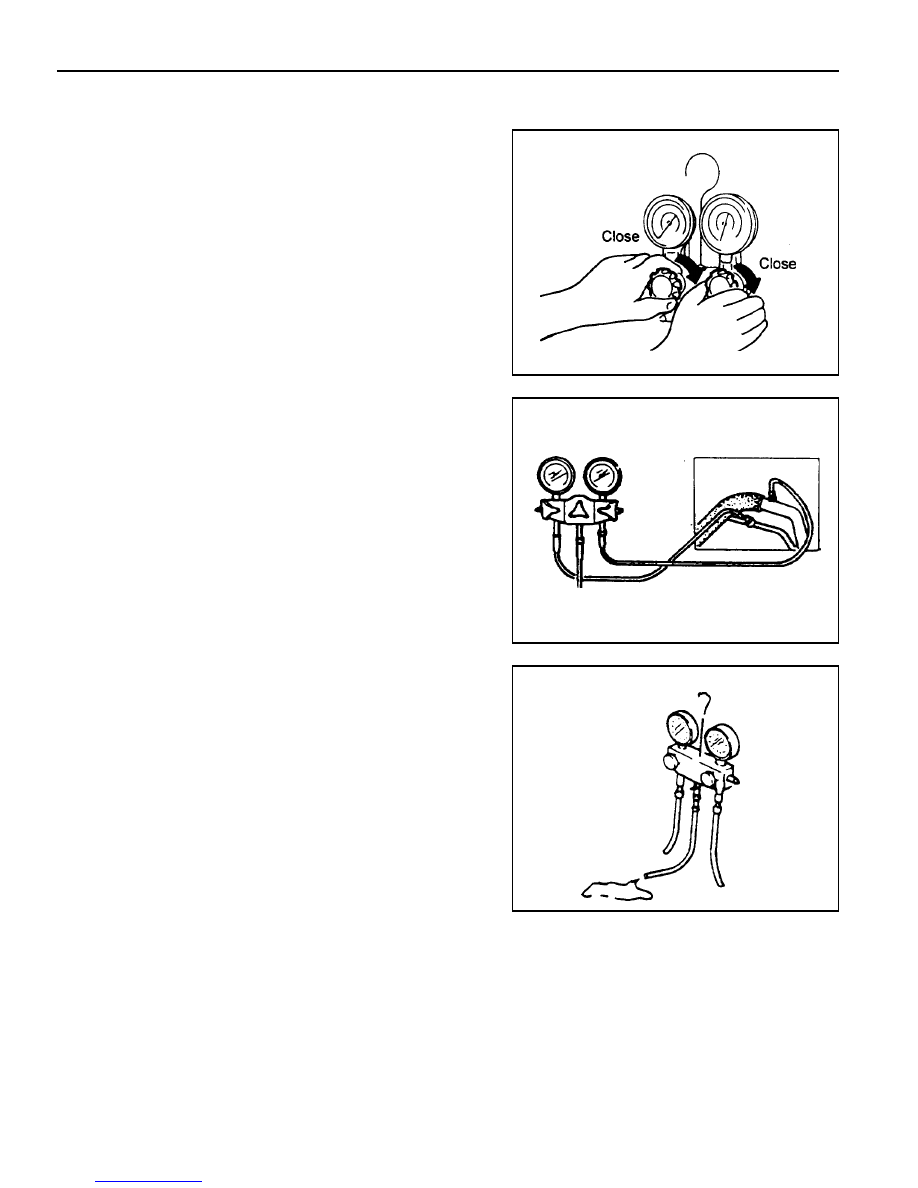

Installation of Manifold Gauge

1. Close both high/low pressure hand valve of gauge before

installation of gauge to the charging valve.

2. Connect the low pressure hose of the gauge to the low

pressure charging valve and the high pressure hose of the
gauge to high pressure charging valve. Tighten the hose
nuts by hand.

Discharging of Refrigerant

1. Connect the manifold gauge to the charging valve.

2. Place the free end of center hose in a shop towel.

3. Slowly open the high pressure hand valve and discharge

refrigerant.

Notice

If refrigerant is allowed to escape too fast, compressor oil
will be drawn out of the system.

MAINTENANCE AND REPAIR
