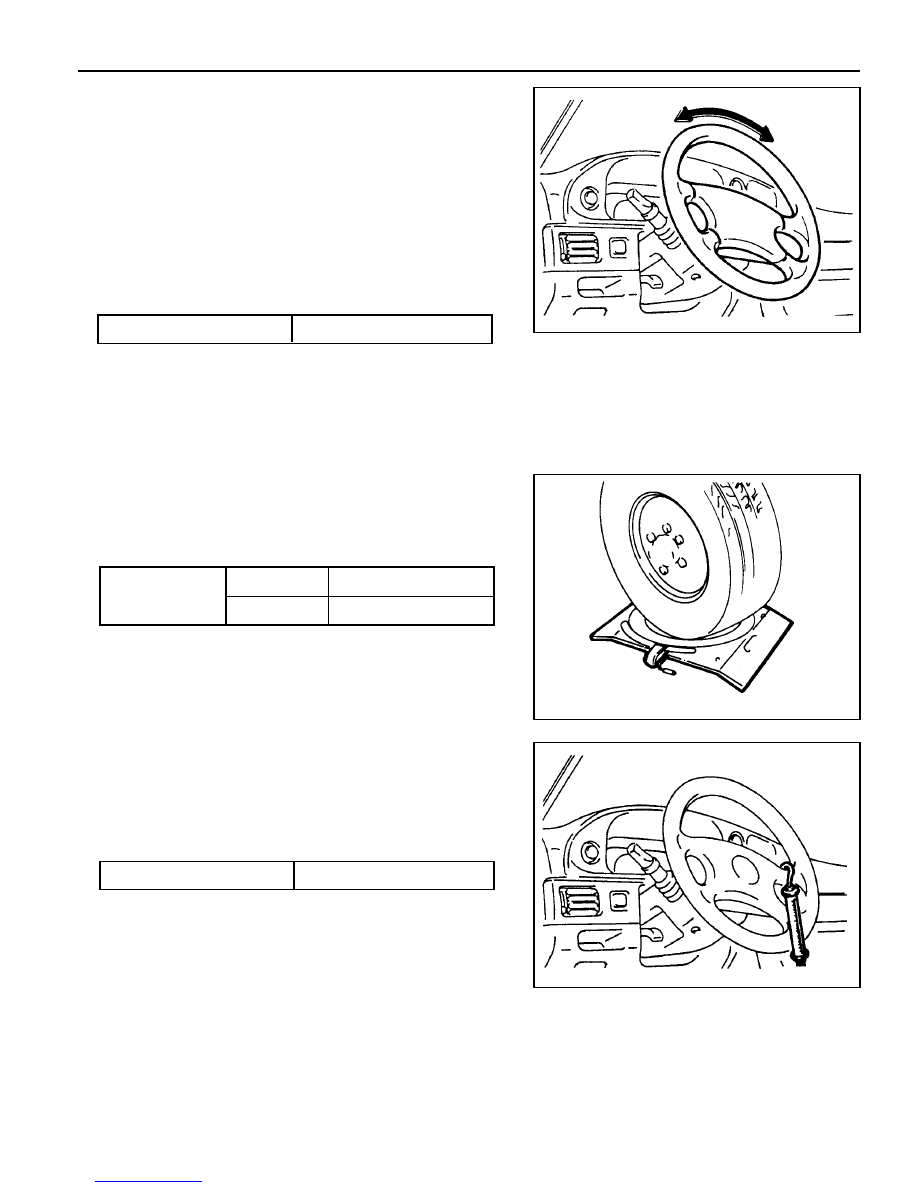

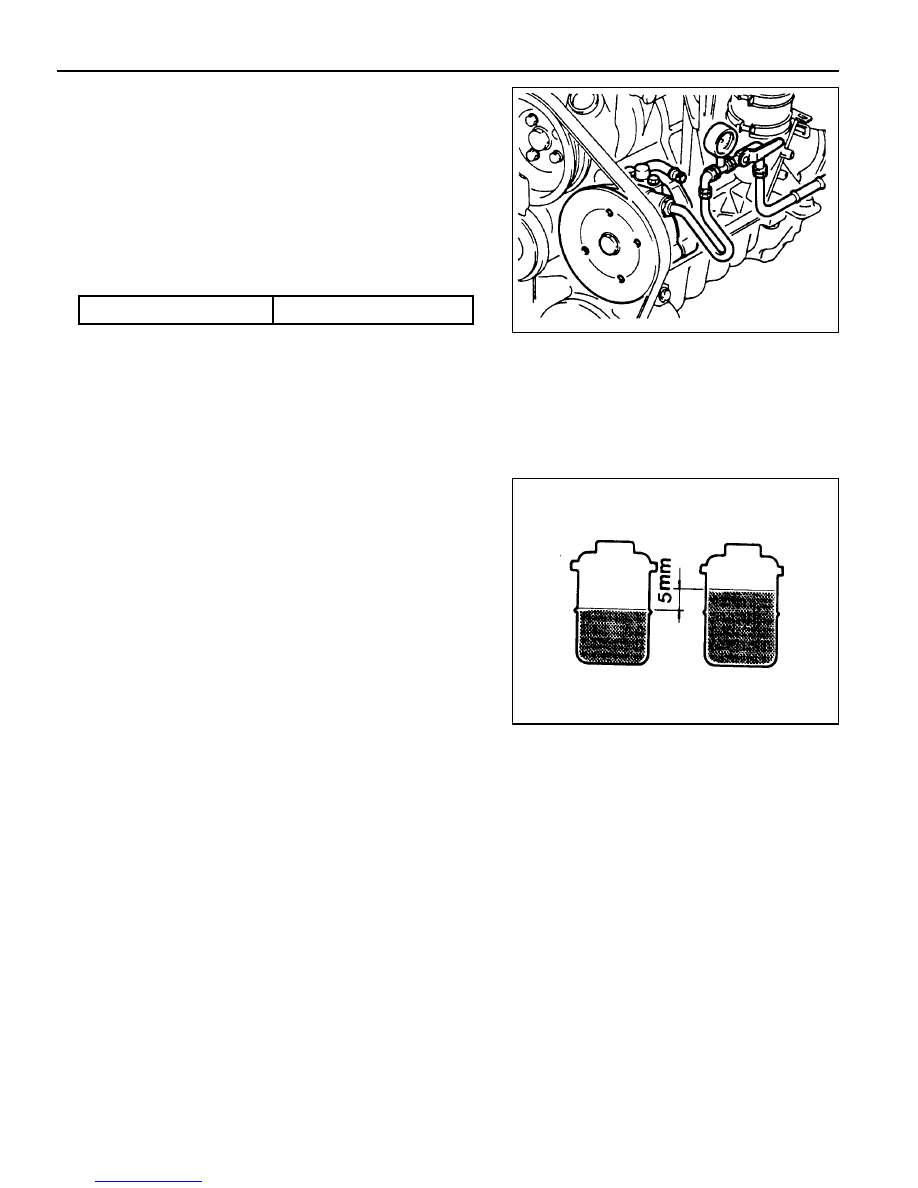

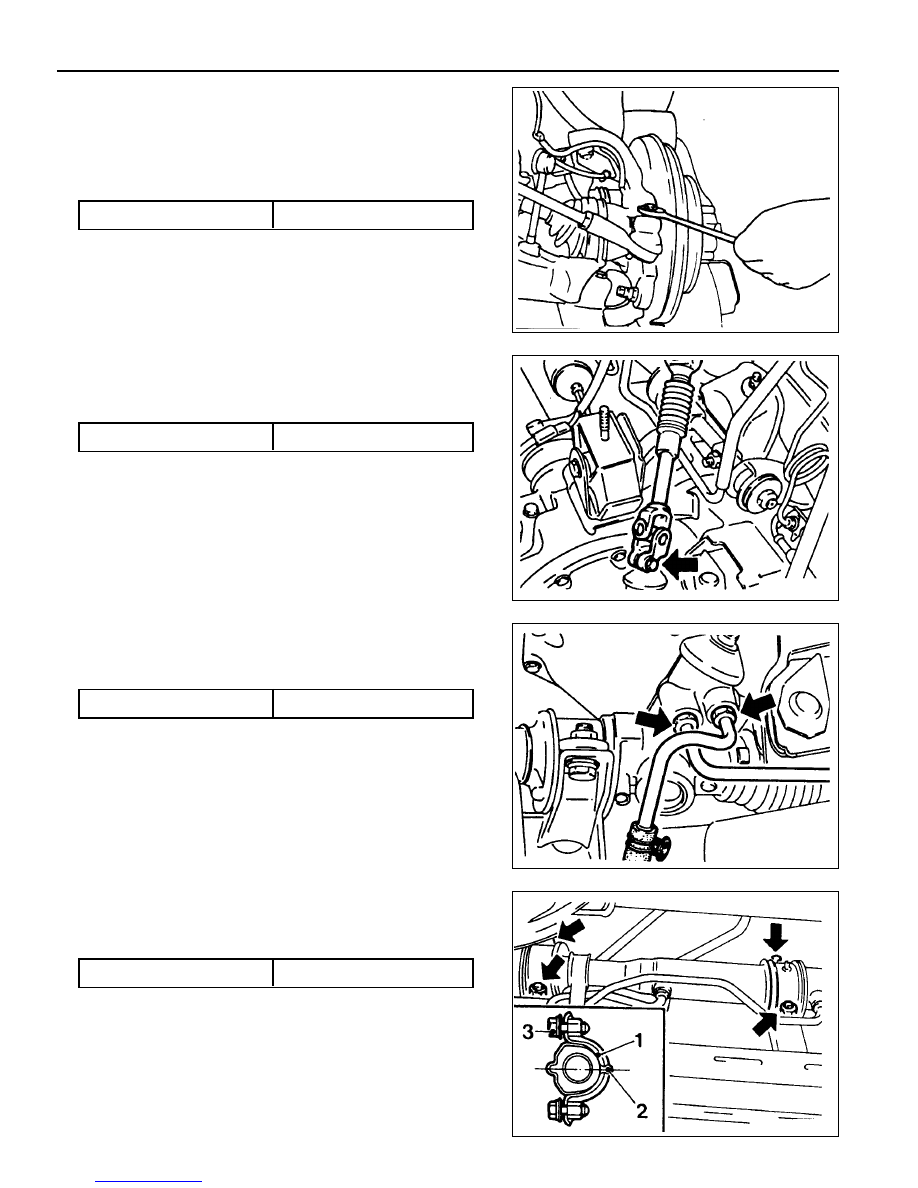

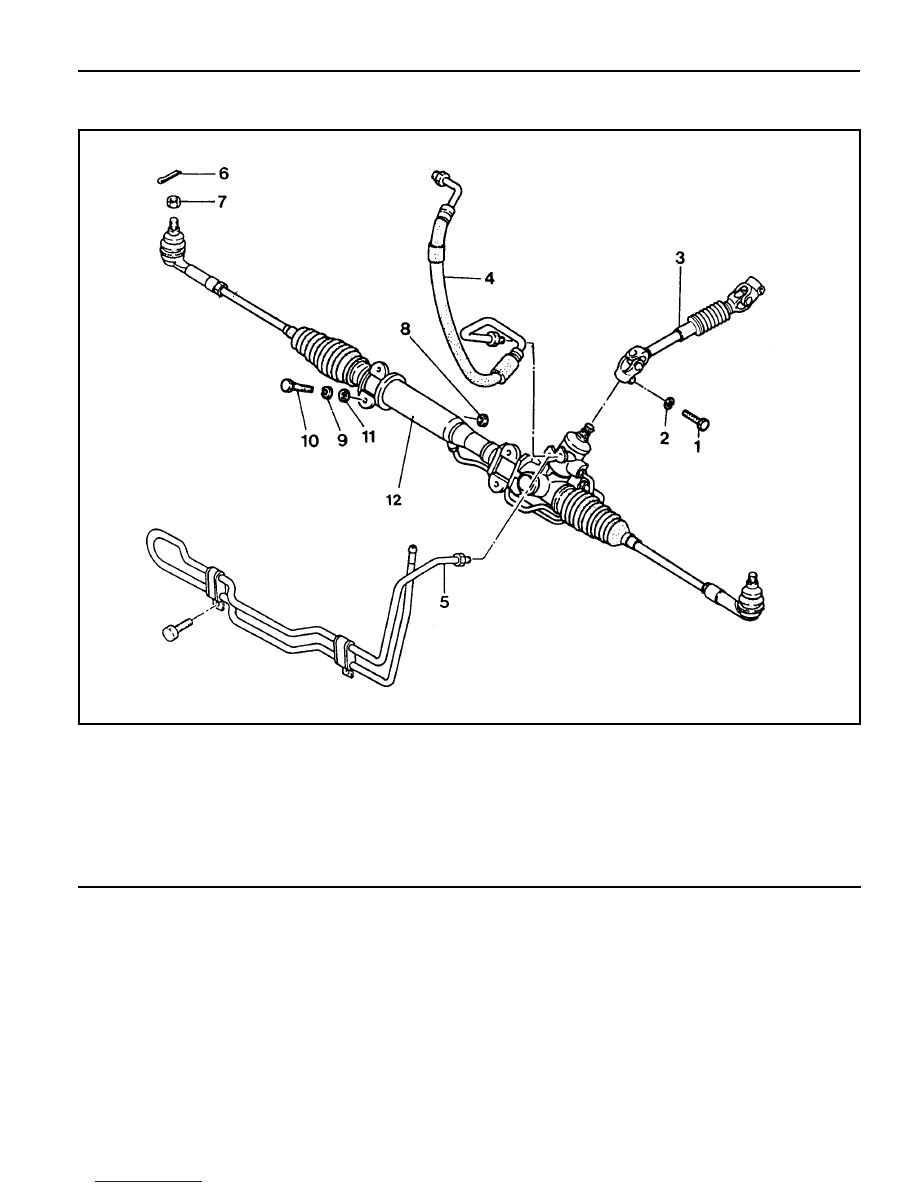

POWER STEERING SYSTEM 6A-5 MAINTENANCE AND REPAIR INSPECTION Steering Wheel Freeplay Inspection Procedure 1. Start the engine and set the wheels in straight ahead position. 2. Slightly move the steering wheel to the left and right and measure steering wheel free play when the front wheel is Notice If exceeds specification, the steering column shaft Steering Angle Inspection Procedure 1. Place the front wheel on a measuring tool. 2. Rotate steering wheel all the way right and left and measure steering angle Notice If out of standard, check or adjust toe-in. Standard 33°37' 31°50' Inner Outer Steering Effort Inspection Procedure 1 Place a vehicle on the paved flat ground with front wheels in a straight ahead position. 2 Start the engine and run it at 1,000rpm. 3 Using a scale, measure the steering effort in both directions. Notice The difference in steering effort of left and right should be Standard Max. 3.0kg Standard Max. 30mm |
