REAR DRIVE AXLE  3D-7

Removal & Installation Procedure

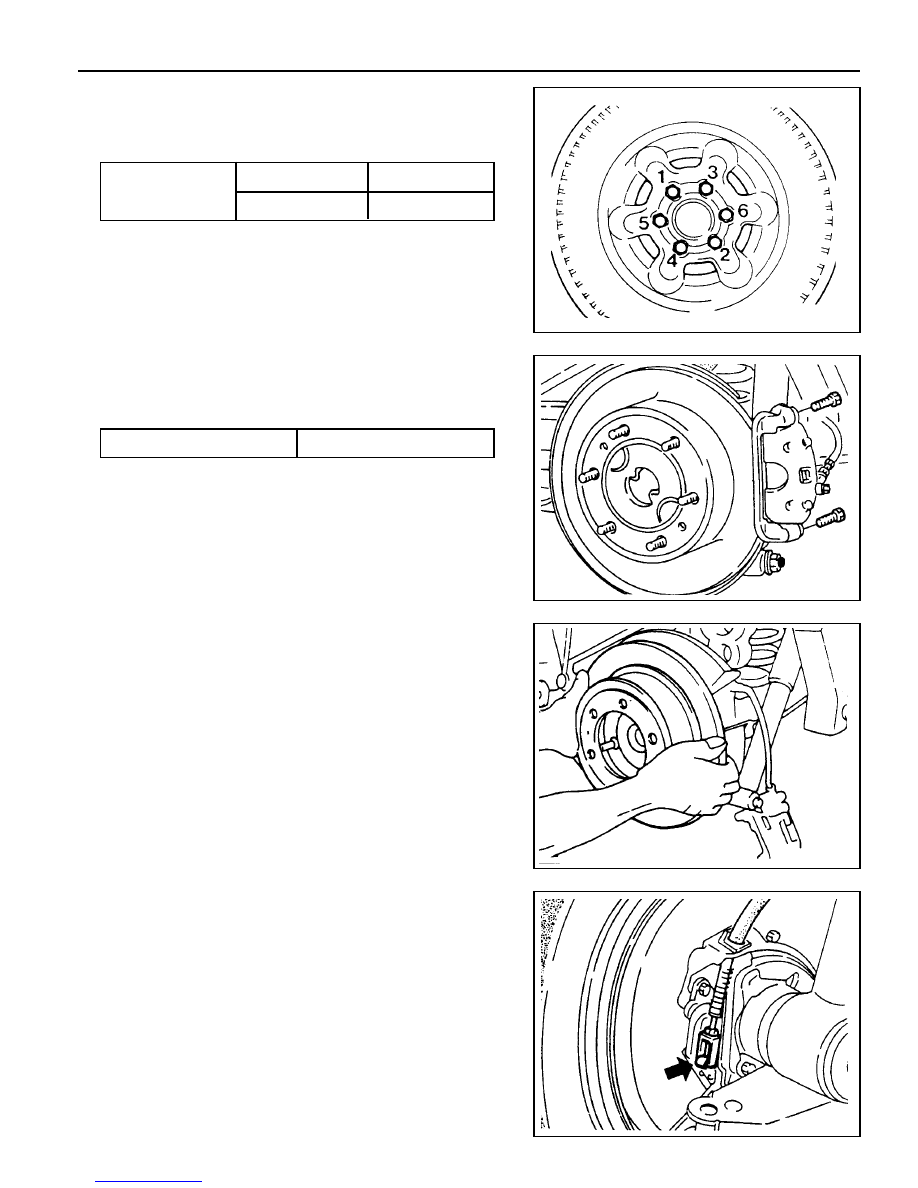

1. Remove the tire.

Installation Notice

2. Release the parking brake.

Steel Wheel

Aluminum Wheel

Tightening Torque

3. Remove the bolts and the brake caliper.

Installation Notice

Be careful not to damage the brake hose.

Tightening  Torque

85 - 100 Nm

4. Remove the brake disc.

Notice

To remove the disc, install the bolts (M8 x 1.25) into the
service hole and uniformly tighten the bolts.

5. Disconnect the parking brake cable.

80 - 120 Nm

110 - 130 Nm

3D-8  REAR DRIVE AXLE

Tightening  Torque

50 - 65 Nm

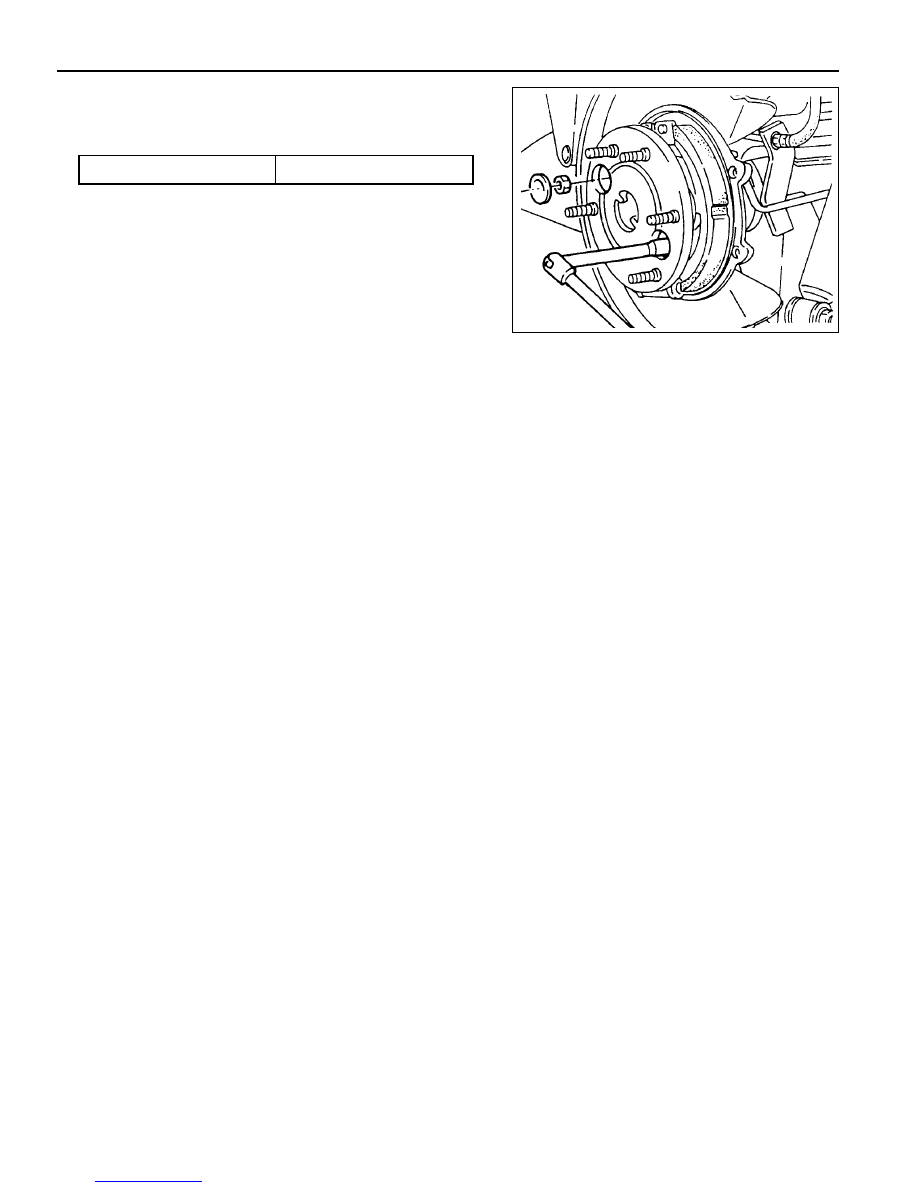

6. Remove the plug from the axle shaft flange and remove the

inner shaft mounting nuts.

Installation Notice

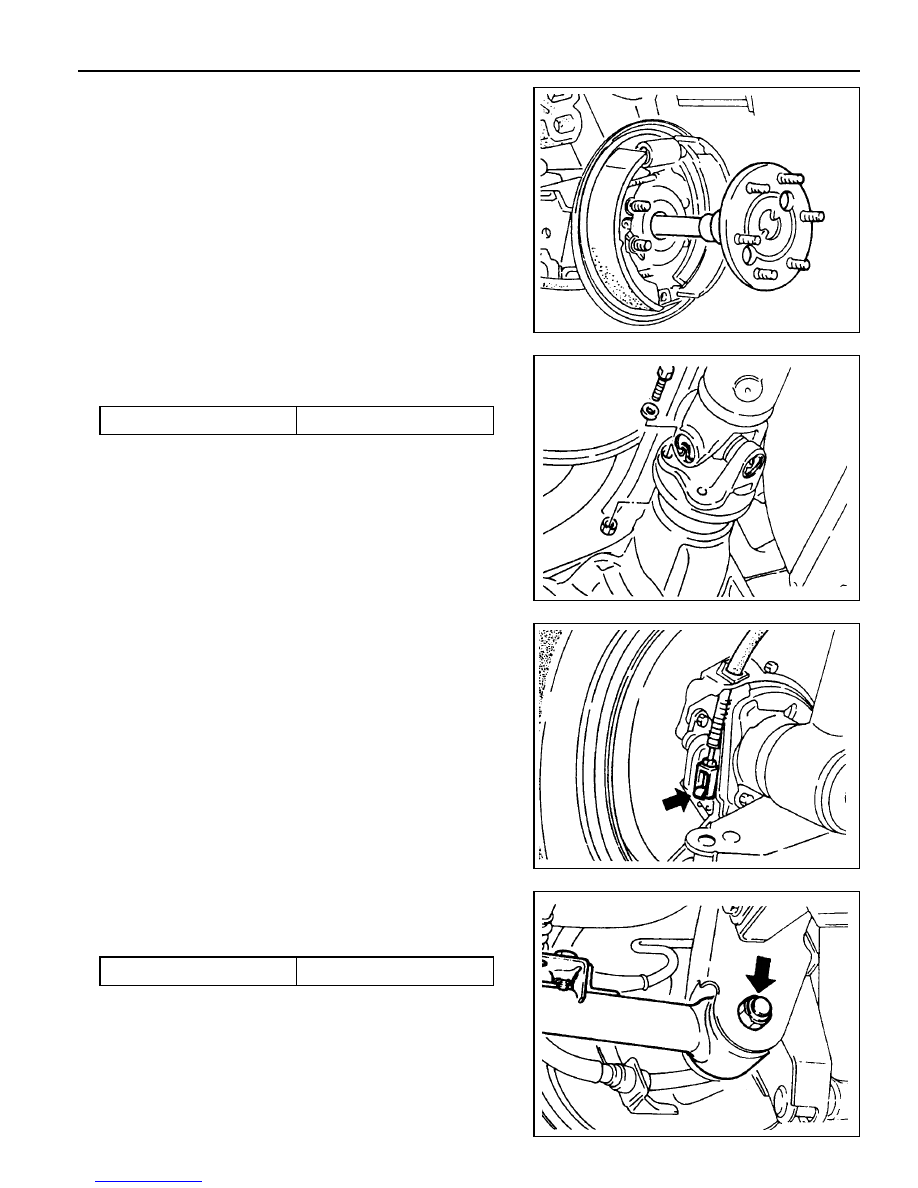

7. Remove the axle shaft, parking brake lining and back plate

assembly.

8. Installation should follow the removal precedure in the

reverse order.

REAR DRIVE AXLE  3D-9

AXLE

Removal & Installation Procedure

1. Lift up the vehicle and support the frame safely.

2. Remove the axle shaft.

Tightening  Torque

150 - 180 Nm

3. Remove the propeller shaft from the rear axle input shaft.

Installation Notice

Notice

Place alignment marks before removal.

Tightening  Torque

81 - 89 Nm

4. Disconnect the parking brake cable and brake hose.

5. Remove the lower arm mounting nuts and remove the lower

arm from the axle housing.

Installation Notice

3D-10  REAR DRIVE AXLE

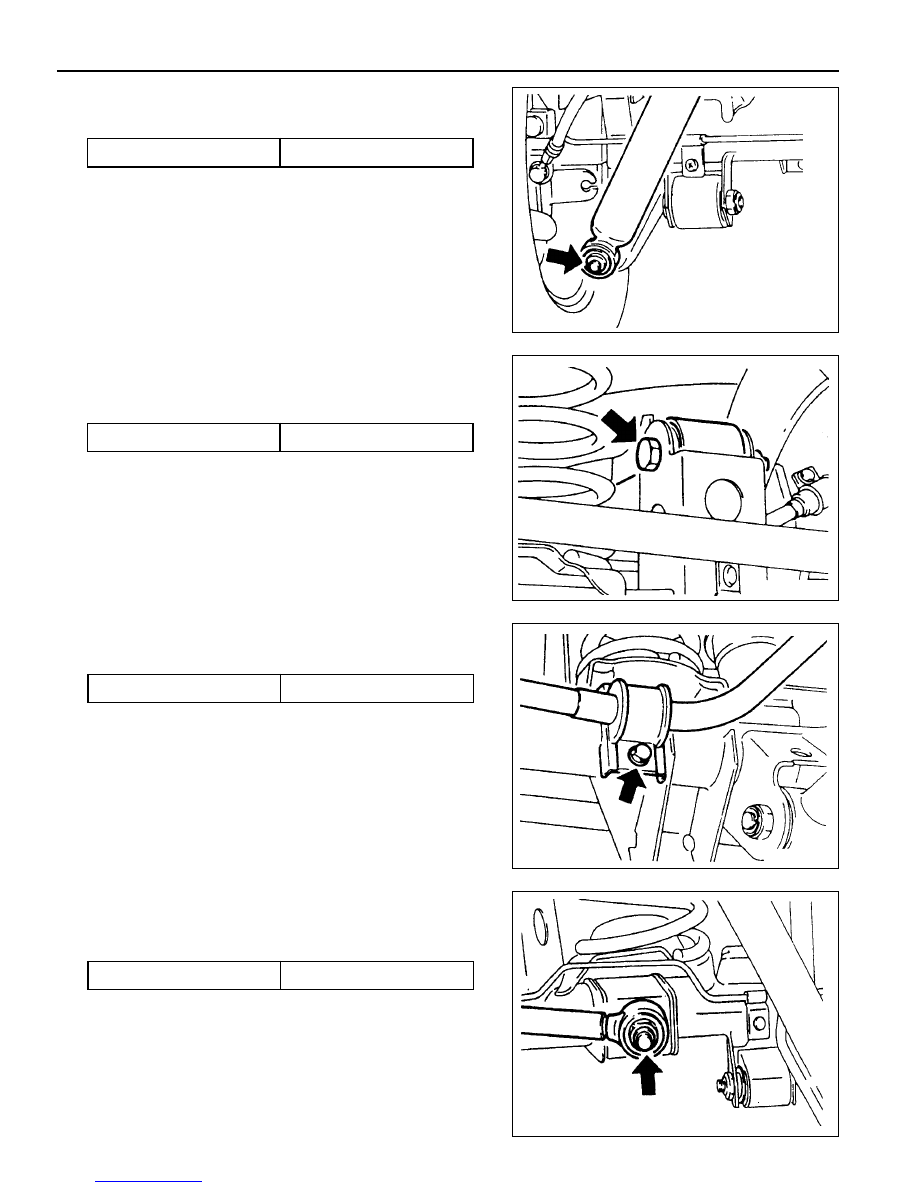

6. Separate the lower shock absorber from the axle housing.

Installation Notice

7. Remove the upper arm mounting nuts and remove the

upper arm form the axle housing.

Installation Notice

Tightening  Torque

50 - 65 Nm

8. Remove the stabilizer bar.

Installation Notice

Tightening  Torque

150 - 180 Nm

9. Remove the lateral rod mounting nuts and remove the

lateral rod from the axle housing.

Installation Notice

Tightening  Torque

30 - 45 Nm

10. Lowering the axle housing slowly, remove the coil springs

and spring seats.

11. Installation should follow the removal precedure in the

reverse order.

Tightening  Torque

150 - 180 Nm
