1F3-32  OM600 ENGINE CONTROLS

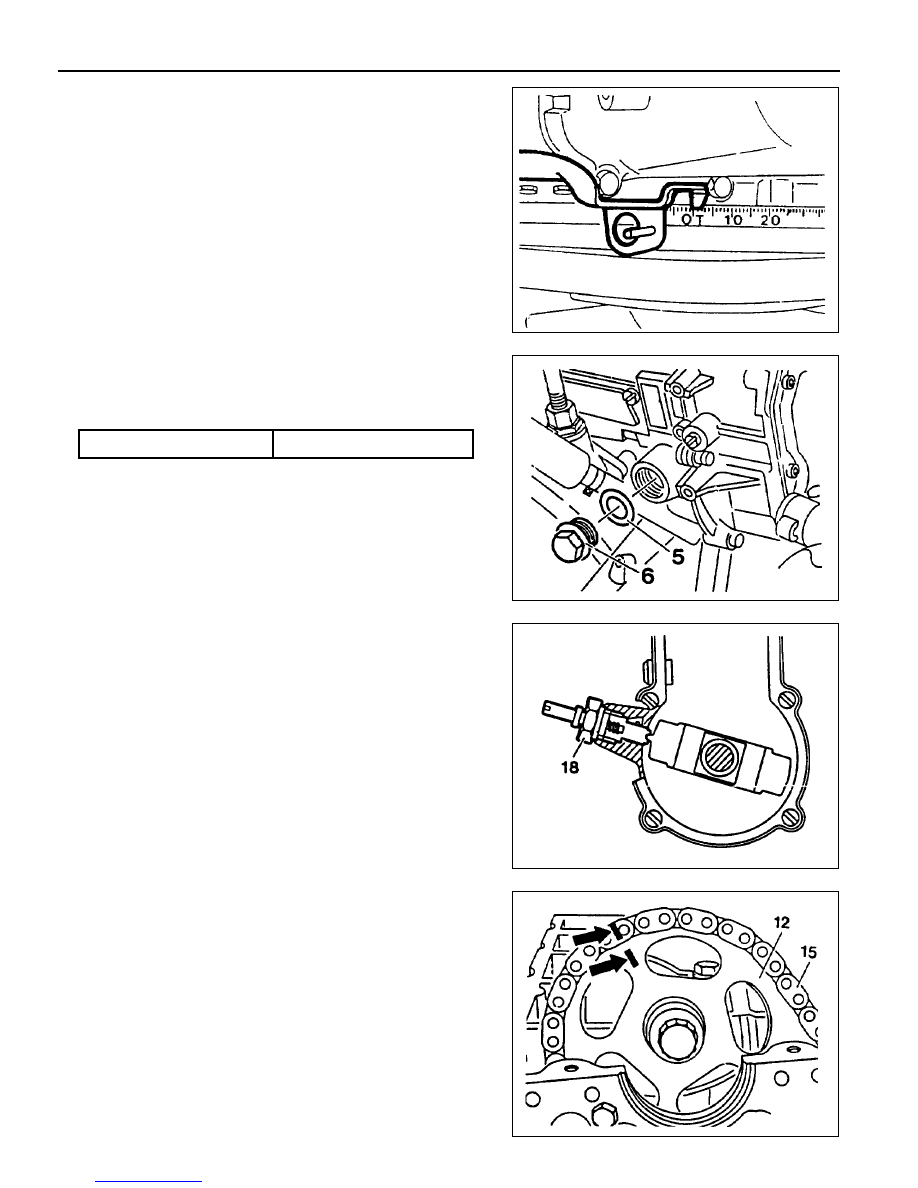

5. Remove the plug (6) and seal (5) from the fuel injection

pump and collect oil in a suitable vessel.

Installation Notice

Notice

Replace the seal.

Tightening Torque

30 Nm

6. Install the locking screw (18) into the injection pump.

Notice

Before tightening the bolts for the injection timing device
and the camshaft sprocket, always remove the locking screw
from the injection pump and reinstall the plug.

Locking Screw 601 589 05 21 00

7. Place alignment marks (arrow) on the timing chain (12) and

camshaft sprocket (15).

4. Position the no.1 cylinder at ATDC 15°.

Notice

Do not rotate the engine with camshaft sprocket bolt or
opposite direction of the engine rotation.

OM600 ENGINE CONTROLS  1F3-33

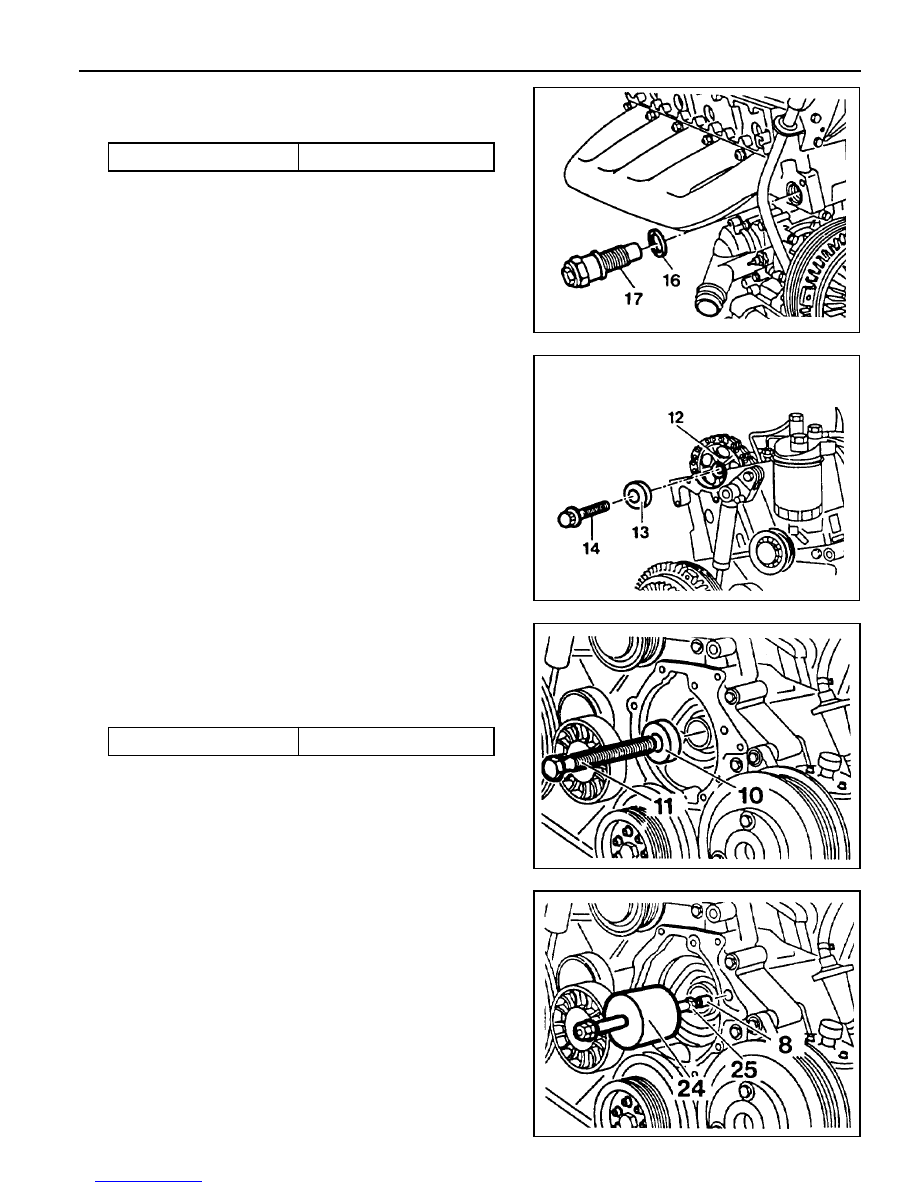

9. Pull out the 12-sided stretch bolt (14) and washer and

remove the camshaft sprocket (12).

Tightening Torque

46 Nm

11. Using special tool (24, 25), remove the locking pin (8).

Sliding Hammer 116 589 20 33 00

Threaded Bolt 116 589 02 34 00

8. Remove the chain tensioner (17).

Installation Notice

Tightening Torque

80 Nm

Notice

Replace the seal (16).

10. Pull out the bolt (11) and washer (10).

Notice

Be careful that the bolt is left-hand thread.

Installation Notice

1F3-34  OM600 ENGINE CONTROLS

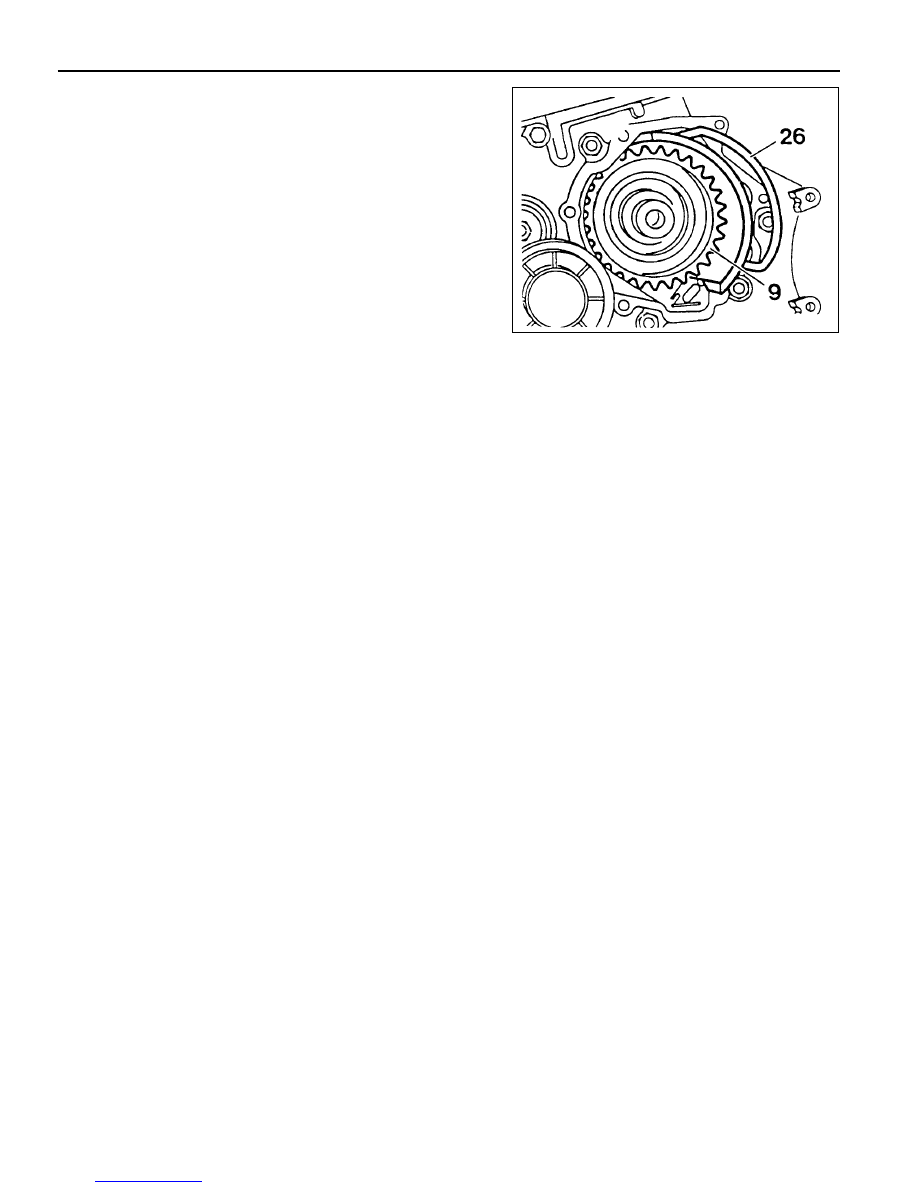

12. Push back the timing chain with retaining plate (26) and

remove the injection timing device (9).

Retaining Plate 667 589 04 63 00

13. Installation should follow the removal procedure in the

reverse order.

14. After assembling the engine, check start of delivery and

adjust if necessary.

OM600 ENGINE CONTROLS  1F3-35

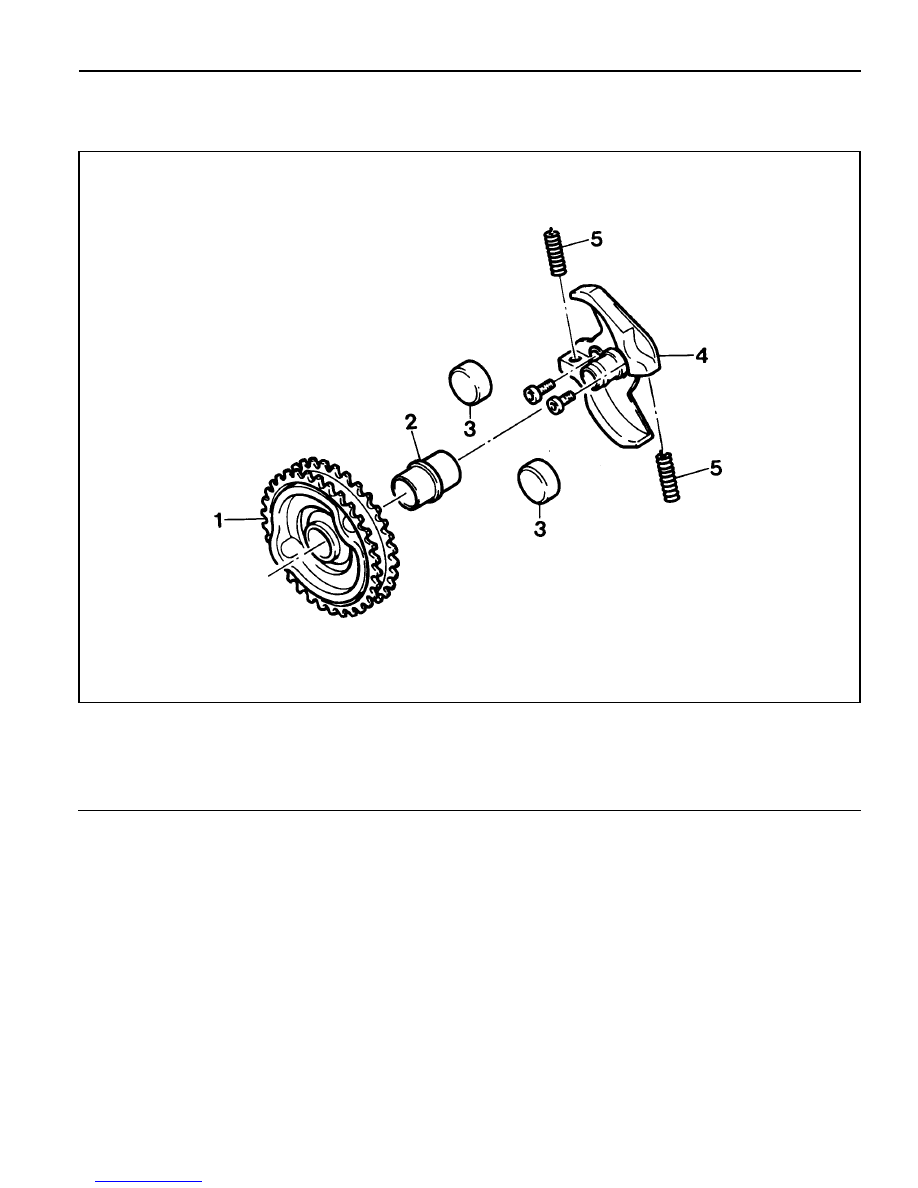

INJECTION TIMING DEVICE

Preceding Work : Removal of injection timing device

1 Cam Sprocket ........................................... Check
2 Bushing .................................................... Check
3 Governor Weights

4 Segment Flange and Drive Hub
5 Compression Springs
