M162 ENGINE CONTROLS  1F1-43

Pin No.

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

Description

Injector-cylinder 2

Injector-cylinder 4

Injector-cylinder 1

Injector-cylinder 6

Injector-cylinder 5

Injector-cylinder 3

E-GAS motor plus

E-GAS motor minus

Power ground TM.31

Ignition coil cylinder 1+6

Ignition coil cylinder 2+5

Ignition coil cylinder 3+4

Camshaft control

-

-

-

-

Engine coolant temperature

Temperature ground

Intake air temperature

Hot film air mass signal

-

-

E-GAS potentiometer ground

E-GAS potentiometer 2 signal

-

E-GAS potentiometer 1 signal

-

-

-

EV5

EV6

EV1

EV4

EV2

EV3

M+

M-

TM.31

ZSC16

ZSA25

ZSB34

NWS

-

-

-

-

MT

GND

LT

HFM

-

-

GND

IP2S

-

IP1S

-

-

-

l
l
l
l
l
l
l
l
l
l
l
l
l

-

-

-

-

l
l
l
l

-

-

l
l

-

l

-

-

-

l
l
l
l
l
l
l
l
l
l
l
l
l

-

-

-

-

l
l
l
l

-

-

l
l

-

l

-

-

-

Remarks

Abbreviation

E32 ENG,

5speed M/T

E32 ENG,

4speed A/T

(BTRA)

1F1-44  M162 ENGINE CONTROLS

Pin No.

Description

-

-

-

-

-

-

Intake manifold resonance flap

-

Crankshaft sensor ground

Crankshaft sensor signal

-

-

-

Camshaft sensor ground

Hot film air mass ground

Camshaft sensor signal

-

Hot film air mass supply

-

-

-

E-GAS potentiometer supply

-

Knock sensor 2 ground

Knock sensor 2 signal

-

Knock sensor 1 ground

Knock sensor 1 signal

-

-

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

-

-

-

-

-

-

SRV

-

KW-

KW+

-

-

-

NOWE-

GND

NOWE+

-

V-REF.HFM

-

-

-

V-REF.DK

-

GND

KS2

-

GND

KS1

-

-

-

-

-

-

-

-

l

-

l
l

-

-

-

l
l
l

-

l

-

-

-

l

-

l
l

-

l
l

-

-

-

-

-

-

-

-

l

-

l
l

-

-

-

l
l
l

-

l

-

-

-

l

-

l
l

-

l
l

-

-

Remarks

Abbreviation

E32 ENG,

5speed M/T

E32 ENG,

4speed A/T

(BTRA)

M162 ENGINE CONTROLS  1F1-45

Removal & Installation Procedure

l

when removing the ECU only

1. Turn the ignition switch to "OFF" position.

2. Disconnect the negative battery cable.

3. Disconnect the couplings from ECU.

4. Unscrew the left and right bolt (3) on bolt (1) and auxiliarly

bracket and remove the auxiliarly bracket from the bracket
assembly (2).

Installation Notice

5. Unscrew the four bolts (5) and disconnect the ECU (6) from

the bracket assenbly.

Installation Notice

6. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

6 - 8 Nm

5 - 7 Nm

(1)

(3)

Tightening  Torque

5 - 7 Nm

8. Unscrew the bolts (5) and disconnect the ECU (6) from  the

bracket assenbly.

Installation Notice

l

When Removing the ECU with ABS or ABS/ASR Unit

1. Turn the ignition switch to "OFF" position.

2. Disconnect the negative battery cable.

3. Disconnect the couplings from ECU.

4. Disconnect the coupling from ABS or ABS/ASR unit.

5. Unscrew the bolt (1) and the left and right flange nuts.

6. Remove the ECU with ABS or ABS/ASR unit assembly.

7. Unscrew the left and right bolt (3) on the auxiliary bracket

and remove the auxiliary bracket from the bracket assembly.

Installation Notice

Tightening  Torque

6 - 8 Nm

Tightening  Torque

5 - 7 Nm

Tightening  Torque

5 - 7 Nm

9. Installation should follow the removal procedure in the

reverse order.

1F1-46  M162 ENGINE CONTROLS

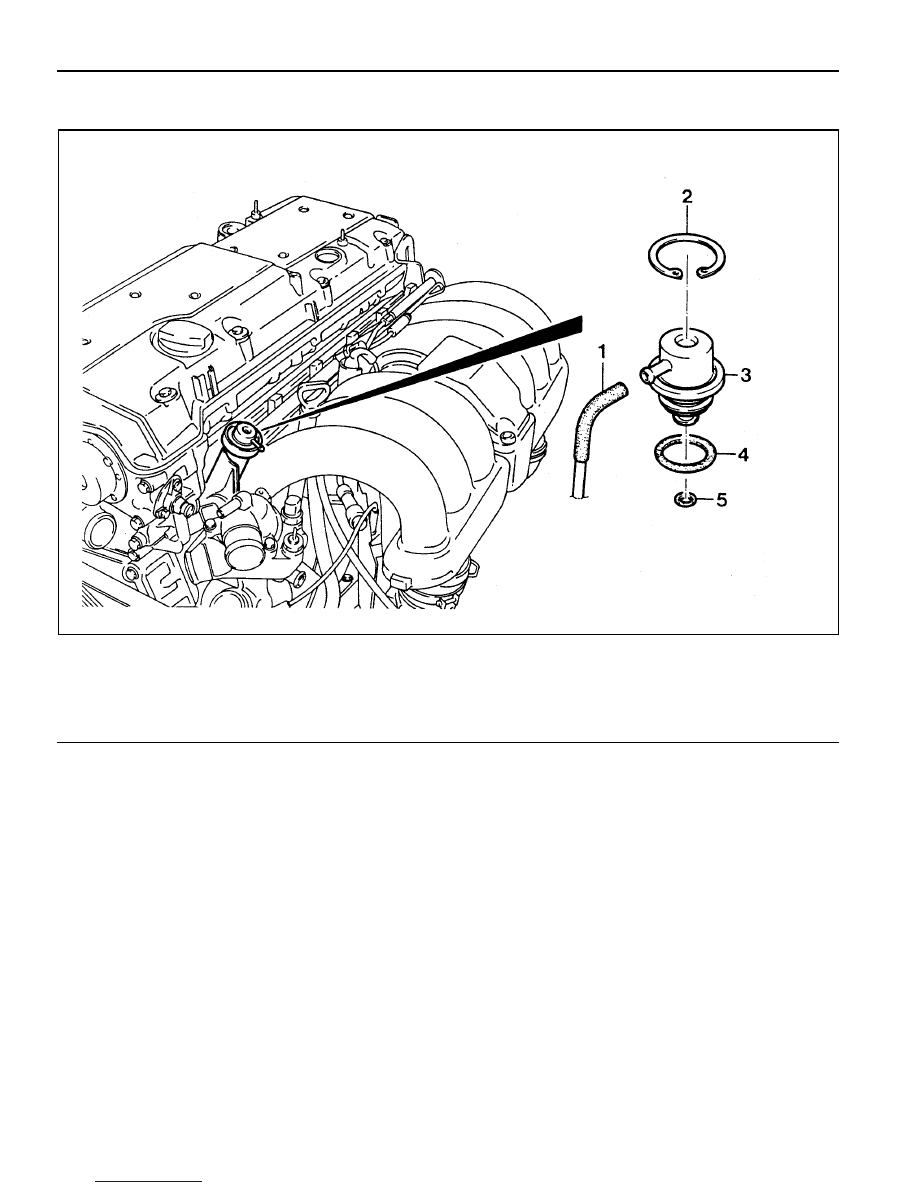

1 Vacuum Hose
2 Circlip
3 Fuel Pressure Regulator

FUEL PRESSURE REGULATOR

4 O-ring ..................................................... replace
5 O-ring ..................................................... replace
