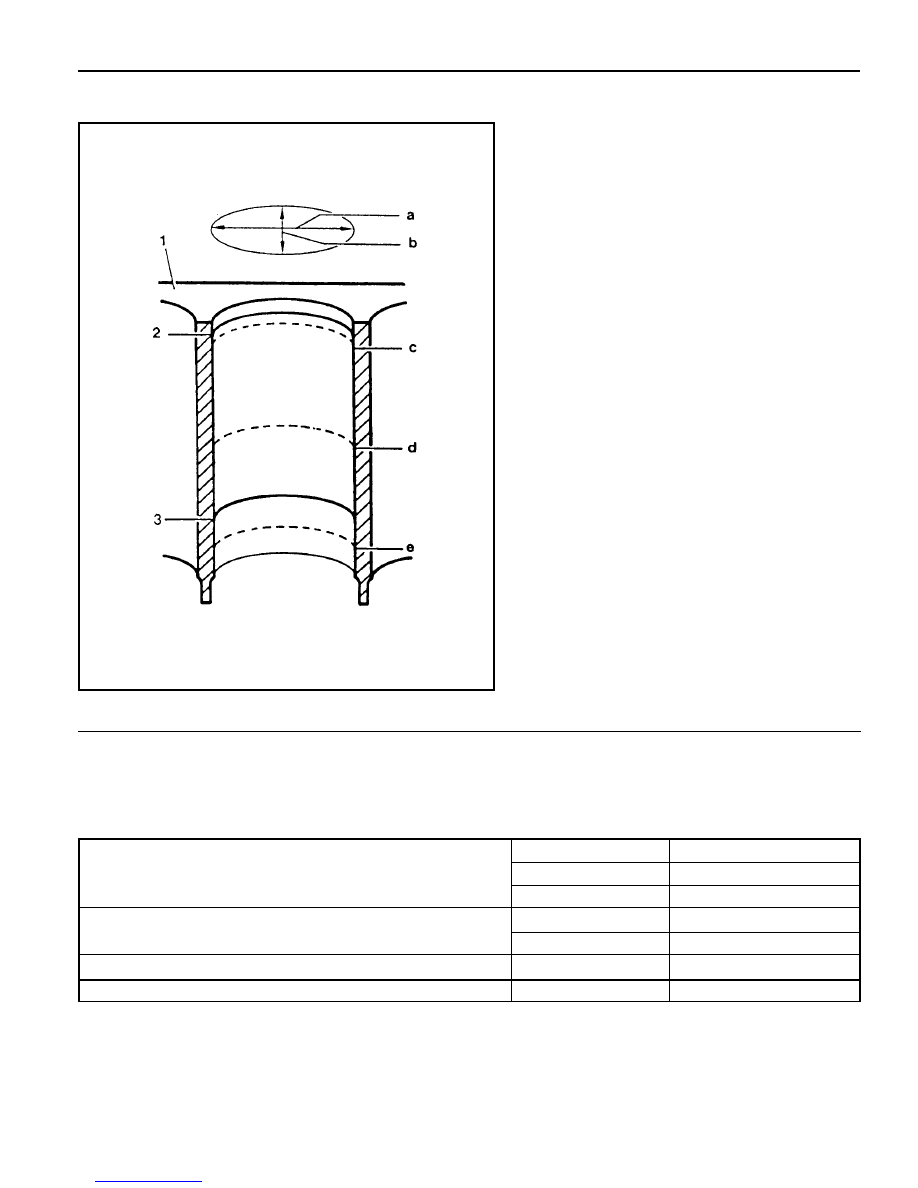

OM600 ENGINE MECHANICAL 1B3-187 Standard size Wear limit in direction of travel and in transverse direction Permissible deviation of cylinder shape Honing angle CYLINDER BORE MEASUREMENT a Longitudinal Direction b Transverse Direction c, d, e. Measuring Point 1 Crankcase Contacting Surface 2 TDC of 1st Piston Ring 4 BDC of Ring Service Data Code letter ‘A’ Code letter ‘X’ Code letter ‘B’ When new Wear limit 89.000 - 89.006mm 89.006 - 89.012mm 89.012 - 89.018mm Max. 0.20mm 0.01mm 0.05mm 50° ± 10° |
