9T – 4  REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

D19C501A

SIREN

Removal Procedure

1. Disconnect the negative battery cable.

2. Raise and suitably support the vehicle.

3. Remove the front wheels.

4. Remove the front wheel house splash shield.

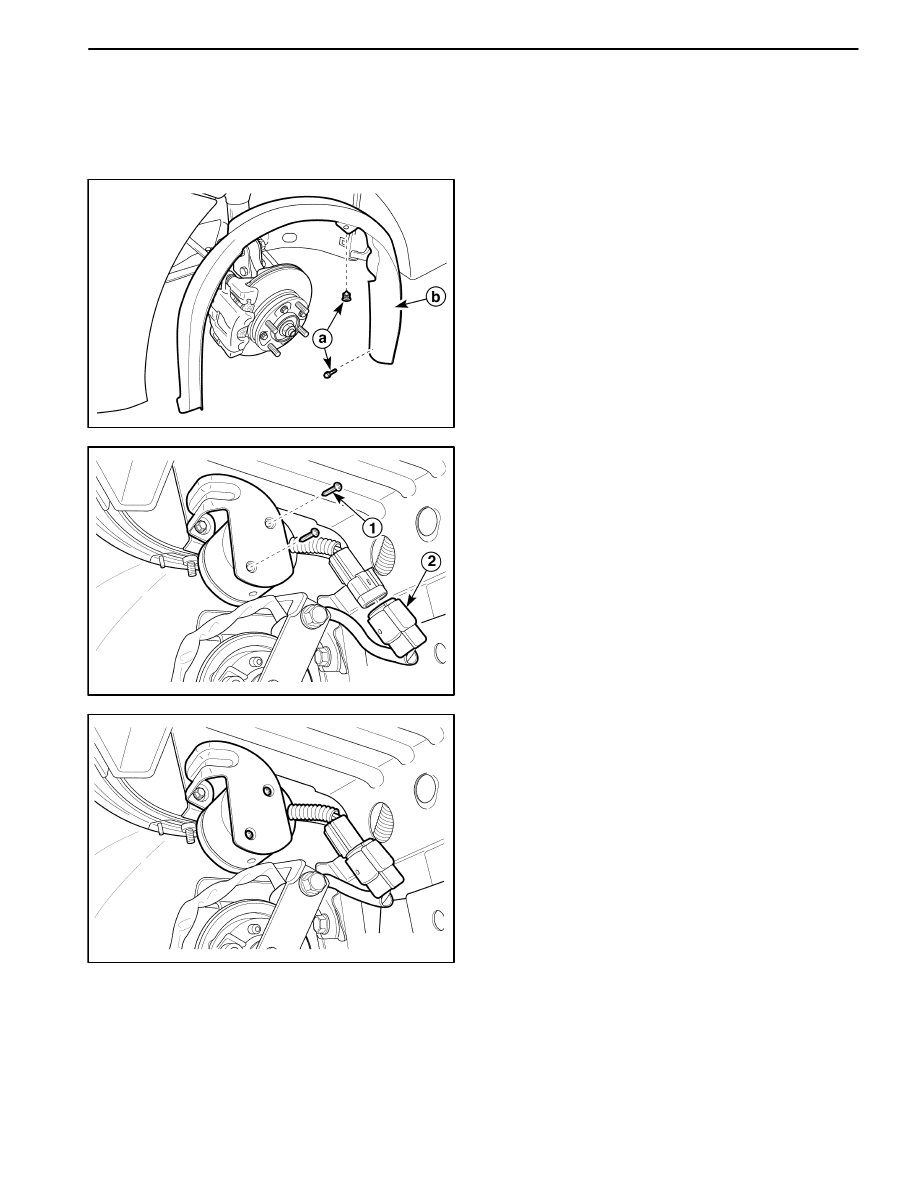

D

Remove the clip and bolts.

a. Bolts and clips.

D

Remove the wheel house splash shield.

b. Splash shield.



D209B106

5 Remove the siren.

D

Remove the screws (1).

D

Disconnect the electrical connector (2).

D209B107

Installation Procedure

1. Install the siren with the screws.

2. Connect the electrical connector.

3. Install the front wheel house splash shield with the

clips and the bolts.

4. Install the front wheels.

5. Lower the vehicle.

6. Connect the negative battery cable.

REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T – 5

PASSWORD PROGRAMMING

If a transmitter is lost or damaged, the control module/
receiver must be re-programmed to communicate with a
new transmitter. The passwords recorded in the control
module/receiver should not be deleted when power is off
in the control module/receiver.

Each control module/receiver should be able to record
five passwords. The following method is used to record
new passwords in the control module/receiver:

1. Connect the scan tool to the data link connector

(DLC) connector.

2. Send the programming mode message to the control

module/receiver.

3. Press any button of the transmitter to generate a data

code including a password which will be recorded by
the control module/receiver. The control module/re-
ceiver sends a response message to the scan tool to
indicate that the first password has been recorded.

4. Press any button of the transmitter three more times

until the control module/receiver has responded that
the third, fourth, and fifth passwords have been re-
corded.

5. Disconnect the scan tool.

The control module/receiver leaves the programming
mode automatically and switches to the normal operat-
ing mode when either of the following conditions occurs:

D

The scan tool is disconnected from the DLC.

D

Five passwords are recorded in the control module/
receiver.

9T – 6  REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb-Ft

Lb-In

Hood Open Switch Mounting Screw

8

–

71

Siren Bracket Mounting Bolt

22

16

–

Siren Mounting Screws

8

–

71

REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T – 7

SCHEMATIC AND ROUTING DIAGRAMS

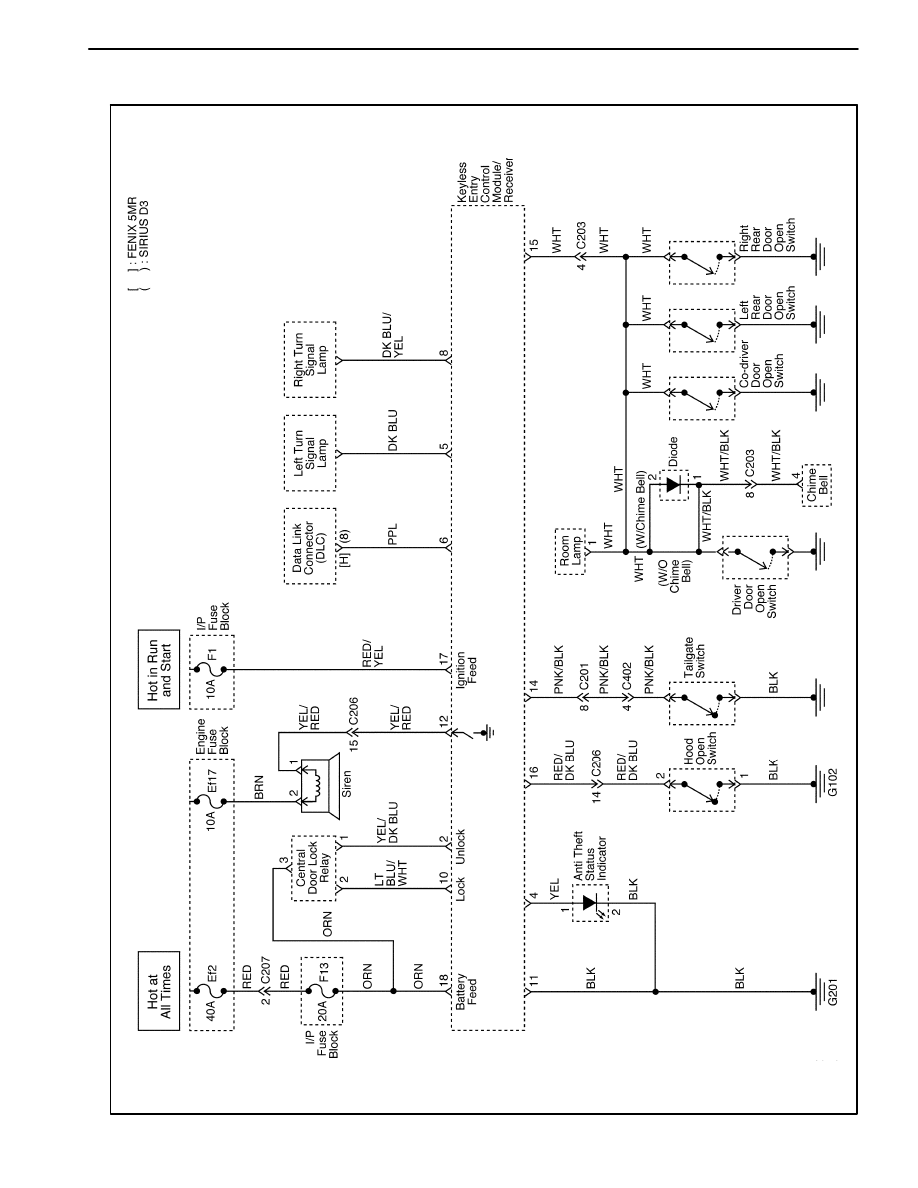

D209T000

REM

O

T

E

 KEYL

ESS

 ENT

R

Y

 AND

 ANT

I-

T

HEF

T

 S

YST

EM
