Daewoo Matiz (2003 year). Manual - part 285





BODY REAR END  9S – 3

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D109C546

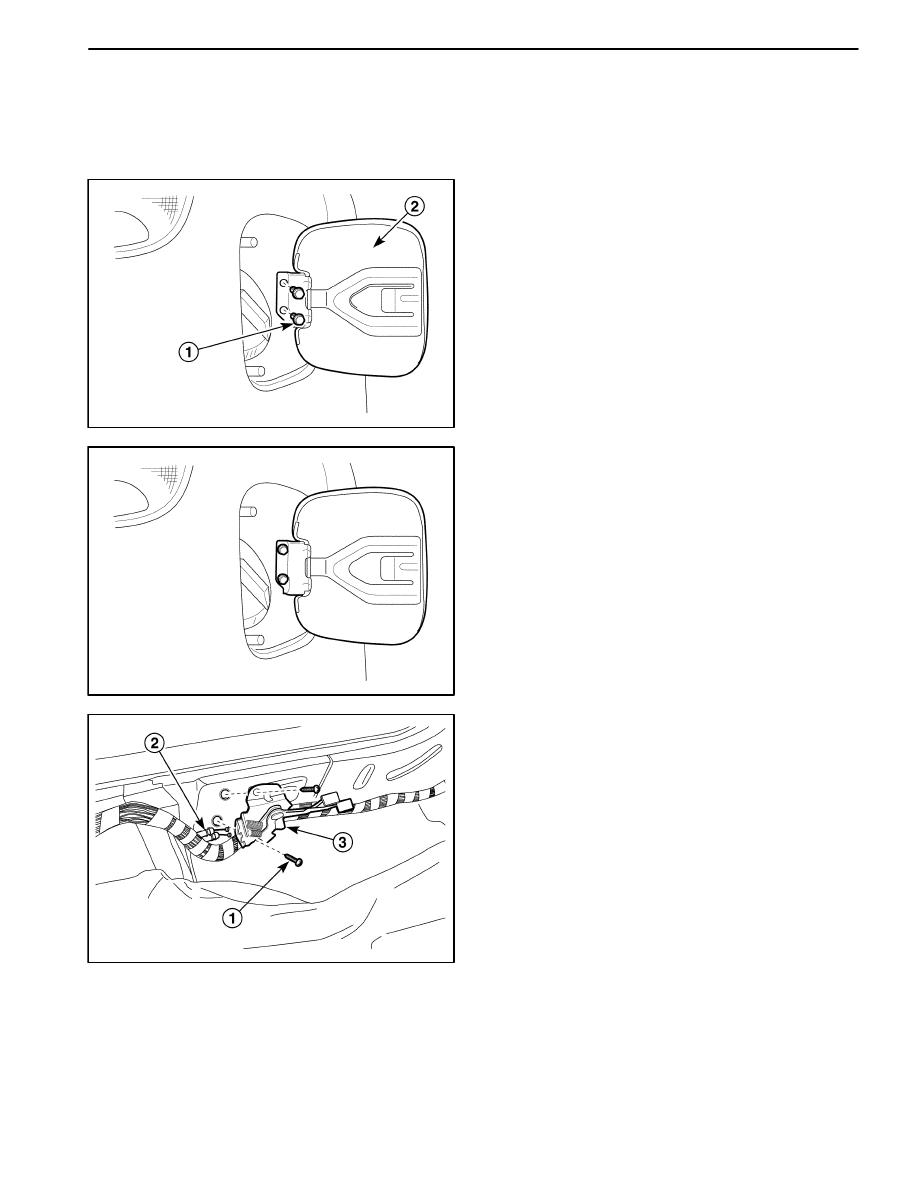

FUEL FILLER DOOR

Removal Procedure

1. Pull the fuel filler door opening lever and open the fuel

filler door.

2. Remove the fuel filler door.

D

Remove the bolts (1).

D

Remove the fuel filler door (2).

D109C547

Installation Procedure

1. Install the fuel filler door with the bolts.

D109C548

FUEL FILLER DOOR REMOTE CABLE
AND HANDLE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1. Pry off the front rocker trim panel. Refer to Section

9G, Interior Trim.

2. Remove the fuel filler door remote handle.

D

Remove the screws (1).

D

Disconnect the cable (2).

D

Remove the fuel filler door remote handle (3).

9S – 4  BODY REAR END

D109C549

3. Pry off the lower B–pillar trim panel. Refer to Section

9G, Interior Trim.

4. Pry off the rear rocker trim panel. Refer to Section to

9G, Interior Trim.

5. Pry off the luggage compartment wheelhouse trim

panel. Refer to Section to 9G, Interior Trim.

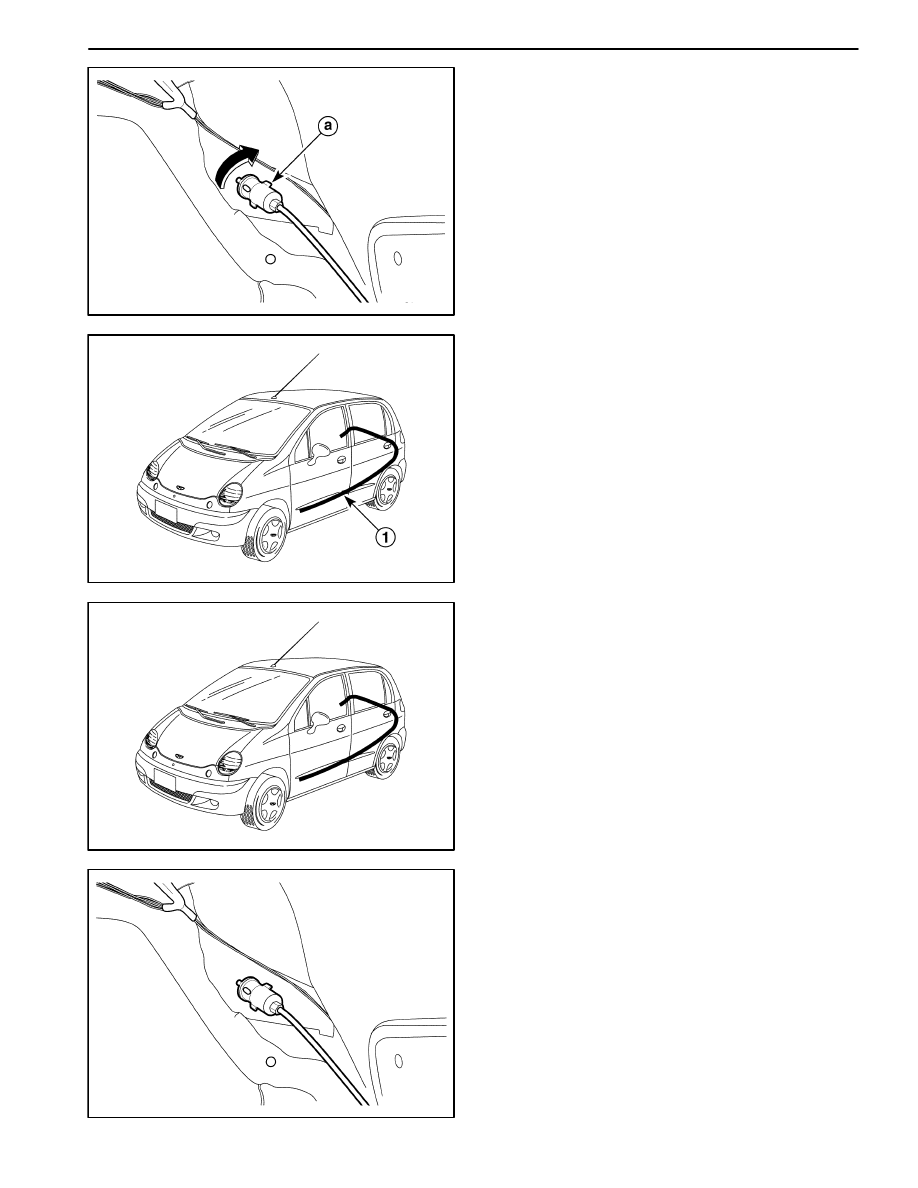

6. Remove the lock striker of the fuel filler.

D

Remove the lock striker by turning it rectangularly.

a. Lock striker

D19C550B

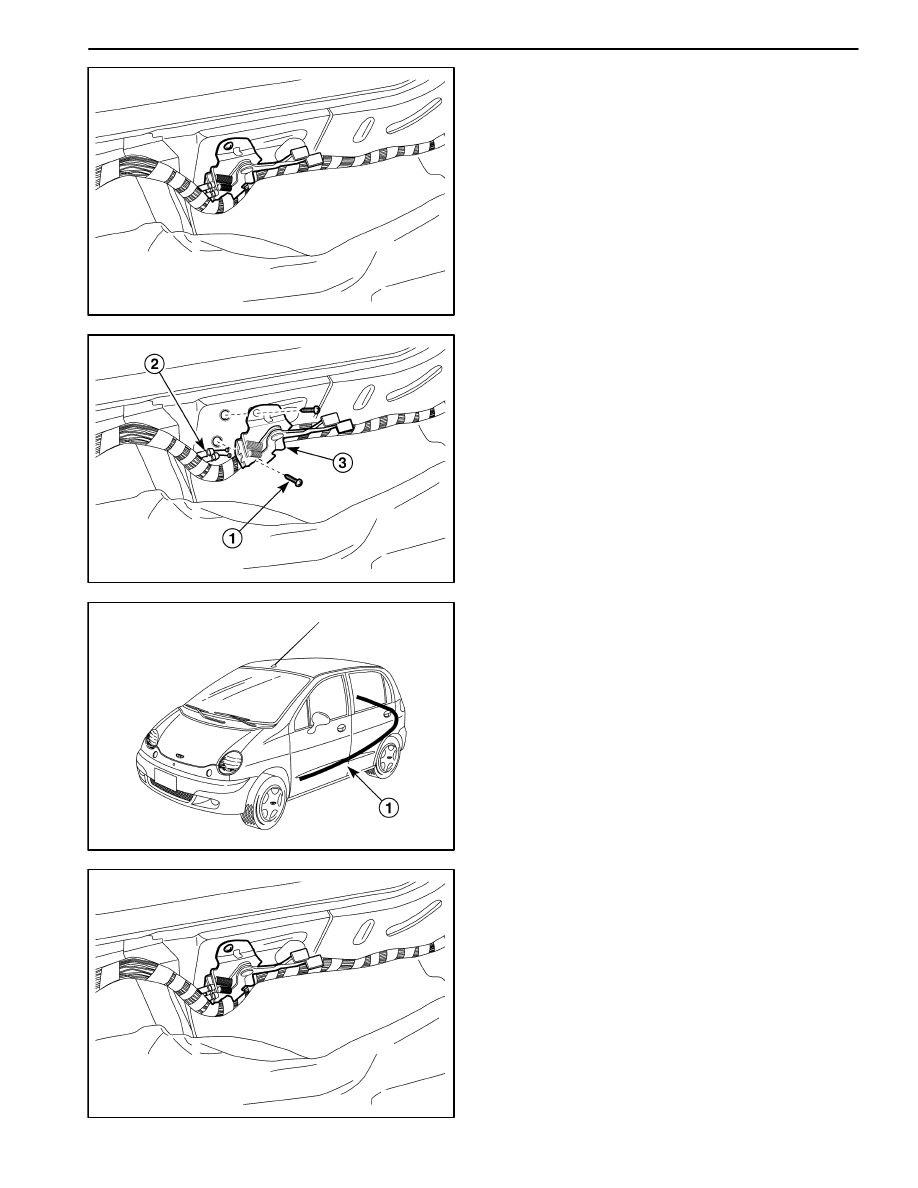

7. Remove the fuel filler door remote cable.

D

Remove the cable retaining strip.

D

Disconnect the fuel filler door remote cable (1).

D19C550C

Installation Procedure

1. Connect the fuel filler door remote cable to the fuel

filler door.

2. Retain the cable with the strip.

D19C549A

3. Install the lock striker of the fuel filler.

4. Install the luggage compartment wheelhouse trim

panel. Refer to Section 9G, Interior Trim.

5. Install the rear rocker trim panel. Refer to Section 9G,

Interior Trim.

6. Install the lower B–pillar trim panel. Refer to Section

9G, Interior Trim.

BODY REAR END  9S – 5

D109C551

7. Connect the fuel filler door remote cable to the han-

dle.

8. Install the fuel filler door remote handle with the

screws.

D109C548

TAILGATE REMOTE CABLE AND
HANDLE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1. Pry off the front rocker trim panel. Refer to Section

9G, Interior Trim.

2. Remove the tailgate remote handle.

D

Remove the screws (1).

D

Disconnect the cable (2).

D

Remove the tailgate remote handle (3).

D19C633A

3. Pry off the lower B–pillar trim panel. Refer to Section

9G, Interior Trim.

4. Pry off the rear rocker trim panel. Refer to Section

9G, Interior Trim.

5. Pry off the luggage compartment wheelhouse trim

panel. Refer to Section 9G, Interior Trim.

6. Disconnect the cable from the tailgate lock striker.

Refer to Section 9P, Doors.

7. Remove the tailgate remote cable.

D

Remove the cable retaining strip.

D

Disconnect the tailgate remote cable (1).

D109C551

Installation Procedure

1. Connect the tailgate remote cable to the tailgate lock

striker.

2. Retain the cable with the strip.

3. Install the luggage compartment wheelhouse trim

panel. Refer to Section 9G, Interior Trim.

4. Install the rear rocker trim panel. Refer to Section 9G,

Interior Trim.

5. Install the lower B–pillar trim panel. Refer to Section

9G, Interior Trim.

6. Connect the tailgate remote cable to the handle.

7. Install the tailgate remote handle with the screws.

REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM  9T – i

SECTION 9T

REMOTE KEYLESS ENTRY AND

ANTI-THEFT SYSTEM

TABLE OF CONTENTS

Description and Operation

9T-2

. . . . . . . . . . . . . . . . . .

Remote Keyless Entry and

Anti-Theft System

9T-2

. . . . . . . . . . . . . . . . . . . . . . .

Remote Locking and Unlocking

9T-2

. . . . . . . . . . . . . .

Security Indicator

9T-2

. . . . . . . . . . . . . . . . . . . . . . . . . .

Intrusion Sensing

9T-2

. . . . . . . . . . . . . . . . . . . . . . . . . .

Siren

9T-2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Vehicle Locator

9T-2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Autolocking (Safety Lock)

9T-3

. . . . . . . . . . . . . . . . . .

Control Module/Receiver

9T-3

. . . . . . . . . . . . . . . . . . .

Repair Instructions

9T-4

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

9T-4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Siren

9T-4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Password Programming

9T-5

. . . . . . . . . . . . . . . . . . . .

Specifications

9T-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fastener Tightening Specifications

9T-6

. . . . . . . . . . .

Schematic and Routing Diagrams

9T-7

. . . . . . . . . . .

Remote Keyless Entry and

Anti-Theft System

9T-7

. . . . . . . . . . . . . . . . . . . . . . .

IMMOBILIZER ANTI-THEFT SYSTEM

TABLE OF CONTENTS

Description and Operation

9T-10

. . . . . . . . . . . . . . . . .

Immobilizer System

9T-10

. . . . . . . . . . . . . . . . . . . . . . .

Electronically Coded Keys

9T-10

. . . . . . . . . . . . . . . . .

Detection Coil

9T-10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Immobilizer Control Unit

9T-10

. . . . . . . . . . . . . . . . . . .

Serial Data Link

9T-11

. . . . . . . . . . . . . . . . . . . . . . . . . .

Electronic Control Module (ECM)

9T-11

. . . . . . . . . . .

Security Indicator

9T-12

. . . . . . . . . . . . . . . . . . . . . . . . .

Diagnostic Information and Procedures

9T-13

. . . .

Immobilizer System (FENIX 5MR)

9T-13

. . . . . . . . . .

Immobilizer System (SIRIUS D3)

9T-13

. . . . . . . . . . .

DTC 1600 ECM Immobilizer Error

(No Answer)

9T-14

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC 1601 ECM Immobilizer Error

(Incorrect Answer)

9T-16

. . . . . . . . . . . . . . . . . . . . . .

DTC 1602 ECM Immobilizer Error

(ECM Locked)

9T-18

. . . . . . . . . . . . . . . . . . . . . . . . .

P1628 ECM Immobilizer Error

9T-20

. . . . . . . . . . . . . .

P1629 ECM Immobilizer Error

9T-22

. . . . . . . . . . . . . .

Key Status Errors (FENIX 5MR)

9T-24

. . . . . . . . . . . .

Key Status Errors (SIRIUS D3)

9T-24

. . . . . . . . . . . . .

Communication Between Immobilizer and

Test Equipment (FENIX 5MR)

9T-25

. . . . . . . . . . . .

Communication Between Immobilizer and

Test Equipment (SIRIUS D3)

9T-25

. . . . . . . . . . . . .

Repair Instructions

9T-26

. . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

9T-26

. . . . . . . . . . . . . . . . . . . . . . . . .

Key Coding Procedure

9T-26

. . . . . . . . . . . . . . . . . . . .

ID Code Reprogramming

9T-26

. . . . . . . . . . . . . . . . . .

Transponder

9T-27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Detection Coil

9T-27

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Immobilizer Control Unit

9T-28

. . . . . . . . . . . . . . . . . . .

Specifications

9T-30

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fastener Tightening Specifications

9T-30

. . . . . . . . . .

Schematic and Routing Diagrams

9T-31

. . . . . . . . . .

Immobilizer Anti-Theft System

9T-31

. . . . . . . . . . . . .

Remote Keyless Entry and Immobilizer

Anti-theft System

9T-32

. . . . . . . . . . . . . . . . . . . . . . .
