9P – 28  DOORS

D109C631

Installation Procedure

1. Install the door opening weatherstrip to match the

marking.

2. Install the rocker panel trim and the lower B–pillar

panel trim.

D109E543

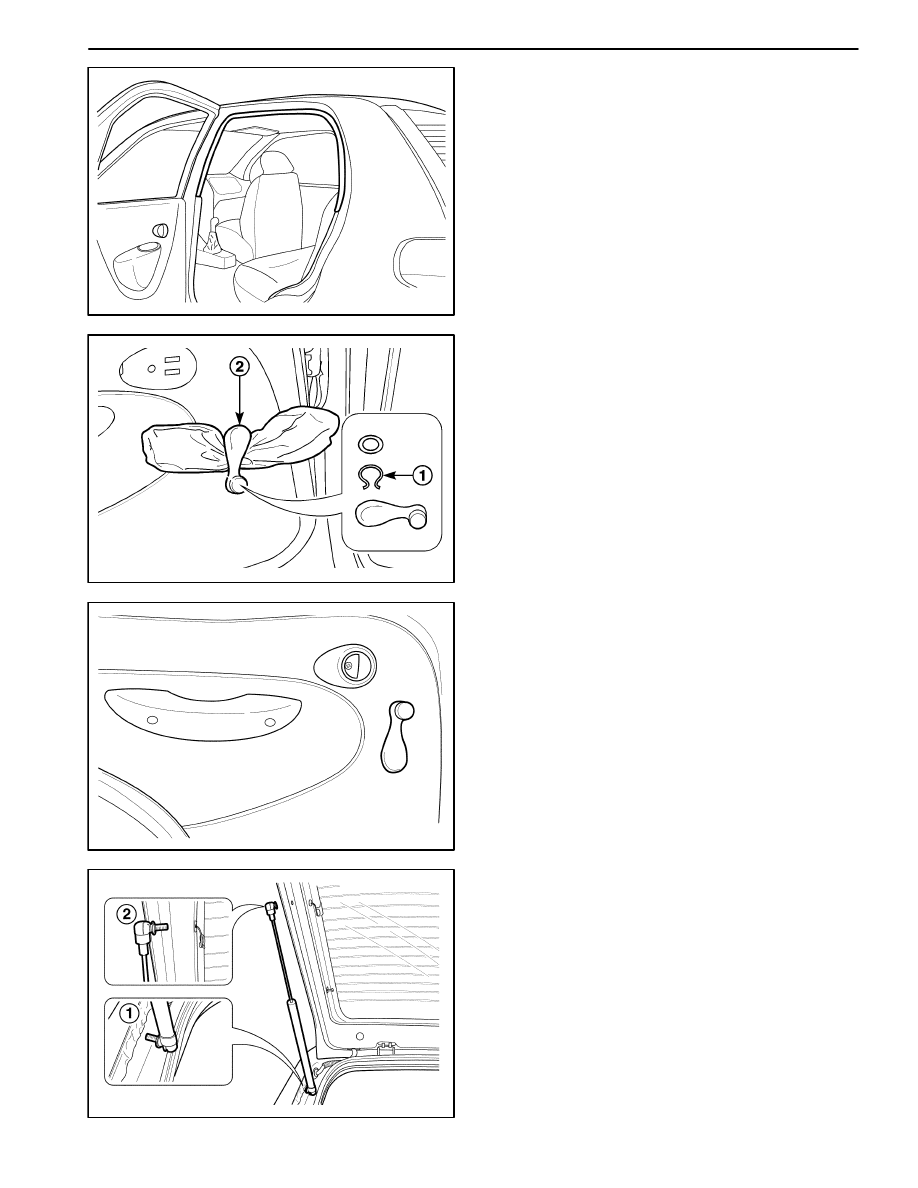

MANUAL WINDOW REGULATOR
HANDLE

Removal Procedure

1. Remove the window regulator handle.

D

Using a cloth, pull out the clip (1).

D

Remove the window regulator handle (2).

D109C632

Installation Procedure

1. Install the window regulator handle with the clip.

D19C634A

TAILGATE STRUT

Removal Procedure

1. Open the tailgate and suitably support it.

2. Remove the tailgate strut assembly.

D

Remove the end fitting nut from the ball studs (rear
body) (1).

D

Removethe end fitting nut from the ball studs (tail-
gate) (2).

DOORS  9P – 29

D19C635A

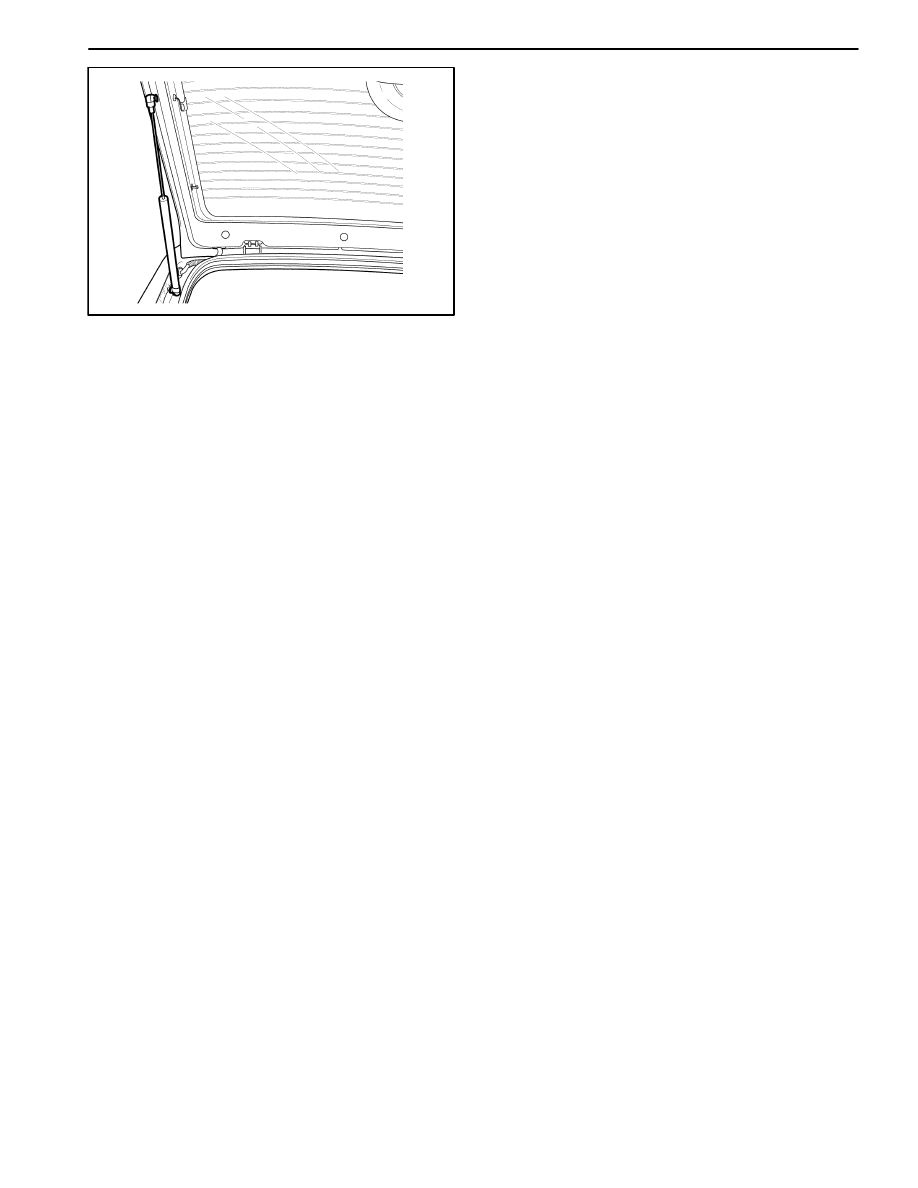

Installation Procedure

1. Install the tailgate strut with the ball studs.

9P – 30  DOORS

SCHEMATIC AND ROUTING DIAGRAMS

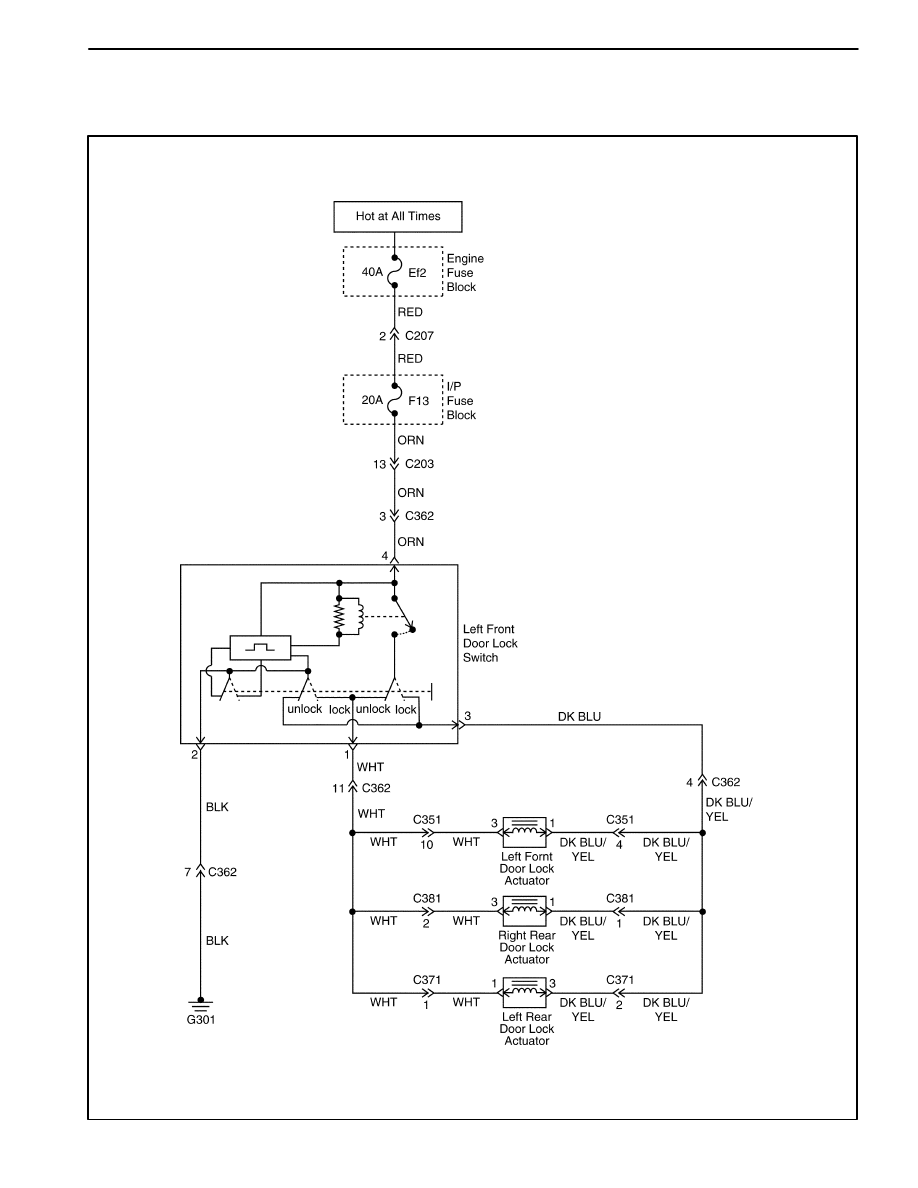

POWER DOOR LOCKS

(LEFT–HAND DRIVE)

D19C201B

DOORS  9P – 31

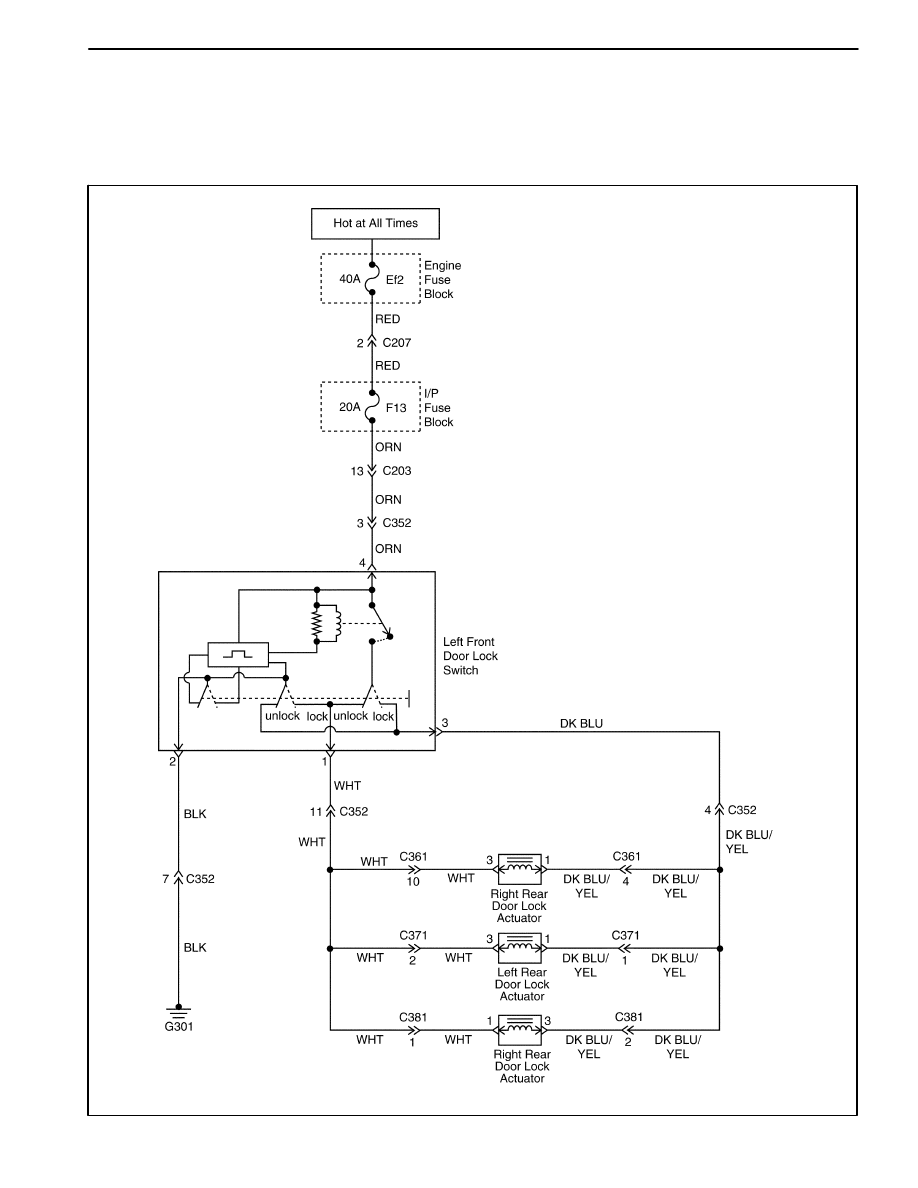

POWER DOOR LOCKS

(RIGHT–HAND DRIVE)

D19C201S
