Daewoo Matiz (2003 year). Manual - part 277

9P – 24  DOORS

D109C616

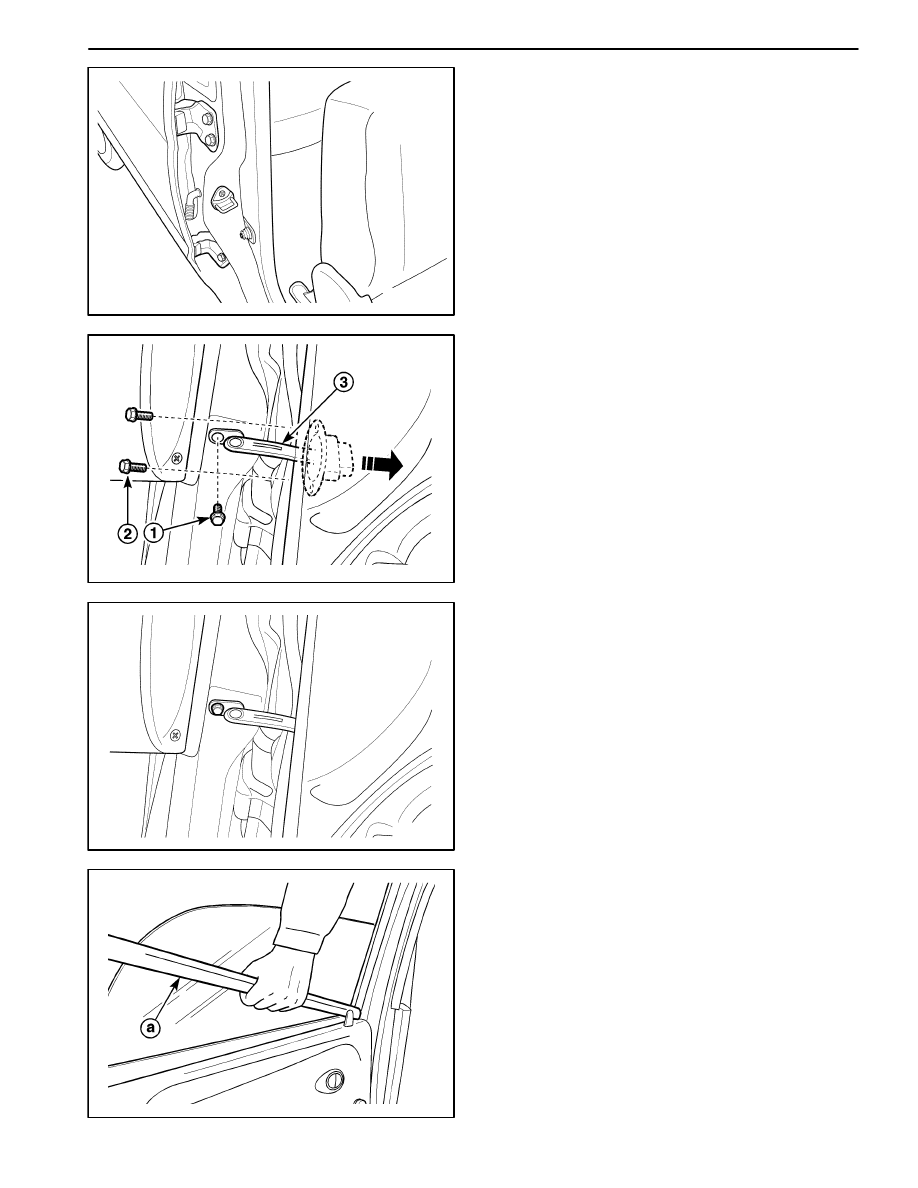

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fastener to prevent premature corrosion.

1. With the aid of another technician, install the hinge to

the door and the body with the bolts.

D109C617

DOOR HOLD OPEN LINK

Removal Procedure

1. Remove the door seal trim. Refer to “Door Seal Trim”

in this section.

2. Remove the door hold open link.

D

Remove the hinge–to–body bolt (1).

D

Remove the hinge–to–door bolts (2).

D

Remove the door hold open link (3).

D109C618

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fastener to prevent premature corrosion.

1. Install the door hold open link to the door and the

body with the bolts.

2. Remove the door seal trim. Refer to “Door Seal Trim”

in this section.

D109C619

INSIDE CHANNEL WEATHERSTRIP
(STANDARD)

Removal Procedure

1. Remove the channel weatherstrip.

a. Weatherstrip.

DOORS  9P – 25

D109C620

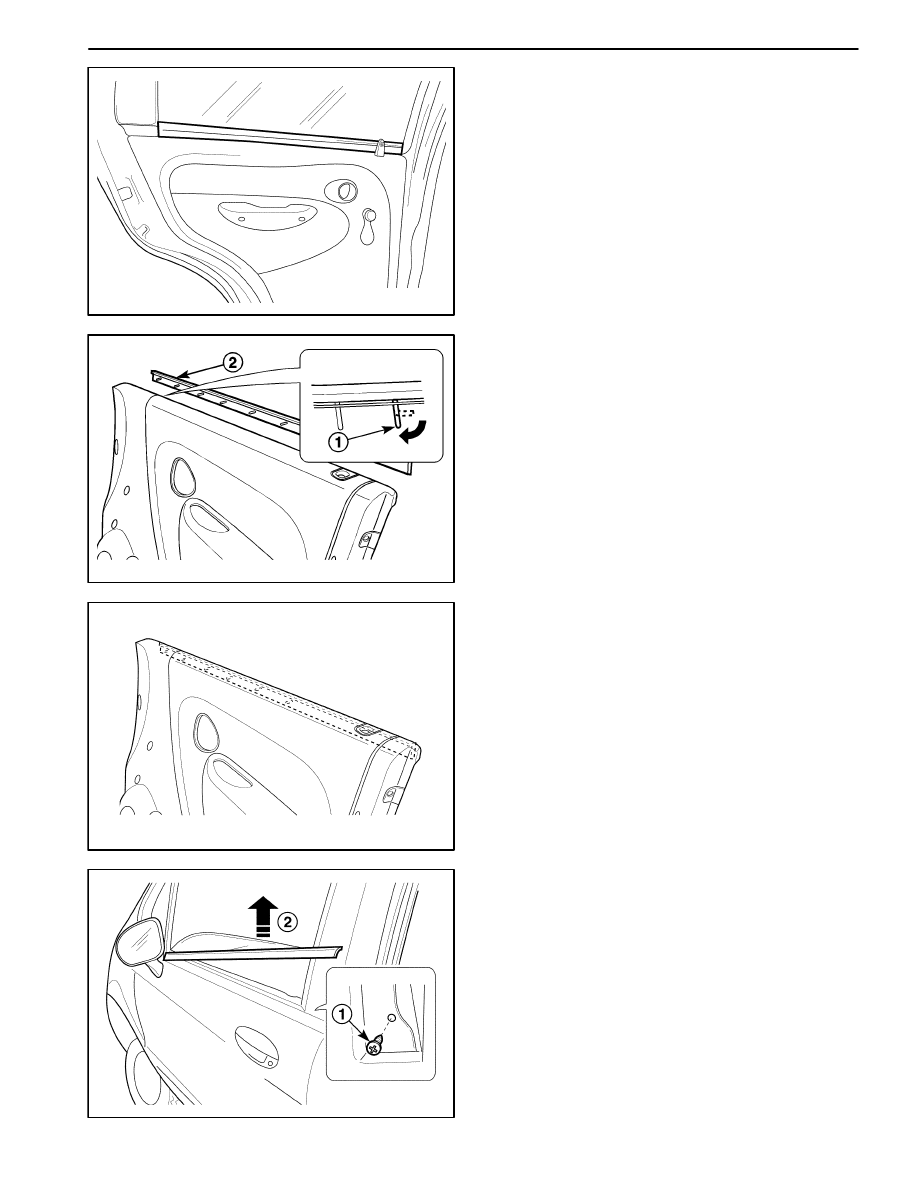

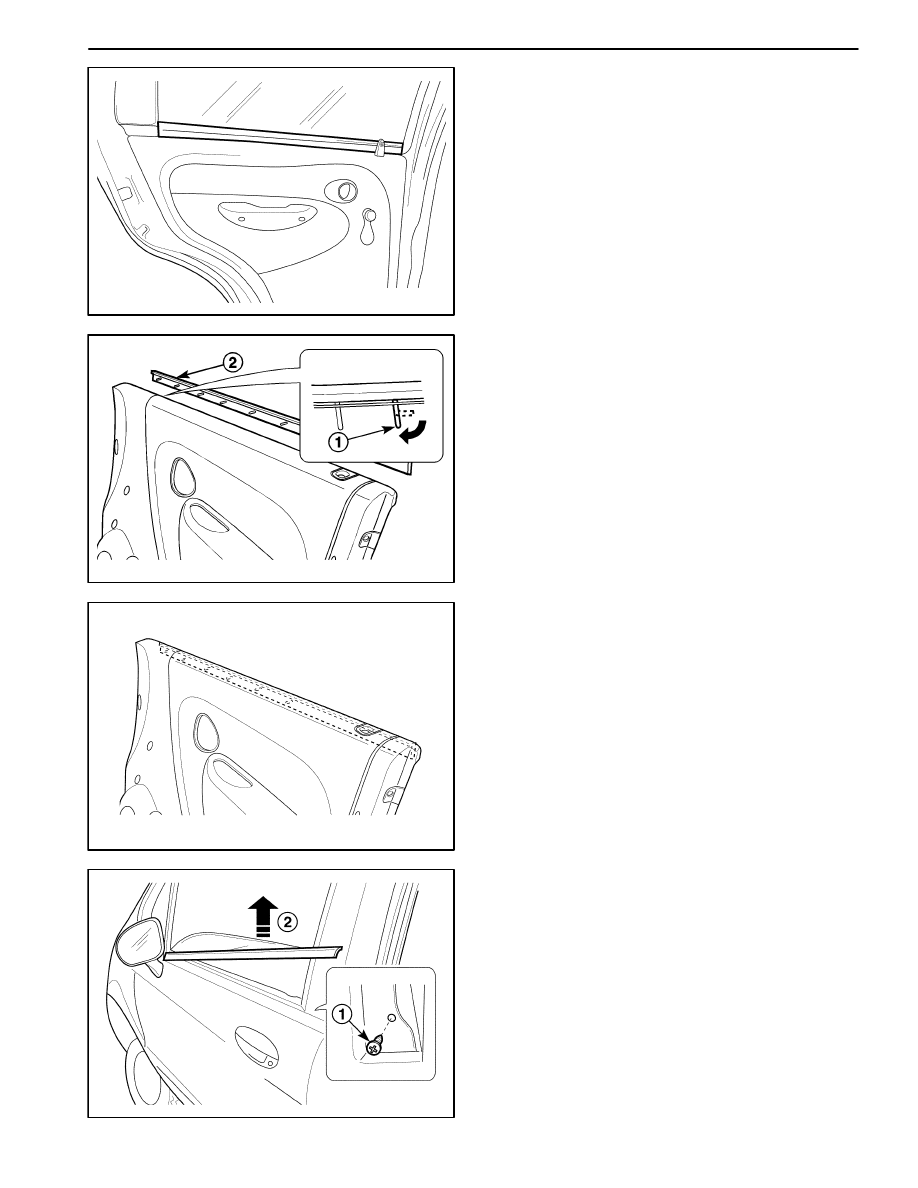

Installation Procedure

1. Install the channel weatherstrip.

D109C621

INSIDE CHANNEL WEATHERSTRIP
(DELUXE)

Removal Procedure

1. Remove the door trim. Refer to Section 9G, Interior

Trim.

2. Remove the channel weatherstrip from the door trim.

D

Straighten the retaining tabs (1).

D

Remove the channel weatherstrip (2).

D109C622

Installation Procedure

1. Install the channel weatherstrip onto the door trim

panel.

2. Bend the retaining tabs to secure the channel weath-

erstrip to the door trim panel.

3. Install the door trim panel. Refer to Section 9G, Interi-

or Trim.

D109C623

DOOR OUTSIDE CHANNEL
WEATHERSTRIP

Removal Procedure

1. Remove the channel weatherstrip.

D

Remove the screw (1).

D

Lift off the outside channel weatherstrip (2).

9P – 26  DOORS

D109C624

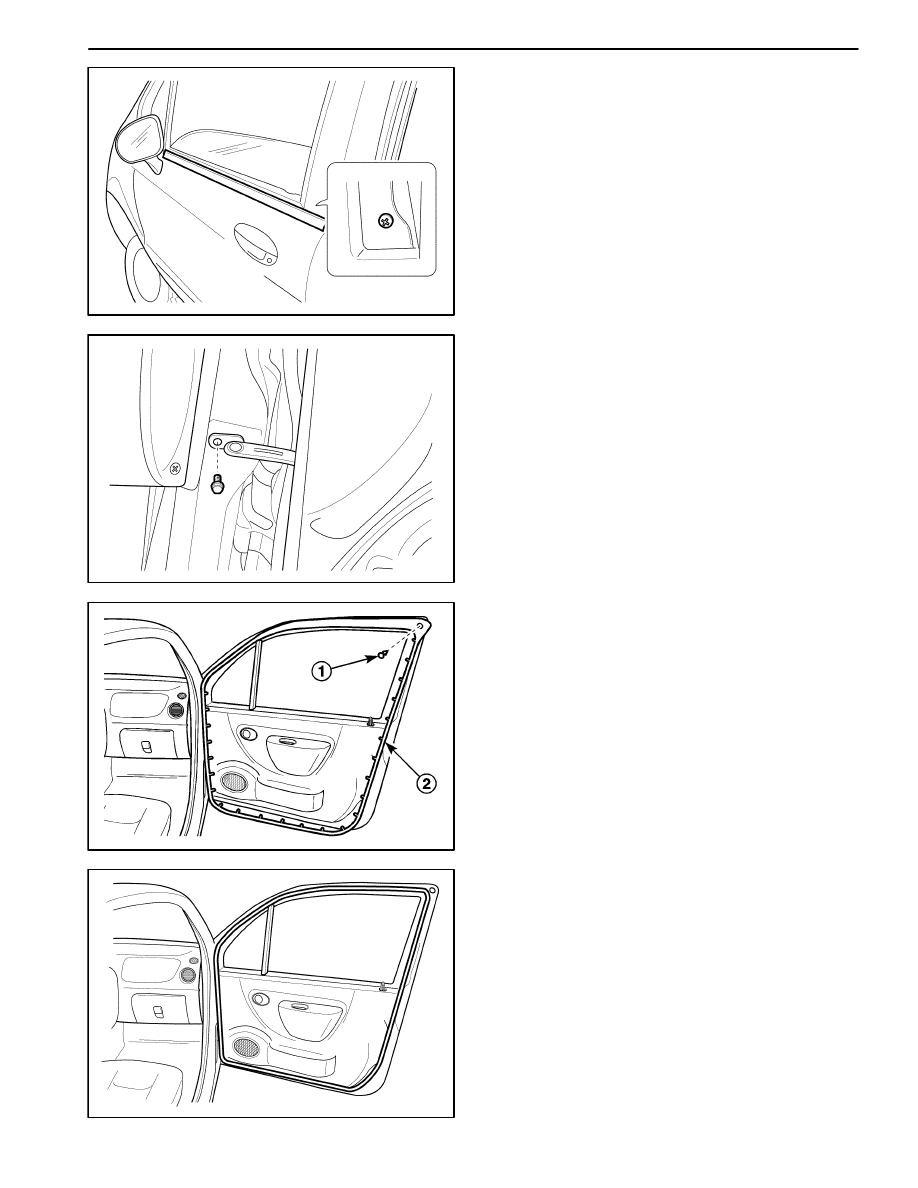

Installation Procedure

1. Press the outside channel weatherstrip onto the door.

2. Install the weatherstrip screw.

D109C625

DOOR WEATHERSTRIP

Removal Procedure

1. Remove the door hold open link bolt.

D109C626

2. Remove the door weatherstrip.

D

Remove the clip (1).

D

Remove the weatherstrip pins (2).

D109C627

Installation Procedure

1. Install the door weatherstrip with the clip and the pins.

2. Install the door hold open link bolt.

DOORS  9P – 27

D109C566

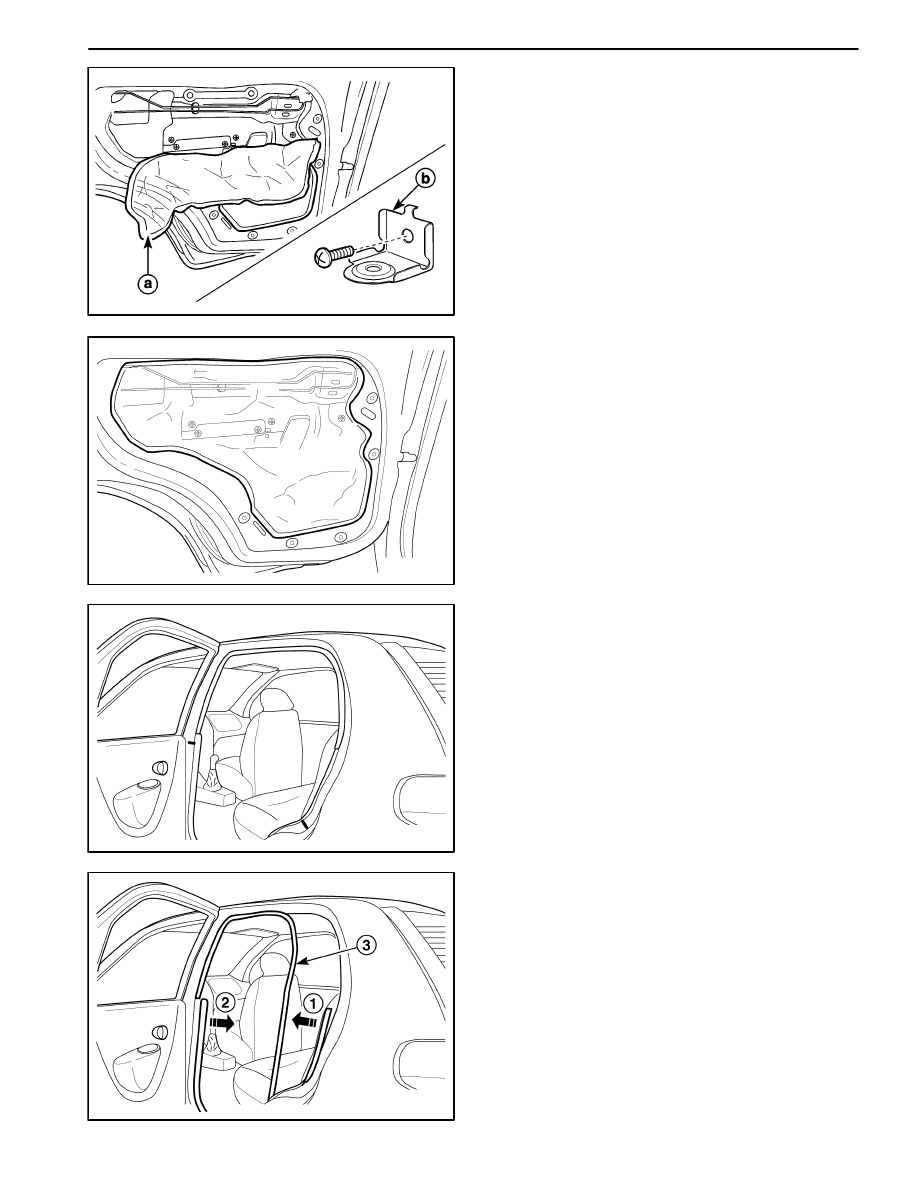

DOOR SEAL TRIM

Removal Procedure

1. Remove the door trim panel. Refer to Section 9G, In-

terior Trim.

2. Remove the door seal trim.

a. Door seal trim.

b. Door pocket handle bracket.

Important: In case of the deluxe trim, remove the door
pocket handle bracket in advance.

D109C628

Installation Procedure

1. Install the door seal trim.

2. Install the door pocket handle bracket for the deluxe

trim.

3. Install the door trim panel. Refer to Section 9G, Interi-

or Trim.

D109C629

DOOR OPENING WEATHERSTRIP

Removal Procedure

1. Mark the door opening weatherstrip edge by a soluble

pen.

D109C630

2. Remove the door opening weatherstrip.

D

Take off the rocker trim panel partially (1).

D

Take off the lower B–pillar trim panel partially (2).

D

Remove the door opening weatherstrip (3).
