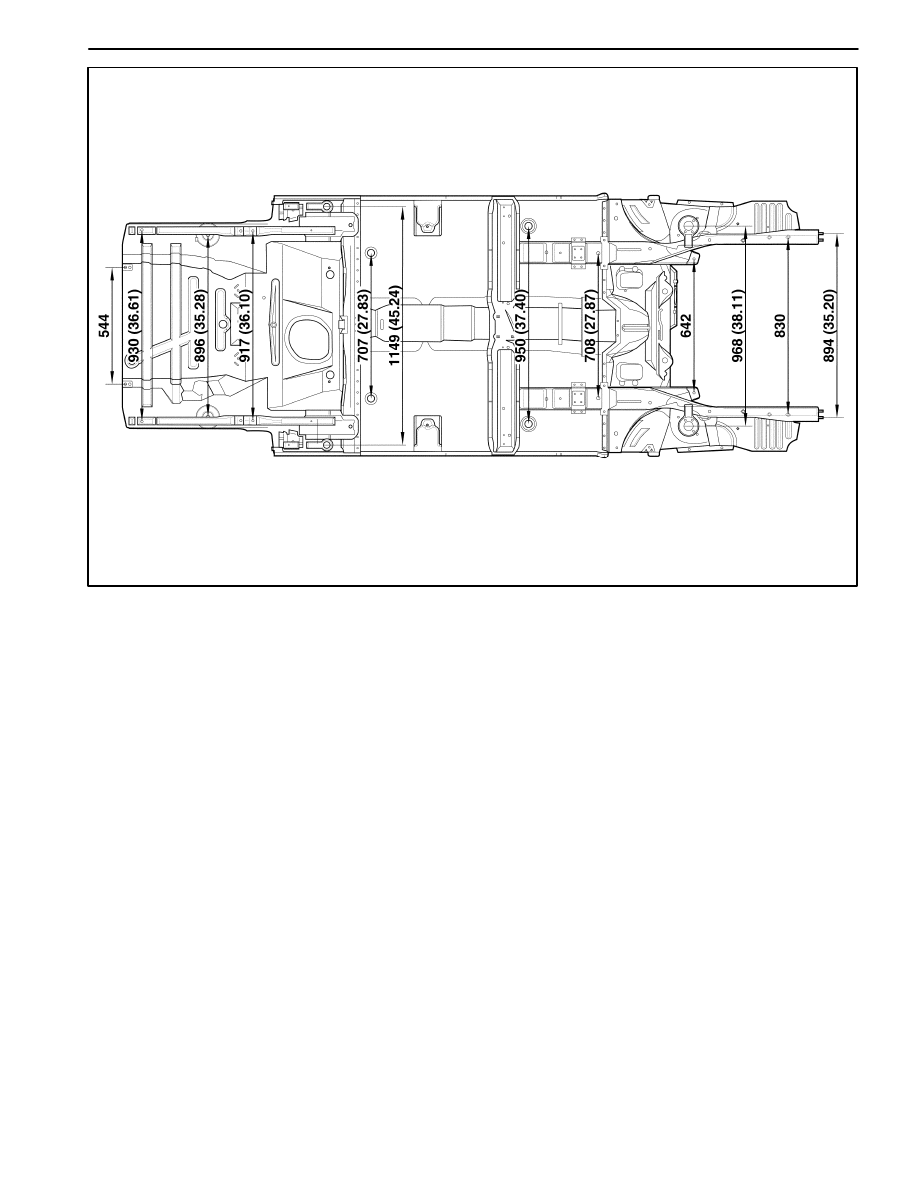

9N – 6  FRAME AND UNDERBODY

Unit: mm (in.)

DBDM117A

SECTION 9O

BUMPERS AND FASCIAS

TABLE OF CONTENTS

Description and Operation

9O-2

. . . . . . . . . . . . . . . . . .

Bumpers

9O-2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Component Locator

9O-3

. . . . . . . . . . . . . . . . . . . . . . . .

Bumpers and Fascias

9O-3

. . . . . . . . . . . . . . . . . . . . . .

Repair Instructions

9O-4

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

9O-4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Front Bumper Fascia

9O-4

. . . . . . . . . . . . . . . . . . . . . .

Front Bumper Impact Bar

9O-5

. . . . . . . . . . . . . . . . . . .

Rear Bumper Fascia

9O-6

. . . . . . . . . . . . . . . . . . . . . . .

Rear Bumper Bracket

9O-8

. . . . . . . . . . . . . . . . . . . . . .

9O – 2  BUMPERS AND FASCIAS

DESCRIPTION AND OPERATION

BUMPERS

The bumper systems are installed with the body color
bumper and the general bumper according to the vehicle
grade.

The bumper systems are designed to sustain a collision
into a fixed barrier at 4 km/h (2.5 mph) without damage.
After absorbing the energy of a collision, these bumper

systems restore themselves to their original position.
Both the front and the rear bumpers feature an internal
foam energy absorber and a polymer fascia cover. The
front bumper consists of the bumper fascia and the im-
pact bar. Remove the fascia before removing the impact
bar. The rear bumper consists of the bumper fascia and
the bracket. Removal of rear bumper brackets can be
possible without removing the bumper fascia.

BUMPERS AND FASCIAS  9O – 3

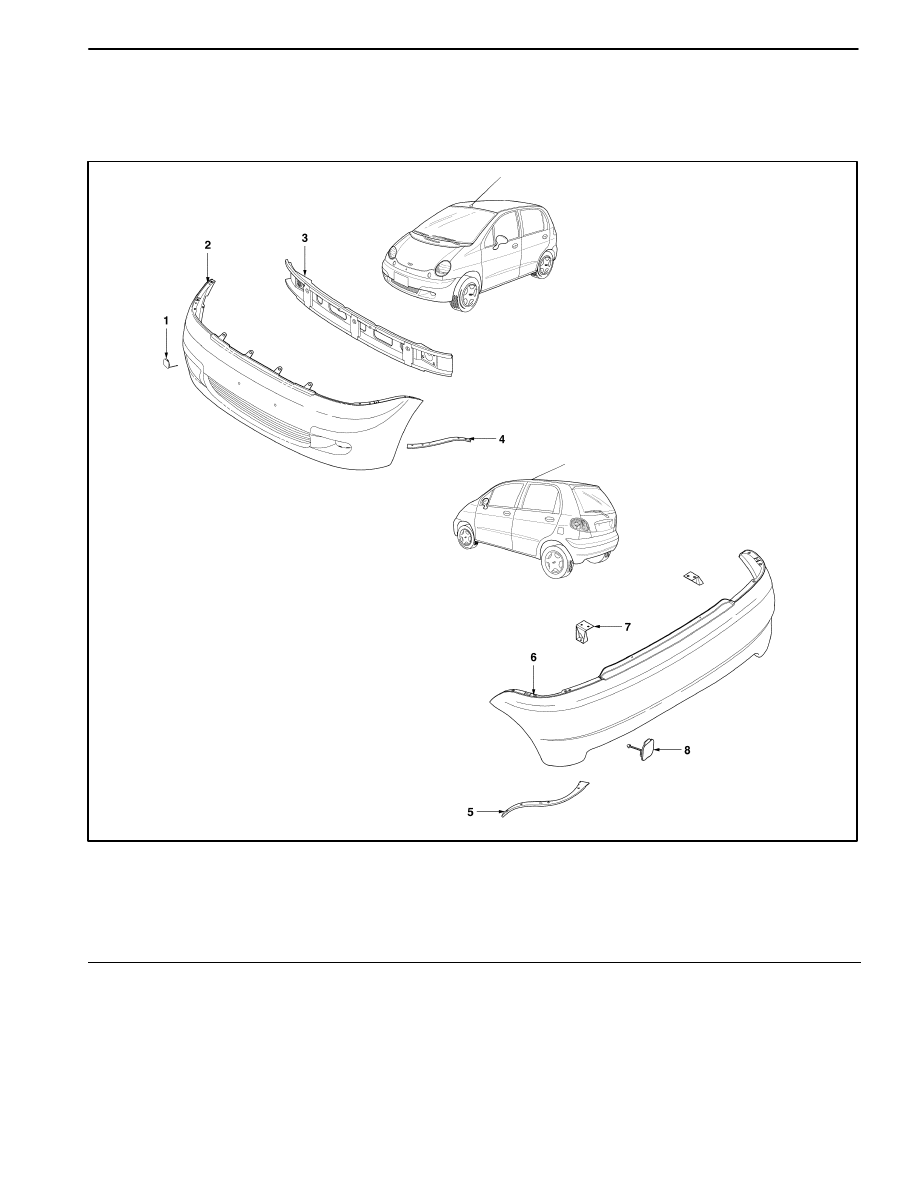

COMPONENT LOCATOR

BUMPERS AND FASCIAS

D19C401A

1. Front Towing Cover
2. Front Bumper
3. Front Bumper Impact Beam
4. Front Bumper Reinforcement

5. Rear Bumper Reinforcement
6. Rear Bumper
7. Rear Bumper Bracket
8. Rear Towing Cover
