EXTERIOR TRIM  9M – 3

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D109E586

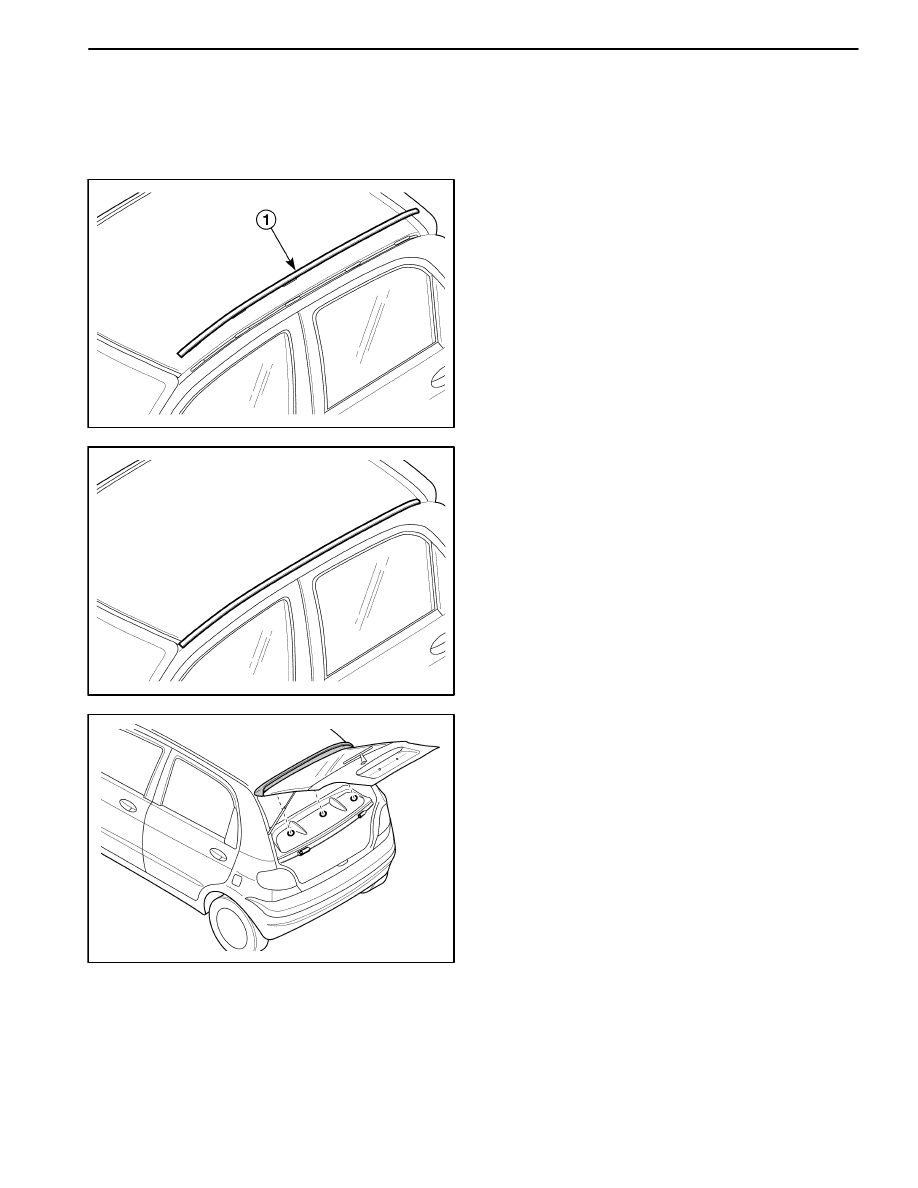

ROOF MOLDING

Removal Procedure

1. Remove the roof molding from the plastic clips (1).

D109E587

Installation Procedure

1. Press the roof molding onto the plastic clips.

D19E588A

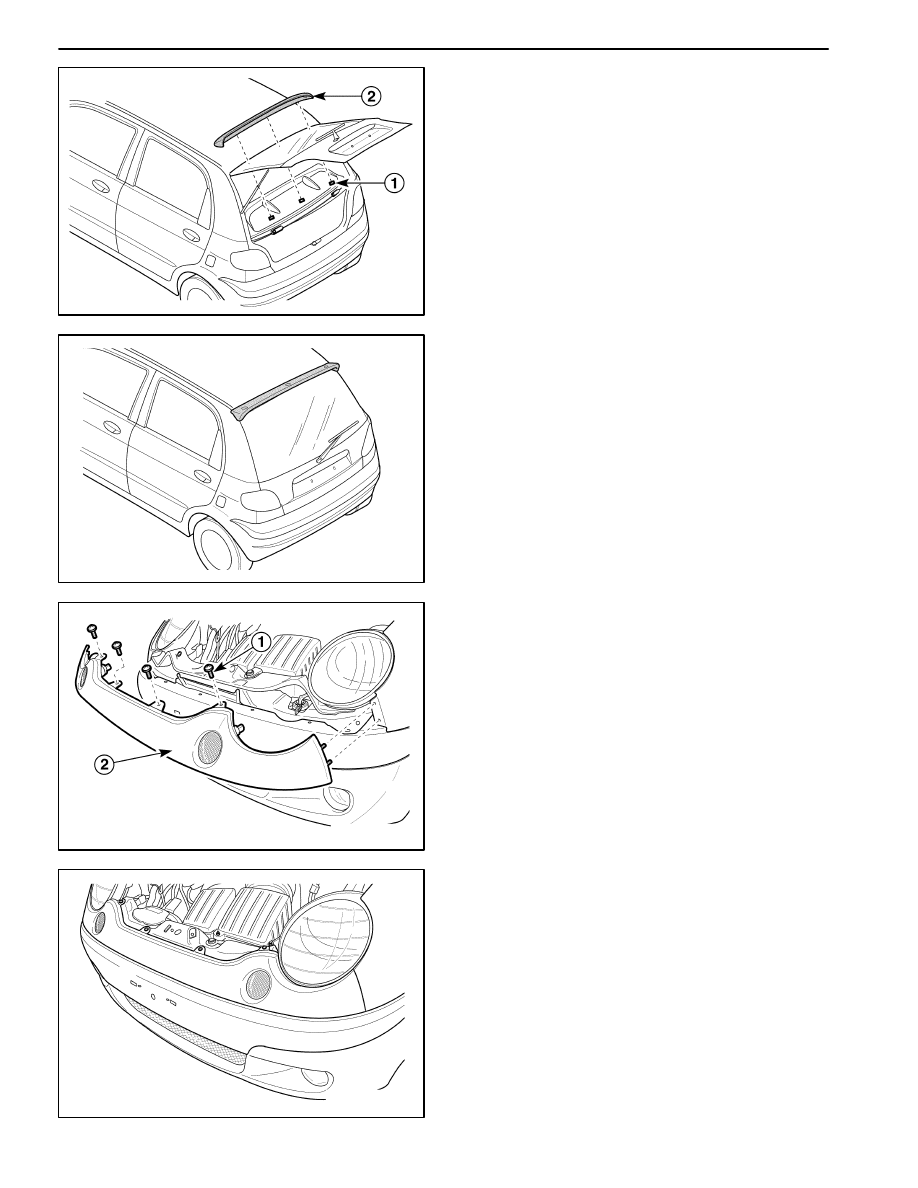

REAR SPOILER

Removal Procedure

1. Open the tailgate.

2. Remove the spoiler seals.

9M – 4  EXTERIOR TRIM

D19E589A

3. Remove the rear spoiler from the tailgate.

D

Remove the nuts (1).

D

Remove the rear spoiler (2).

D19E590A

Installation Procedure

1. Install the rear spoiler on the tailgate with the nuts.

2. Install the spoiler seals.

D209B109

FRONT BUMPER SPACER

Removal Procedure

1. Support the hood suitably.

2. Disconnect the negative battery cable.

3. Remove the front bumper spacer.

D

Remove the bolts (1).

D

Remove the front bumper spacer from the bumper
fascia (2).

4. Remove the turn signal lamps. Refer to Section 9B,

Lighting Systems.

D209B110

Installation Procedure

1. Install the turn signal lamps. Refer to Section 9B,

Lighting Systems.

2. Install the front bumper spacer with the bolts.

3. Connect the negative battery cable.

EXTERIOR TRIM  9M – 5

D209B111

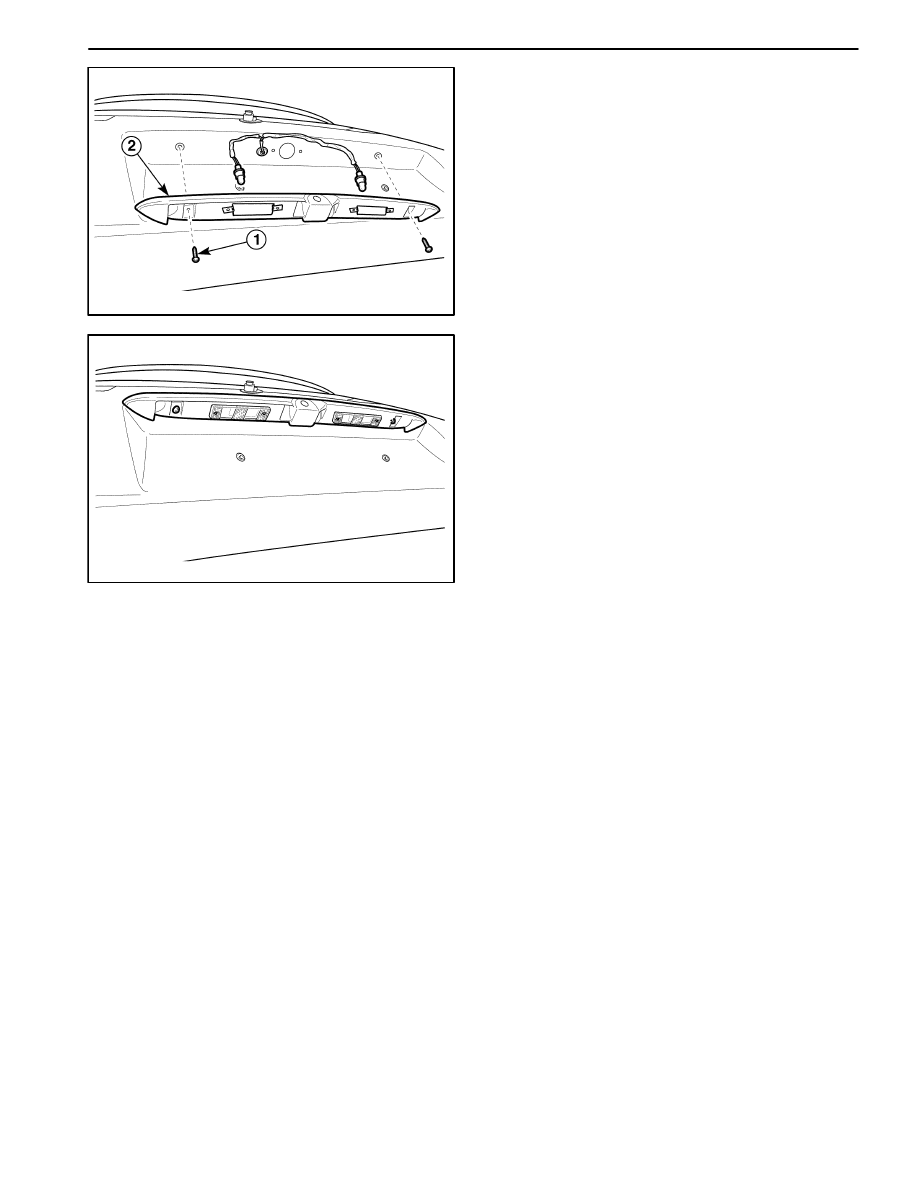

TAILGATE HANDLE

Removal Procedure

1. Disconnect the negative battery cable.

2. Open the tailgate.

3. Remove the tailgate lock cylinder. Refer to Section

9P, Doors.

4. Remove the license plate lamps. Refer to Section 9B,

Lighting Systems.

5. Remove the tailgate handle.

D

Remove the screws (1).

D

Remove the tailgate handle (2).

D209B112

Installation Procedure

1. Install the tailgate handle with the screws.

2. Install the license plate lamps. Refer to Section 9B,

Lighting Systems.

3. Remove the tailgate lock cylinder. Refer to Section

9P, Doors.

4. Connect the negative battery cable.
