9C – 2  HORN

DESCRIPTION AND OPERATION

HORN

The horn is located under the hood. It is attached near
the radiator at the front of the vehicle. The horn is actu-

ated by pressing the steering wheel pad, which grounds
the horn’s electrical circuit.

HORN  9C – 3

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D19C501A

HORN

Removal Procedure

1. Disconnect the negative battery cable.

2. Raise and suitably support the vehicle.

3. Remove the front wheels.

4. Remove the front wheel house splash shield.

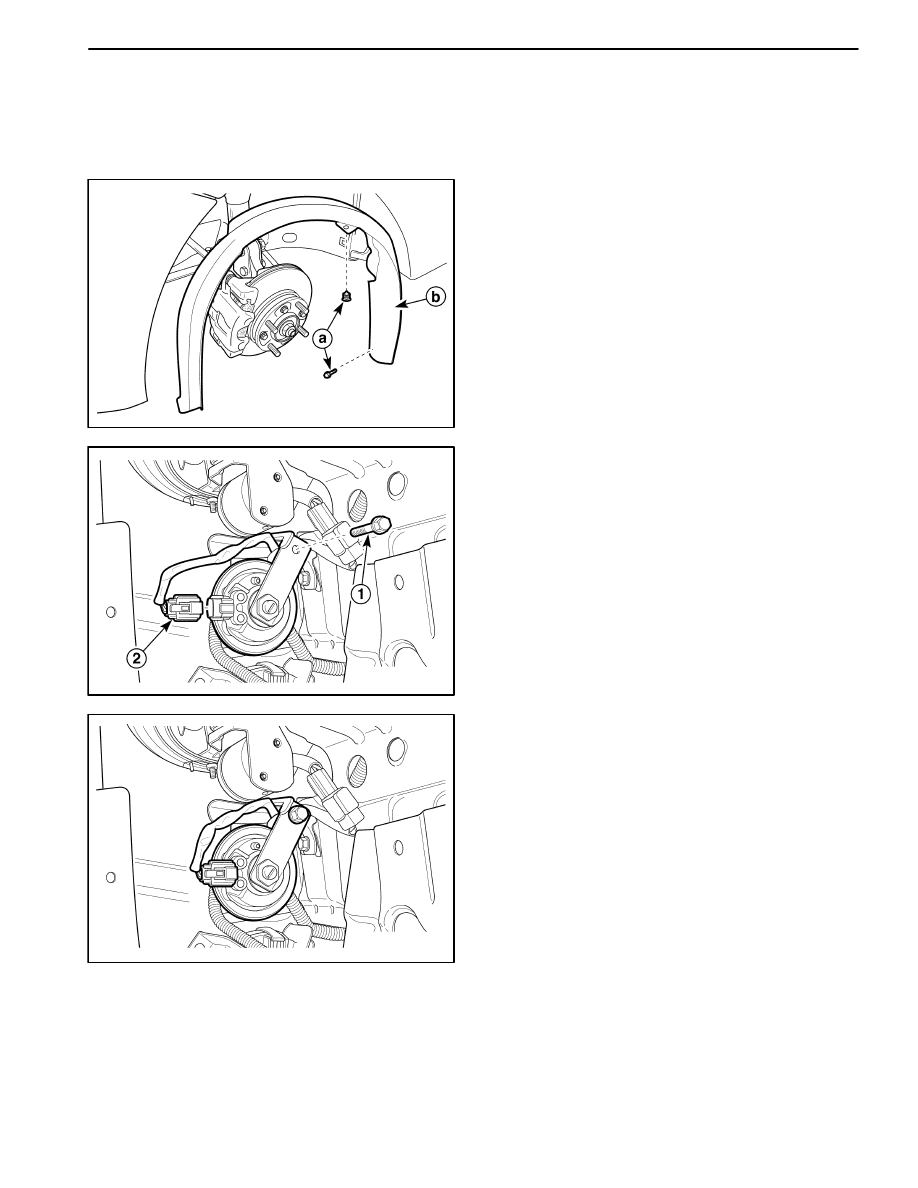

D

Remove the clip and bolts.

a. Bolts and clips.

D

Remove the wheel house splash shield.

b. Splash shield.



D19D517A

5 Remove the horn.

D

Remove the bolt (1).

D

Disconnect the electrical connector (2).

D19D518A

Installation Procedure

1. Install the horn with the bolt.

2. Connect the electrical connector.

3. Install the front wheel house splash shield with the

clips and the bolts.

4. Install the front wheels.

5. Lower the vehicle.

6. Connect the negative battery cable.

9C – 4  HORN

SCHEMATIC AND ROUTING DIAGRAMS

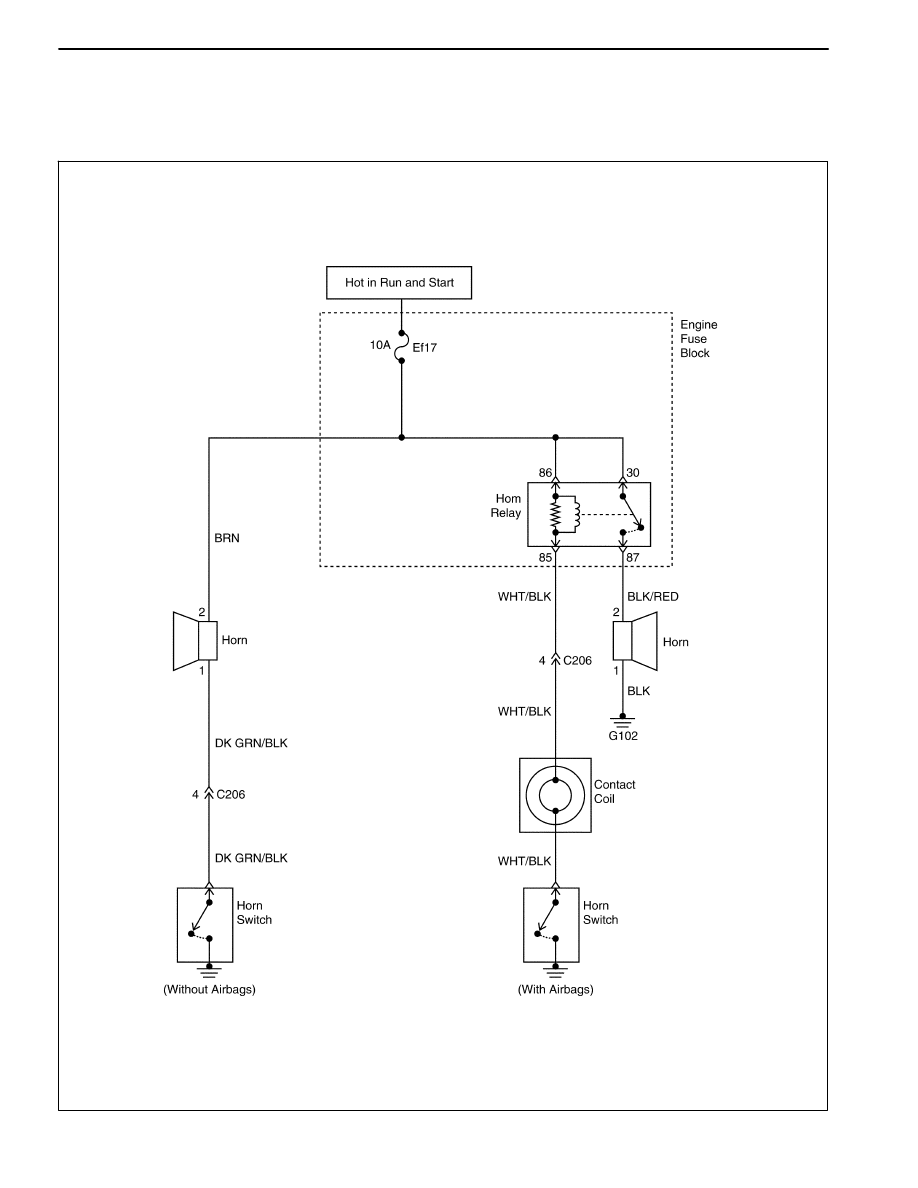

HORN WIRING SYSTEM

D19D207B

SECTION 9D

WIPERS



/



WASHER SYSTEMS

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in B unless otherwise
noted.

TABLE OF CONTENTS

Description and Operation

9D-2

. . . . . . . . . . . . . . . . . .

Windshield Wiper System

9D-2

. . . . . . . . . . . . . . . . . .

Windshield Washer System

9D-2

. . . . . . . . . . . . . . . . .

Rear Window Wiper/Washer System

9D-2

. . . . . . . . .

Diagnostic Information and Procedures

9D-3

. . . . .

Windshield/Rear Window Wiper and Washer

   System

9D-3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Repair Instructions

9D-6

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

9D-6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper Arm

9D-6

. . . . . . . . . . . . . . . . . . . . .

Rear Window Wiper Arm

9D-6

. . . . . . . . . . . . . . . . . . .

Windshield Wiper Motor

9D-7

. . . . . . . . . . . . . . . . . . . .

Rear Window Wiper Motor

9D-8

. . . . . . . . . . . . . . . . . .

Windshield Wiper Linkage

9D-9

. . . . . . . . . . . . . . . . . .

Windshield Wiper Blade

9D-10

. . . . . . . . . . . . . . . . . . .

Washer Reservoir

9D-10

. . . . . . . . . . . . . . . . . . . . . . . .

Washer Pump

9D-11

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Washer Nozzle

9D-12

. . . . . . . . . . . . . . . .

Rear Window Washer Nozzle

9D-12

. . . . . . . . . . . . . .

Washer Hose

9D-13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications

9D-15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fastener Tightening Specifications

9D-15

. . . . . . . . . .

Schematic and Routing Diagrams

9D-16

. . . . . . . . . .

Windshield/Rear Window Wiper/Washer

   System

9D-16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
