Daewoo Matiz (2003 year). Manual - part 236

LIGHTING SYSTEMS 9B – 25

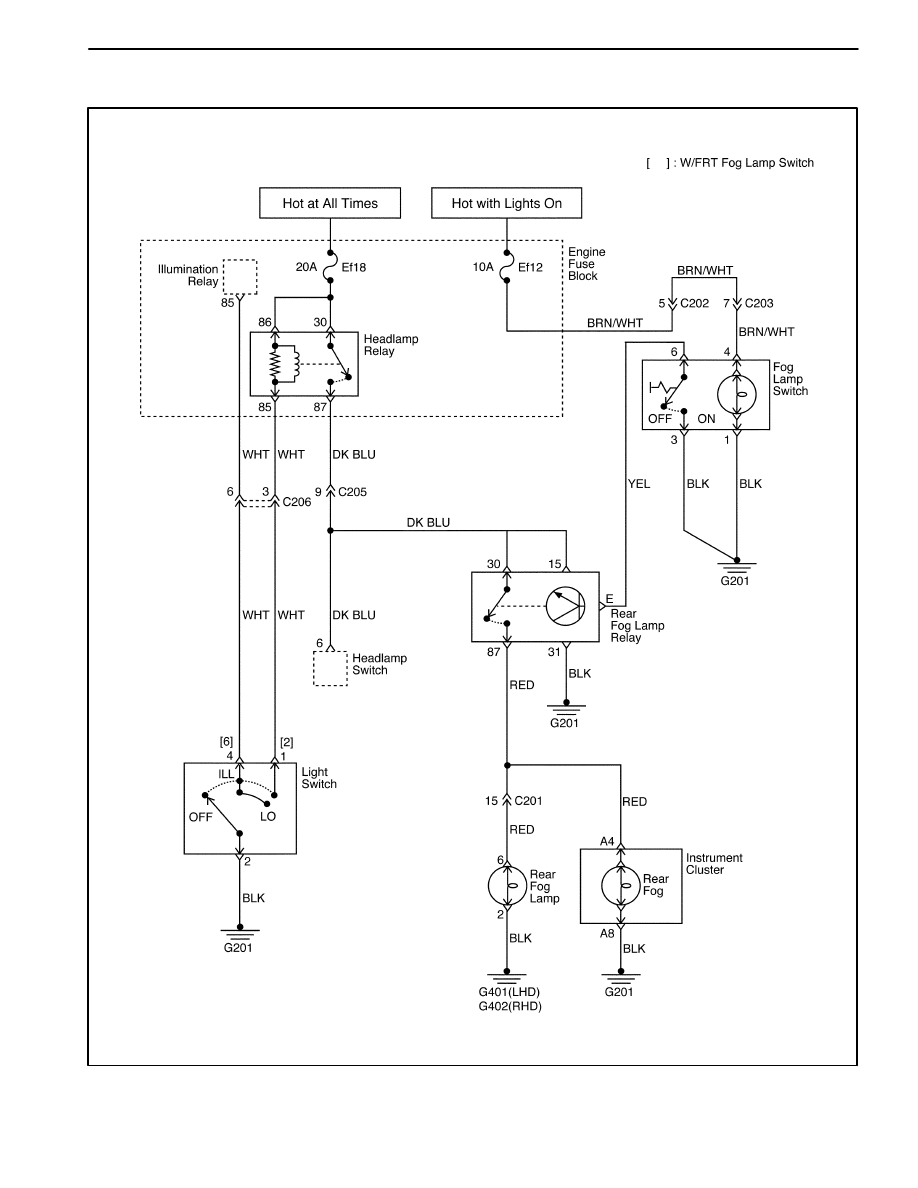

REAR FOG LAMP CIRCUIT

D19B724B

9B – 26 LIGHTING SYSTEMS

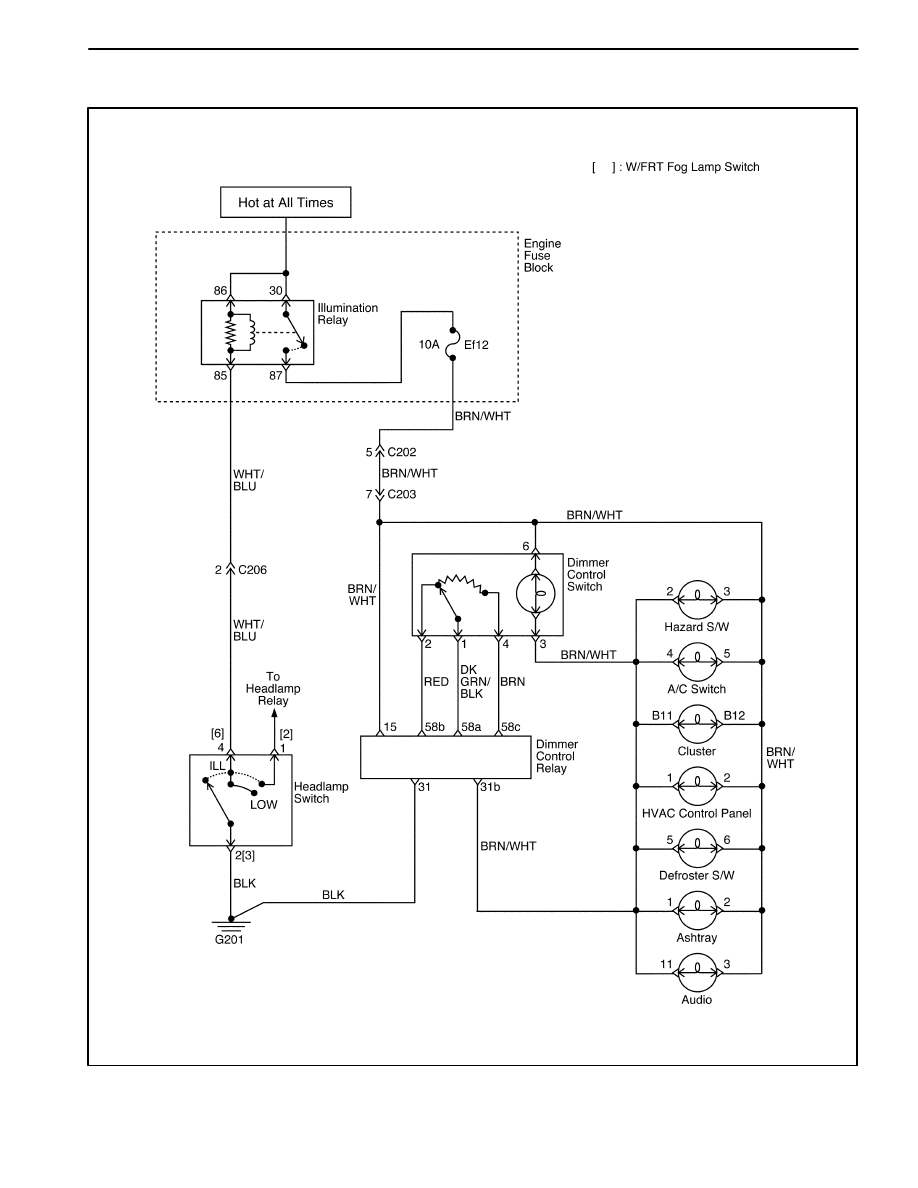

DIMMER CONTROL CIRCUIT (EXCEPT W/EUROPE)

D29B009A

LIGHTING SYSTEMS 9B – 27

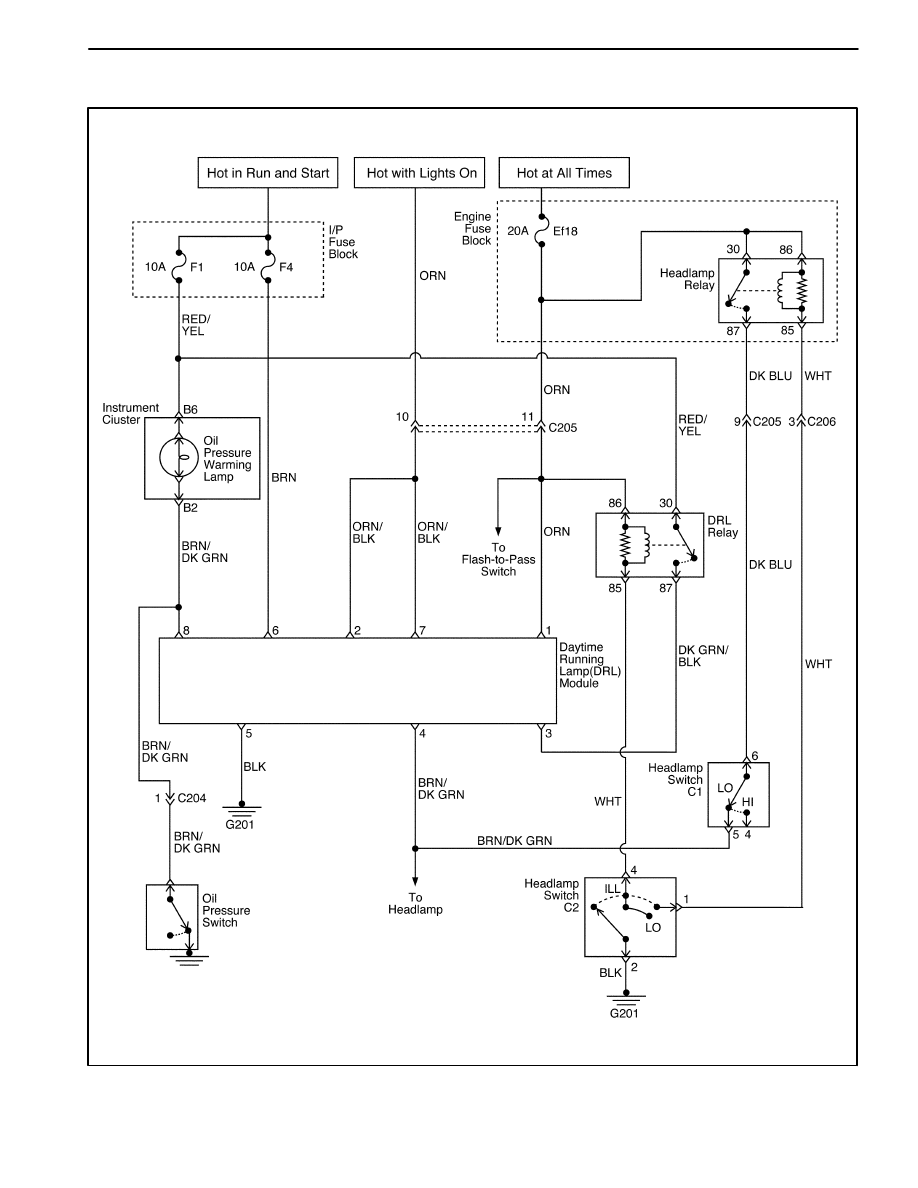

DAYTIME RUNNING LAMPS CIRCUIT (W/EUROPE ONLY)

D29B010A
