9A – 2 BODY WIRING SYSTEM

DESCRIPTION AND OPERATION

HOW TO READ ELECTRICAL WIRING DIAGRAM

D111001A

BODY WIRING SYSTEM 9A – 3

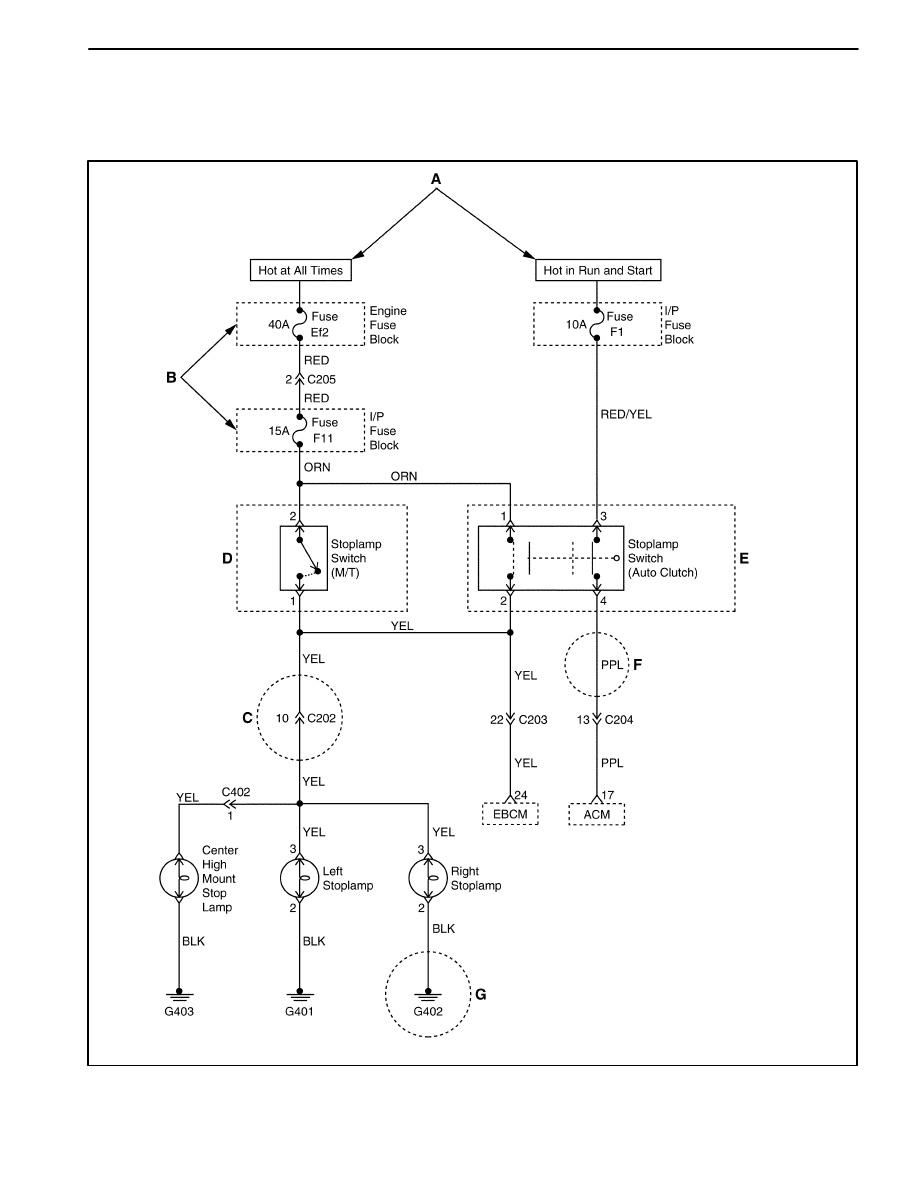

Contents of Electrical Wiring Diagram

Position

Explanation

A

– The box above the fuse box: Power supply lines
– Power supply lines: 30, 15, 15A, Ka, 58, 50
– Refer to “Circuit Identification Symbol” in this section for more details.

B

– Ef10 or F3: Fuse Number

S

   Ef10: Fuse No 10 in the engine room fuse box

S

F3: Fuse No 3 in the passenger room fuse box

– 40A: Fuse Capacity
– Refer to “Relay Box Locator” and “Fuse Box Locator” in this section.

C

– Connector
– Connector No C202, terminal No 10
– Refer to “How to Check Terminal Number of Connect” in this section

D

– Internal circuit of component (Relay)

(Component Name, Terminal Number)

E

– Internal circuit of component (Switch)

(Terminal Number)

F

– Wiring Harness Color
– Refer to “Wire Color Chart” in this section

G

– Ground line.
– G402: Ground Position
– In case of the ground numberless, this means the body ground.

Circuit Identification Symbol

Identification Symbol

Meaning

C

Connector

Ef

Fuse in engine room fuse box

F

Fuse in passenger compartment fuse box

G

Ground

9A – 4 BODY WIRING SYSTEM

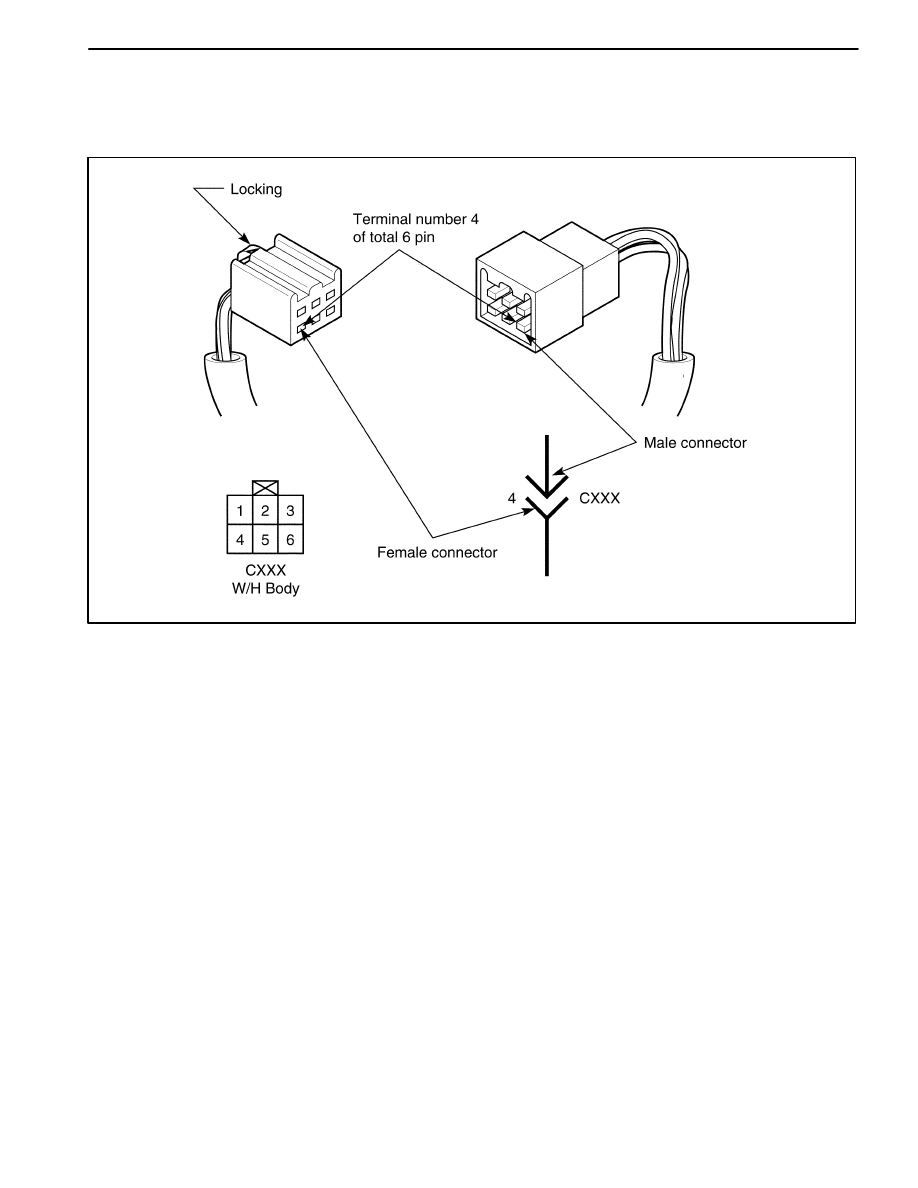

HOW TO CHECK TERMINAL NUMBER OF CONNECTOR

Terminal number is given based on female terminal connector.

Example: Terminal number 4 of 6 pin connection.

D111002A

BODY WIRING SYSTEM 9A – 5

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

D1011101

DW–540–010

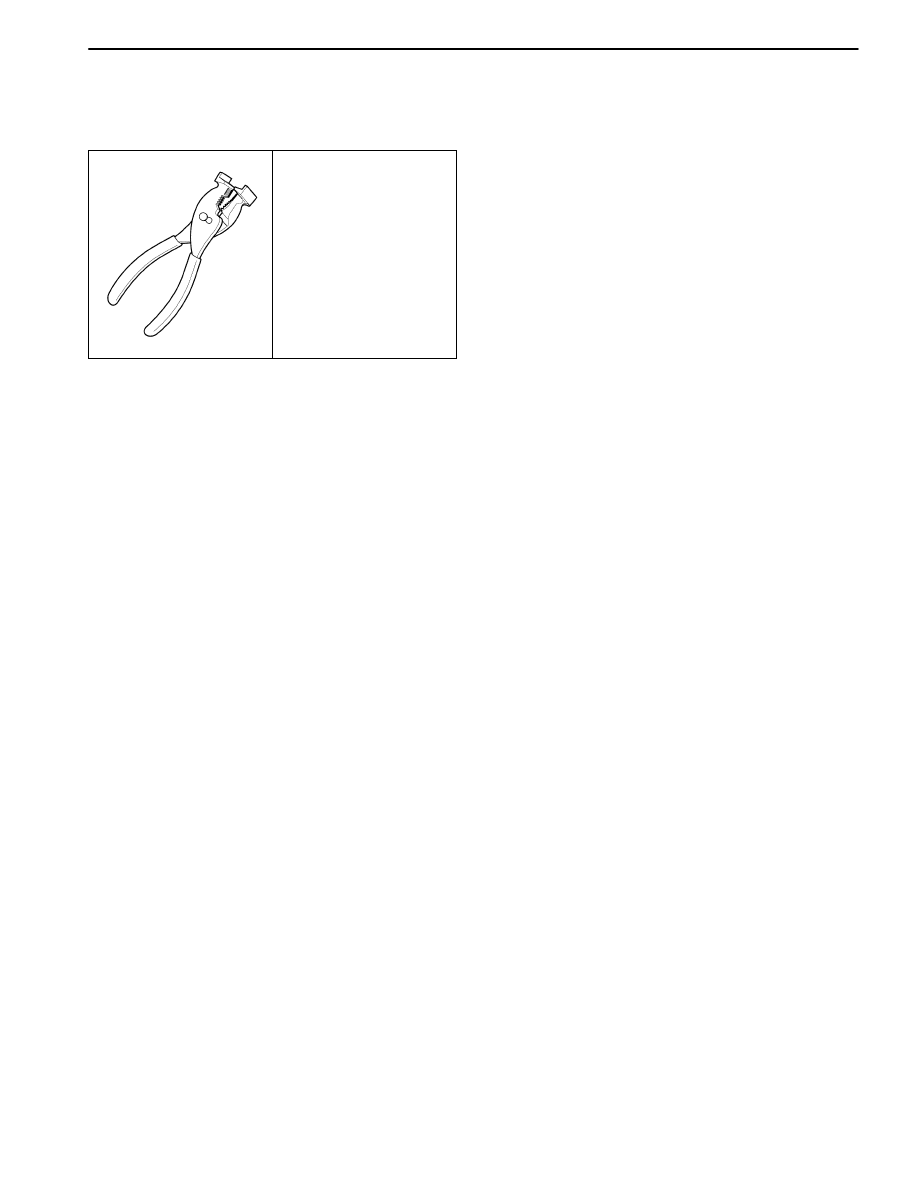

Relay Remover
