 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 73

D110B009A

3. Install the floor console. Refer to Section 9G, Interior

Trim.

4. Connect the negative battery cable.

5. Check for proper operation of the system.

D

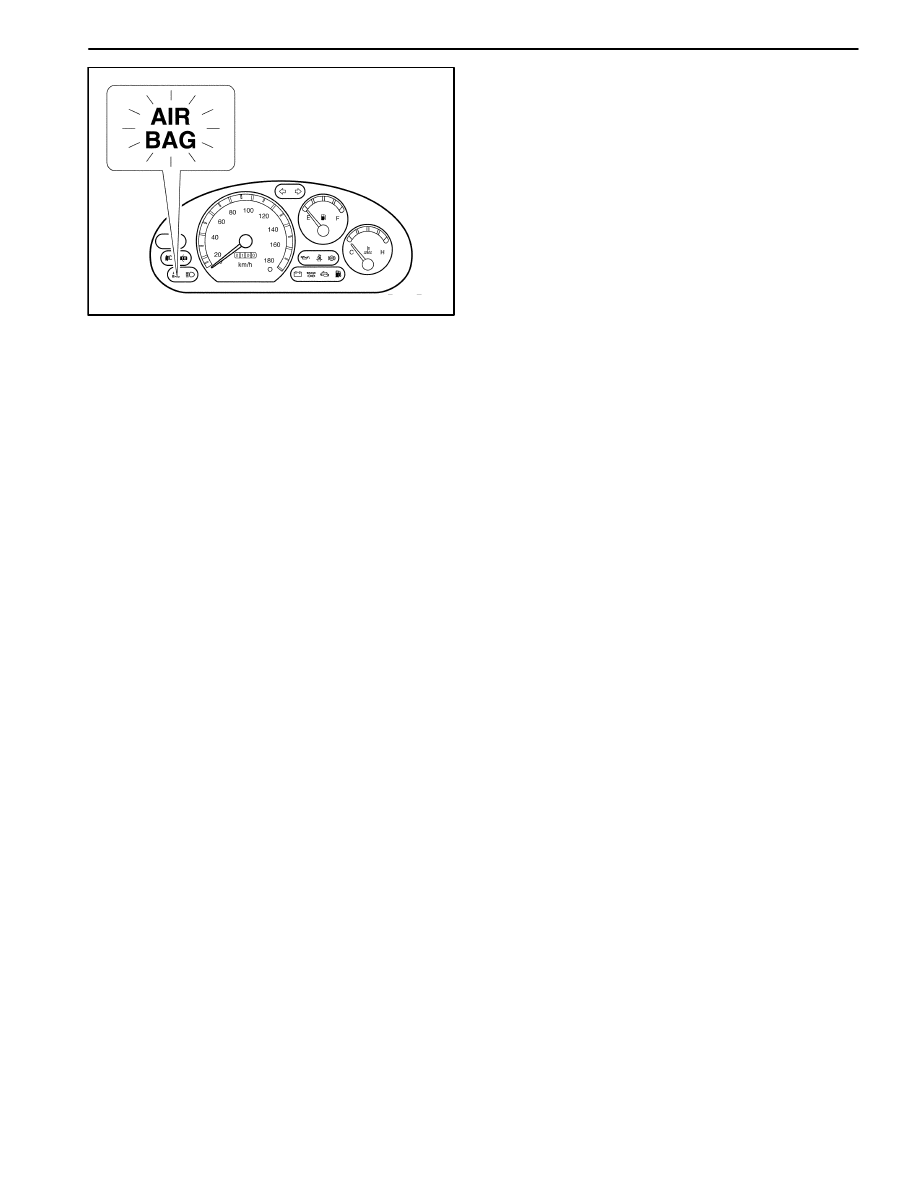

Turn the ignition ON while watching the supple-
mental inflatable restraints warning lamp.

D

The warning lamp should turn ON for about 4 sec-
onds, and then turn OFF.

8B – 74 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

D110B010

AIRBAG MODULE DEPLOYMENT
(IN VEHICLE)

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Deploy the airbags before disposing of them. This in-
cludes those in a whole vehicle being scrapped.

If the vehicle is still within the warranty period, contact
the Daewoo regional service manager for approval or
special instructions before deploying the airbag mod-
ules.

Caution: Before deploying the airbags, remove all
loose objects from the airbags expansion area.

Caution: Deploy the airbags with the vehicle doors
closed and the side windows open.

Caution: Deploy the airbags only in an evacuated
area. Service personnel who must be present dur-
ing the deployment should be at least 10 meters
(33 feet) in front of the vehicle.

Caution: Do not connect the voltage source until af-
ter having completed all other preparations for the
deployment of the airbags.

Caution: Allow a deployed airbag module to cool
for at least 30 minutes before handling.

Caution: Wear the gloves and the eye protectors
during the disposal process.

Caution: If the deployment fails, disconnect the volt-
age source and wait 5 minutes before approaching
the vehicle.

Deployment Procedure

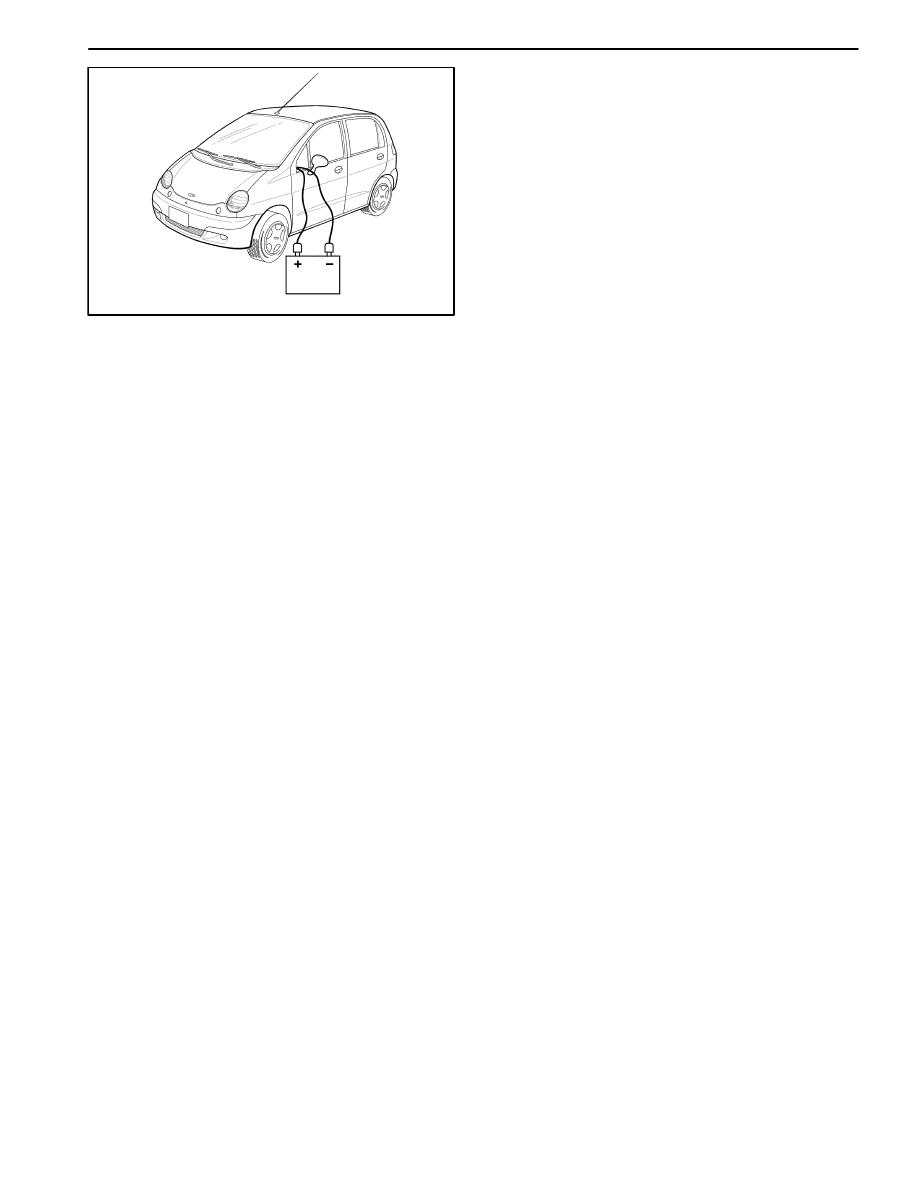

1. Disconnect both battery cables and place the battery

at least 10 meters (32.8 feet) from the vehicle.

Caution: Wait 1 minute after disconnecting both
battery cables to allow the capacitor inside the
sensing and diagnostic module (SDM) to discharge
before taking any other action. The capacitor sup-
plies the reserve power to deploy the airbags, even
if the battery is disconnected. Unintentional deploy-
ment of the airbags can cause injury.

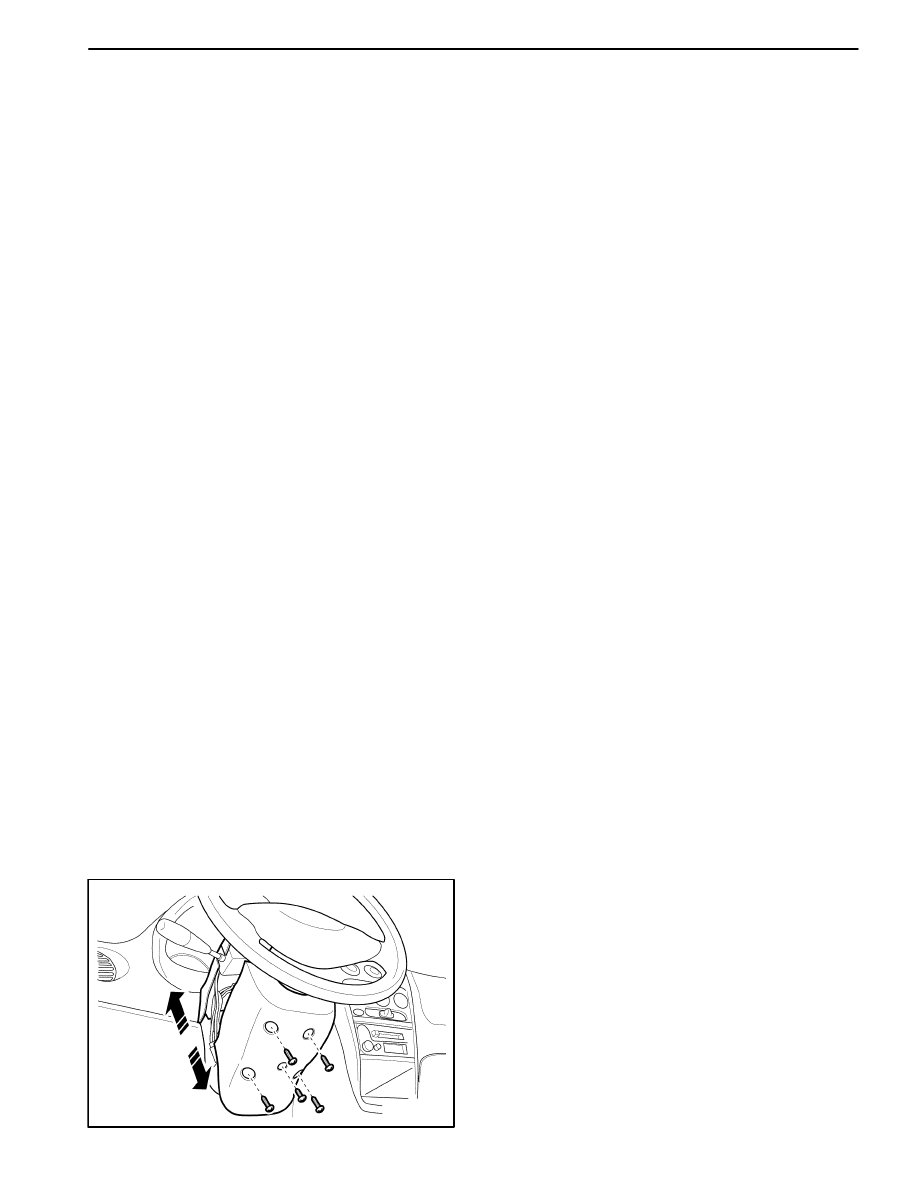

2. Remove the lower cover from the steering column.

3. At the lower steering column, cut the two wires lead-

ing from the supplemental inflatable restraint (SIR)
harness to the clock spring.

4. Strip 13 mm (0.5 inch) of insulation from the ends of

the wires leading to the clock spring.

5. Use two additional wires, each at least 10 meters

(33 feet) long, to reach from the deployment battery
to the airbag module.

6. Strip 13 mm (0.5 inch) of insulation from the ends of

these two additional wires.

7. Twist the two wires together at one end.

 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 75

D110B011A

8. Place the twisted ends of the two wires near the de-

ployment battery. Do not connect the wires to the
battery at this time.

9. Using the free ends of the 10 meters (33 feet) wires

leading to the clock spring, make two splices, one at
each wire from the airbag module.

10. Wrap the splices with insulating tape.

11. Now that the free ends of the 10 meters (33 feet)

wires are spliced to the airbag module wires, and the
ends that are twisted together are near the deploy-
ment battery, clear the area.

12. Untwist the wires that are near the deployment

battery.

13. Touch one wire to the positive battery terminal and

touch the other wire to the negative battery terminal.
The airbag will deploy.

14. Repeat the procedure for the passenger airbag,

cutting the wires to the passenger airbag module
instead of the wires leading to the clock spring.

15. Strip 13 mm (0.5 inch) of insulation from the ends of

the wires leading to the passenger airbag module.

16. Use two additional wires, each at least 10 meters

(33 feet) long, to reach from the deployment battery
to the passenger airbag module.

17. Strip 13 mm (0.5 inch) of insulation from the ends of

these two additional wires.

18. Twist the two wires together at one end.

19. Place the twisted ends of the two wires near the de-

ployment battery. Do not connect the wires to the
battery at this time.

20. Using the free ends of the 10 meter (33 feet) wires to

the passenger airbag module, make two splices,
one at each wire from the airbag module.

21. Wrap the splices with insulating tape.

22. Now that the free ends of the 10 meters (33 feet)

wires are spliced to the passenger airbag module
wires, and the ends that are twisted together are
near the deployment battery, clear the area.

23. Untwist the wires that are near the deployment

battery.

24. Touch one wire to the positive battery terminal and

touch the other wire to the negative battery terminal.
The passenger airbag will deploy.

25. Using the proper precautions, dispose of the

deployed airbag. Refer to “Deployed Airbag Module
Disposal Procedure” in this section.

8B – 76 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

AIRBAG MODULE DEPLOYMENT
(OUTSIDE OF VEHICLE)

Deploy all intact airbag modules that have been

D

Removed from a scrapped vehicle.

D

Found to be defective.

D

Found to have been damaged during transit, storage,
or service.

Caution: Deploy the airbags only in an evacuated
area. Service personnel who must be present dur-
ing the deployment should be at least 10 meters
(33 feet) in front of the vehicle.

Caution: Do not connect the voltage source until
completing all other preparations for the deploy-
ment of the airbags.

Caution: Allow a deployed airbag module to cool
for at least 30 minutes before removing it from the
vehicle.

Caution: Wear gloves and eye protection during the
disposal process.

Caution: If the deployment fails, disconnect the volt-
age source and wait 5 minutes before approaching
the vehicle.

1. Position the airbag module face up, on flat ground

outdoors, at least 10 meters (33 feet) from any ob-
stacles or people.

2. Place a vehicle battery at least 10 meters (33 feet)

away from the airbag module.

3. Deploy the airbag module using the deployment tool.

4. Using the proper precautions, dispose of the

deployed airbag. Refer to “Deployed Airbag Module
Disposal Procedure” in this section.

DEPLOYED AIRBAG MODULE
DISPOSAL PROCEDURE

Caution: After an airbag module has been
deployed, the surface of the airbag may contain a
powdery residue. The powder lubricates the airbag
as it inflates. The dust that is produced as a by-
product of the deployment is unlikely to be harmful,
but use the gloves and the safety glasses in order to
prevent any possible irritation of the skin and the
eyes.

Caution: After deployment, the metal surfaces of
the airbag module will be hot. In order to avoid the
risk of an injury or a fire, do not place the deployed
airbag modules near any flammable objects, and al-
low the airbag modules to cool for 30 minutes be-
fore handling them.

Deploy an airbag before disposing of it. This includes
those in a whole vehicle being scrapped.
