Daewoo Matiz (2003 year). Manual - part 221

 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 65

D110B308

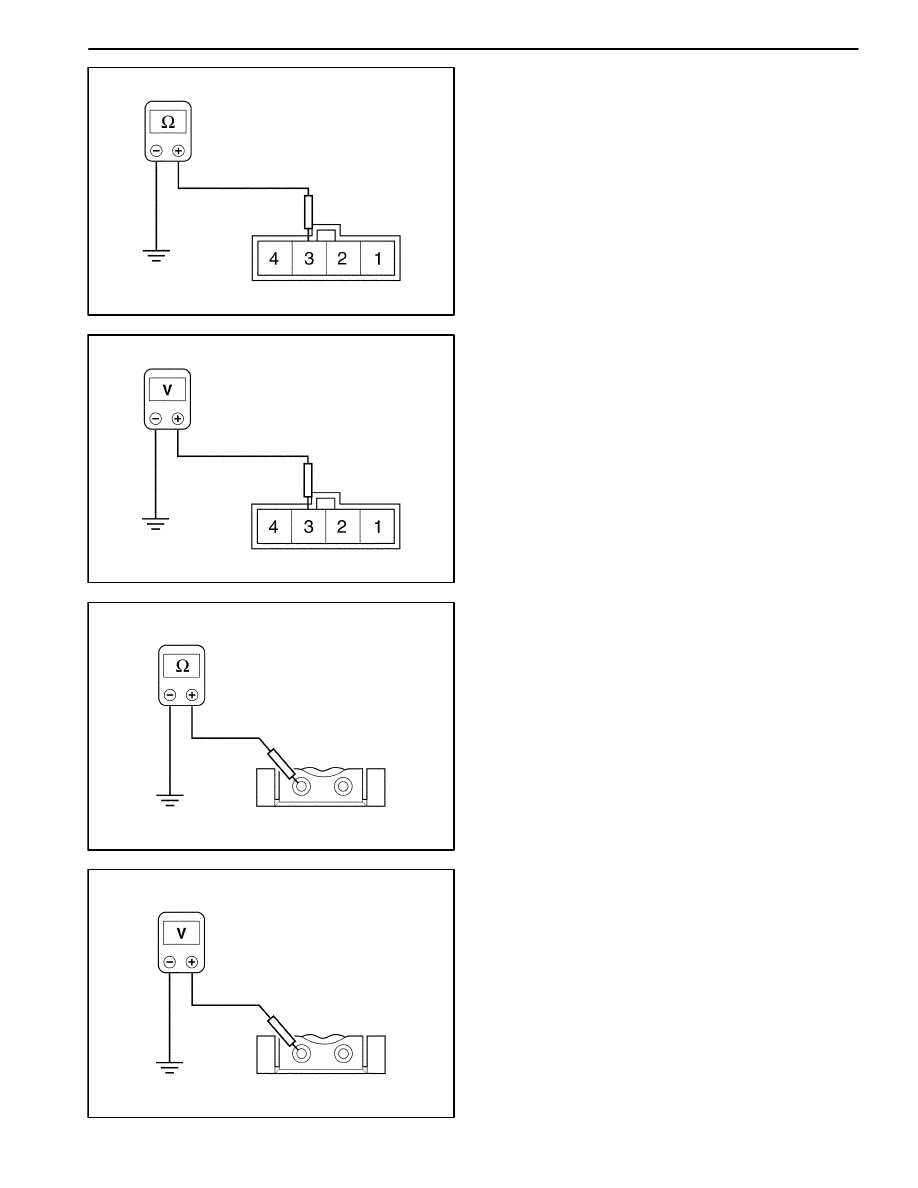

DIAGNOSTIC ILLUSTRATION 6

Checking the driver airbag circuit for a short to voltage.

D110B309

DIAGNOSTIC ILLUSTRATION 7

Checking the clock spring connector for a short to volt-
age on the sensing and diagnostic module side.

D110B310

.

DIAGNOSTIC ILLUSTRATION 8

Checking the passenger airbag circuit continuity on the
sensing and diagnostic module side of the connector.

D110B311

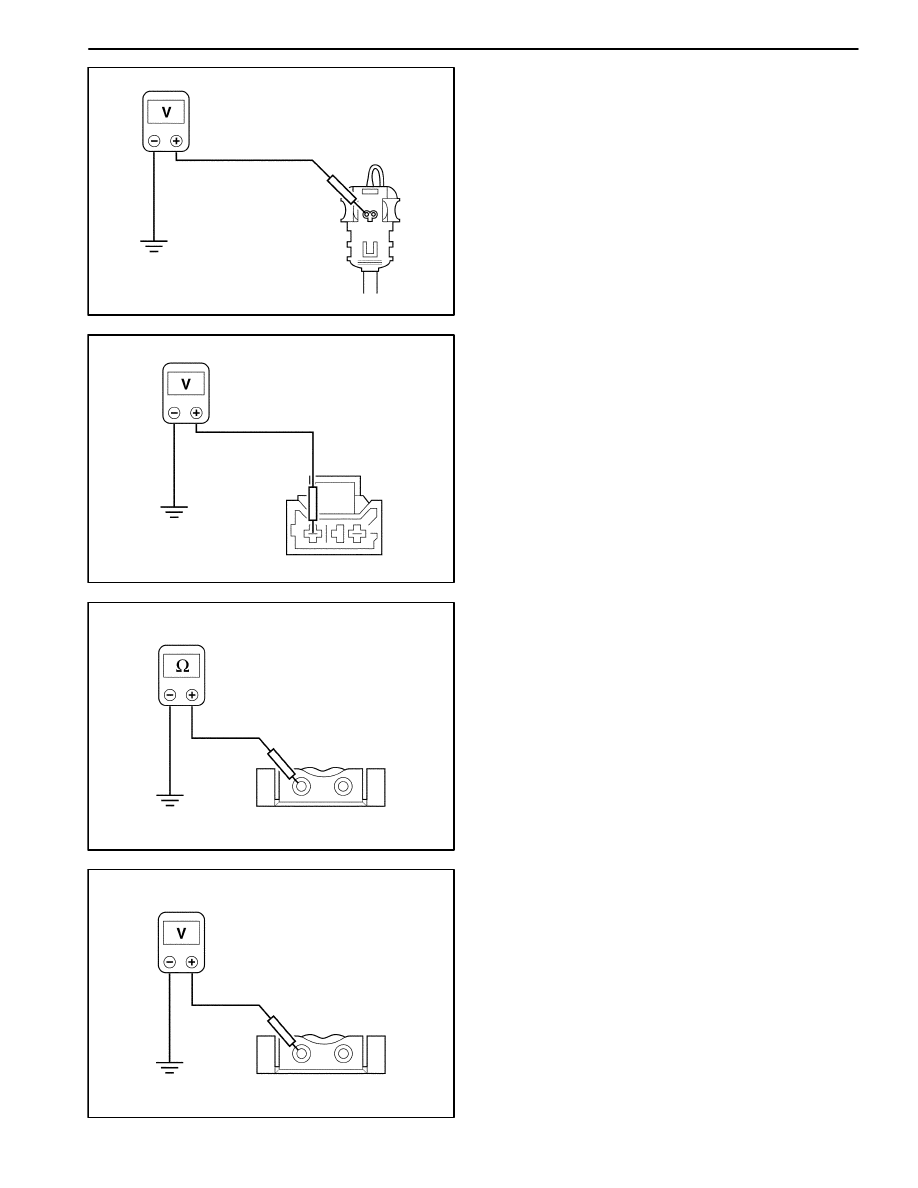

DIAGNOSTIC ILLUSTRATION 9

Checking the passenger airbag circuit for a short to
ground.

8B – 66 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

D110B311

DIAGNOSTIC ILLUSTRATION 10

Checking the passenger airbag circuit for a short to
voltage.

D110B312

DIAGNOSTIC ILLUSTRATION 11

Checking the sensing and diagnostic module voltage
supply at the terminal 5.

D110B313

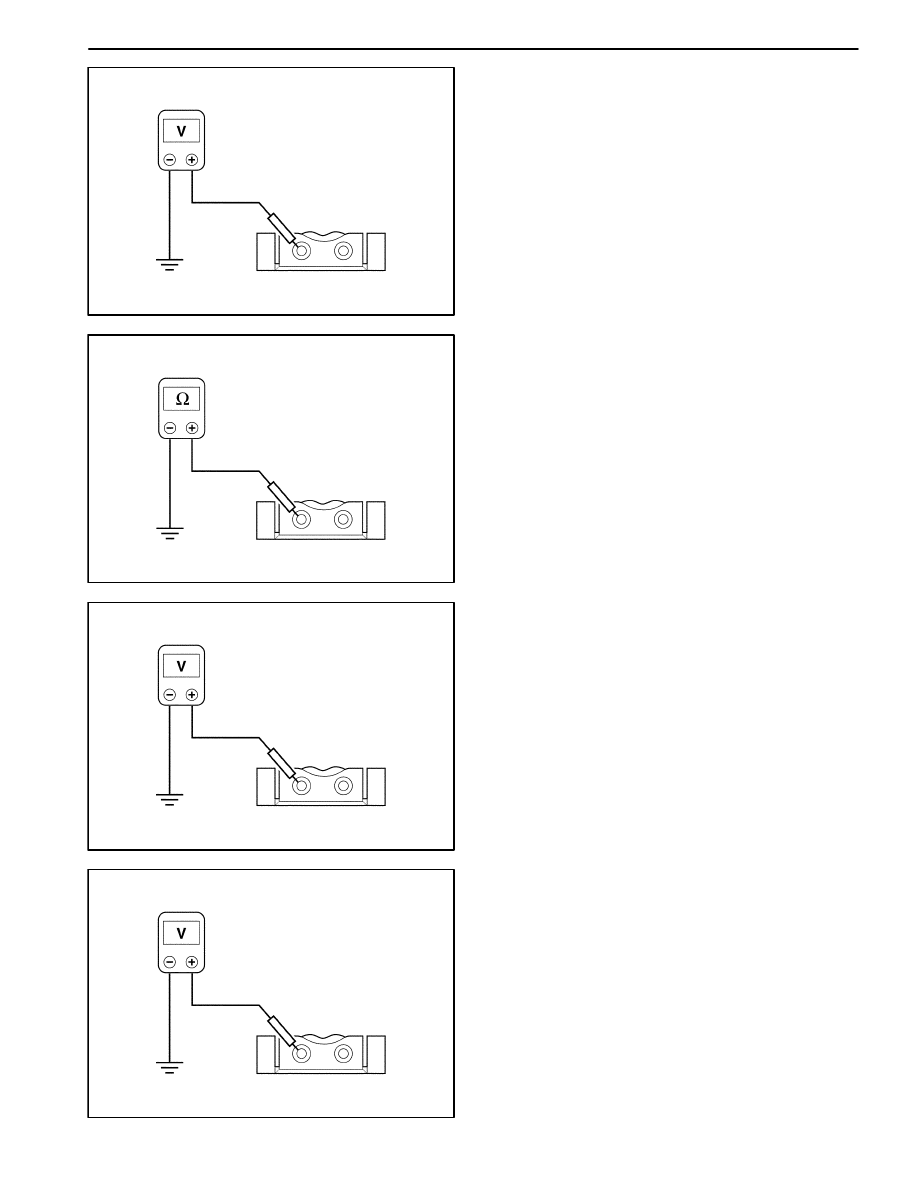

DIAGNOSTIC ILLUSTRATION 12

Checking the voltage supply on the instrument harness
side at the terminal 2 of the connector C208.

D110B314

DIAGNOSTIC ILLUSTRATION 13

Checking for a short to ground on the sensing and diag-
nostic module side of the supplemental inflatable re-
straints harness at the terminal 3 of the connector C208.

 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 67

D110B315

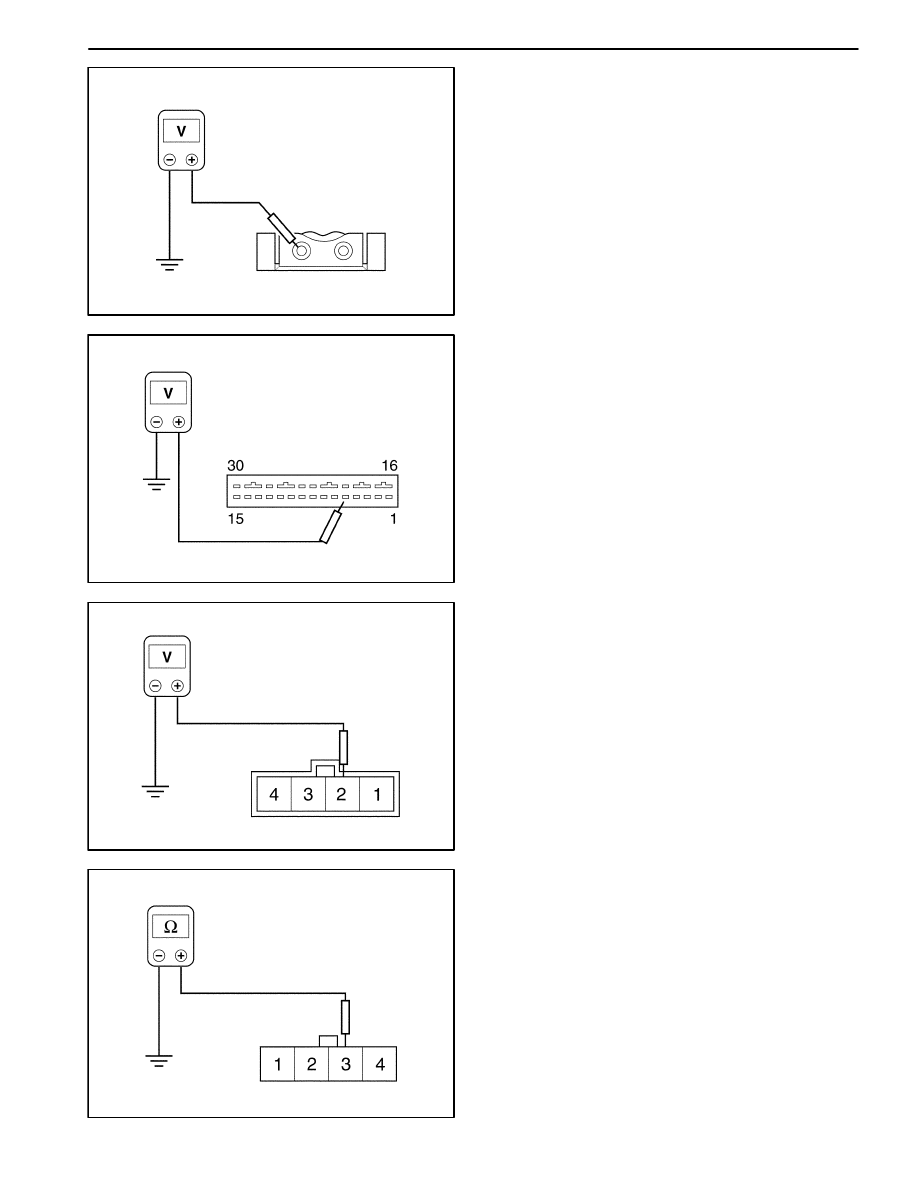

DIAGNOSTIC ILLUSTRATION 14

Checking for a short to ground in the instrument harness
on the instrument harness side at the terminal 3 of the
connector C208.

D110B316

DIAGNOSTIC ILLUSTRATION 15

Checking the voltage of the warning lamp circuit on the
instrument harness side at the terminal 3 of the connec-
tor C208.

D110B310

.

DIAGNOSTIC ILLUSTRATION 16

Checking the driver seat belt pretensioner circuit conti-
nuity on the sensing and driagnostic module side of the
connector.

D110B311

DIAGNOSTIC ILLUSTRATION 17

Checking the driver seat belt pretensioner circuit for a
short to ground.

8B – 68 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

D110B311

DIAGNOSTIC ILLUSTRATION 18

Checking the driver seat belt pretensioner circuit for a
short to voltage.

D110B310

.

DIAGNOSTIC ILLUSTRATION 19

Checking the passenger seat belt pretensioner circuit
continuity on the sensing and driagnostic module side of
the connector.

D110B311

DIAGNOSTIC ILLUSTRATION 20

Checking the passenger seat belt pretensioner circuit
for a short to ground.

D110B311

DIAGNOSTIC ILLUSTRATION 21

Checking the passenger seat belt pretensioner circuit
for a short to voltage.
