Daewoo Matiz (2003 year). Manual - part 178

6D – 4 MANUAL STEERING GEAR

DIAGNOSTIC INFORMATION AND PROCEDURES

MANUAL RACK AND PINION STEERING GEAR

Condition

Probable Cause

Correction

Excessive Play or

Poor adjustment of steering gear.

Perform straight–ahead check.

Looseness in the
Steering System

Improperly installed tie rods.

Tighten the tie rods.

Improper and insufficient lubrication.

Lubricate the rack and pinion
assembly.

Rattling Noise in the
Steering Gear

Improperly installed steering gear mounting.

Tighten the steering gear mounting
bolts.

Improperly installed tie rods.

Tighten the tie rods.

MANUAL STEERING GEAR 6D – 5

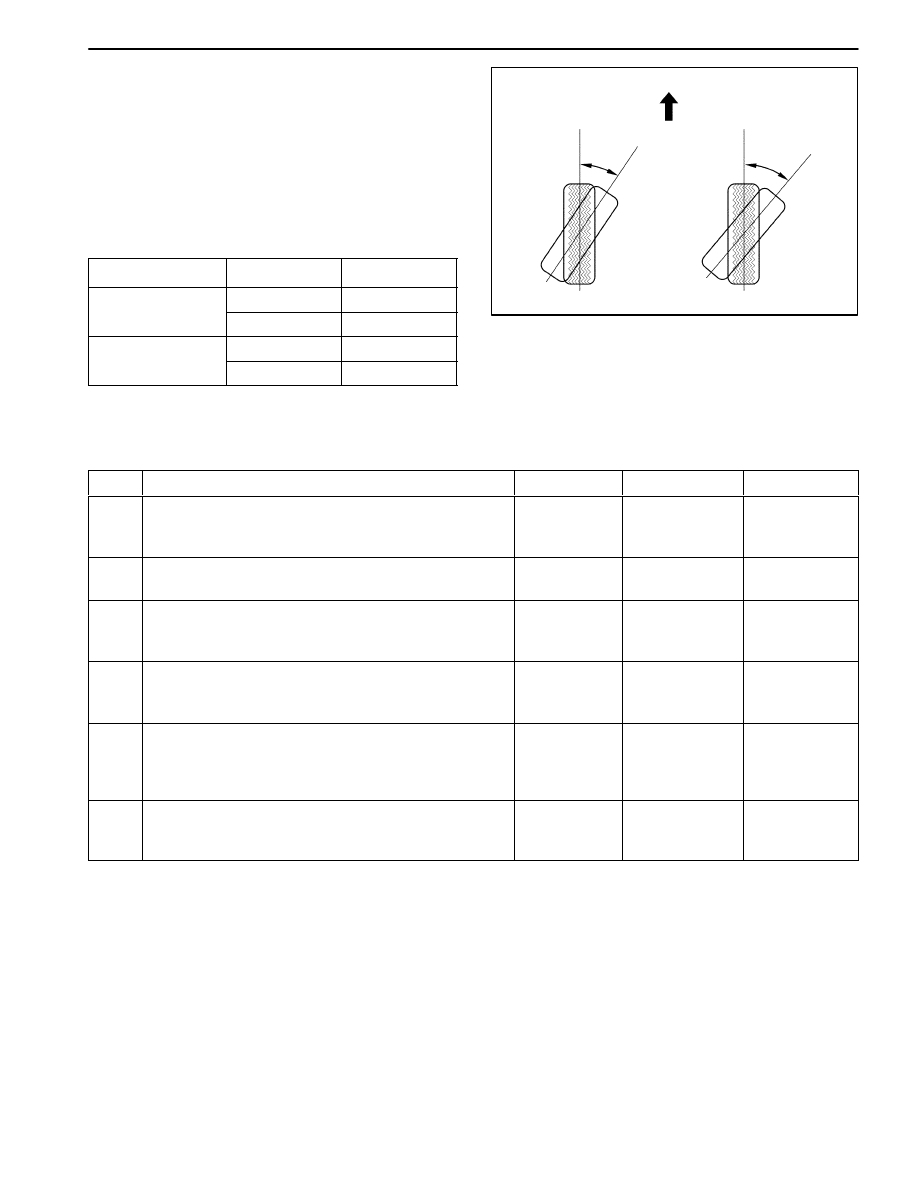

STRAIGHT-AHEAD CHECK

After all the necessary operations on the steering gear
are completed, check the exact straight-ahead position
of the steering in each case.

With the vehicle on the floor, place the steering wheel in
the straight-ahead position. Mark the centerline of both
tires on the floor. Turn the steering wheel all the way to
the right and mark the new centerline of both tires on the
floor.

ÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁ

Tire

ÁÁÁÁÁÁ

Specified Valve

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁ

145, 155

37.5 – 41.5

ÁÁÁÁÁÁÁ

Inside Angle

ÁÁÁÁÁÁ

175

32.9 – 36.9

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁ

145, 155

31.5 – 35.5

ÁÁÁÁÁÁÁ

Outside Angle

ÁÁÁÁÁÁ

175

28.5 – 32.5

D105B301

Front

Outside Angle

Inside Angle

Straight Ahead Check Table

ÁÁÁÁ

Step

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Action

ÁÁÁÁÁ

Value(s)

ÁÁÁÁÁÁÁ

Yes

ÁÁÁÁÁÁ

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Place the steering wheel in the straight-ahead posi-
tion.
Is the wheel in the correct position?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 2

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Is the steering wheel off center by more than 5 de-
grees?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 4

ÁÁÁÁÁÁ

Go to Step 5

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The pinion is displaced on the rack. The steering
pinion position must be corrected.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 2

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Remove steering wheel and center on the spindle
splines.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 2

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Turn the steering wheel all the way to the right. Mea-
sure the inner and the outer angles of the tire cent-
erline compared to the straight-ahead centerline. Do
the angles match the value specified?

ÁÁÁÁÁ

Refer to

“Straight–

Ahead Check”

in this section

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

Go to Step 6

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

The rack assembly was not assembled correctly.
Repair as needed.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 5

ÁÁÁÁÁÁ

–

6D – 6 MANUAL STEERING GEAR

STEERING WHEEL RESTORATION

1. Turn the steering wheel fast to the right and left and

turn it slowly as the same way.

2. Check if the steering wheel restoration for the wheel

turning to right and the one to the left are same.

3. Turn the steering wheel to 90

about 1–2 seconds

and loosen the steering wheel during the low speed
driving.

4. If the steering wheel restores above 70%, the steer-

ing wheel restoration is OK.

5. If the restoration is poor, check the tire pressure,

steering gear preload, and steering gear operation.
And repair the fault.

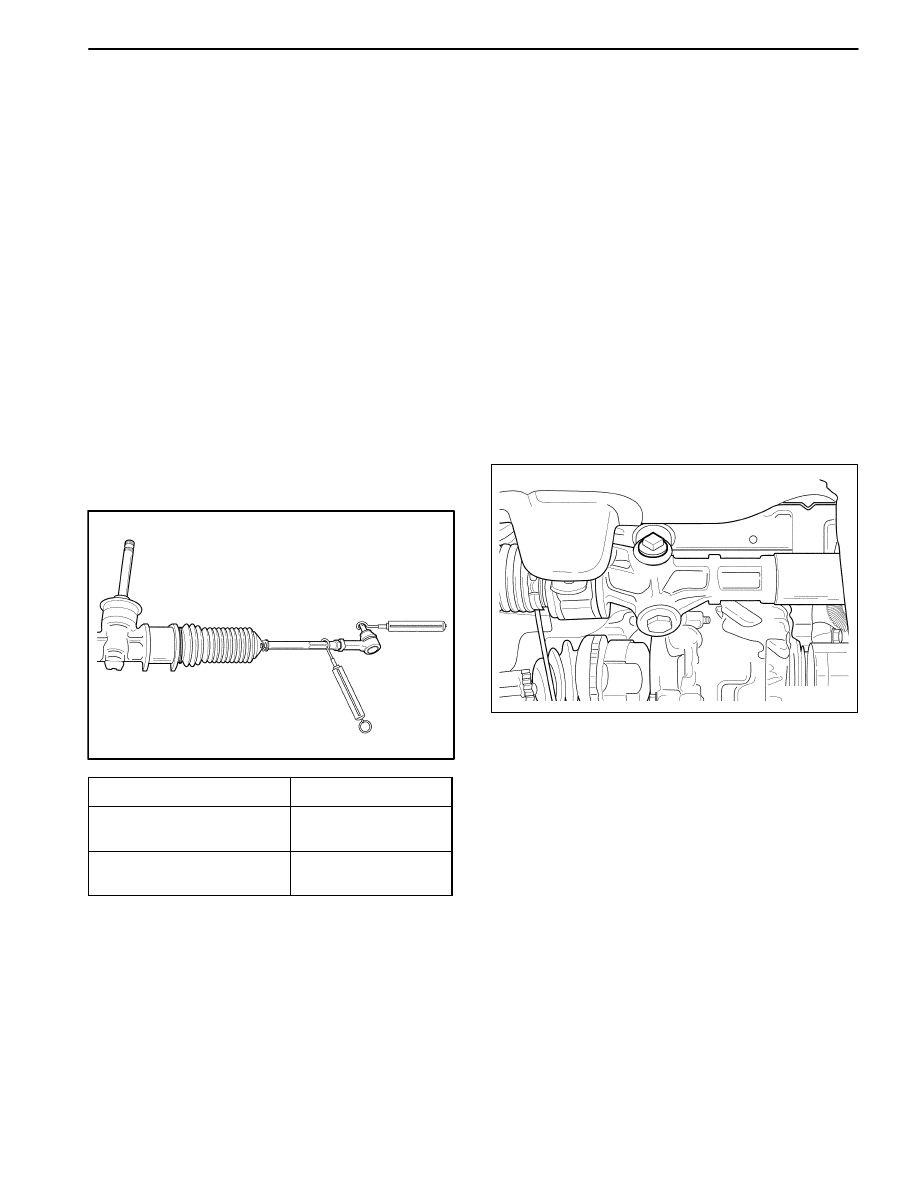

CHECK THE TURNING RESISTANCE
OF THE TIE ROD END OR TIE ROD

1. Turn the ball joint of the tie rod end or the tie rod about

10 times.

2. Use a spring balance to check the turning resistance

of each ball joint.

D105B302

ÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁÁ

Specified Value

ÁÁÁÁÁÁÁÁÁÁ

Tie Rod End Ball Joint

0.49 – 3.43 N

(4.5 – 30 lb-in.)

ÁÁÁÁÁÁÁÁÁÁ

Tie Rod Ball Joint

0.49 – 3.43 N

(4.5 – 30 lb-in.)

3. If the values exceed the specified values, replace the

tie rod end or the tie rod.

4. But, If the ball joint of the tie rod end or the tie rod falls

down of itself, replace it.

ADJUST THE FREE LOAD OF THE
STEERING GEAR

1. Place the steering wheel in the straight–ahead posi-

tion.

2. Raise and suitably support the vehicle.

3. Check the torque of the adjuster plug.

4 When the measured torque is below the specification

value or the measured torque is over the specification
value, adjust the tightening torque.

Place the rack gear in the straight–ahead position.

Tighten the adjust plug to 95 N

m (70 lb-ft).

Turn the steering wheel all the way to the right and
the left about 5 times repeatedly.

Place the rack gear in the straight–ahead position.

Loosen the adjust plug.

Tighten the adjust plug to 8 N

m (71 lb-in.).

Set the torque in the 0.8–1.3 N

m (8–12 lb-in.) by

loosening the adjust plug to 0

−

D105B303

MANUAL STEERING GEAR 6D – 7

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D105B501

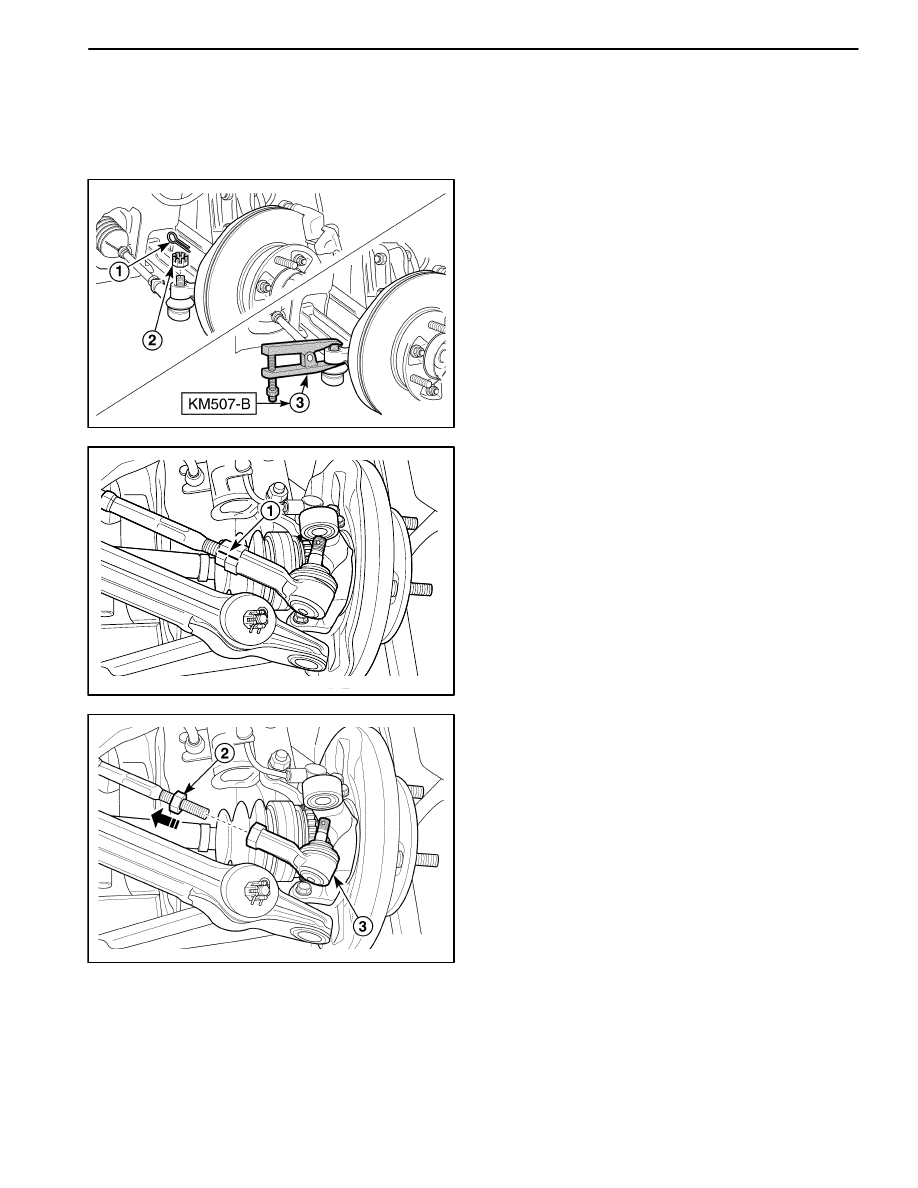

TIE ROD END

Tools Required

KM–507–B Ball Joint Remover

Removal Procedure

1. Remove the wheel. Refer to Section 2E, Tires and

wheels.

2. Disconnect the tie rod and from the steering knuckle.

Remove the cotter pin (1).

Remove the castellated nut (2).

Use a ball joint remover KM–507–B, separate the
tie rod end (3).

D105B502

3. Remove the tie rod end.

Mark the tie rod, tie rod end lock nut and tie rod end
(1).

Loosen the tie rod end lock nut anticlockwise (2).

Loosen the tie rod end (3).

D105B503
