SECTION 2D

REAR SUSPENSION

TABLE OF CONTENTS

Description and Operation

2D-2

. . . . . . . . . . . . . . . . . .

Rear Suspension

2D-2

. . . . . . . . . . . . . . . . . . . . . . . . . .

Component Locator

2D-3

. . . . . . . . . . . . . . . . . . . . . . . .

Rear Suspension

2D-3

. . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnostic Information and Procedures

2D-4

. . . . .

Rear Suspension

2D-4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the Rear Wheel Bearing

End Play

2D-5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wheel Bearing Free Load

2D-5

. . . . . . . . . . . . . .

Repair Instructions

2D-6

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

2D-6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Shock Absorber

2D-6

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Lateral Rod

2D-7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trailing Arm

2D-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Axle Assembly

2D-9

. . . . . . . . . . . . . . . . . . . . . . .

Unit Repair

2D-12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hub and Bearing Assembly

2D-12

. . . . . . . . . . . . . . . .

Specifications

2D-15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Specifications

2D-15

. . . . . . . . . . . . . . . . . . . .

Fastener Tightening Specifications

2D-15

. . . . . . . . . .

Special Tools and Equipment

2D-16

. . . . . . . . . . . . . .

Special Tools Table

2D-16

. . . . . . . . . . . . . . . . . . . . . . .

2D – 2  REAR SUSPENSION

DESCRIPTION AND OPERATION

REAR SUSPENSION

The rear suspension consists of an axle with trailing
arms and a lateral rod, two coil springs, two shock ab-
sorbers, two upper spring seats, and two bump stop-

pers. The axle structure maintains the relationship of the
wheels to the body.

Each coil spring is retained between a seat in the under-
body and a seat welded to the top of the rear axle.

REAR SUSPENSION  2D – 3

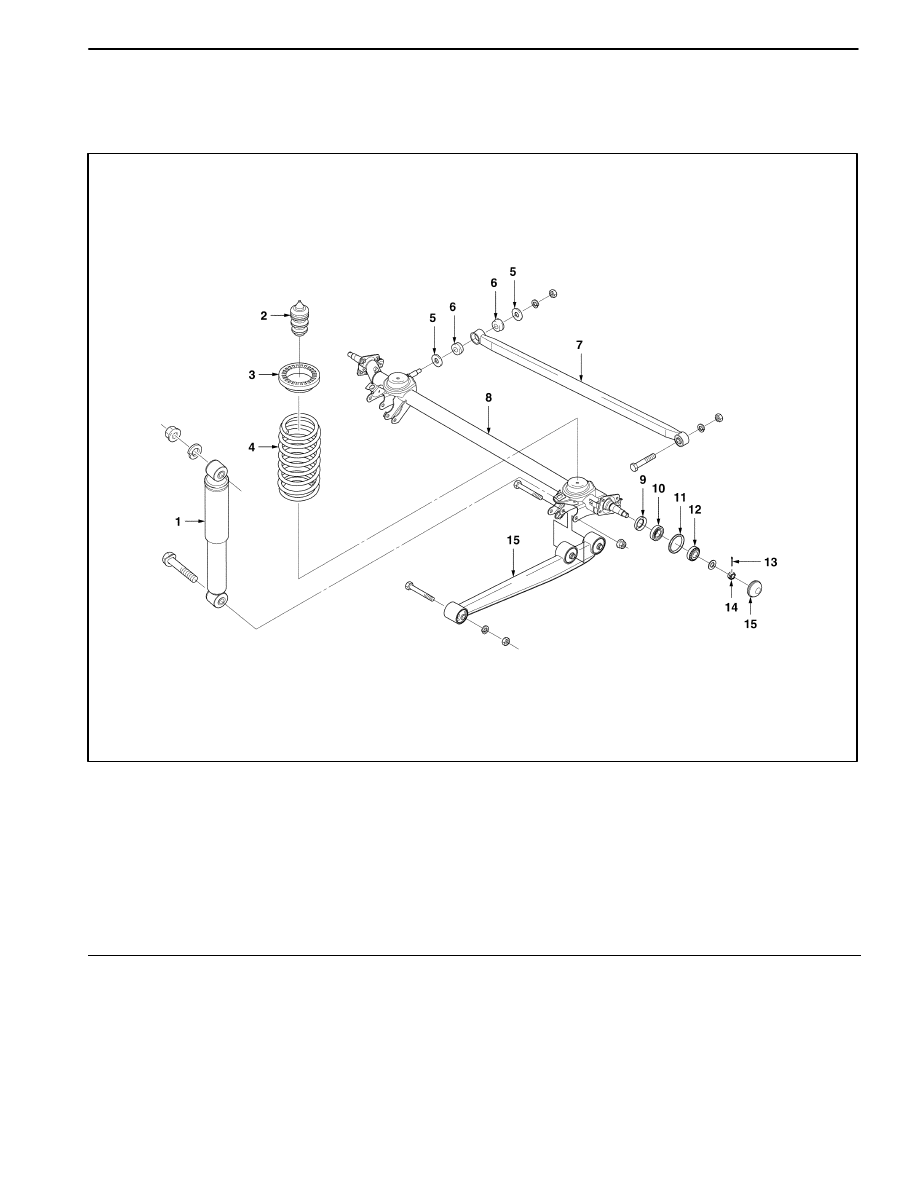

COMPONENT LOCATOR

REAR SUSPENSION

D106C401

1. Shock Absorber
2. Bumper Stopper
3. Coil Spring Upper Seat
4. Coil Spring
5. Washer
6. Bushing
7. Lateral Rod
8. Rear Axle

9. Oil Seal

10. Wheel Bearing Inner

11. ABS Wheel Speed Ring

12. Wheel Bearing Outer
13. Cotter Pin
14. Castellated Nut
15. Spindle Cap
16. Trailing Arm

2D – 4  REAR SUSPENSION

DIAGNOSTIC INFORMATION AND PROCEDURES

REAR SUSPENSION

ÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁ

Condition

ÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁ

Probable cause

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Correction

Noise

D

The loosened joints.

D

Tighten the joints.

D

Wheel bearing is worn or damaged.

D

Replace the wheel bearing.

D

Faulty shock absorber.

D

Replace the shock absorber.

Uncomfortable

D

Faulty shock absorber.

D

Replace the shock absorber.

D

Faulty coil spring.

D

Replace the coil spring.

D

Lateral rod bushing is worn or
damaged.

D

Replace the lateral rod bushing.

D

Trailing arm bushing is worn or
damaged.

D

Replace the trailing arm bushing.

Vehicle Leans Toward

D

Rear axle deformation.

D

Replace the rear axle.

the Side

D

Lateral rod deformation.

D

Replace the lateral rod.

D

Trailing arm deformation.

D

Replace the trailing arm.

D

Faulty coil spring.

D

Replace the coil spring.

D

Lateral rod bushing is worn or
damaged.

D

Replace the lateral rod bushing.

D

Trailing arm bushing is worn or
damaged.

D

Replace the trailing arm bushing.
