FRONT SUSPENSION  2C – 17

D16B703A

D

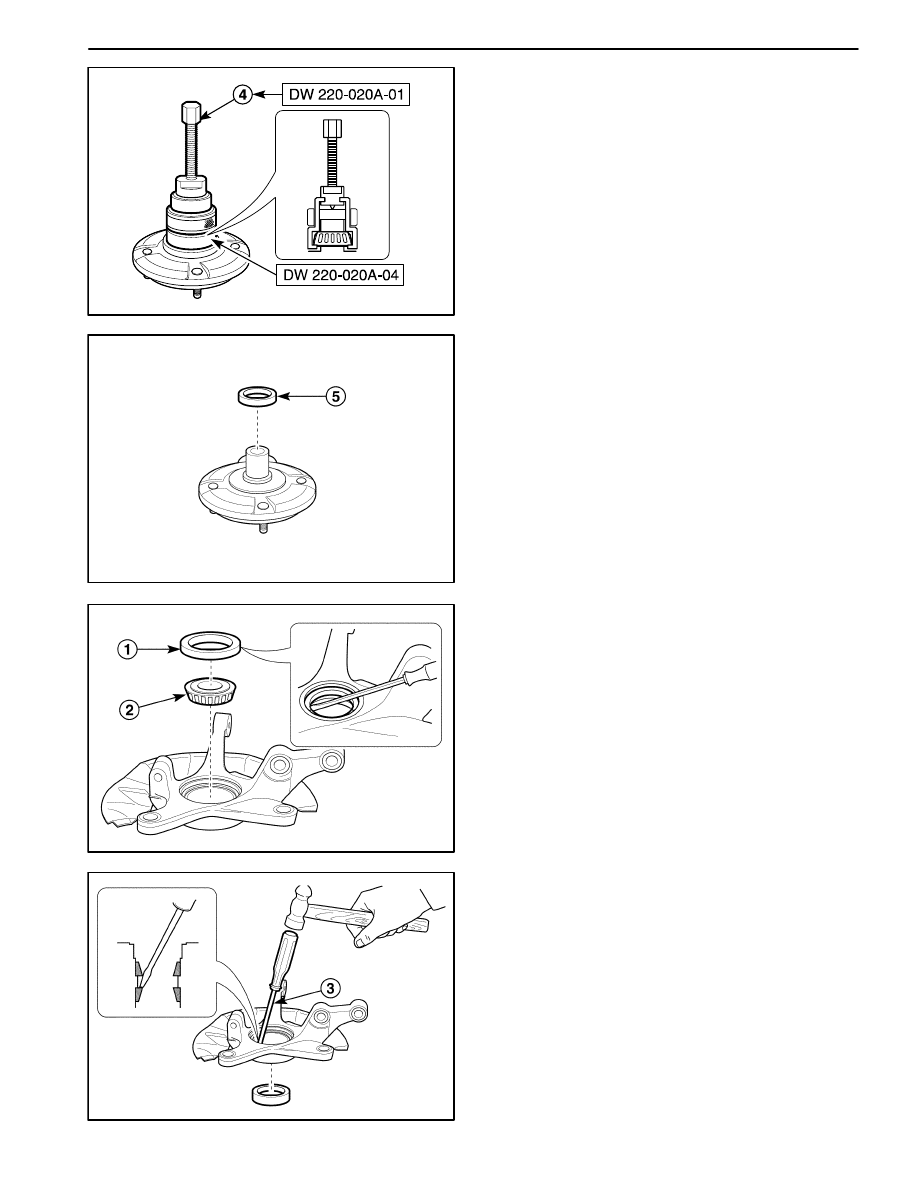

Remove the wheel bearing from the wheel hub us-
ing the differential bearing puller DW 220–020A–01
and differential bearing plate adapter DW 220–
020A–04 (4).

D106B704

D

Remove the oil seal from the wheel hub (5).

Important: Do not use removed oil seal.

D106B705

4. Remove the steering knuckle assembly.

D

Remove the oil seal (1).

Important: Do not use removed oil seal.

D

Remove the wheel bearing (2).

D106B706

D

Remove the outer bearing race (3).

2C – 18  FRONT SUSPENSION

D106B707

D

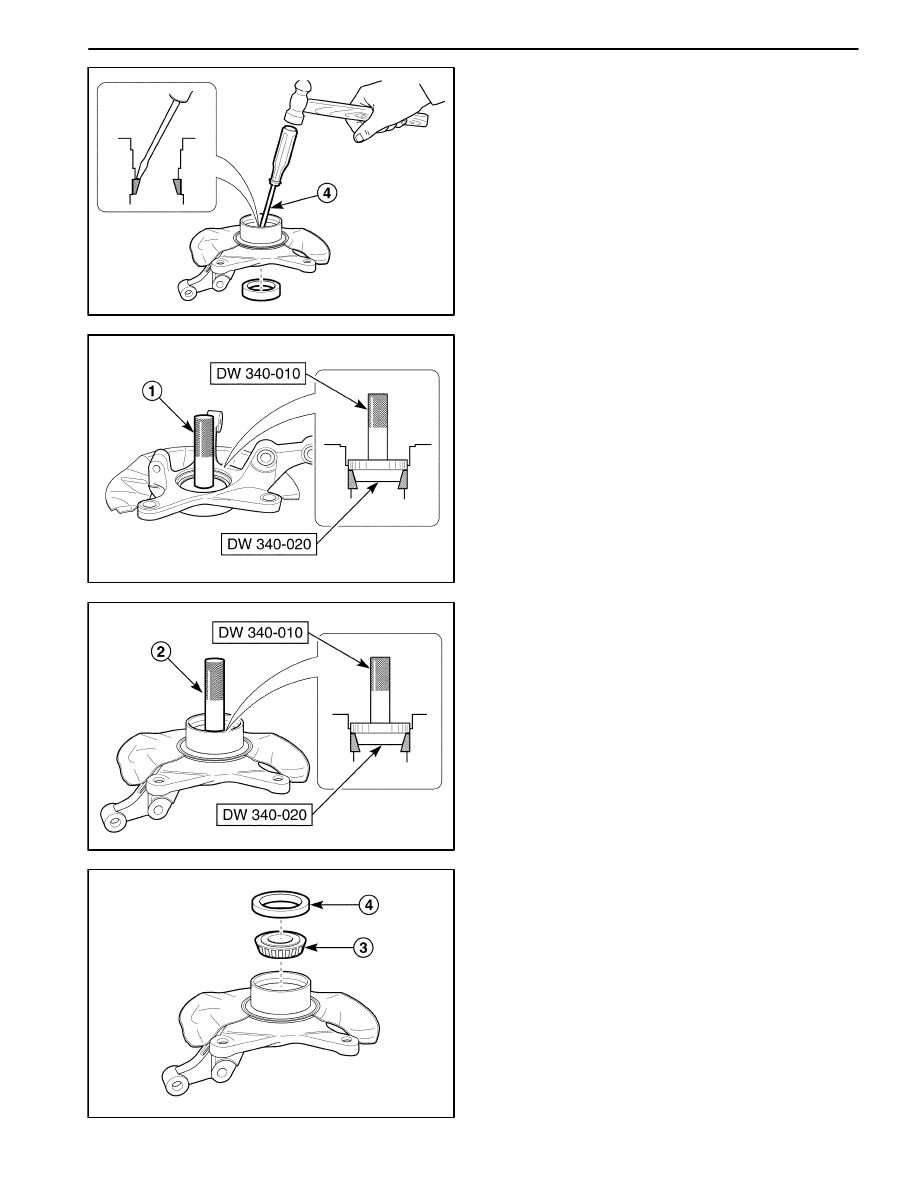

Remove the inner bearing race (4).

D106B708

Assembly Procedure

1. Assemble the steering knuckle assembly.

D

Assemble the inner bearing race using the front
wheel hub remover DW 340–010 and the front
bearing race installer DW 340–020 (1).

D106B709

D

Assemble the outer bearing race using the front
wheel hub remover DW 340–010 and the front
wheel bearing race installer DW 340–020 (2).

D106B710

D

Assemble the outer wheel bearing (3).

D

Assemble the outer wheel bearing oil seal (4).

FRONT SUSPENSION  2C – 19

D106B711

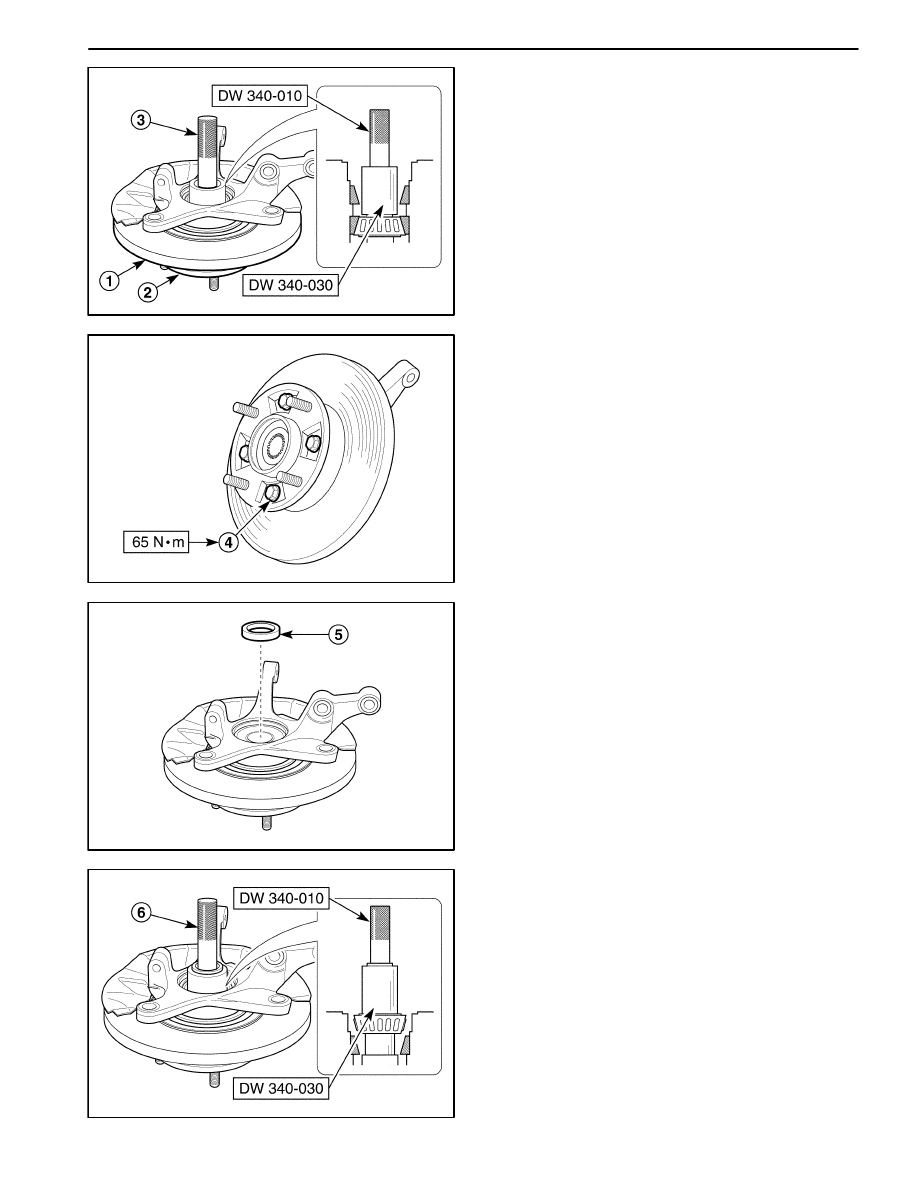

2. Install the wheel hub to steering knuckle assembly.

D

Install the brake rotor (1).

D

Install the wheel hub to the steering knuckle as-
sembly temporary (2).

D

Press the outer wheel bearing into the wheel hub
using the front wheel hub remover DW 340–010
and the front wheel bearing installer DW 340–030
(3).

D16B712A

D

Tighten the bolts (4).

Tighten

Tighten the bolt to 65 N

S

m (48 lb-ft).

D106B713

D

Install the bearing spacer (5).

D106B714

D

Press the inner wheel bearing into the wheel hub
using the front wheel hub remover DW 340–010
and the front wheel bearing installer DW 340–030
(6).

2C – 20  FRONT SUSPENSION

D106B715

D

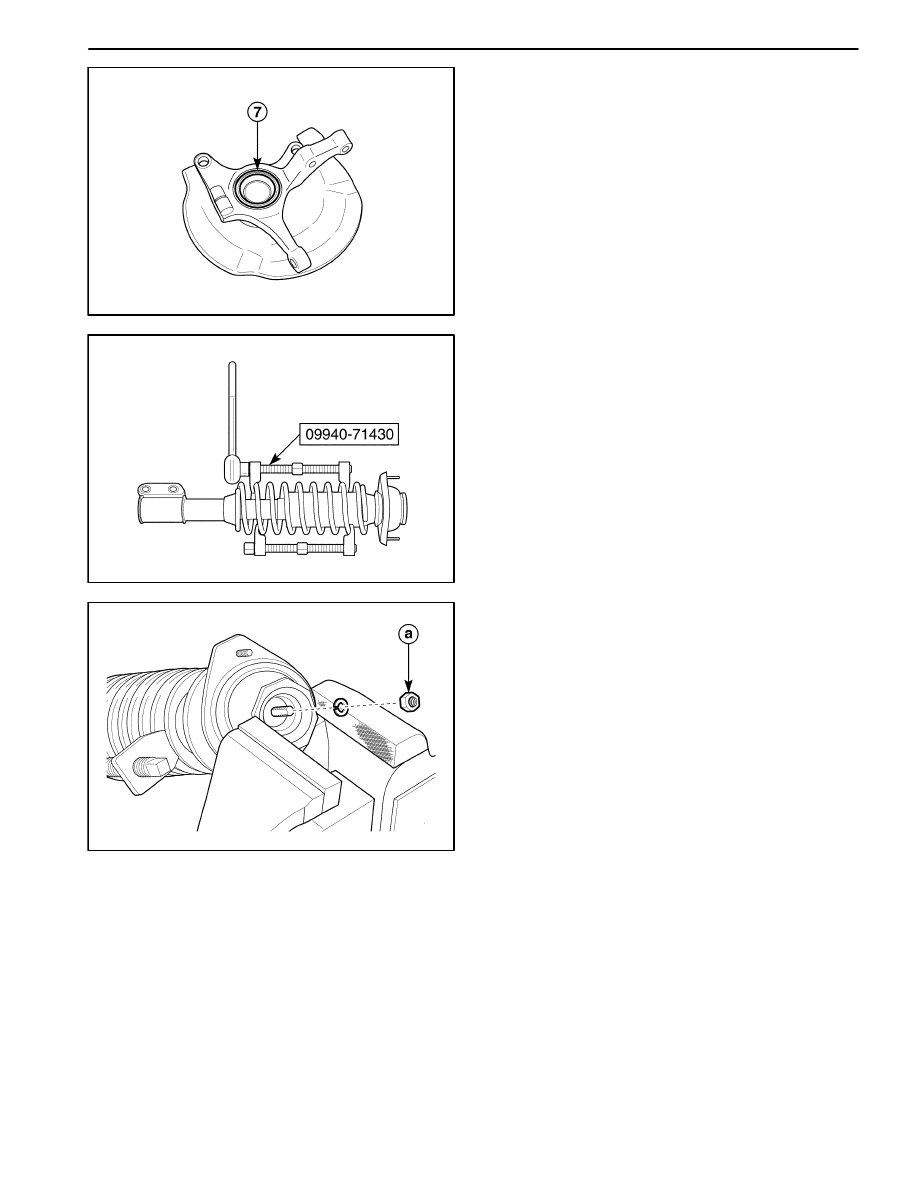

Install the inner wheel bearing oil seal (7).

3. Install the steering knuckle assembly.

Refer to “Knuckle Assembly” in this section.

D106B716

FRONT STRUT (INCLUDING COIL
SPRING)

Tools Required

09940–71430 Front Spring Compressor.

Disassembly Procedure

1. Remove the strut assembly. Refer to “Strut Assem-

bly” in this section.

2. Compress the front spring with the front spring com-

pressor 09940–71430.

Caution: During compressing spring, do not make
spring end point to operator or dangerous direc-
tion.

D106B717

3. Fix the strut support using the bench vise and remove

the strut nut.

a. Strut nut.
