1E – 32  ENGINE ELECTRICAL

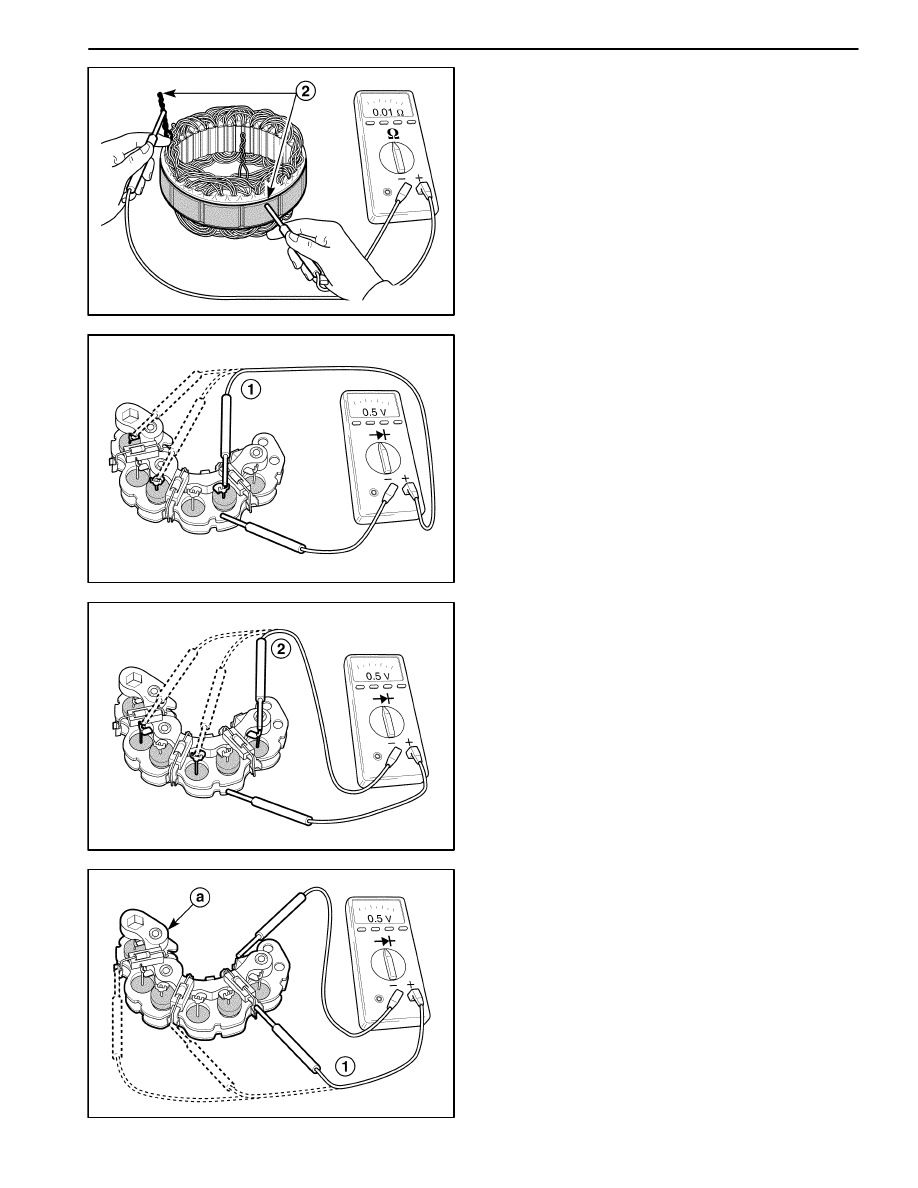

D102E752

D

Test the stator for open or ground circuits by using
the ohmmeter. The reading should be sufficiently
high, or the stator must be replaced (2).

D102E753

3. Inspect the rectifier.

D

Positive rectifier test:
Inspect the open circuit for stator coil lead termi-
nals using the ohmmeter (1).
Replace the rectifier if necessary.

D102E754

D

Negative rectifier test:
Inspect the open circuit for stator coil lead termi-
nals using the ohmmeter (2).
Replace the rectifier if necessary.

D102E755

4. Inspect trio diodes.

D

Inspect the open circuit for trio diodes using the
ohmmeter (1).
Replace the heat sink if necessary (a).

ENGINE ELECTRICAL  1E – 33

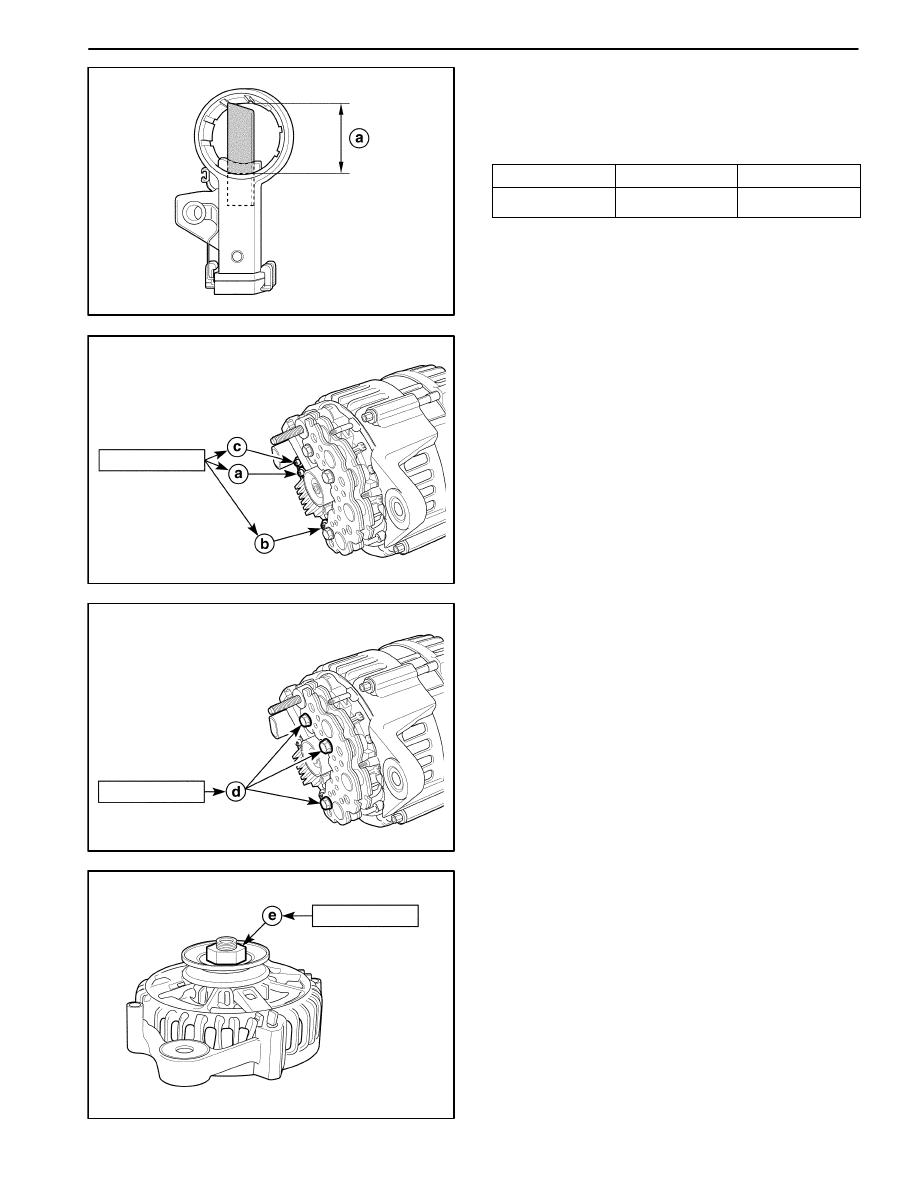

D12E756A

5. Inspect the brush wear

D

If the brush wear exceeds the specified value, re-
place the brush.

a. Brush wear limit.

Desciption

Standard

Limit

Brushes wear

20 (0.79)

14 (0.55)

D12E757A

9–12 N

S

m

Assembly Procedure

1. Install in the reverse order of removal.

2. Install the screws / nuts / bolts.

Tighten

D

Tighten the regulator screw to 9–12 N

S

m (80–106

lb-in) (a).

D

Tighten the rectifier / regulator screw to 9–12 N

S

m

(80–106 lb-in) (b).

D

Tighten the brush holder / regulator screw to 9–12
N

S

m (80–106 lb-in) (c).

D12E758A

9–12 N

S

m

D

Tighten the rectifier bolts to 9–12 N

S

m (80–106 lb-

in) (d).

D12E759A

80–110 N

S

m

D

Tighten the pulley nut to 80-110 N

S

m (59–81 lb-ft)

(e).

1E – 34  ENGINE ELECTRICAL

D12E760A

4–7 N

S

m

4–6 N

S

m

D

Tighten the through-bolts to 4–6 N

S

m (35–53 lb-in)

(f).

D

Tighten the battery positive terminal nut to 4–7
N

S

m (35–62 lb-in) (g).

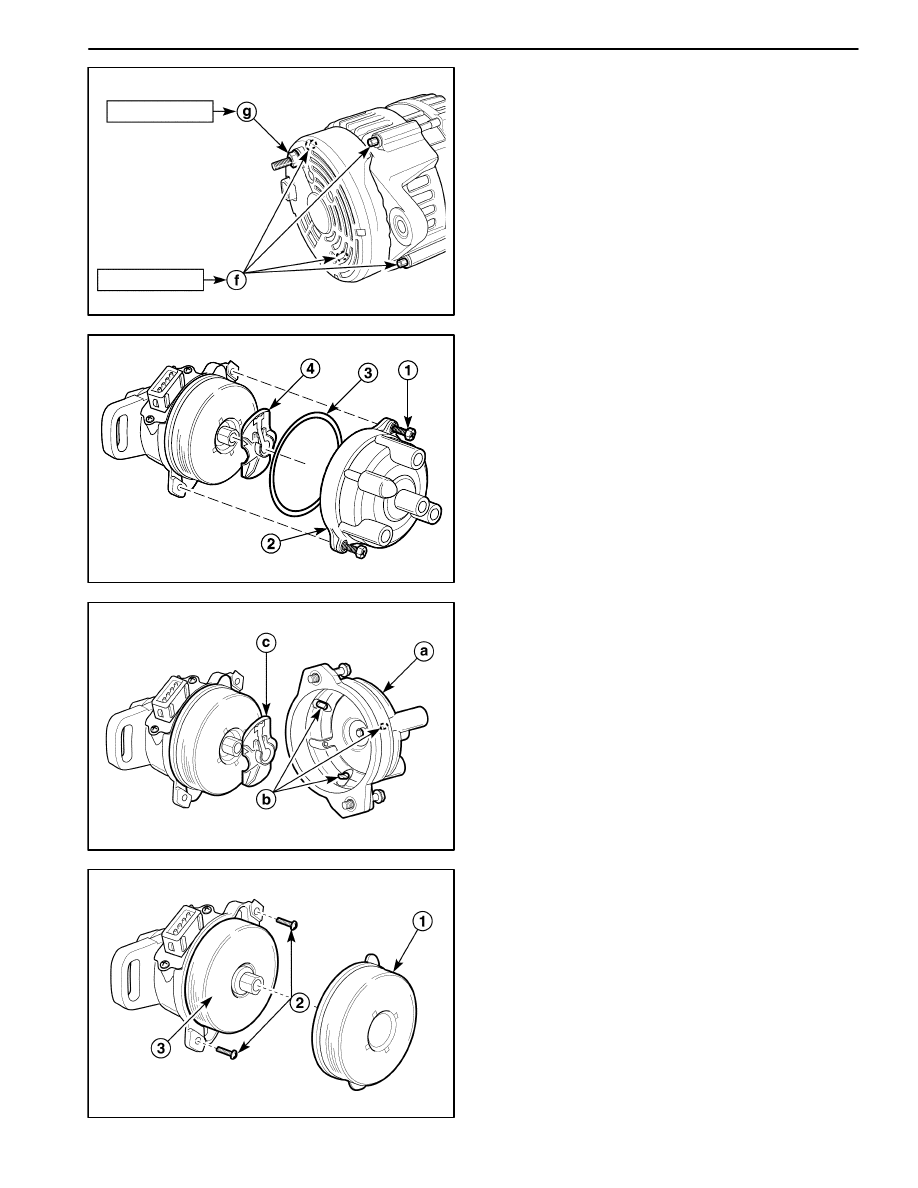

D102E761

DISTRIBUTOR ASSEMBLY

Disassembly Procedure

1. Remove the distributor. Refer to “Distributor” in this

section.

2. Remove the cap, seal and rotor from the distributor

housing.

D

Remove the bolts (1).

D

Remove the distributor cap (2).

D

Remove the seal (3).

D

Remove the rotor (4).

D102E762

D

Inspect the cap for cracks or damage (a).

D

Inspect the cap electrode for damage / wear or car-
bon traces (b).

D

Inspect the rotor for damage or carbon traces (c).

D102E763

3. Remove the inner / outer cover from the distributor

housing.

D

Remove the outer cover (1).

D

Remove the screws (2).

D

Remove the inner cover (3).

ENGINE ELECTRICAL  1E – 35

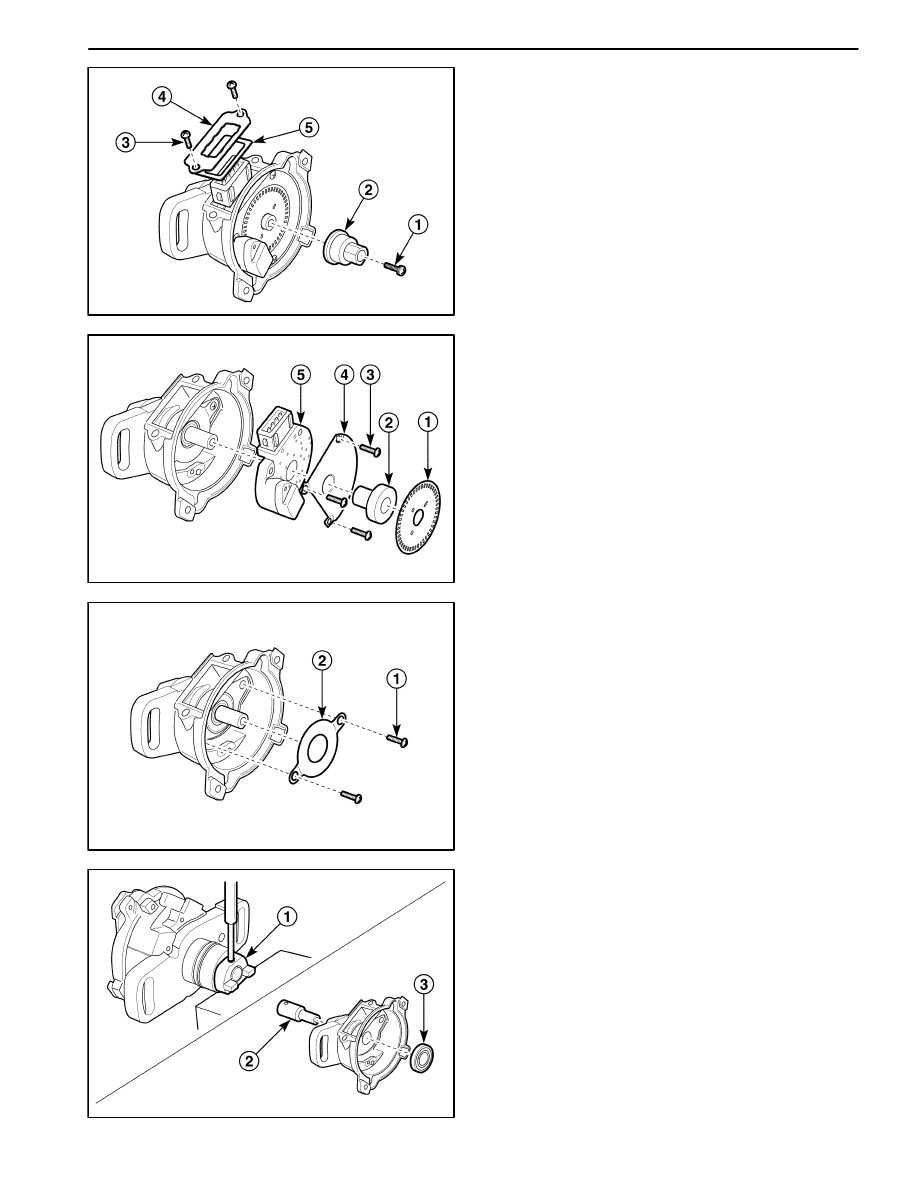

D102E764

4. Remove the optical sensor cover and adaptor from

the distributor housing.

D

Remove the screw (1).

D

Remove the adaptor (2).

D

Remove the screws (3).

D

Remove the cover (4).

D

Remove the gasket (5).

D102E765

5. Remove the optical sensor unit from the distributor

housing.

D

Carefully remove the disc wheel (1).

D

Remove the bushing (2).

D

Remove the screws (3).

D

Remove the optical sensor unit plate (4).

D

Remove the optical sensor unit (5).

D102E766

6. Remove the bearing plate from the distributor hous-

ing.

D

Remove the screws (1).

D

Remove the bearing plate (2).

D102E767

7. Remove the coupling, shaft and bearing from the dis-

tributor housing.

D

Remove the coupling (1).

D

Remove the shaft using the press (2).

D

Remove the bearing (3).
