1E – 28  ENGINE ELECTRICAL

D12E736A

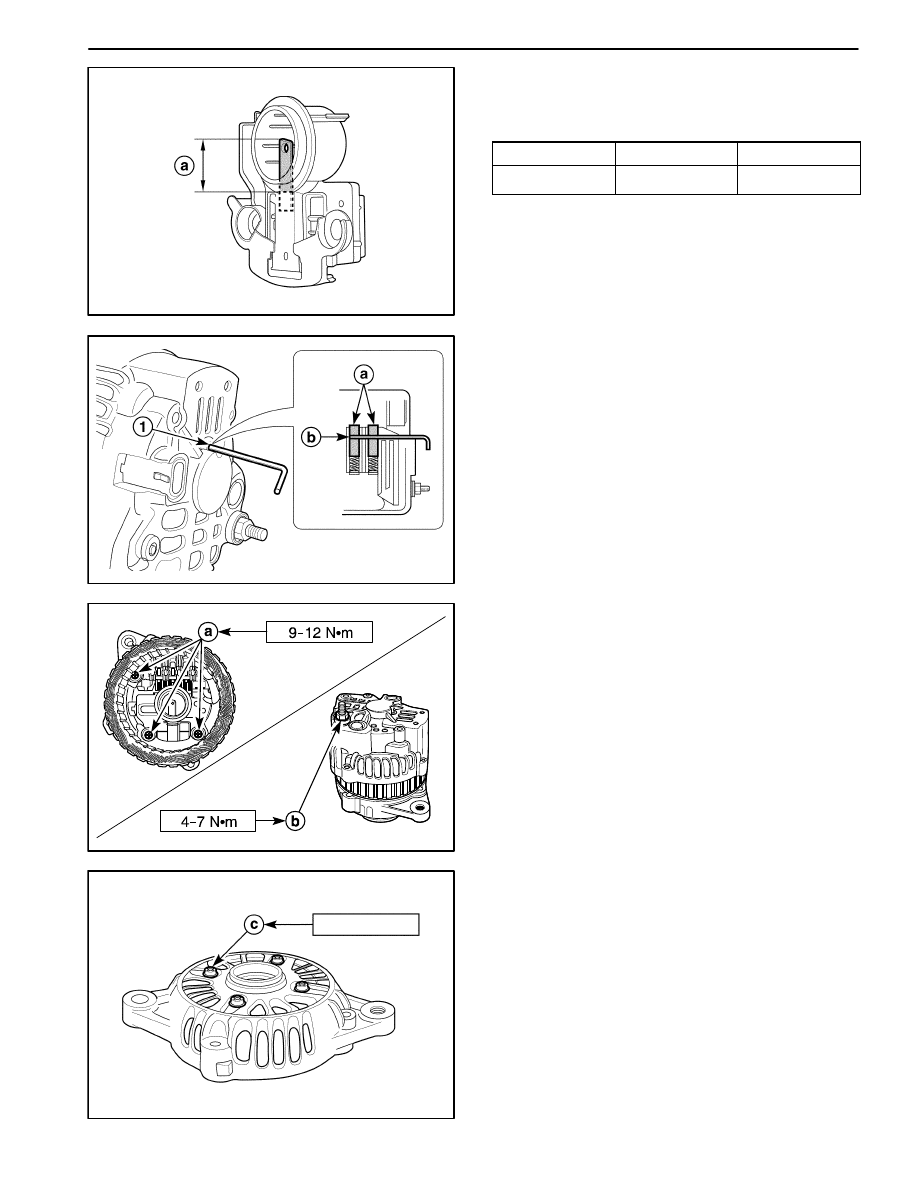

5. Inspect the brush wear.

D

If the brush wear exceeds the specified valve (a),
replace the brush.

Desciption

Standard

Limit

Brushes wear

18.5 (0.73)

13.5 (0.53)

D102E737

Assembly Procedure

1. Install in the reverse order of removal.

D

Assemble the stator assembly into the rear bracket
and rotor assembly.

a. Brushes.

b. Hole.

D12E738A

2. Install the bolts / nuts / screws.

Tighten

D

Tighten the brush holder / regulator / rectifier
screws to 9–12 N

S

m (80–106 lb-in) (a).

D

Tighten the battery positive terminal nut to 4–7
N

S

m (35–62 lb-in) (b).

D102E739

6–8 N

S

m

D

Tighten the front bearing spot plate screws to 6–8
N

S

m (53–71 lb-in) (c).

ENGINE ELECTRICAL  1E – 29

D12E740A

4–6 N

S

m

80–110 N

S

m

D

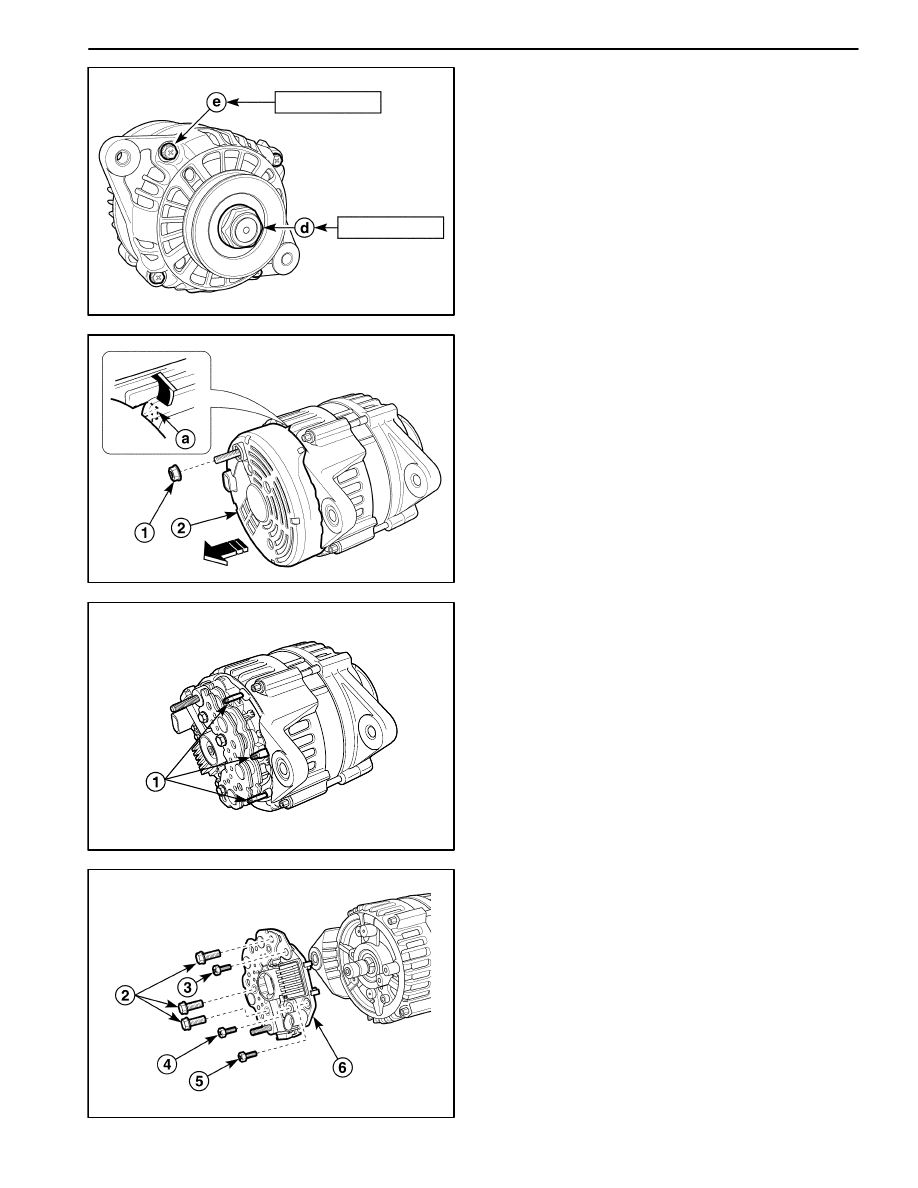

Tighten the generator pulley nut to 80–110 N

S

m

(59–81 lb-ft) (d).

D

Tighten the through-bolts to 4–6 N

S

m (35–53 lb-in)

(e).

D102E741

GENERATOR (B-TYPE: DAC)

Disassembly Procedure

1. Remove the generator. Refer to “Generator” in this

section.

2. Remove the cover from the generator.

D

Remove the battery positive terminal nut (1).

D

Remove the cover (2).

a. Cover.

D102E742

3. Remove the regulator / brush holder / rectifier assem-

bly.

D

Remove the stator coil lead and rectifier diode lead
connections (1).

D102E743

D

Remove the rectifier bolts (2).

D

Remove the rectifier / regulator screw (3).

D

Remove the brush holder / regulator screw (4).

D

Remove the regulator screw (5).

D

Remove the regulator / brush holder / rectifier as-
sembly (6).

1E – 30  ENGINE ELECTRICAL

D102E744

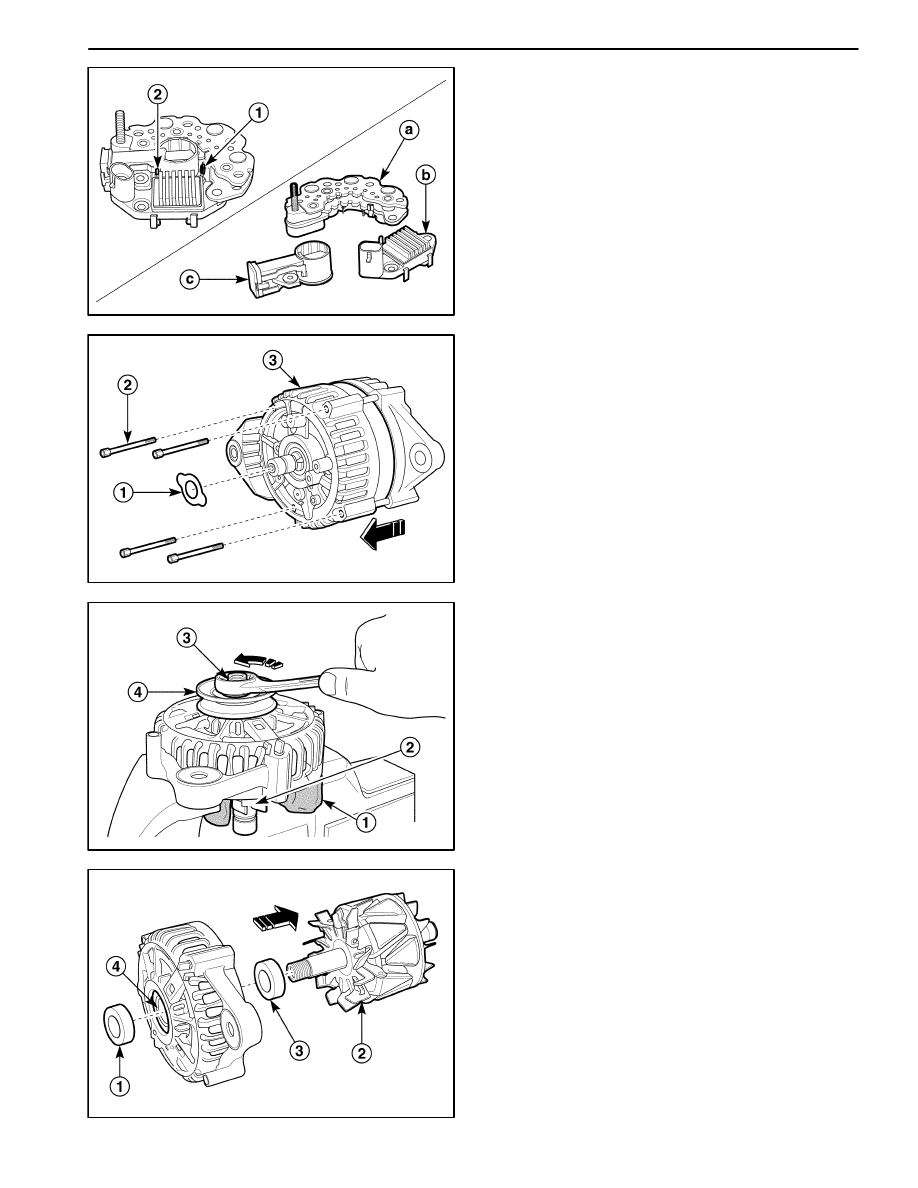

4. Remove the regulator / brush holder / rectifier.

D

Remove the rectifier and regulator connection (1).

D

Remove the regulator and brush holder connection
(2).

D

Visibly inspect the rectifier / regulator / brush hold-
er for damage or broken.

a. Rectifier.

b. Regulator.

c. Brush holder.

D102E745

5. Remove the shield before the drive end bracket and

the frame.

D

Remove the shield (1).

D

Remove the through-bolts (2).

D

Remove the frame from the drive end bracket (3).

D102E746

6. Remove the pulley and rotor assembly from the drive

end bracket.

D

Cover the rotor with the cloth (1).

D

Place the pulley upwards and vice the rotor (2).

D

Remove the pulley nut (3).

D

Remove the pulley (4).

D102E747

7. Remove the drive end bracket, rotor and space.

D

Remove the collar (1).

D

Remove the rotor from the driver end bracket (2).

D

Remove the collar from the rotor shaft (3).

D

Inspect the front bearing for corrosion, wear, noisy
and other damage (4).

ENGINE ELECTRICAL  1E – 31

D102E748

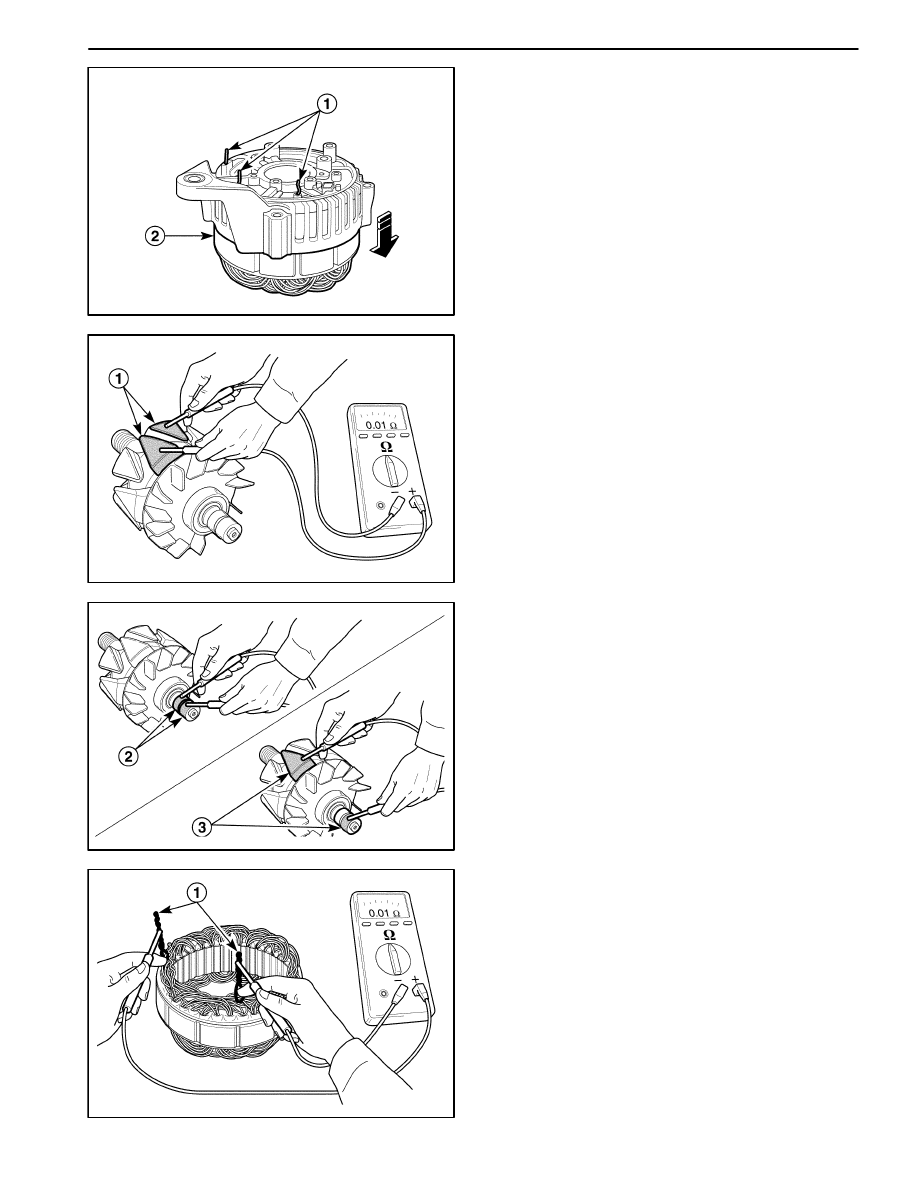

8. Remove the stator assembly from the frame.

D

Remove the remains after the welding.

D

Remove the stator assembly (2).

D102E749

Inspection / Measurement

1. Inspect the rotor assembly.

D

Test the rotor coil for an open circuit by using the
ohmmeter. The reading should be sufficiently low,
or the rotor must be replaced (1).

D102E750

D

Test the rotor for open or short circuits. The read-
ing should be 2.6 to 2.8 ohms, or the rotor should
be replaced (2).

D

Test the rotor for open or ground circuits by using
the ohmmeter. The reading should be sufficiently
high, or the rotor must be replaced (3).

D

Inspect the fan blade for damage.

D102E751

2. Inspect the stator.

D

Test the rotor for an open circuit by using the ohm-
meter. The reading should be sufficiently low, or
the stator must be replaced (1).
