Daewoo Korando. Manual - part 317

7B/C-16  MANUAL & SEMIAUTO-HVAC

Removal & Installation Procedure

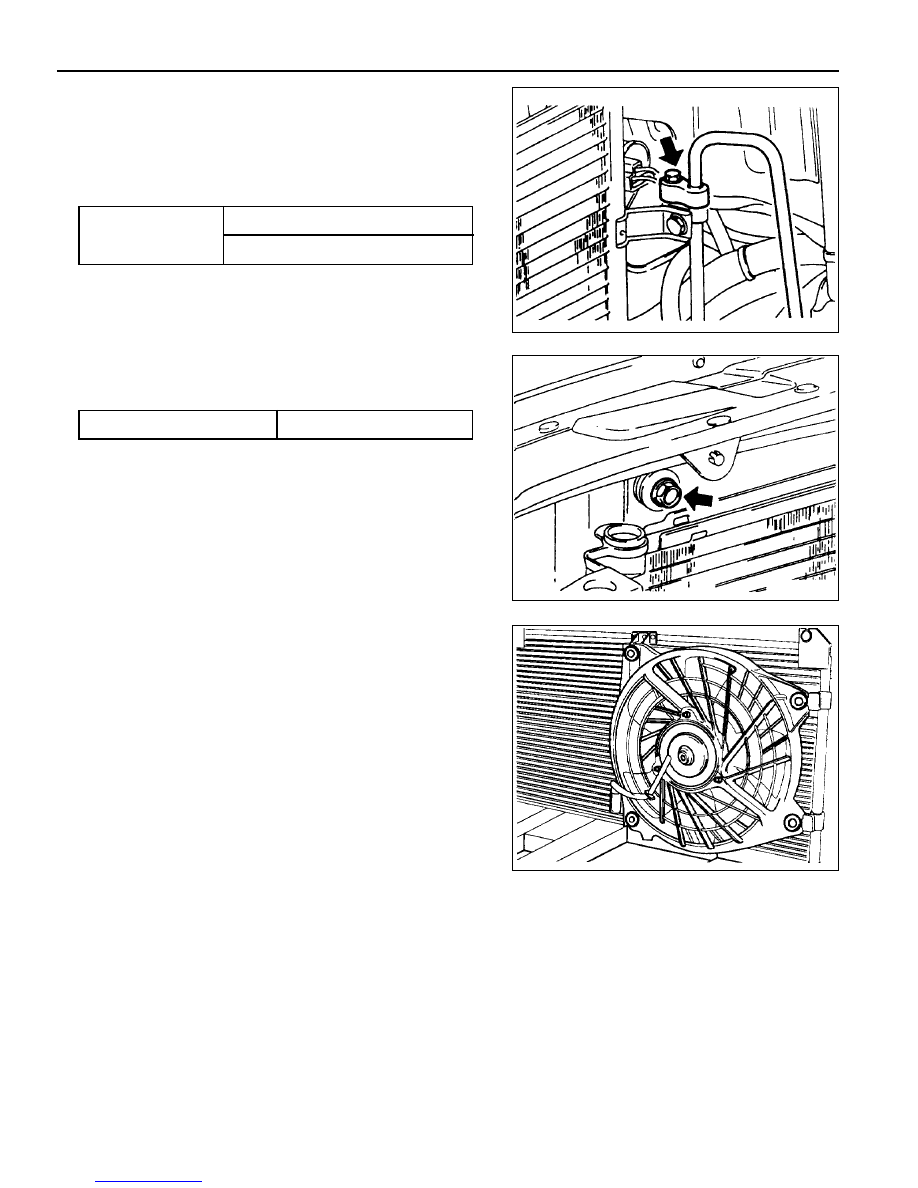

1. Disconnect the inlet and outlet pipes of condenser.

Notice

Before disconnection, evacuate the refrigerant from the
system.

Tightening Torque

 Inlet Side to 10 - 15 Nm

 Outlet Side to 4 - 6 Nm

Notice

When installing, check the O-ring and apply compressor oil.

2. Remove the mounting bolts (2EA) and condenser assembly.

Installation Notice

Tightening Torque

4 - 6 Nm

4. Installation should follow the removal procedure in the

reverse order.

3. Remove the main condenser fan from condenser.

MANUAL & SEMIAUTO-HVAC 7B/C-17

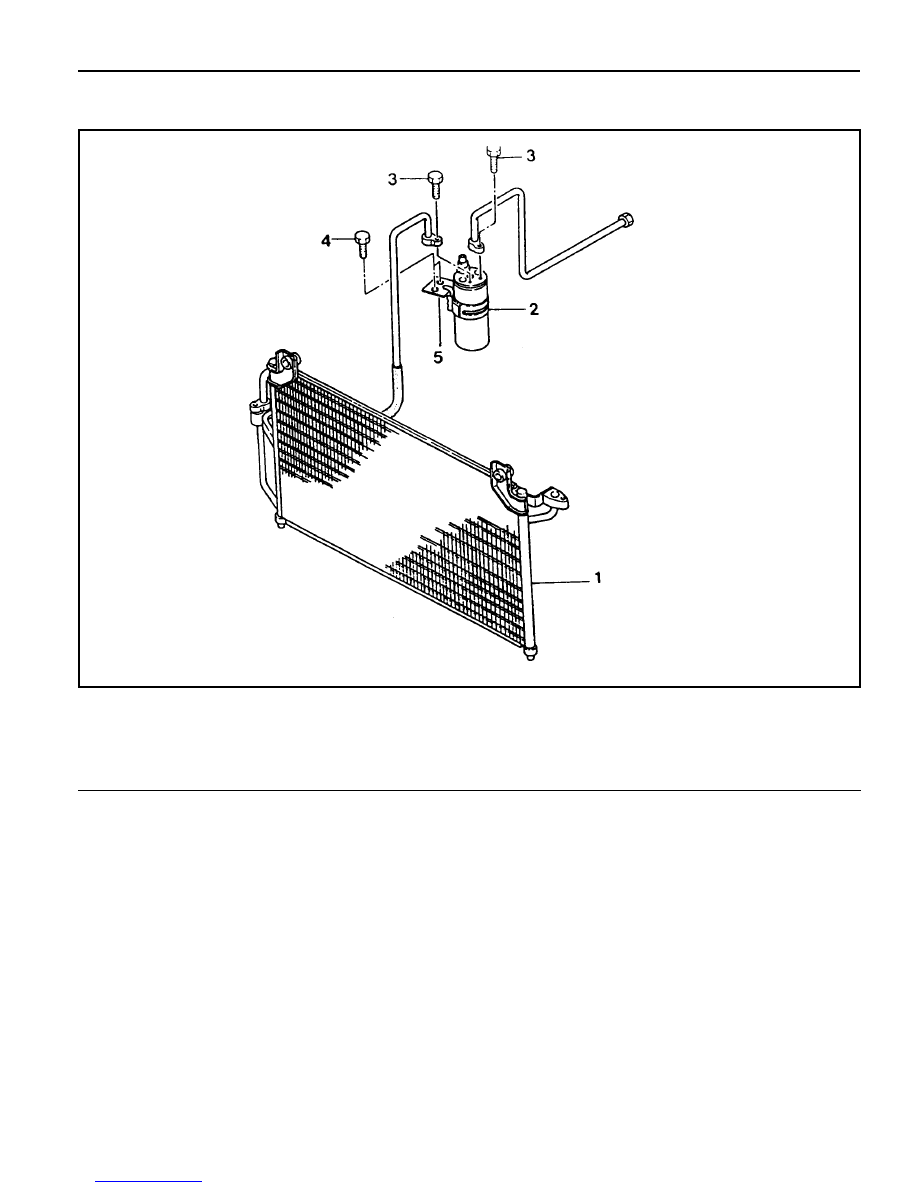

RECEIVER DRIER

1 Condenser
2 Receiver Drier
3 Bolt .........................................................  4-6 Nm

4 Bolt .......................................................... 5-8 Nm
5 Bracket

7B/C-18  MANUAL & SEMIAUTO-HVAC

Removal & Installation Procedure

1. Disconnect the negative(-) terminal from the battery.

2. Discharge refrigerant from the system.

Notice

By connecting a manifold gauge connection hose to High/
Low pressure line, discharge the refrigerant.

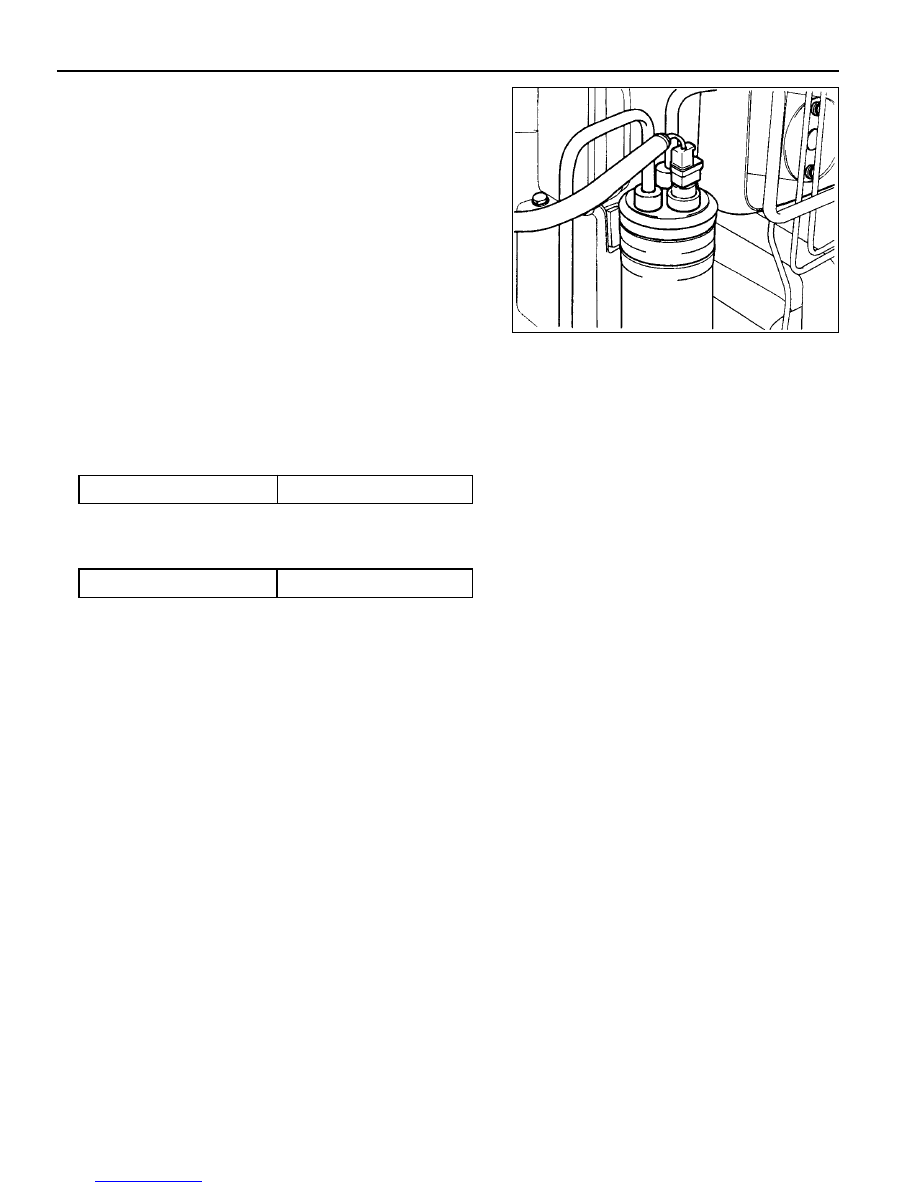

3. Disconnect the inlet and outlet pipes of receiver drier.

Notice

When installing, check the O-ring and apply the compressor
oil.

Installation Notice

4. Remove the bracket bolt and then remove the receiver drier.

Installation Notice

Tightening Torque

4 - 6 Nm

5. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

5 - 8 Nm

MANUAL & SEMIAUTO-HVAC 7B/C-19

4. Remove the mounting bolt from the compressor bracket

and remove compressor assembly.

Notice

Place the removed compressor in vertical position.

5. Installation should follow the removal procedure in the

reverse order.

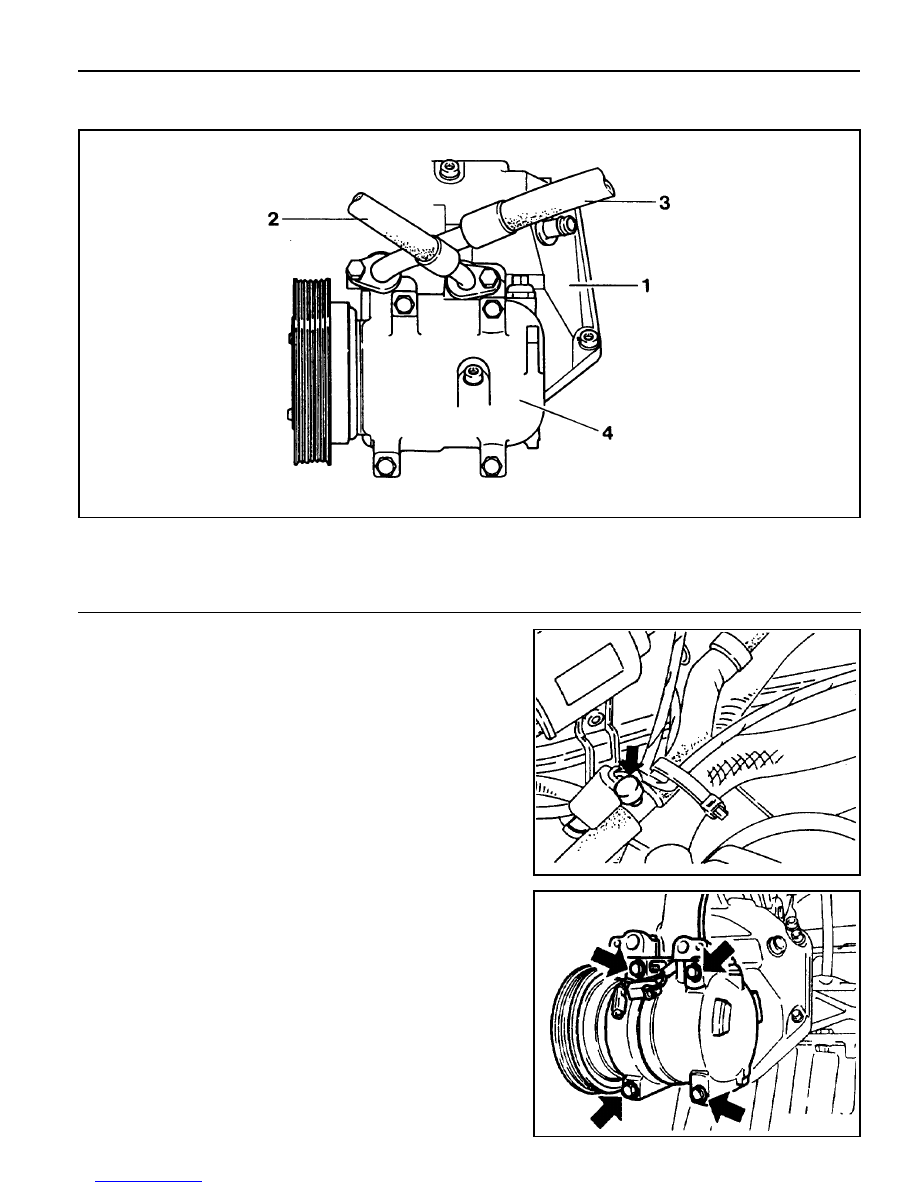

AIR-CONDITIONER COMPRESSOR

1 Compressor Bracket
2 High Pressure Hose

3 Low Pressure Hose
4 Compressor

Removal & Installation Procedure

1. Disconnect the negative(-) terminal from the battery.

2. Discharge refrigerant from the system.

Notice

By connecting a manifold gauge connection hose to High/
Low pressure line, discharge the refrigerant.

3. Disconnect the high / low pressure pipe and wire connectors.
