7B/C-8  MANUAL & SEMIAUTO-HVAC

AIR CONDITIONER SYSTEM

DIESEL ENGINE

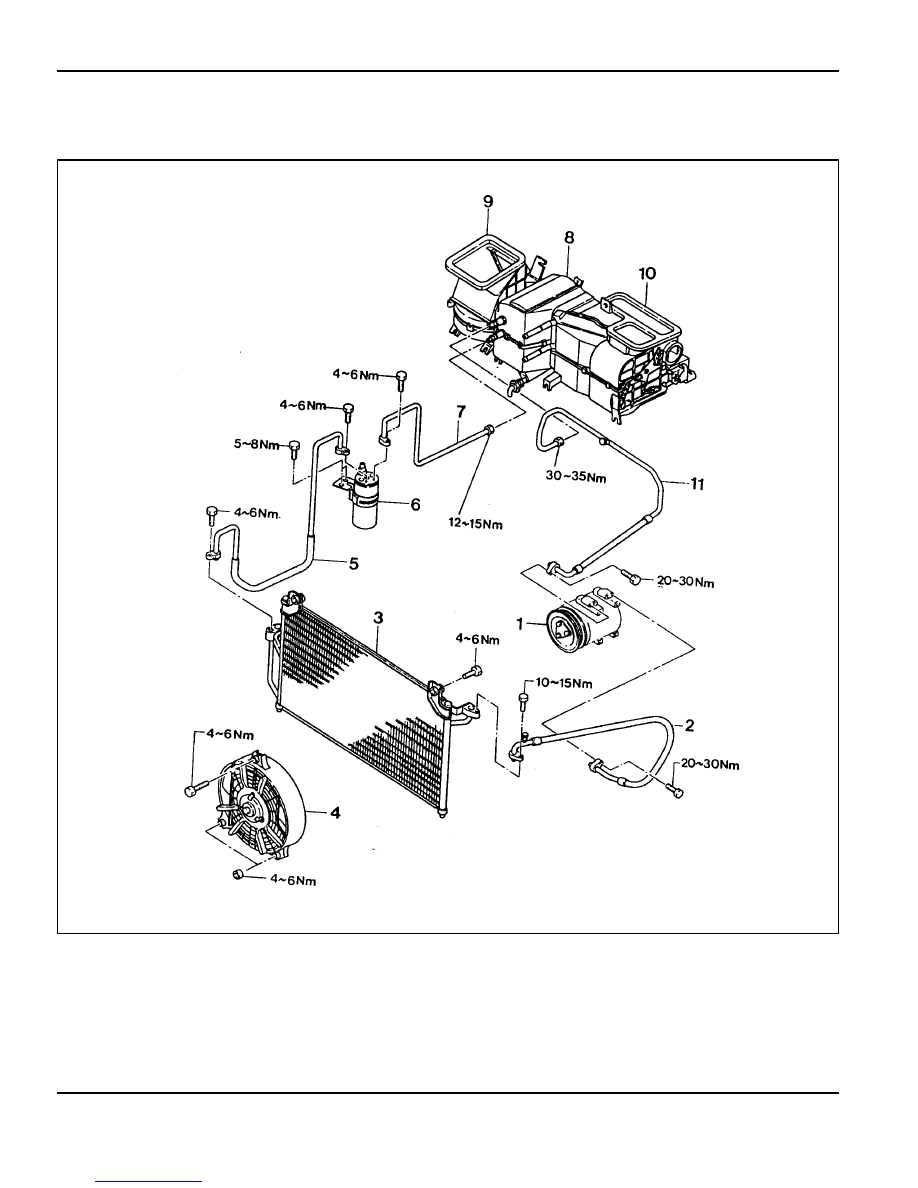

1 Compressor
2 High Pressure Hose
3 Condenser
4 Condenser Fan
5 Liquid Pipe (A)
6 Receiver Drier

7 Liquid (B)
8 Evaporator Assembly
9 Blower Unit

10 Heater Unit

11 Low Pressure Hose

MANUAL & SEMIAUTO-HVAC 7B/C-9

GASOLINE  ENGINE

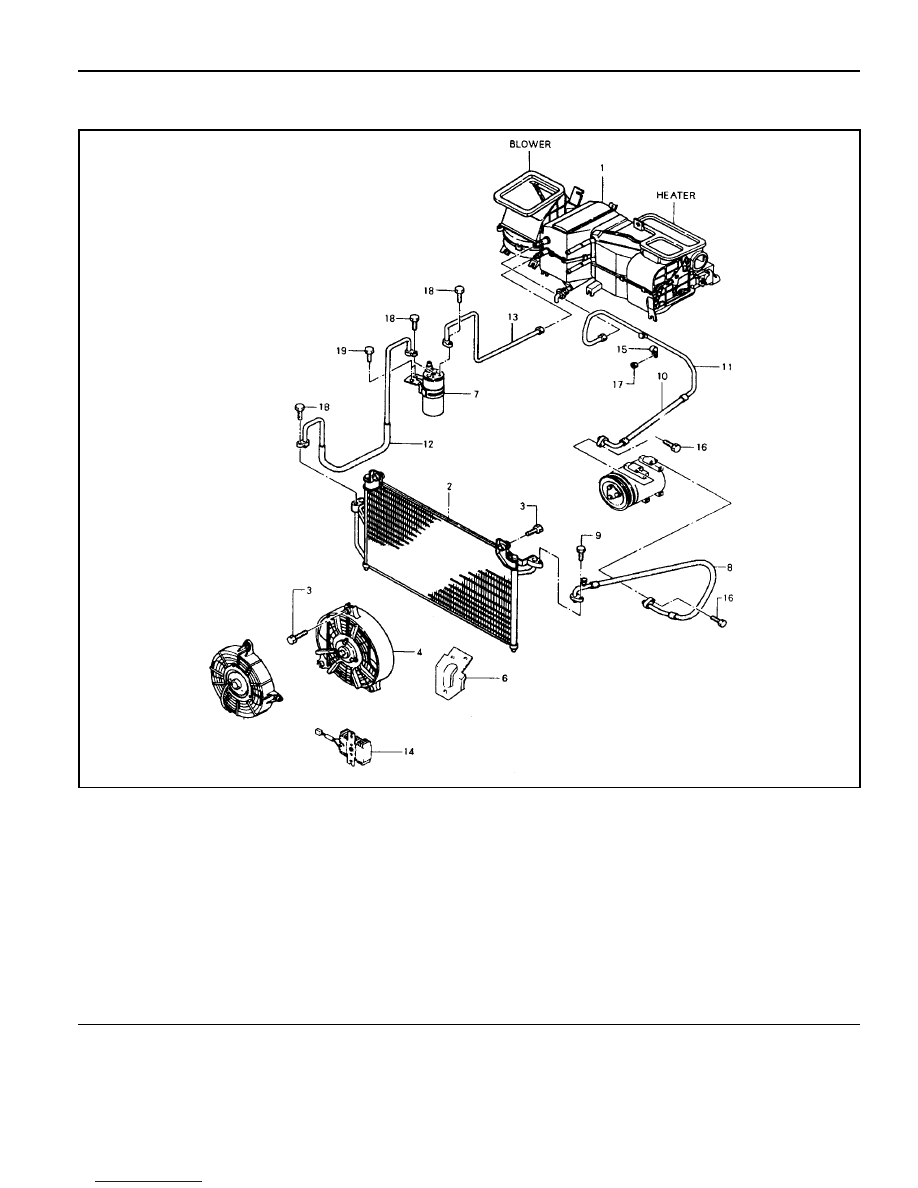

1 Evaporator Assembly
2 Condenser Assembly
3 Screw-Hex SEMS(M8x1.5x35)
4 Fan & Shroud Assembly-Main
5 Fan & Shroud Assembly-Add
6 Supplement Assembly-c/fan Mounting
7 Receiver & Bracket Assembly
8 Hose-Discharge
9 Bolt-Hex Sems(M8x1.25x30)

10 Hose Assembly-Suction

11 Pipe Assembly-Suction

12 Pipe-Liquid-A
13 Pipe-Liquid-B
14 Resister-Condenser Fan
15 Clip-Closed-CT(M8)
16 Bolt-Hex FLG(M8x1.25x25)
17 Nut-Hex(M6x1.0)
18 Screw-Hex SEMS(M6x1.0x25)
19 Screw-Hex SEMS(M6x1.0x16)

7B/C-10  MANUAL & SEMIAUTO-HVAC

HEATER SYSTEM

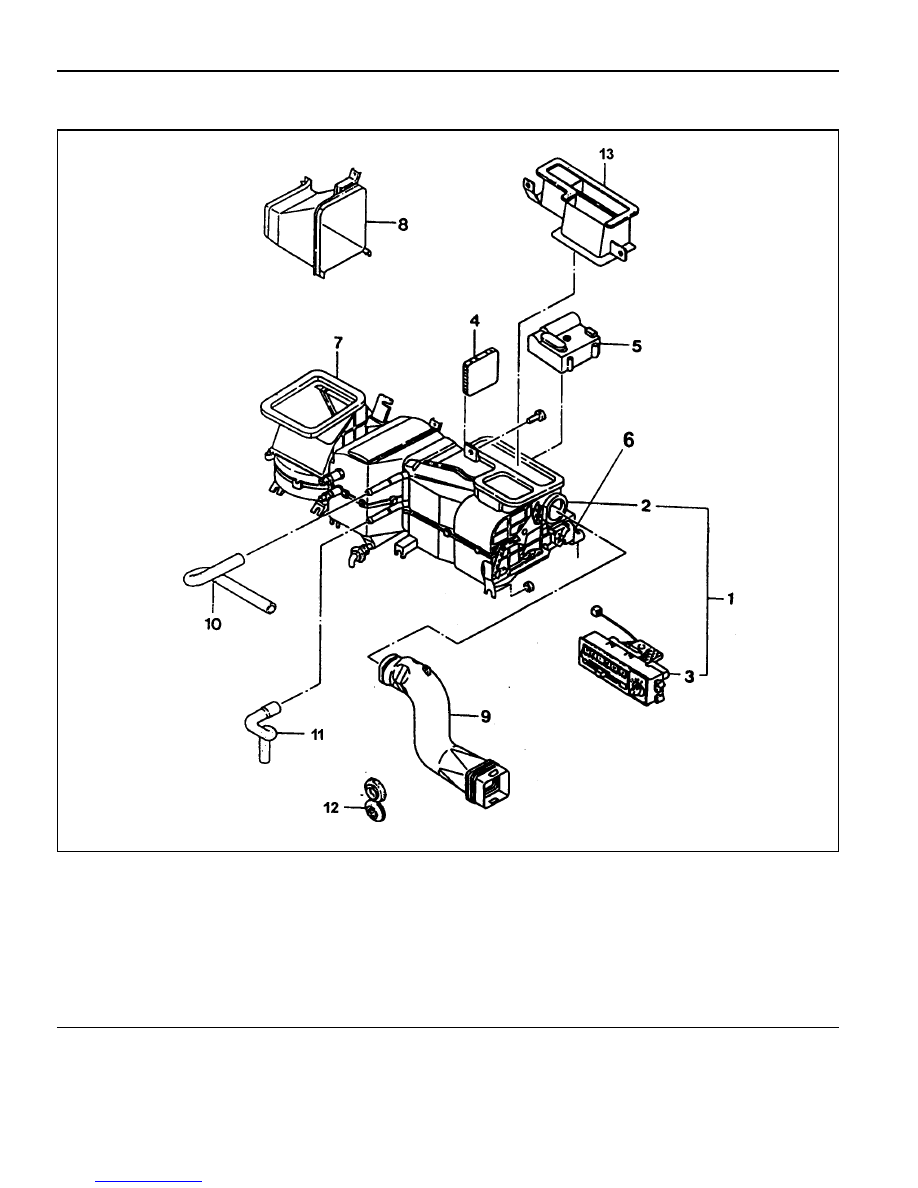

1 Heater/Heater Control Assembly
2 Heater Unit
3 Heater Control Box Assembly
4 Heater Unit Amp.
5 Mix Actuator Assembly
6 Mode Actuator Assembly
7 Blower Unit

8 Duct Assembly-HTR to Blower
9 Duct Assy-Side A/VENT No.1-LH

10 Water Inlet Hose

11 Water Outlet Hose

12 Heater Pipe Gromet
13 Duct Assy-HTR Connector

MANUAL & SEMIAUTO-HVAC 7B/C-11

REFRIGERANT CHARGING

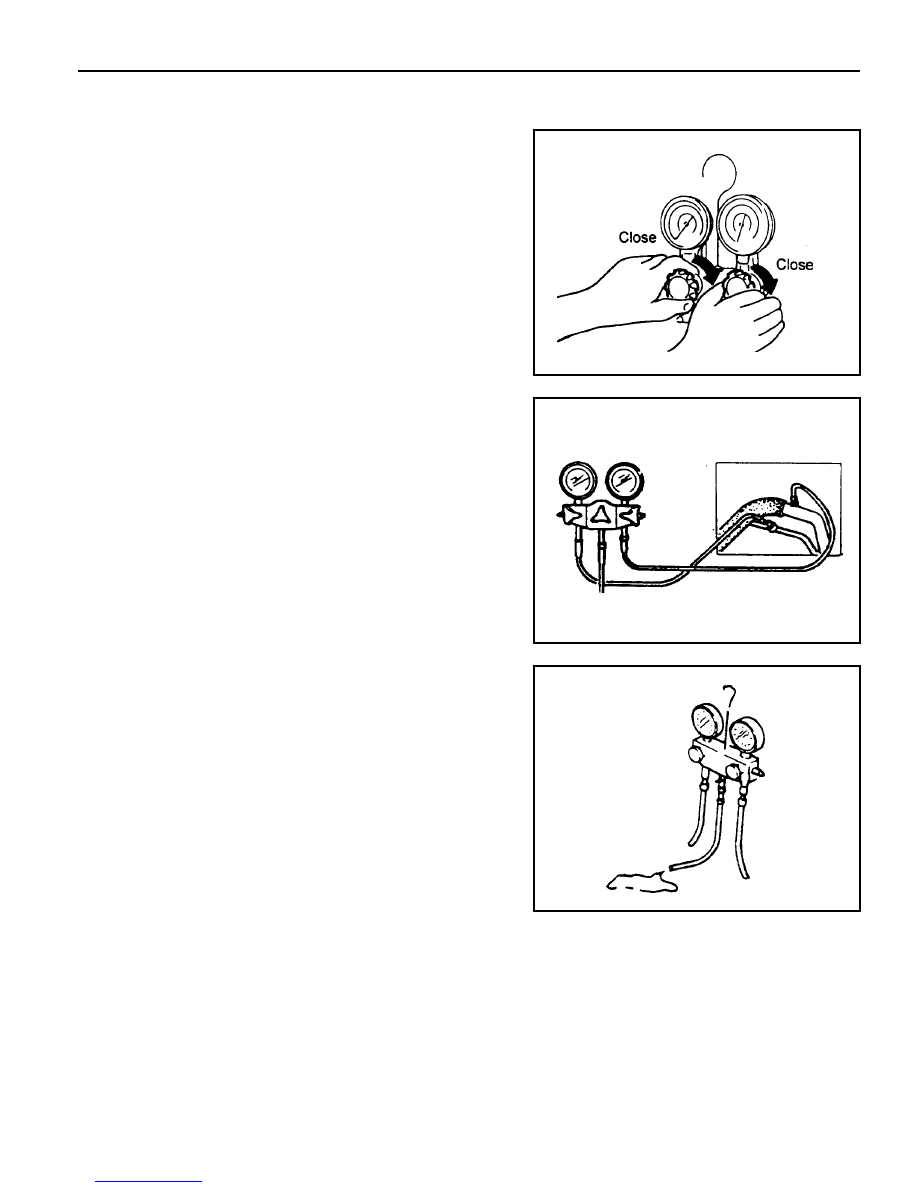

Installation of Manifold Gauge

1. Close both high/low pressure hand valve of gauge before

installation of gauge to the charging valve.

2. Connect the low pressure hose of the gauge to the low

pressure charging valve and the high pressure hose of the
gauge to high pressure charging valve. Tighten the hose
nuts by hand.

Discharging of Refrigerant

1. Connect the manifold gauge to the charging valve.

2. Place the free end of center hose in a shop towel.

3. Slowly open the high pressure hand valve and discharge

refrigerant.

Notice

If refrigerant is allowed to escape too fast, compressor oil
will be drawn out of the system.

MAINTENANCE AND REPAIR
