FRONT SUSPENSION  2C – 9

DAEWOO V–121 BL4

STABILIZER LINK

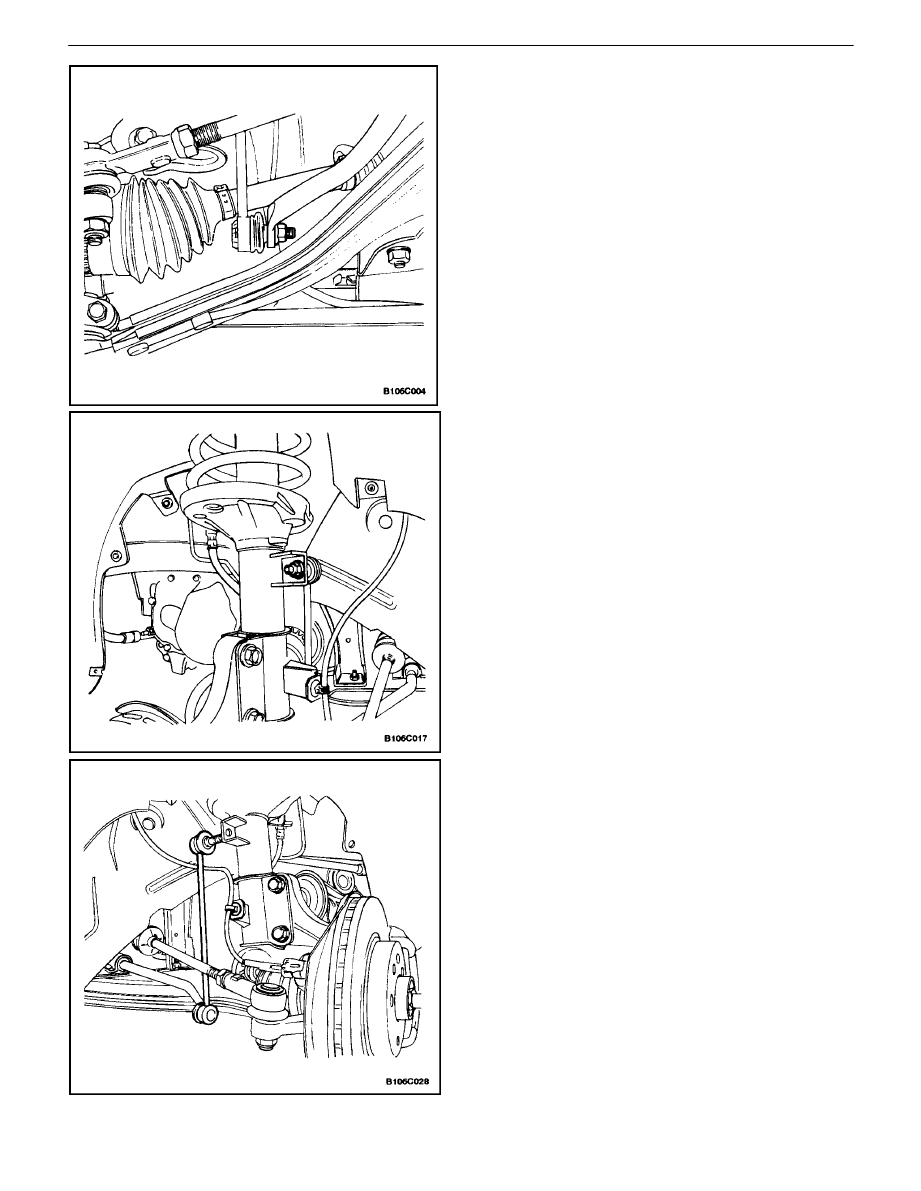

Removal Procedure

1.  Remove the stabilizer shaft–to–stabilizer link nut.

2.  Remove the stabilizer link–to–strut assembly nut.

3.  Remove the stabilizer link.

2C – 10

I

FRONT SUSPENSION

DAEWOO V–121 BL4

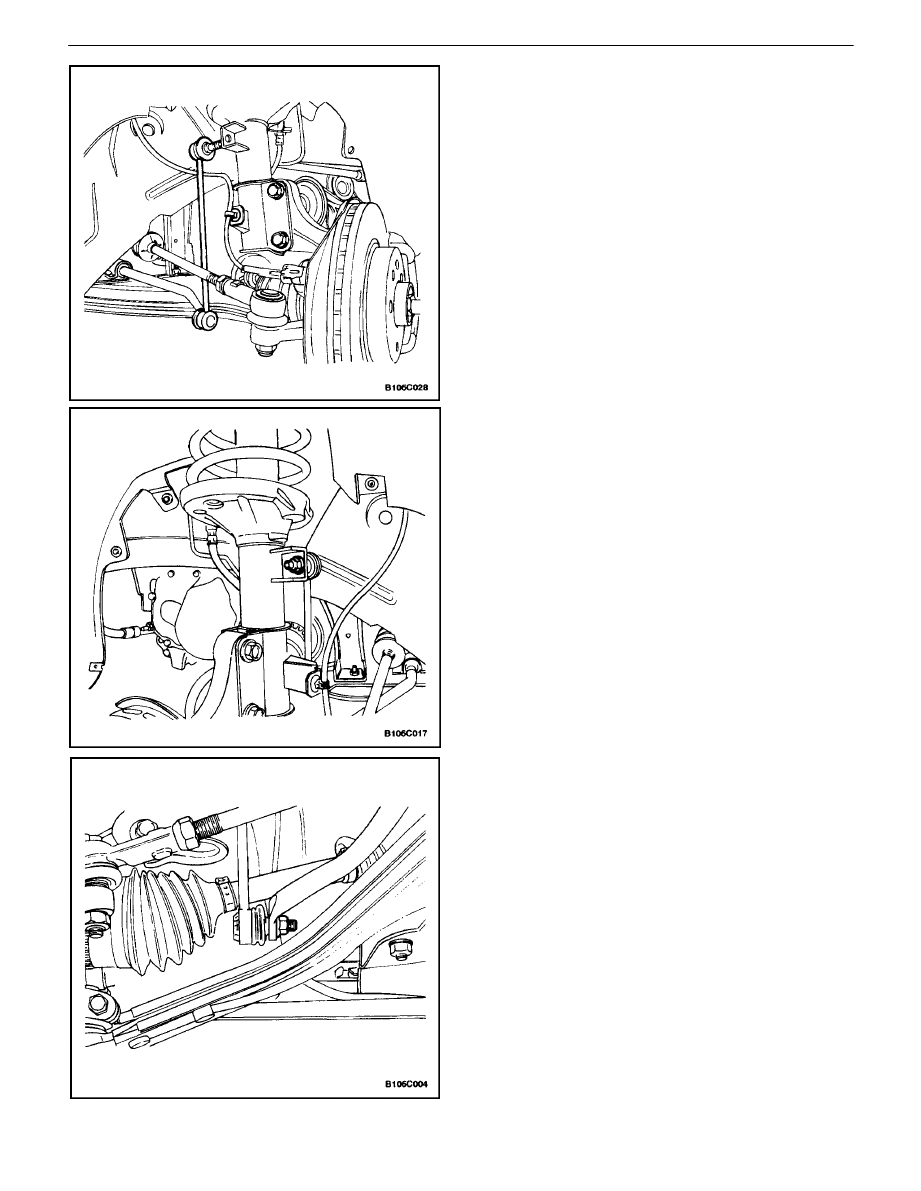

Installation Procedure

1.  Install the stabilizer link.

2.  Install the stabilizer link–to–strut assembly nut.

Tighten

Tighten the stabilizer link–to–strut assembly nut to 47
N

S

m (35 lb–ft).

3.  Install the stabilizer shaft–to–stabilizer link nut.

Tighten

Tighten the stabilizer shaft–to–stabilizer link nut to 47
N

S

m (35 lb–ft).

FRONT SUSPENSION  2C – 11

DAEWOO V–121 BL4

KNUCKLE ASSEMBLY

Tools Required

KM–507–B Ball Joint Remover

Removal Procedure

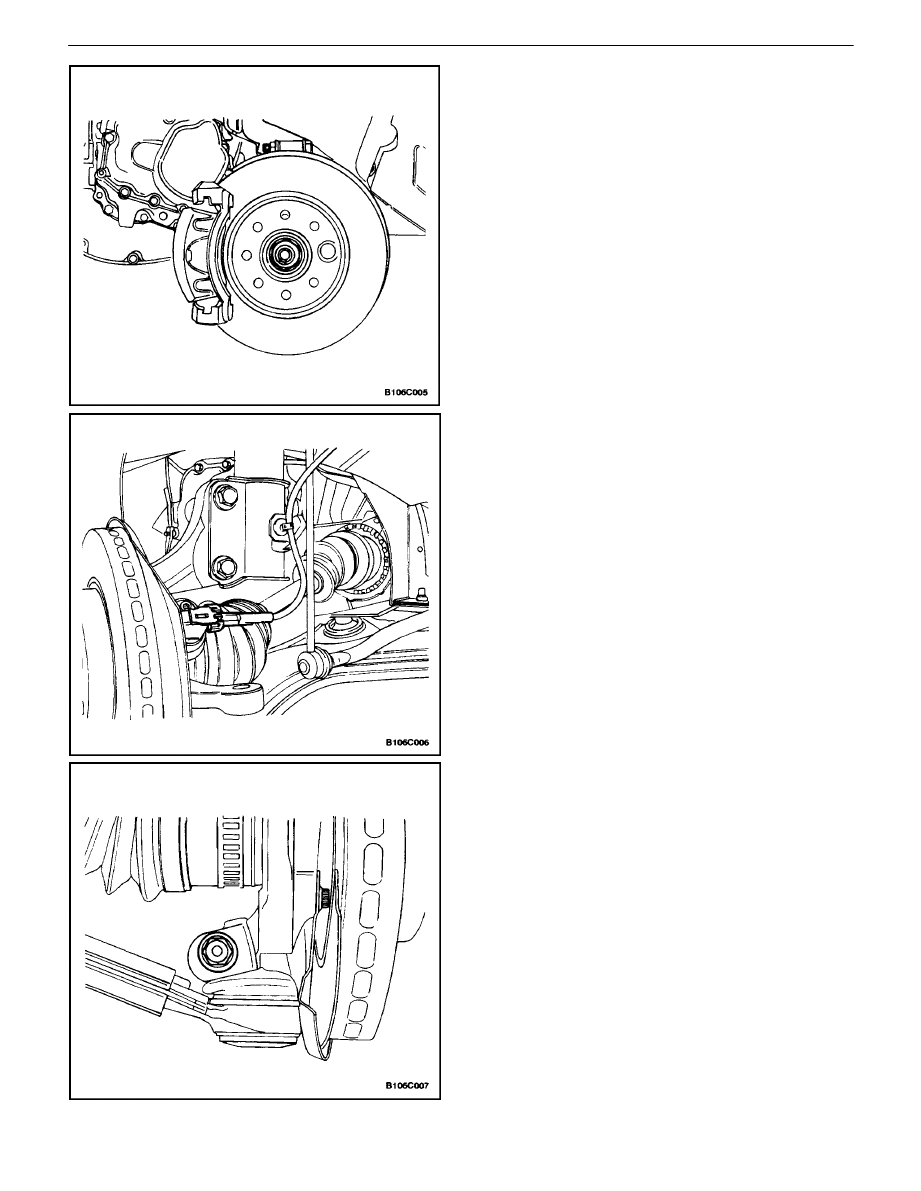

1.  Raise and suitably support the vehicle.
2.  Remove the wheel. Refer to Section 2E, Tires and

Wheels.

3.  Remove the caulking nut from the axle shaft.

4.  Remove the brake caliper from the rotor. Support

the caliper so it does not hang from the hydraulic
brake hose. Refer to Section 4D, Front Disc
Brakes.

5.  Remove the brake line from the knuckle.
6.  Remove the outer tie rod from the knuckle assem-

bly. Refer to Section 6C, Power Steering Gear.

7.  On vehicles equipped with the antilock braking sys-

tem (ABS), disconnect the ABS speed sensor elec-
trical connection from the knuckle.

8.  Remove the ball joint pinch bolt and the nut.

2C – 12

I

FRONT SUSPENSION

DAEWOO V–121 BL4

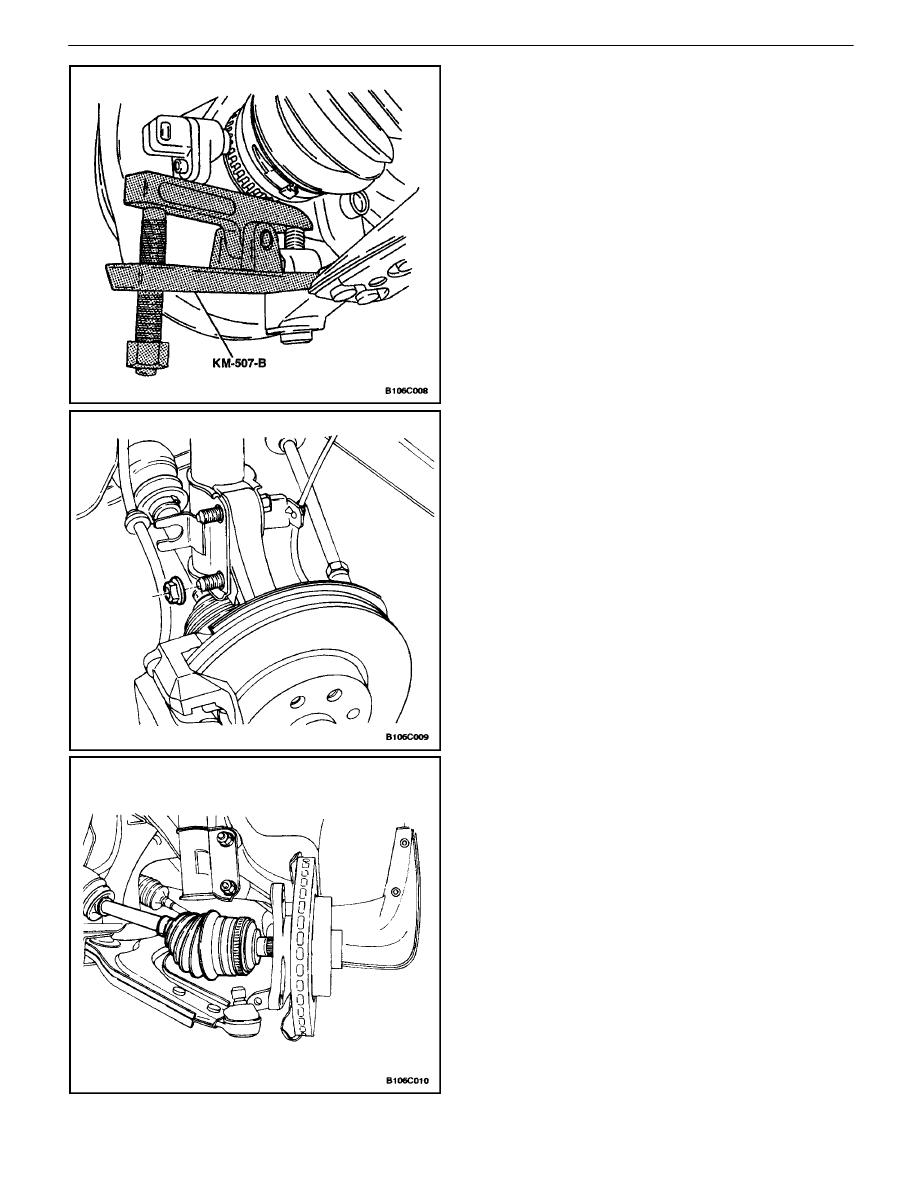

9.  Separate the knuckle from the ball joint using the

ball joint remover KM–507–B.

10.  Remove the nuts from the bolts that connect the

knuckle assembly to the strut assembly.

Notice : Do not over extend the axle joints. When either
end of the shaft is disconnected, overextension of the joint
can result in separation of internal components and pos-
sible joint failure. Use drive axle joint seal protectors when-
ever performing service on or near the drive axles. Failure
to do so can cause internal joint or seal damage and result
in possible joint failure.

11.  Separate the drive axle shaft from the wheel hub.
