Daewoo Nubira. Manual - part 232





FRONT SUSPENSION  2C – 5

DAEWOO V–121 BL4

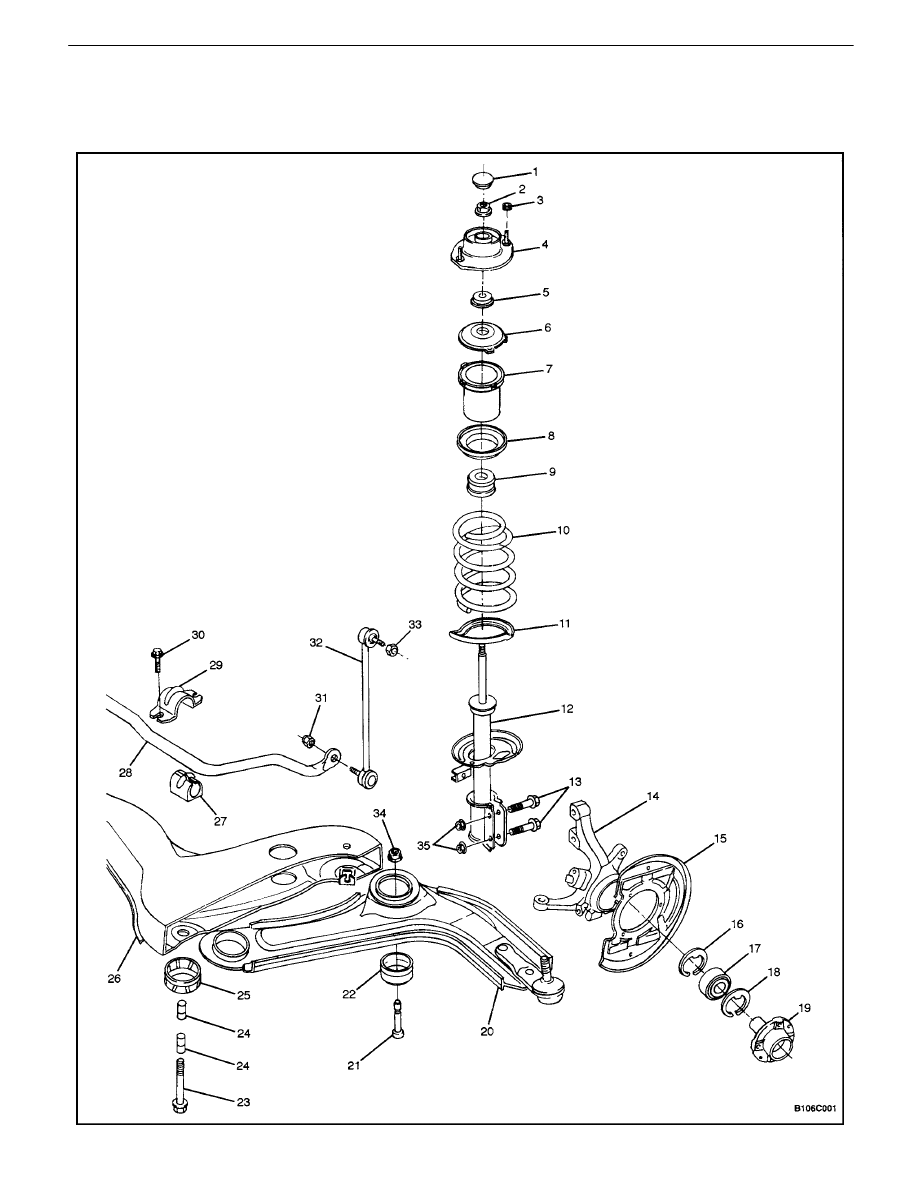

COMPONENT LOCATOR

FRONT SUSPENSION

2C – 6

I

FRONT SUSPENSION

DAEWOO V–121 BL4

1.  Strut Mount Cap
2.  Piston Rod Nut
3.  Strut Assembly–to–Body Nut
4. Strut

Mount

5.  Strut Mount Bearing
6.  Upper Spring Seat
7.  Front Spring Locator
8.  Upper Spring Ring Insulator
9. Hollow

Bumper

10. Front Spring
11.  Lower Spring Ring Insulator
12. Strut Dampener
13.  Steering Knuckle–to–Strut Assembly Bolt
14. Steering Knuckle
15. Brake Shield
16.  Inner Snap Ring
17.  Front Hub Bearing
18.  Outer Snap Ring

19. Front Hub
20. Control Arm
21.  Control Arm Front Mounting Bolt
22.  Control Arm Front Damping Bushing
23.  Rear Crossmember–to–Body Bolt
24. Split Sleeve
25.  Control Arm Rear Damping Bushing
26.  Front Suspension Crossmember
27.  Stabilizer Shaft Insulator
28. Stabilizer Shaft
29.  Stabilizer Shaft Insulator Clamp
30.  Stabilizer Shaft–to–Crossmember Clamp Bolt
31.  Stabilizer Shaft–to–Stabilizer Link Nut
32. Stabilizer Link
33.  Stabilizer Link–to–Strut Assembly Nut
34.  Control Arm–to–Crossmember Nut
35.  Steering Knuckle–to–Strut Assembly Nut

FRONT SUSPENSION  2C – 7

DAEWOO V–121 BL4

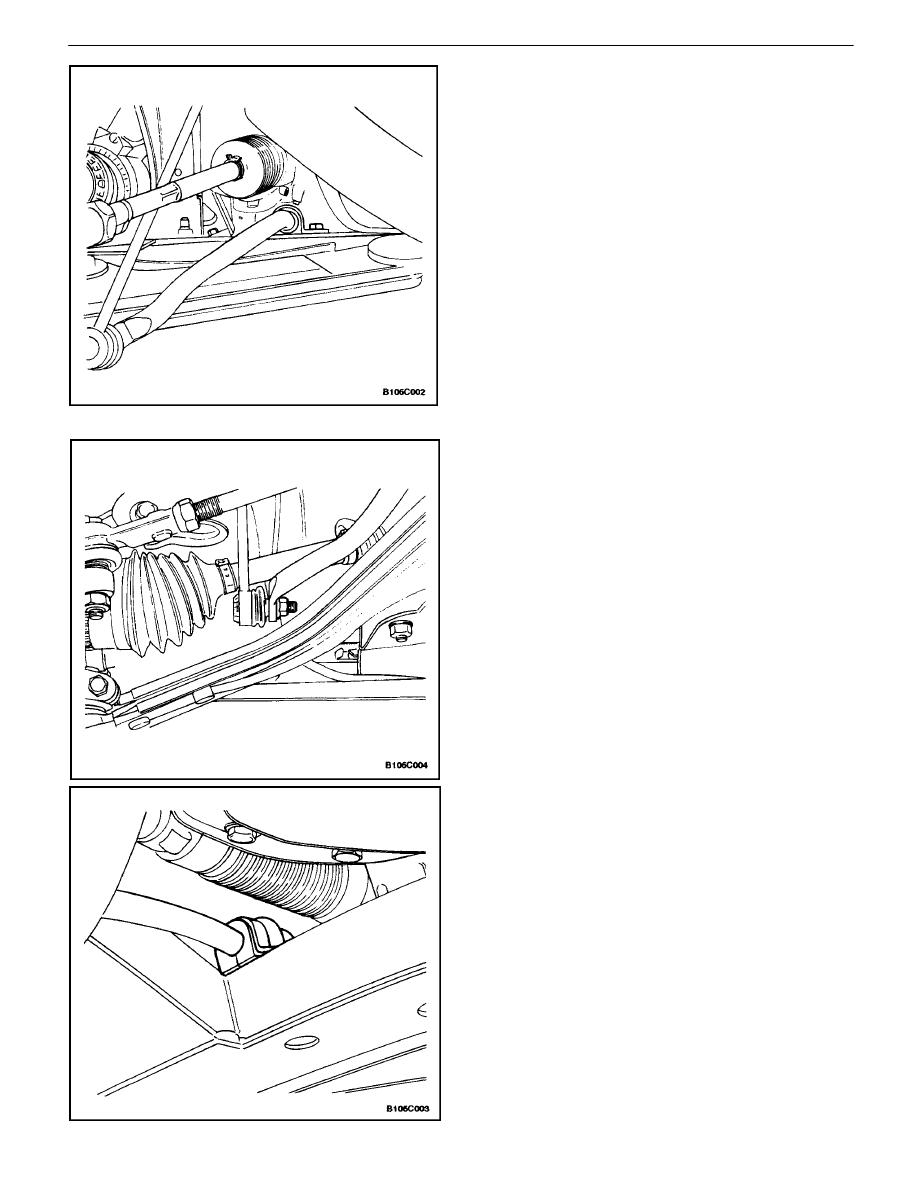

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

STABILIZER SHAFT AND
INSULATORS

Removal Procedure

1.  Raise and suitably support the vehicle, allowing the

control arms to hang free.

2.  Remove the front wheels. Refer to Section 2E,

Tires and Wheels.

3.  Remove the stabilizer shaft–to–crossmember

clamp bolt.

4.  Remove the stabilizer shaft–to–stabilizer link nut.

5.  Remove the stabilizer shaft, the stabilizer shaft in-

sulator clamp, and the insulators from the vehicle.

2C – 8

I

FRONT SUSPENSION

DAEWOO V–121 BL4

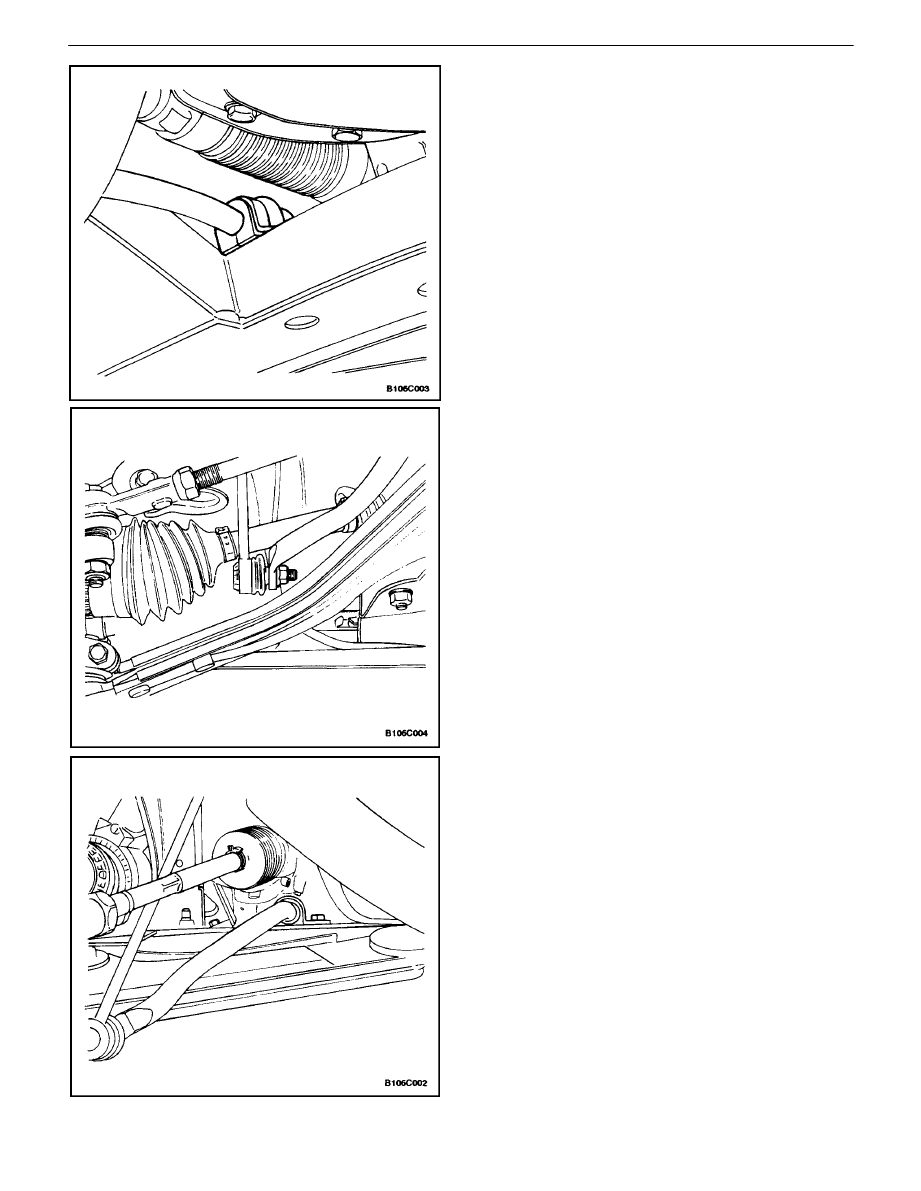

Installation Procedure

1.  Install the stabilizer shaft.
2.  Install the stabilizer shaft insulator clamps, the sta-

bilizer shaft clamp bolt, and the insulators. Do not
tighten the bolt.

3.  Install the stabilizer link onto the stabilizer shaft and

connect them with the stabilizer shaft–to–stabilizer
link nut.

Tighten

Tighten the stabilizer shaft–to–stabilizer link nut to 47
N

S

m (35 lb–ft).

Tighten

Tighten the stabilizer shaft–to–crossmember clamp
bolt to 25 N

S

m (18 lb–ft).

4.  Install the front wheels. Refer to Section 2E, Tires

and Wheels.
